SAFETY
115
55
Child safety
This child seat can also be used on
s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X
mountings.
In this case, it must be attached to the
vehicle seat using the three point seat
belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g
the child seat given in the seat
manufacturer's installation guide.
"ISOFIX" MOUNTINGS
Your vehicle has been approved in
accordance with the new ISOFIX regulation.
The mountings comprise three rings for
each seat:
ISOFIX CHILD SEAT
RECOMMENDED BY CITROËN
AND APPROVED FOR YOUR
VEHICLE

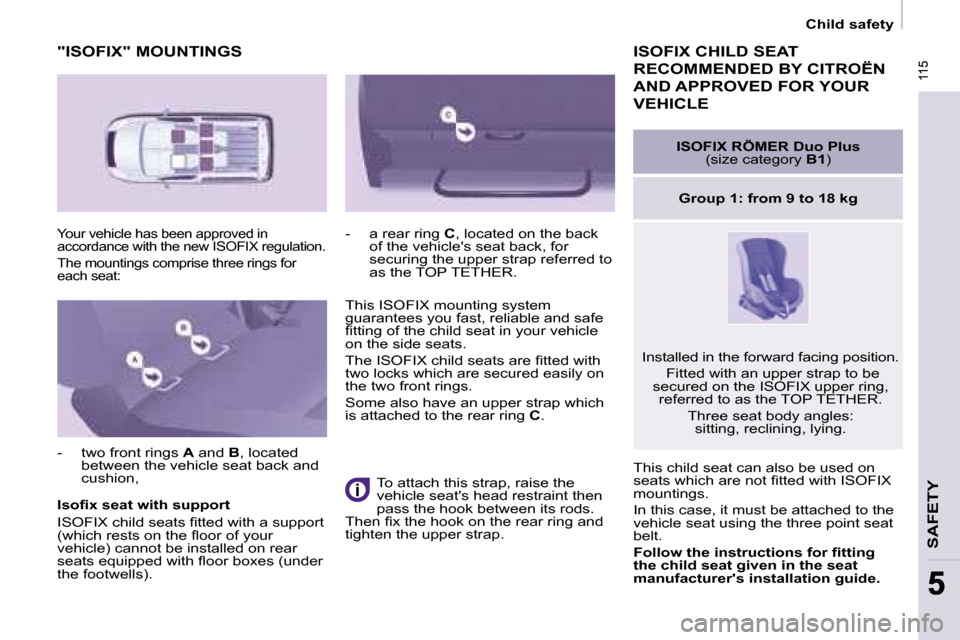

ISOFIX RÖMER Duo Plus
(size category B1 )
Group 1: from 9 to 18 kg
Installed in the forward facing position. Fitted with an upper strap to be
secured on the ISOFIX upper ring, referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
- two front rings A and B , located
between the vehicle seat back and
cushion, - a rear ring
C , located on the back
of the vehicle's seat back, for
securing the upper strap referred to
as the TOP TETHER.
This ISOFIX mounting system
guarantees you fast, reliable and safe
fi t t i n g o f t h e c h i l d s e a t i n y o u r v e h i c l e
on the side seats.
T h e I S O F I X c h i l d s e a t s a r e fi t t e d w i t h
two locks which are secured easily on
the two front rings.
Some also have an upper strap which
is attached to the rear ring C .
To attach this strap, raise the
vehicle seat's head restraint then
pass the hook between its rods.
T h e n fi x t h e h o o k o n t h e r e a r r i n g a n d
tighten the upper strap.
I s o fi x s e a t w i t h s u p p o r t
I S O F I X c h i l d s e a t s fi t t e d w i t h a s u p p o r t
( w h i c h r e s t s o n t h e fl o o r o f y o u r
vehicle) cannot be installed on rear
s e a t s e q u i p p e d w i t h fl o o r b o x e s ( u n d e r
the footwells).
Page 122 of 161
117 117
55
Child safety
ADVICE ON CHILD SEATS
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body to a
minimum , even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back
of the child seat is in contact with the
back of the vehicle's seat and that the
head restraint does not cause any
discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
w e r e t o i n fl a t e .
As a safety precaution, do not leave:
- one or more children alone and unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle. Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
with a seat belt guide at shoulder level.
CHILD LOCK
This prevents opening of the side
doors from the inside. Manual mode
A label indicates the location of the
child lock.
- Open fully past the point of
resistance.
- Tilt the lever, located on the rear section of the door.
D e p e n d i n g o n t h e c o n fi g u r a t i o n o f y o u r
v e h i c l e , a m e s s a g e c o n fi r m i n g t h e
activation of the child lock appears on
the display.
Electric mode
With the ignition on, press
this button. The diode comes
on, accompanied by a
message on the display.
Warning: this system is independent of
the central locking control.
Always remove the ignition key when
leaving the vehicle, even for a short
time.
It is advisable to check the activation of
the child lock each time the ignition is
switched on.
In the event of a serious impact the
electric child lock is deactivated
automatically.
To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the rays
o f t h e s u n , fi t s i d e b l i n d s t o t h e r e a r
windows.
Page 123 of 161
118
Towing a trailer For more information about
weights, refer to the administrative
documents (V5 registration
document, ...) or to the "Weights"
section of chapter 9.
TOWING A TRAILER, CARAVAN, BOAT, ETC...
Distribution of loads
Distribute the load in the trailer so
that the heaviest objects are as
close as possible to the axle and
the nose weight is close to the
maximum authorised without, however,
exceeding it.
Cooling
Towing a trailer on a slope increases
the coolant temperature. As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.
Driving advice
A towed vehicle must free wheel:
gearbox in neutral.
Page 124 of 161
119
Towing a trailer
ACCESSORIES
6
Good Practice
In certain cases of particularly arduous
use (towing the maximum load up a
steep slope in high temperatures), the
engine automatically limits its power. In
this case, the automatic cutting off of
the air conditioning allows the engine
power to be recovered. Tyres: check the tyre pressures
of the towing vehicle (see the
" I d e n t i fi c a t i o n f e a t u r e s " s e c t i o n o f
chapter 9) and of the trailer, observing
the recommended pressure. See the "Levels" section of chapter 7.
If the coolant temperature
warning light comes on, stop
the vehicle and switch off the
engine as soon as possible.
Brakes
Towing increases the braking distance.
Drive at a moderate speed, change

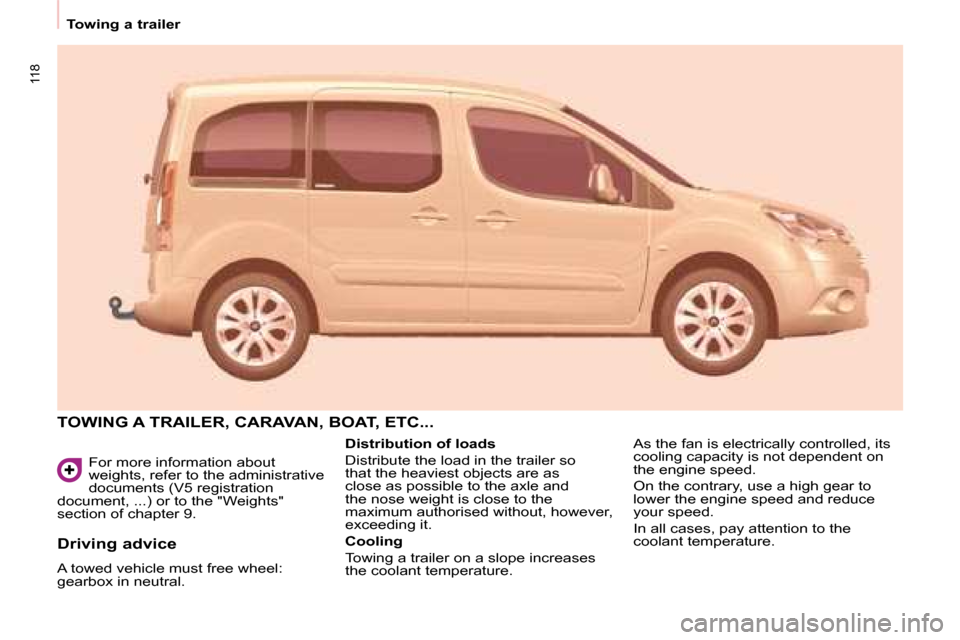

down early and brake gradually. Towbar
We recommend the use of original
CITROËN towbars and their
harnesses, which have been tested
and approved from the design stage of
your vehicle, and that you entrust the
fi t t i n g o f t h i s e q u i p m e n t t o a C I T R O Ë N
dealer.
I f t h i s e q u i p m e n t i s n o t fi t t e d b y a
CITROËN dealer, it is imperative that
i t i s fi t t e d u s i n g t h e e l e c t r i c a l p r e -
e q u i p m e n t i n s t a l l e d a t t h e r e a r o f t h e
vehicle and in accordance with the
manufacturer's instructions.
In accordance with the general
instructions a reminder of which has
been given above, we draw your
a t t e n t i o n t o t h e r i s k l i n k e d w i t h fi t t i n g
a towbar or electrical accessory not
recommended by CITROËN . Fitting
s u c h e q u i p m e n t c o u l d r e s u l t i n t h e
failure of your vehicle's electronic
system. Please contact a CITROËN
d e a l e r f o r i n f o r m a t i o n b e f o r e fi t t i n g t h i s
t y p e o f e q u i p m e n t .
Side wind
Sensitivity to side wind is increased.
Drive smoothly and at a moderate
speed.
ABS/ESP
The ABS or ESP systems only control
the vehicle, not the trailer or caravan.
Rear parking assistance
The assistance does not function while
the vehicle is towing. A further range is also available,
structured around comfort, leisure and
maintenance:
A n t i - t h e f t a l a r m , w i n d o w e n g r a v i n g ,
fi r s t a i d k i t , h i g h v i s i b i l i t y j a c k e t , r e a r
parking assistance, warning triangle, ... OTHER ACCESSORIES
These accessories and parts, having
been tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide range of recommended
accessories and original parts is offered.
Page 125 of 161
119
Towing a trailer
ACCESSORIES
6
Good Practice
In certain cases of particularly arduous
use (towing the maximum load up a
steep slope in high temperatures), the
engine automatically limits its power. In
this case, the automatic cutting off of
the air conditioning allows the engine
power to be recovered. Tyres: check the tyre pressures
of the towing vehicle (see the
" I d e n t i fi c a t i o n f e a t u r e s " s e c t i o n o f
chapter 9) and of the trailer, observing
the recommended pressure. See the "Levels" section of chapter 7.
If the coolant temperature
warning light comes on, stop
the vehicle and switch off the
engine as soon as possible.
Brakes
Towing increases the braking distance.
Drive at a moderate speed, change
down early and brake gradually. Towbar
We recommend the use of original
CITROËN towbars and their
harnesses, which have been tested
and approved from the design stage of
your vehicle, and that you entrust the
fi t t i n g o f t h i s e q u i p m e n t t o a C I T R O Ë N
dealer.
I f t h i s e q u i p m e n t i s n o t fi t t e d b y a
CITROËN dealer, it is imperative that
i t i s fi t t e d u s i n g t h e e l e c t r i c a l p r e -
e q u i p m e n t i n s t a l l e d a t t h e r e a r o f t h e
vehicle and in accordance with the
manufacturer's instructions.
In accordance with the general
instructions a reminder of which has
been given above, we draw your
a t t e n t i o n t o t h e r i s k l i n k e d w i t h fi t t i n g
a towbar or electrical accessory not
recommended by CITROËN . Fitting
s u c h e q u i p m e n t c o u l d r e s u l t i n t h e
failure of your vehicle's electronic
system. Please contact a CITROËN
d e a l e r f o r i n f o r m a t i o n b e f o r e fi t t i n g t h i s
t y p e o f e q u i p m e n t .
Side wind
Sensitivity to side wind is increased.
Drive smoothly and at a moderate
speed.
ABS/ESP
The ABS or ESP systems only control
the vehicle, not the trailer or caravan.
Rear parking assistance
The assistance does not function while
the vehicle is towing. A further range is also available,
structured around comfort, leisure and
maintenance:
A n t i - t h e f t a l a r m , w i n d o w e n g r a v i n g ,
fi r s t a i d k i t , h i g h v i s i b i l i t y j a c k e t , r e a r
parking assistance, warning triangle, ... OTHER ACCESSORIES
These accessories and parts, having
been tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide range of recommended
accessories and original parts is offered.
Page 126 of 161
120
Equipment T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not
recommended by CITROËN may
result in a failure of your vehicle's
electronic system. Please note this
s p e c i fi c w a r n i n g . Y o u a r e a d v i s e d
to contact a dealer to be shown the
r a n g e o f r e c o m m e n d e d e q u i p m e n t o r
accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a high visibility jacket, warning
triangle and spare bulbs available in
the vehicle.
F r o n t m u d fl a p s , r e a r m u d fl a p s ,
15/17 inch alloy wheels, wheelarch
trim, leather steering wheel, ...
Screenwash, interior and exterior
cleaning and maintenance products,
spare bulbs, ...
Seat covers compatible with air bags
for the front seats, bench seat, rubber
mats, carpet mats, snow chains, blinds,
tailgate bicycle carrier, ...
To prevent the mat from becoming
caught under the pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s
are positioned correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
A u d i o e q u i p m e n t , h a n d s - f r e e k i t ,
speakers, CD changer, navigation, ...
Regardless of the audio and telematic
e q u i p m e n t o f f e r e d o n t h e m a r k e t , t h e
technical constraints linked with the
fi t t i n g o f e q u i p m e n t o f t h e s e p r o d u c t
groups mean that the special features
o f t h e e q u i p m e n t a n d i t s c o m p a t i b i l i t y
with the capacities of your vehicle's
s t a n d a r d e q u i p m e n t m u s t b e t a k e n i n t o
account. Please ask a CITROËN dealer
f o r f u r t h e r i n f o r m a t i o n b e f o r e fi t t i n g s u c h
e q u i p m e n t .
Maximum weights on bars
- T r a n s v e r s e b a r s o n l o n g i t u d i n a l bars: 75 Kg (these bars are not
compatible with the Zenith roof). Installing radiocommunication
transmitters
Y o u a r e a d v i s e d t o c o n t a c t a C I T R O Ë N
dealer before installing accessory
radiocommunication transmitters with
external aerial on your vehicle.
The CITROËN network will inform you
o f t h e c h a r a c t e r i s t i c s ( f r e q u e n c y b a n d ,
maximum output power, aerial position,
s p e c i fi c c o n d i t i o n s o f i n s t a l l a t i o n ) o f
t h e t r a n s m i t t e r s w h i c h c a n b e fi t t e d ,
in accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).
"Active Fleet Data" telematic unit
Connected directly to the heart of the
vehicle (multiplexed network: "Full
CAN"), the telematic unit, by means of
a "ready to use" service, permits the
sending in real time of information such
as:
- d i s t a n c e t r a v e l l e d ,
- d i s t a n c e r e m a i n i n g b e f o r e t h e n e x t
service,
- w a r n i n g s a n d f a u l t s ( o i l l e v e l , coolant level, oil temperature,
coolant temperature, etc ...).
This enables "Fleet" mangers
to optimise the monitoring and
management of their professional
vehicles.
According to country, contact
a CITROËN dealer for further
information.
Page 127 of 161
122
Opening the bonnet
OPENING THE BONNET
Bonnet strut
Secure the strut in its location,
i d e n t i fi e d b y a s t i c k e r o n t h e l e f t - h a n d
p a n e l s i d e o f t h e v e h i c l e , t o h o l d t h e
b o n n e t o p e n .
B e f o r e c l o s i n g t h e b o n n e t , p u t t h e s t r u t
b a c k i n i t s c l i p w i t h o u t u s i n g e x c e s s i v e
f o r c e .
On the outside
R a i s e t h e b o n n e t s l i g h t l y b y r e a c h i n g
i n a fl a t h a n d , p a l m d o w n , t o m a k e
a c c e s s t o t h e l e v e r e a s i e r .
W i t h t h i s h a n d , p u s h t h e l e v e r t o t h e
l e f t . R a i s e t h e b o n n e t .
On the inside
P u l l t h e l e v e r u n d e r t h e f a s c i a p a n e l
t o w a r d s y o u . T h e b o n n e t i s u n l o c k e d .
To close
L o w e r t h e b o n n e t a n d r e l e a s e i t a t t h e
e n d o f i t s t r a v e l . C h e c k t h a t t h e b o n n e t
i s l o c k e d .
A v o i d m a n o e u v r i n g t h e b o n n e t i n
s t r o n g w i n d s .
Page 128 of 161
123
77
Under the bonnet

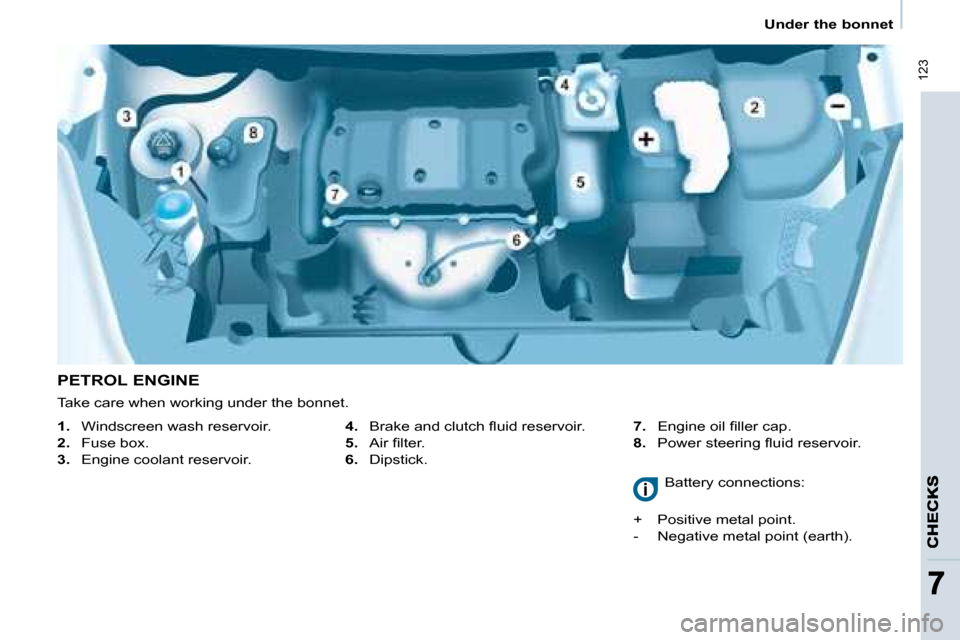

PETROL ENGINE
4. B r a k e a n d c l u t c h fl u i d r e s e r v o i r .
5. A i r fi l t e r .
6. D i p s t i c k .
7. E n g i n e o i l fi l l e r c a p .
8. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
1. W i n d s c r e e n w a s h r e s e r v o i r .
2. F u s e b o x .
3. E n g i n e c o o l a n t r e s e r v o i r .
B a t t e r y c o n n e c t i o n s :
+ P o s i t i v e m e t a l p o i n t .
- N e g a t i v e m e t a l p o i n t ( e a r t h ) .
T a k e c a r e w h e n w o r k i n g u n d e r t h e b o n n e t .
Page 129 of 161
124
Under the bonnet

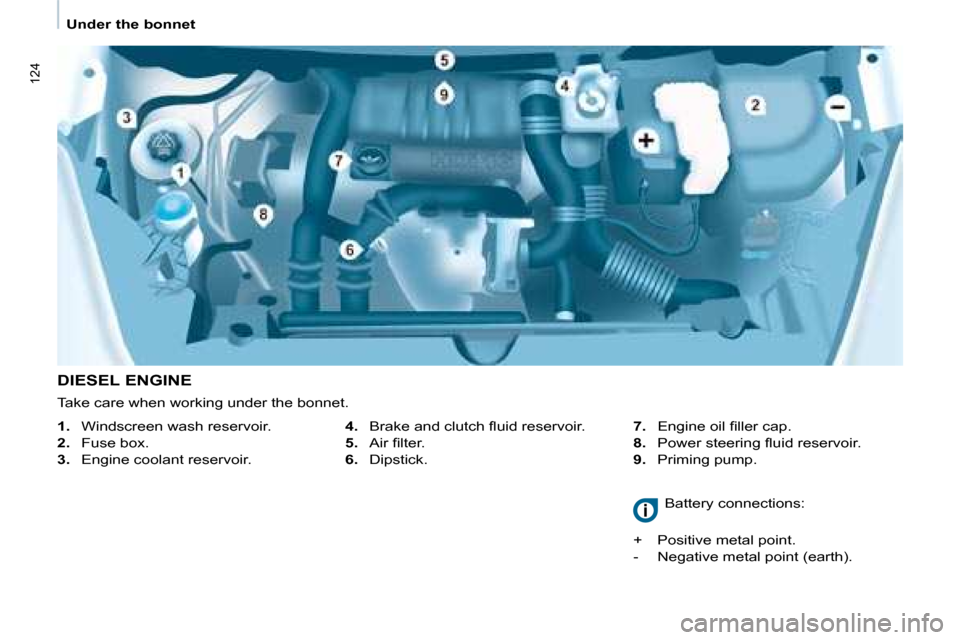

DIESEL ENGINE
4. B r a k e a n d c l u t c h fl u i d r e s e r v o i r .
5. A i r fi l t e r .
6. D i p s t i c k .
7. E n g i n e o i l fi l l e r c a p .
8. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
9. P r i m i n g p u m p .
1. W i n d s c r e e n w a s h r e s e r v o i r .
2. F u s e b o x .
3. E n g i n e c o o l a n t r e s e r v o i r .
B a t t e r y c o n n e c t i o n s :
+ P o s i t i v e m e t a l p o i n t .
- N e g a t i v e m e t a l p o i n t ( e a r t h ) .
T a k e c a r e w h e n w o r k i n g u n d e r t h e b o n n e t .
Page 130 of 161
125
CHECKS
77
Levels
LEVELS
Oil change
I t i s i m p e r a t i v e t h a t t h i s i s c a r r i e d o u t a t
t h e i n t e r v a l s s p e c i fi e d a n d t h e v i s c o s i t y
g r a d e o f t h e o i l s e l e c t e d m u s t f u l fi l t h e
r e q u i r e m e n t s i n a c c o r d a n c e w i t h t h e
m a n u f a c t u r e r ' s s e r v i c i n g s c h e d u l e .
C o n s u l t t h e i n s t r u c t i o n s a t a C I T R O Ë N
d e a l e r .
R e m o v e t h e d i p s t i c k b e f o r e fi l l i n g .
C h e c k t h e l e v e l a f t e r fi l l i n g ( n e v e r
e x c e e d t h e m a x m a r k ) .
S c r e w t h e c a p b a c k o n t o t h e s u m p
b e f o r e c l o s i n g t h e b o n n e t . Changing the brake fluid
T h e b r a k e fl u i d m u s t b e c h a n g e d a t
t h e i n t e r v a l s s t a t e d , a c c o r d i n g t o t h e
m a n u f a c t u r e r ' s s e r v i c i n g s c h e d u l e .
U s e fl u i d s r e c o m m e n d e d b y t h e
m a n u f a c t u r e r , w h i c h f u l fi l D O T 4
s t a n d a r d s .
T h e l e v e l m u s t b e b e t w e e n t h e M I N
a n d M A X m a r k s o n t h e r e s e r v o i r .
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
t h i s i n d i c a t e s a f a i l u r e w h i c h m u s t b e
c h e c k e d b y a C I T R O Ë N d e a l e r a s
s o o n a s p o s s i b l e .
Warning lights
I f y o u h a v e t o r e m o v e / r e fi t t h e
e n g i n e s t y l e c o v e r , h a n d l e i t w i t h
c a r e t o a v o i d d a m a g i n g t h e fi x i n g
c l i p s .
Oil level
C h e c k t h e l e v e l r e g u l a r l y a n d t o p u p
b e t w e e n c h a n g e s . T h e m a x i m u m
c o n s u m p t i o n i s 0 . 5 l i t r e p e r 6 0 0 m i l e s
( 1 0 0 0 k m ) .
C h e c k t h e l e v e l w i t h t h e v e h i c l e l e v e l ,
e n g i n e c o l d , u s i n g t h e d i p s t i c k .
Dipstick
T h e r e a r e t w o m a r k s o n
t h e d i p s t i c k :
A = m a x i m u m
I f y o u fi l l p a s t t h i s m a r k ,
c o n s u l t a C I T R O Ë N
d e a l e r .
B = m i n i m u m
N e v e r a l l o w t h e l e v e l t o
f a l l b e l o w t h i s m a r k .
T o m a i n t a i n t h e r e l i a b i l i t y
o f e n g i n e s a n d e m i s s i o n
c o n t r o l s y s t e m s , t h e u s e
o f a d d i t i v e s i n e n g i n e o i l
i s p r o h i b i t e d . Viscosity selection
I n a l l c a s e s , t h e o i l s e l e c t e d m u s t m e e t
t h e m a n u f a c t u r e r ' s r e q u i r e m e n t s .
T h e s e r e g u l a r m a i n t e n a n c e
o p e r a t i o n s w i l l k e e p y o u r v e h i c l e
i n g o o d r u n n i n g o r d e r . C o n s u l t t h e
i n s t r u c t i o n s a t a C I T R O Ë N d e a l e r o r i n
t h e s e r v i c i n g b o o k l e t e n c l o s e d i n t h e
h a n d b o o k p a c k .
C h e c k i n g b y m e a n s o f t h e w a r n i n g
l i g h t s o n t h e i n s t r u m e n t p a n e l i s
d e s c r i b e d i n c h a p t e r 2 , r e f e r t o t h e
" I n s t r u m e n t s a n d c o n t r o l s " s e c t i o n .
