urn to the left: 24H or 12H is
displayed.
-

T
urn to the right to select 24H or
12H.
-

T
urn to the left to complete the time
adjustment.
After approximately 30 seconds
without any action, the screen returns
to the normal display.
DATE AnD TIME
Centre console without screen
To adjust the time of the
clock, use the left-hand
button on the instrument
panel: The display - time sequence
is linked according to model
(version). The access to
the "Date" adjustment is
only active when the model
version offers a date in words.
-

T

urn to the left: the minutes flash.
-

T

urn to the right to increase the
minutes (hold the button to the right
for rapid scrolling).
-

T

urn to the left: the hours flash.
-

T

urn to the right to increase the
hours (hold the button to the right
for rapid scrolling).
READY TO GO
3
Instruments and controls

30
BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015

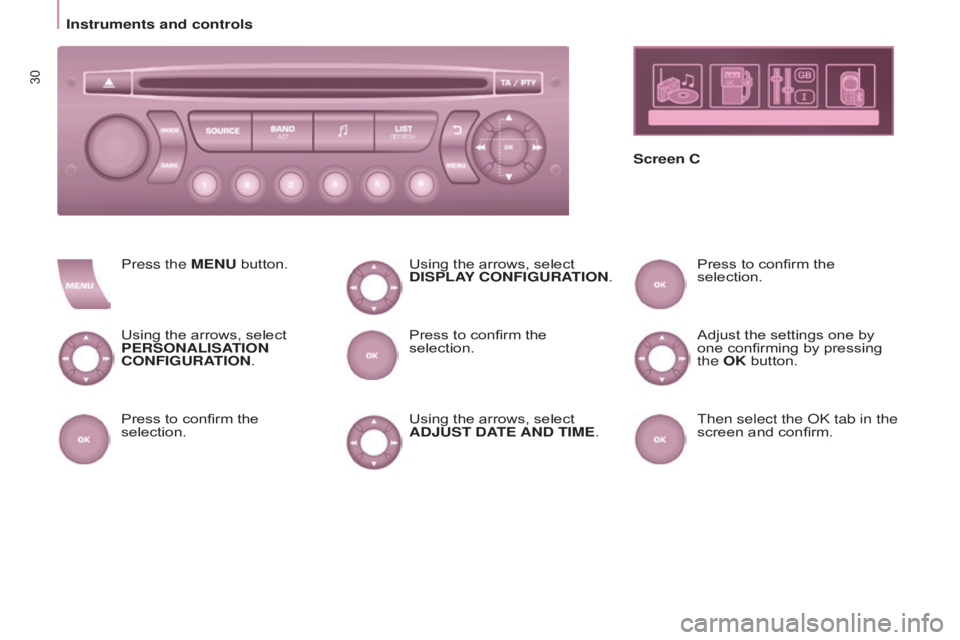

Screen C
Press the ME
n
U button.
Using the arrows, select
PERSO
n
ALISATIO
n

CO
n
FIGURATIO
n
.
Press to confirm the
selection. Using the arrows, select
DISPLAY CO
n
FIGURATIO
n
.
Press to confirm the
selection.
Using the arrows, select
ADJUST DATE A
n
D TIME. Press to confirm the
selection.
Adjust the settings one by
one confirming by pressing
the OK button.
Then select the
ok tab in the
screen and confirm.
Instruments and controls

31
BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015

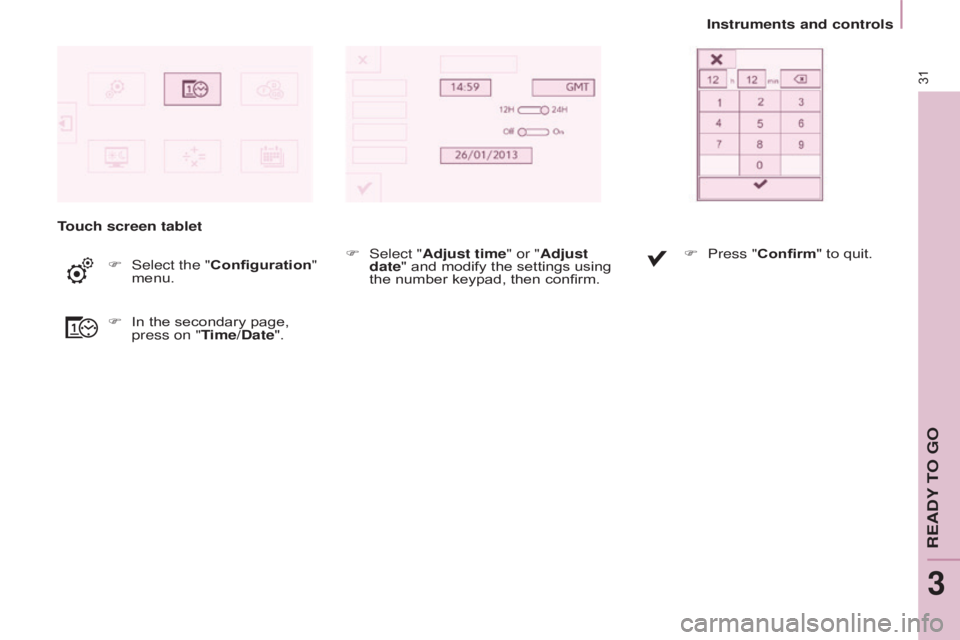

Touch screen tablet
F
Select the "
Configuration"
menu.
F

In the secondary page,
press on "

Time/Date". F

Select "
Adjust time" or "Adjust
date" and modify the settings using
the number keypad, then confirm. F

Press "
Confirm" to quit.
READY TO GO
3
Instruments and controls

32
BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015
WARn I n G LAMPS
Warning lamp is indicatesSolution - action
STOP on, associated
with another
warning
lamp and
accompanied
by a message
in the screen. major faults linked with
the "Brake fluid level",
"Engine oil pressure and
temperature", "Coolant
temperature", "Electronic
brake force distribution"and
"Power steering" warning
lamps.
You must stop as soon as it is safe to do
so. Park and switch off the ignition. Have it
checked by a CITROË
n dealer or a qualified
workshop.
Parking
brake
/ Brake
fluid level /
EBFD on.
that the parking brake is applied
or has not been released fully.Releasing the parking brake switches off the
warning lamp.
on. low brake fluid level. Top up using a fluid recommended by CITROËN.
remaining on even
though the level
is correct and
associated with the
ABS warning lamp.
a fault with the electronic
brake force distribution. You must stop as soon as it is safe to do so.
Park and switch off the ignition.
Have it checked by a CITROË
n dealer or a
qualified workshop.
Engine oil
pressure and
temperature on while
driving.
low pressure or a high
temperature. Park and switch off the ignition then allow to cool.
Visually check the level.
Chapter 7, "Levels" section.
remaining on,
even though
the level is
correct. a major fault.
Have it checked by a CITROËN dealer or a
qualified workshop.
Each time the vehicle is started: a series of warning lamps comes on applying a self-test check. They go off almost
immediately.
Engine running: the lamp becomes a warning if it remains on continuously or flashes.
This initial warning may be accompanied by an audible signal and a message in the screen.
Do not ignore these warnings.
Instruments and controls

33
BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015
Warning lamp is indicatesSolution - action
Coolant
temperature
and level on with needle
in the red
zone.
an abnormal increase in
temperature.
Park and switch off the ignition then allow to cool.
Visually check the level.
flashing. a drop in the coolant level. Chapter 7, "Levels" section.
Contact a CITROËN
dealer or a qualified
workshop.
Service on temporarily. minor faults or warnings.
Consult the alert log in the display or screen.
If your vehicle is equipped with a trip computer or
a screen: refer to the "Steering mounted controls"
section in Chapter 4.
Contact a CITROËN dealer or a qualified workshop.
remaining on. major faults.
Seat belt not
fastened on then
flashing.
the driver and/or front
passenger has not fastened
their seat belt.
Pull the strap then insert the tongue in the buckle.
accompanied
by an audible
signal then
remains on. the vehicle is moving with
the driver's and/or front
passenger's seat belt not
fastened.
Check that the seat belt is fastened by pulling the
strap.
Chapter 5, "Seat belts" section.
ECO on.
The Stop & Start
system
has put the engine in STOP
mode following a vehicle
stop (red light, traffic jam,
etc...). As soon as you want to move off, the warning
lamp goes off and the engine restarts
automatically in START mode.
flashes for a
few seconds,
then goes off. STOP mode is temporarily
unavailable.
or
START mode has been
invoked automatically.
Chapter 3, "Stop & Start" section.
READY TO GO
3
Instruments and controls

34
BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015
Warning lamp is indicatesSolution - action
Front / lateral
airbag flashing or
remaining on.
a failure of an airbag. Have the system checked by a CITROËN dealer
or a qualified workshop without delay.
Chapter 5, "Airbags" section.
Front
passenger's
airbag
deactivated on. the intentional deactivation
of this airbag in the
presence of a rearward
facing child seat. Chapter 5, "Airbags" or "child safety" section.
Low fuel
level on with gauge
needle in the
red zone. When it first comes on,
there remains around
8
litres of fuel in the tank.
The distance you can drive
on this fuel depends on
your style of driving and the
engine type. You must fill up with fuel to avoid running out.
This warning lamp comes on each time you
switch on the ignition until you have filled up.
Capacity of the tank: approximately 60 litres.
Never risk driving until the tank is empty, this
could damage the emissions and injection
systems.
flashing. cutting off of the fuel supply
following a serious impact. Restore the supply.
Chapter 7, "Fuel" section.
EOBD
emission
control systemflashing or
remaining on.
a failure of the system. There is a risk of damage to the catalytic
converter. Have it checked by a CITROËN
dealer or a qualified workshop.
Battery
charge on.
a fault in the charging
circuit. Check the battery terminals, …
Chapter 8, "Battery" section.
flashing. placing of the active
functions on standby
(economy mode). Chapter 8, "Battery" section.
remaining on,
in spite of the
checks. an ignition or injection
malfunction.
Have it checked by a CITROËN dealer or a
qualified workshop.
Instruments and controls

+
ABS
35
BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015
Warning lamp is indicatesSolution - action
Power
steering on. a fault with the
system.
The vehicle retains conventional steering without assistance.
Have it checked by a CITROËN dealer or a qualified workshop.
Door open
detectionon and accompanied
by a message in the
screen. that a door is not
closed correctly.
Check that all of the doors are closed.
ABS remaining on. a fault with the anti-
lock braking system.The vehicle retains conventional braking.
Have it checked by a CITROËN dealer or a
qualified workshop.
ESC flashing.
triggering of the ASR
or DSC regulation.The system optimises traction and improves the
directional stability of the vehicle.
Chapter 5, "Driving safety" section.
remaining on. a fault with the
system.
E.g.: under-inflation
of the tyres.
E.g.: check the pressure of the tyres.
Have it checked by a CITROËN dealer or a qualified workshop.
(Wheel speed sensor, hydraulic valve block, ...).
Under-
inflationon.
The tyre pressure is
too low in or more
wheels.Check the tyre pressure as soon as possible.
This check must be done with the tyres cold.
flashing then
remaining on,
accompanied by the
Service warning lamp,
and depending on
equipment, the display
of a message. The tyre pressure
monitoring system
has a fault or one of
the wheels does not
have a sensor.
Detection of under-inflation is no longer assured.
Have it checked by a CITROËN dealer or a
qualified workshop.
Particle filter on. a problem with the
particle filter (fuel
additive level, risk of
blockage,...).Have the filter checked by a CITROËN dealer or
a qualified workshop.
Chapter 7, "Levels" section.
READY TO GO
3
Instruments and controls

36
BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015
Warning lamp is indicatesSolution - action
Dipped beam
headlamps
/
Daytime
running
lamps on.a manual selection or
automatic illumination of
headlamps.
Turn the ring on the lighting control stalk to the
second position.
illumination of the dipped beam headlamps
from the time the ignition is switched on:
daytime running lamps (depending on the
country in which the vehicle is sold).
Chapter 4, "Steering mounted controls" section.
Main beam
headlamps pulling of the stalk towards
you.Pull the stalk to return to dipped beam
headlamps.
Direction
indicators flashing with
audible signal.a change of direction via
the lighting stalk. To the Right: control to be pushed upwards.
To the Left: control to be pushed downwards.
Front
foglamps on.
a manual selection. The foglamps only operate if the sidelamps or
dipped beam headlamps are on.
Rear
foglamps on.
a manual selection. The foglamps only operate if the sidelamps or
dipped beam headlamps are on.
In conditions of normal visibility, switch them off
to avoid breaking the law.
"This lamp is a dazzling red."
Instruments and controls

37
BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015
Warning lamp in the
screenis
indicates Solution - action
Cruise
control on.
cruise control selected. Manual selection.
Chapter 4, "Steering mounted controls" section.
Speed limiter on.speed limiter selected. Manual selection.
Chapter 4, "Steering mounted controls" section.
Gear shift
indicator on.a recommendation
independent of the type and
density of traffic. To reduce fuel consumption, change to an
appropriate gear with a manual gearbox.
The driver retains responsibility to follow this
indication or not.
Diesel pre-
heating on.climatic conditions requiring
pre-heating. Wait until the warning lamp goes off before
operating the starter.
Presence of
water in the
Diesel filter
on and
accompanied by
a message in the
screen.
water in the Diesel filter. Have the filter bled by a CITROËN dealer or a
qualified workshop without delay.
Chapter 7, "Checks" section.
According to country.
Service
spanner on.that a service will be due
shortly. Refer to the list of checks in the maintenance and
warranty guide. Have the service carried out by a
CITROËN dealer or a qualified workshop.
Time flashing. adjustment of the time. Use the left-hand button on the instrument panel.
Chapter 3, "Instruments and controls" section.
READY TO GO
3
Instruments and controls

+
38
BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015
For more information, refer to Chapter 7, "AdBlue additive" section.
AdBlue® additive
AlertInformation Solution - action
1st level of alert
There is an audible signal when the ignition is switched on.
The warnings are intermittent and then become permanent
when switching on the ignition or when driving.
The remaining driving range is counted down from
1

500 miles (2 400 km) to 375 miles (600 km).
The range figure reduces in steps of 200 miles (300 km).
The contents of the additive tank has dropped to a
level sufficient for a range of less than 1 500 miles
(2 400 km).
Have the tank topped-up using an AdBlue
®
container or bottles.
2
nd level of alert
There is an audible signal when the ignition is
switched on.
The warnings are intermittent (every 30 seconds)
and then become permanent every time the ignition
is switched on or when driving.
The remaining driving range is counted down from
350 miles (600 km) to zero, reducing in steps of
30
miles (50 km). You
must have the AdBlue
® additive topped-up and
not wait for a breakdown.
In the display
screen. Temporary display: "NO START IN".
In the touch
screen tablet. Select:
-

"Driving assistance".
-


"Diagnostic". The driving range is displayed.
3
rd level of alert
The AdBlue® additive tank is empty. Starting is impossible.
It is essential to add at least 3.8 litres of AdBlue®
additive to the additive tank.
Instruments and controls
