CITROEN BERLINGO ELECTRIC 2017 Handbook (in English)

59
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2015

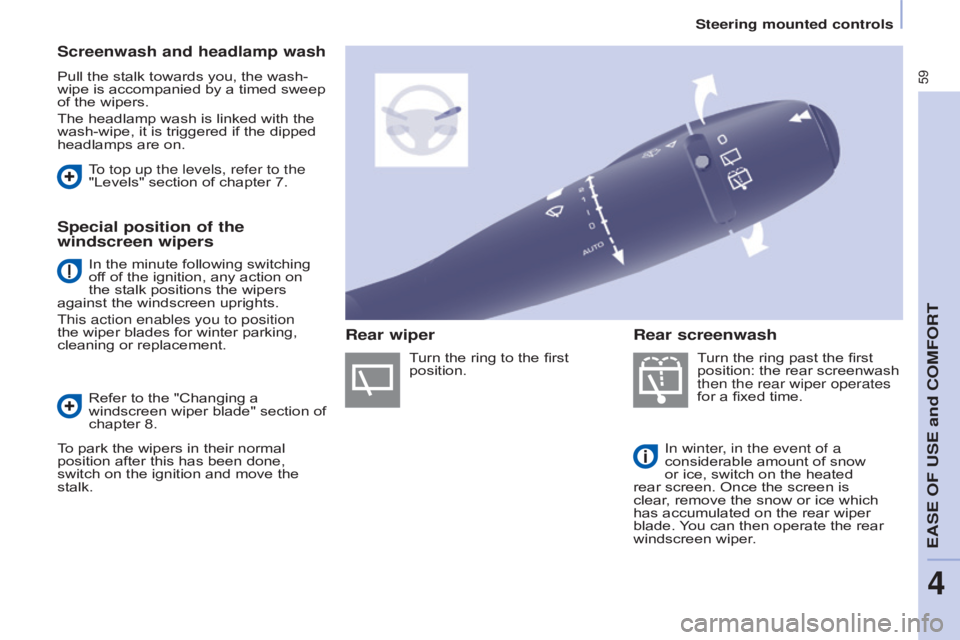

Screenwash and headlamp wash
Pull the stalk towards you, the wash-
wipe is accompanied by a timed sweep
of the wipers.
The headlamp wash is linked with the
wash-wipe, it is triggered if the dipped
headlamps are on.Turn the ring past the first
position: the rear screenwash
then the rear wiper operates
for a fixed time.
In winter, in the event of a
considerable amount of snow
or ice, switch on the heated
rear screen. Once the screen is
clear, remove the snow or ice which
has accumulated on the rear wiper
blade. You can then operate the rear
windscreen wiper.
To top up the levels, refer to the
"Levels" section of chapter 7.
Special position of the
windscreen wipers
Refer to the "Changing a
windscreen wiper blade" section of
chapter 8.
To park the wipers in their normal
position after this has been done,
switch on the ignition and move the
stalk. Turn the ring to the first
position.
Rear screenwash
Rear wiper
In the minute following switching
off of the ignition, any action on
the stalk positions the wipers
against the windscreen uprights.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement.
Steering mounted controls
EASE OF USE and COMFORT
4

60
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2015

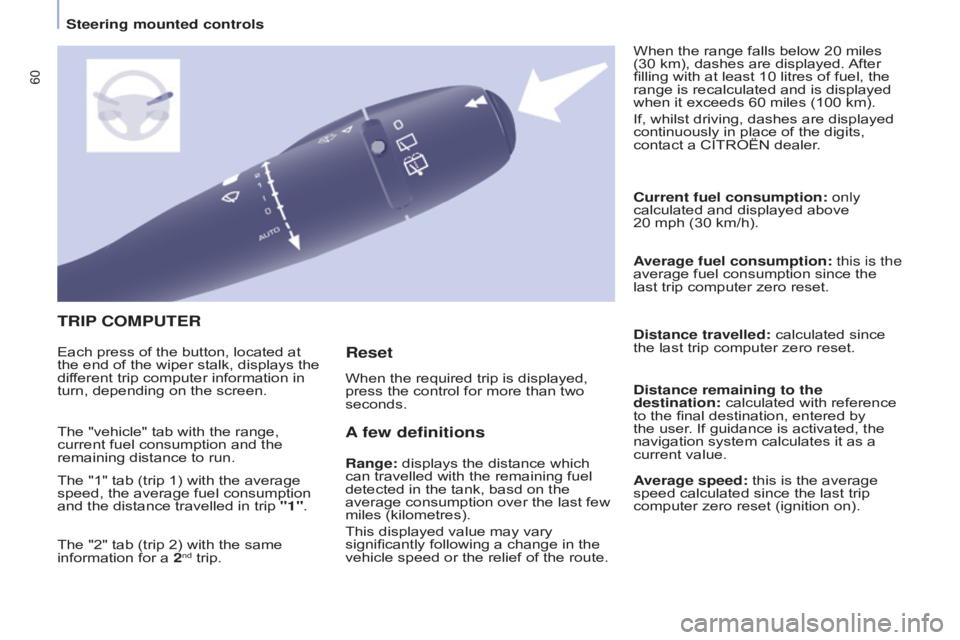

TRIP COMPUTER
A

few definitions
Range: displays the distance which
can travelled with the remaining fuel
detected in the tank, basd on the
average consumption over the last few
miles (kilometres).
This displayed value may vary
significantly following a change in the
vehicle speed or the relief of the route. Current fuel consumption:
only
calculated and displayed above
20 mph (30 km/h).
Average fuel consumption: this is the
average fuel consumption since the
last trip computer zero reset.
Distance travelled: calculated since
the last trip computer zero reset.
Distance remaining to the
destination: calculated with reference
to the final destination, entered by
the user. If guidance is activated, the
navigation system calculates it as a
current value.
Average speed: this is the average
speed calculated since the last trip
computer zero reset (ignition on).
Each press of the button, located at
the end of the wiper stalk, displays the
different trip computer information in
turn, depending on the screen.
When the required trip is displayed,
press the control for more than two
seconds.When the range falls below 20 miles
(30 km), dashes are displayed. After
filling with at least 10 litres of fuel, the
range is recalculated and is displayed
when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed
continuously in place of the digits,
contact a CITROËN dealer.
The "vehicle" tab with the range,
current fuel consumption and the
remaining distance to run.
The "1" tab (trip 1) with the average
speed, the average fuel consumption
and the distance travelled in trip "1".
The "2" tab (trip 2) with the same
information for a 2
nd trip.
Reset
Steering mounted controls

61
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2015

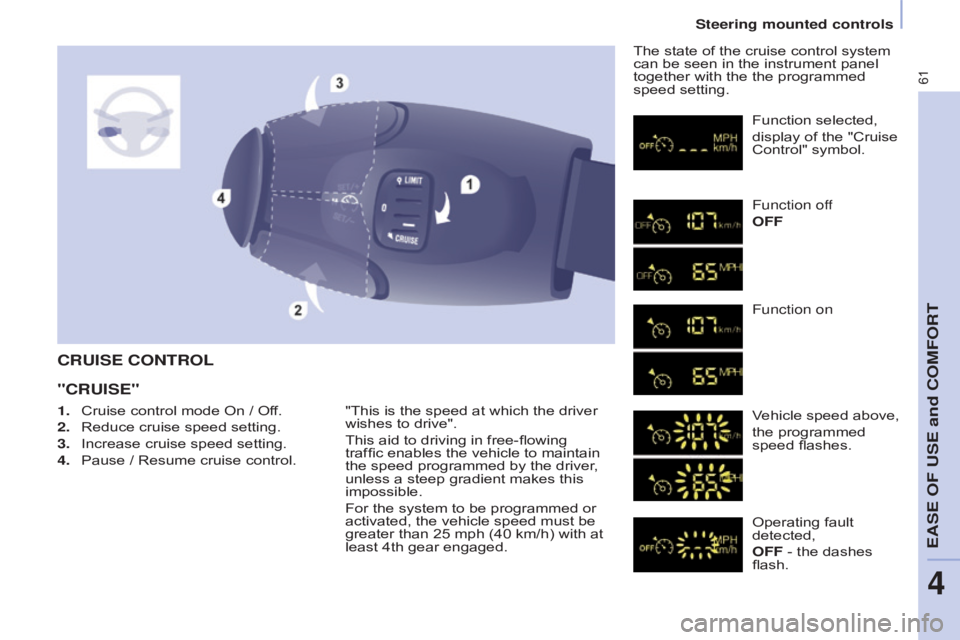

CRUISE COnTROL
"CRUISE"
"This is the speed at which the driver
wishes to drive".
This aid to driving in free-flowing
traffic enables the vehicle to maintain
the speed programmed by the driver,
unless a steep gradient makes this
impossible.
For the system to be programmed or
activated, the vehicle speed must be
greater than 25 mph (40 km/h) with at
least 4th gear engaged.The state of the cruise control system
can be seen in the instrument panel
together with the the programmed
speed setting.
Function selected,
display of the "Cruise
Control" symbol.
Function off
OFF
Function on
Vehicle speed above,
the programmed
speed flashes.
Operating fault
detected,
OFF - the dashes
flash.
1.
Cruise control mode On / Of
f.
2.

Reduce cruise speed setting.
3.


Increase cruise speed setting.
4.


Pause / Resume cruise control.
Steering mounted controls
EASE OF USE and COMFORT
4

62
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2015
Selecting the functionFirst activation /
Programming a
speed Temporarily exceeding the
speed
Deactivation (off)
- Press this button or
the brake or clutch
pedal.
Reactivation
- Reach the chosen speed by
pressing the accelerator .
-

Press the
SET - or SET + button.
This programmes/activates the speed
setting and the vehicle will maintain
this speed. -
Place the switch in the
CRUISE
position. The cruise control is
selected but is not yet active and
no speed has been programmed.
It is possible to accelerate and drive
momentarily at a speed greater than
the programmed speed setting. The
value programmed flashes.
When the accelerator pedal is
released, the vehicle will return to the
programmed speed. -
Following deactivation of the cruise
control, press this button.
Y
our vehicle will return to the last
programmed speed.
Alternatively, you can repeat the "first
activation" procedure.
Steering mounted controls

63
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2015

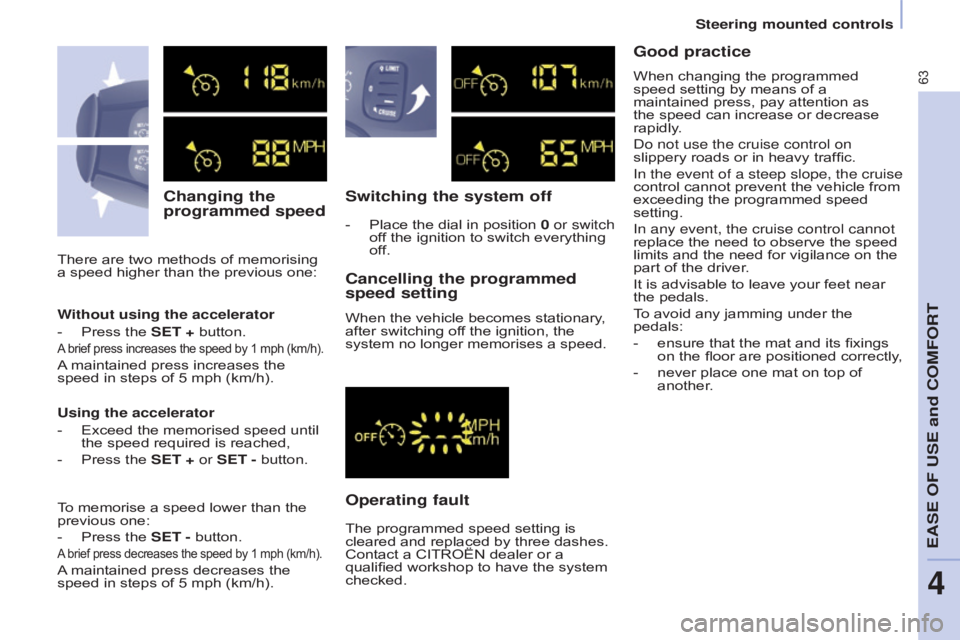

Changing the
programmed speedSwitching the system off
Operating fault Cancelling the programmed
speed setting
When the vehicle becomes stationary,
after switching off the ignition, the
system no longer memorises a speed.
There are two methods of memorising
a speed higher than the previous one:
-
Place the dial in position
0 or switch
off the ignition to switch everything
off.
Good practice
Without using the accelerator
-

Press the
SET + button.
A brief press increases the speed by 1 mph (km/h).
A maintained press increases the
speed in steps of 5 mph (km/h).
Using the accelerator
-

Exceed the memorised speed until
the speed required is reached,
-


Press the
SET + or SET - button.
To memorise a speed lower than the
previous one:
-

Press the
SET - button.
A brief press decreases the speed by 1 mph (km/h).
A maintained press decreases the
speed in steps of 5 mph (km/h). The programmed speed setting is
cleared and replaced by three dashes.
Contact a CITROËN dealer or a
qualified workshop to have the system
checked.When changing the programmed
speed setting by means of a
maintained press, pay attention as
the speed can increase or decrease
rapidly.
d

o not use the cruise control on
slippery roads or in heavy traffic.
In the event of a steep slope, the cruise
control cannot prevent the vehicle from
exceeding the programmed speed
setting.
In any event, the cruise control cannot
replace the need to observe the speed
limits and the need for vigilance on the
part of the driver.
It is advisable to leave your feet near
the pedals.
To avoid any jamming under the
pedals:
-
ensure that the mat and its fixings
on the floor are positioned correctly

,
-
never place one mat on top of
another

.
Steering mounted controls
EASE OF USE and COMFORT
4

64
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2015
The speed of the vehicle responds
to the pressure of the driver's foot as
far as the accelerator pedal point of
resistance which indicates that the
programmed speed has been reached.
However, pressing the pedal beyond
this point of resistance to the floor
allows the programmed speed to be
exceeded. To resume use of the limiter,
simply reduce the pressure on the
accelerator pedal gradually and return
to a speed below that programmed.
The operating actions may be
carried out when stationary, with the
engine running, or with the vehicle
moving.This speed limiter shows the function
selection status in the instrument panel

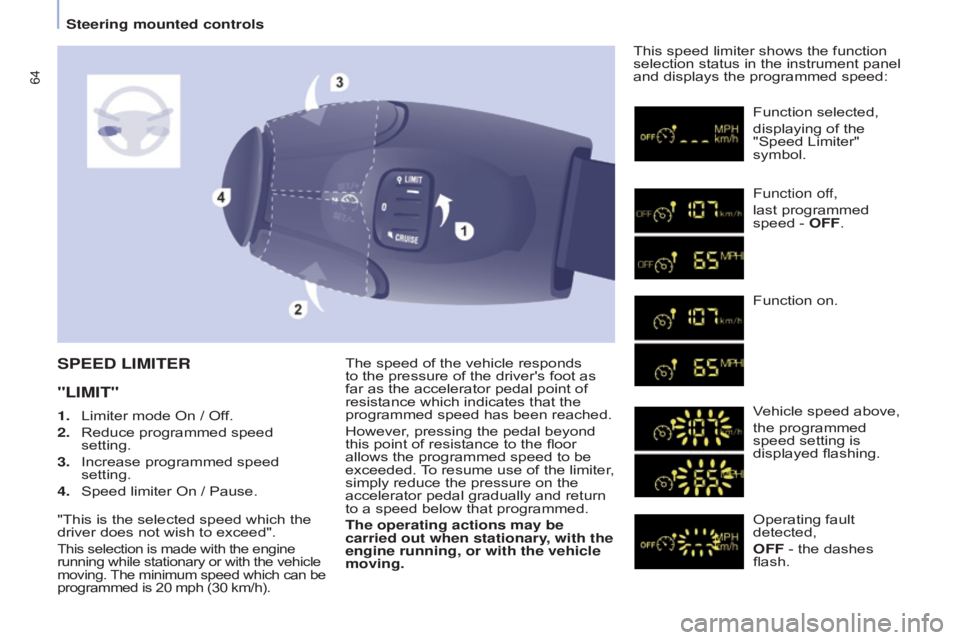

and displays the programmed speed:SPEED LIMITER
"LIMIT"
Function selected,
displaying of the
"Speed Limiter"
symbol.
Function off,
last programmed
speed - OFF.
Function on.
Vehicle speed above,
the programmed
speed setting is
displayed flashing.
Operating fault
detected,
OFF - the dashes
flash.
1.

Limiter mode On / Of

f.
2.

Reduce programmed speed
setting.
3.


Increase programmed speed
setting.
4.


Speed limiter On / Pause.
"This is the selected speed which the
driver does not wish to exceed".
This selection is made with the engine
running while stationary or with the vehicle
moving. The minimum speed which can be
programmed is 20 mph (30 km/h).
Steering mounted controls

65
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2015

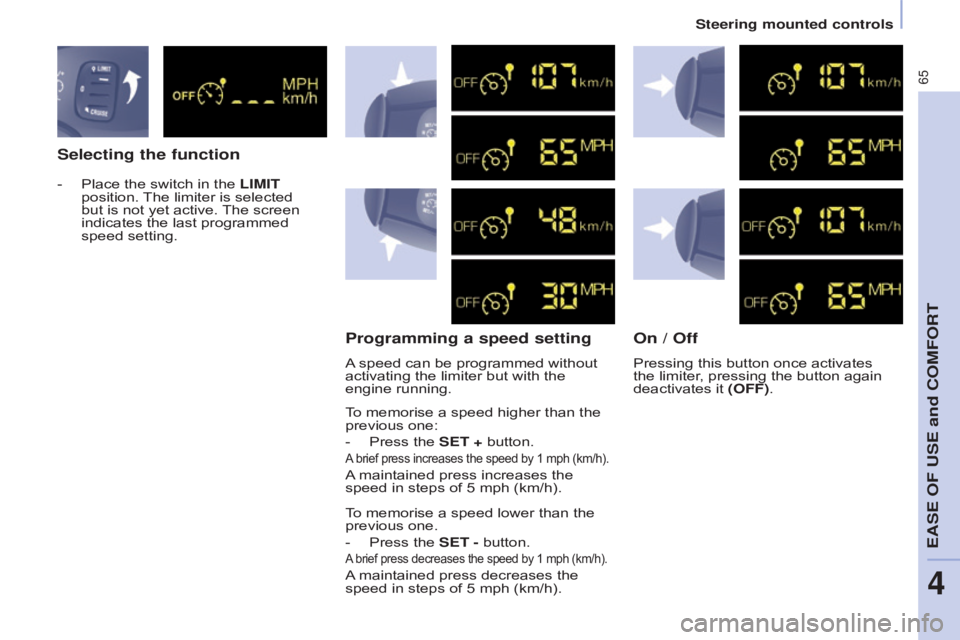

Selecting the functionProgramming a speed setting On / Off
To memorise a speed higher than the
previous one:
-
Press the
SET + button.
A brief press increases the speed by 1 mph (km/h).
A maintained press increases the
speed in steps of 5 mph (km/h).
To memorise a speed lower than the
previous one.
-

Press the
SET - button.
A brief press decreases the speed by 1 mph (km/h).
A maintained press decreases the
speed in steps of 5 mph (km/h).
-

Place the switch in the

LIMIT
position. The limiter is selected
but is not yet active. The screen
indicates the last programmed
speed setting.
A speed can be programmed without
activating the limiter but with the
engine running. Pressing this button once activates
the limiter, pressing the button again
deactivates it (OFF).
Steering mounted controls
EASE OF USE and COMFORT
4

66
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2015
Switching the function offOperating fault
The programmed speed is cleared
then replaced by three dashes.
Contact a CITROËN dealer or a
qualified workshop to have the system
checked.
Flashing of the speed
Good practice
In any event, the speed limiter cannot
replace the need to observe speed
limits, nor can it replace the need for
vigilance on the part of the driver.
Always pay attention to the profile
of the road and sharp acceleration
and stay in complete control of your
vehicle.
To avoid any jamming under the
pedals:
-

ensure that the mat and its fixings
on the floor are positioned correctly

,
-

never place one mat on top of
another

.
Exceeding the programmed
speed
Pressing the accelerator pedal in order
to exceed the programmed speed
will have no effect unless you press
the pedal firmly beyond the point of
resistance.
The limiter is deactivated temporarily
and the programmed speed flashes
accompanied by an audible signal.
To return to the limiter function, reduce
your speed to below the programmed
speed.
The speed flashes:
-

following forcing of the accelerator
point of resistance,
-


when the limiter cannot prevent an
increase in the vehicle speed due
to the profile of the road or on a
steep descent,
-


in the event of sharp acceleration. -


Place the switch in position
0 or
switch off the ignition to switch the
system off.
The last programmed speed remains in
the memory.
Steering mounted controls

67
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2015
VEnTILATIOn
the side vents and the central
vents,
Air flow
the footwells,
the windscreen and the
footwells,
the windscreen.
The air distribution can be
modulated by placing the
control in the intermediate
positions, marked "●".
TemperatureAir distribution
The air supply distribution is
determined by the following symbols:
in the red zone, provides
heating of the passenger
compartment. in the blue zone, provides
ambient air, The speed of the blown air at
the vents varies from 1 to the
fastest 4. Position 0 switches
it off.
Heating
Manual air conditioning
Adjust this control in order to attain the
desired comfort level.
Control positioned:
EASE OF USE and COMFORT
4
Ventilation

68
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2015
Intake of exterior air
Recirculation of interior airAir conditioning A/C
The LEd in the button is
of f. This is the preferred
operating position.
Pressing the button starts
the air conditioning system,
the LED is on. Pressing the
button again switches the
function off and the LED goes
off.
The air conditioning does not operate if
the fan speed is set to 0. The air conditioning can only operate
with the engine running.
The LED in the button is on.
Recirculation temporarily
prevents exterior odours
and smoke from entering the
passenger compartment.
Used with the setting of the fan speed
(from 1 to 4), recirculation enables you
to attain the desired comfort level more
quickly with both hot or cold settings.
This position should only be temporary.
When your desired comfort level has
been reached, return to the intake
of exterior air position to permit
renewal of the air in the passenger
compartment and avoid misting. This is
the preferred operating mode.
Ventilation
