Citroen BERLINGO FIRST 2011.5 1.G Owner's Manual

On-line owner's handbook


Referring to the owner's handbook on-line also gives you
access to the latest information available, easily identifi ed by
the bookmarks, associated with this pictogram:

If the heading "MyCitroën" is not available on the public website for
your country, you can fi nd your handbook at the following address:
http://service.citroen.com
Select:
You can fi nd your handbook on the CITROËN website, under the
heading "MyCitroën".




This personal space provides you with information on your products
and services, direct and special contact with CITROËN and
becomes a space tailored for you.

the link in "Private customer access",
the language,
the model,
the edition date appropriate for the date of registration of your vehicle.
You will fi nd your handbook, presented in the same way as the paper
version.

1

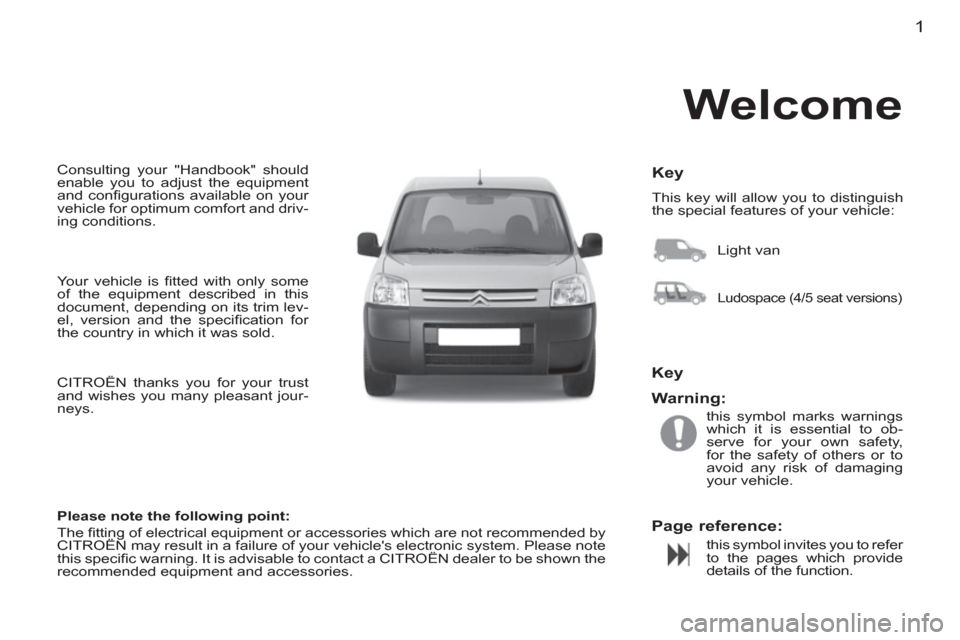

Consulting your "Handbook" should
enable you to adjust the equipment
and confi gurations available on your
vehicle for optimum comfort and driv-
ing conditions.
Key

This key will allow you to distinguish
the special features of your vehicle:

Key


this symbol marks warnings
which it is essential to ob-
serve for your own safety,
for the safety of others or to
avoid any risk of damaging
your vehicle.
this symbol invites you to refer
to the pages which provide
details of the function.


Welcome

CITROËN thanks you for your trust
and wishes you many pleasant jour-
neys. Light van

Ludospace (4/5 seat versions)


Your vehicle is fi tted with only some
of the equipment described in this
document, depending on its trim lev-
el, version and the specifi cation for
the country in which it was sold.

Warning:

Page reference:


Please note the following point:

The fi tting of electrical equipment or accessories which are not recommended by
CITROËN may result in a failure of your vehicle's electronic system. Please note
this specifi c warning. It is advisable to contact a CITROËN dealer to be shown the
recommended equipment and accessories.

CONTENTS
2-
46 - 53  ACCESS AND STARTING
Keys 46
Alarm 48
Front and side doors 49
Rear doors 51
Opening the bonnet 53
Filling with fuel 53
54 - 57  VISIBILITY
Lights 54
Windscreen wiper stalk 55
Electric windows 56
Rear windows 56
Exterior mirrors 57
Interior mirror 57
4 - 18  FAMILIARISATION
19 - 27
MONITORING AND DISPLAY SCREENS
Instrument panel 20
Warning lamps 21
Temperature indicator 23
Instrument panel display 24
Service indicator 24
Distance recorder zero reset 26
Lighting rheostat 26
Clock 26
28 - 33  COMFORT
Display A 27
Ventilation 28
Heating 30
Air conditioning 32
34 - 45  SEATS
Front seats 34
Rear bench seat
(4/5 seat versions) 36
Child seats 37
Locations for child seats
attached with the seat belt 40
ISOFIX mountings 41
ISOFIX child seat 42
Seat belts 44 Eco-driving 17

3CONTENTS
-
110 - 117  AUDIO
RD3 audio system 110
118 - 122  VISUAL INDEX 58 - 63  LIFE ON BOARD
Front fi ttings 58
Courtesy lamps 59
Headlamp adjustment 60
Steering wheel adjustment 60
Lashing rings 61
Rear fi ttings 62
64 - 71  DRIVING
Handbrake 64
ABS and EBFD systems 64
Speed limiter 65
Cruise control 67
Airbags 69
72 - 97  PRACTICAL INFORMATION
Under the bonnet 72
Levels 77
Checks 78
Changing a wheel 79
Changing a bulb 82
Changing a fuse 88
Battery 92
Energy economy mode 92
Fitting audio equipment, speakers 93
Snow screen 94
Towing 95
Towing a trailer 96
Accessories 97
98 - 109  TECHNICAL DATA
Dimensions 98
Engines 102
Light van weights and loads 105
Ludospace weights
and loads 107
Identifi cation features 109

FAMILIARISATION4-

5 FAMILIARISATION
-
INSTRUMENTS AND CONTROLS


12.
Wiper/screenwash controls.

13.
Audio system steering mounted
controls.

14.
Steering lock and ignition.

15.
Fusebox.

16.
Passenger's airbag deactivation
switch.

17.
Alarm.

18.
Steering wheel adjustment control.

19.
Passenger's electric mirror control.

20.
Headlamp height adjustment.

21.
Heated seats control.

22.
Parking brake.

23.
Cigarette lighter.

24.
Portable ashtray.
25.
Gear lever.

26.
Storage compartment.

27.
Heating/air conditioning controls.

28.
Audio system.

29.
Lower glove box.

30.
Upper glove box or passenger's
airbag.

31.
Bonnet release lever.

32.
Side adjustable heating/
ventilation vents.

33.
Door window demisting vents.

1.
Speaker (tweeter).

2.
Windscreen demisting vents.

3.
Controls:


- Electric windows.

- Rear door windows demisting.

- Air conditioning.

4.
Central locking button.

5.
Multifunction screen or clock.

6.
Hazard warning lamps switch.

7.
Central adjustable heating/
ventilation vents.

8.
Lighting and direction indicator
control stalk.

9.
Speed limiter/cruise control
switches.

10.
Instrument panel.

11 .
Driver's airbag.
Horn.

FAMILIARISATION6-
KEYS

The keys allow you to switch on the
ignition and operate the passenger's
airbag deactivation switch, as well as
to independently operate the locks
on the doors and the fuel fi ller cap.
STARTING

Remote control


Central locking
From the front doors, the keys allow
you to lock and unlock the doors and
tailgate.
If one of the doors or the tailgate is
open, the central locking does not
operate.

The remote control performs the
same functions at a distance.



Unlocking
Press button B
to unlock the vehicle.
This is confi rmed by rapid fl ashing of
the direction indicators.

Locating the vehicle
To locate your vehicle, previously
locked, in a car park:


)
press button A
, the courtesy lamps
come on and the direction indica-
tors fl ash for a few seconds.



46


Locking
Press button A
to lock the vehicle.
This is confi rmed by fi xed lighting of
the direction indicators for approxi-
mately two seconds.
STOP position (S):
The ignition is off.
To release the steering, turn the
steering wheel slightly while turning
the key, without forcing it.

Accessories position (A):
The ignition is off but various sys-
tems can be used.

On position (M):
The ignition is on.

Starting position (D):
Operates the starter.
Release the key when the engine
has started. Never operate the starter
while the engine is running.

7 FAMILIARISATION
-
WIPERS
STEERING MOUNTED
CONTROLS
LIGHTING

Front foglamps (1 st turn of the ring
forwards).
Front foglamps and rear foglamp
(2 nd turn of the ring forwards).
To switch off: turn the ring rearwards.
Lighting off
Sidelamps

Dipped/main beam head-
lamps


Vehicles fi tted with a rear
foglamp (ring B)
Turn the ring forwards.

Vehicles fi tted with
front foglamps and a
rear foglamp (ring B)
Off Wash-
wipe Intermittent
wipe
Rear



54




55


Front and rear lamps (ring A)
Front

2
Rapid wipe (heavy rain).

1
Normal wipe (moderate rain).

I
Intermittent wipe.

0
Off.

È
Single wipe.
Screenwash: pull the stalk towards
you.

FAMILIARISATION8-
FRONT SEATS
Never travel with the head
restraints removed.

2.
Armrest.

3.
Seat back angle adjustment.

4.
Forwards-backwards adjustment.



34




1.
Head restraint height adjustment.
