Citroen BERLINGO FIRST DAG 2008 1.G Owners Manual
Manufacturer: CITROEN, Model Year: 2008, Model line: BERLINGO FIRST DAG, Model: Citroen BERLINGO FIRST DAG 2008 1.GPages: 114, PDF Size: 1.55 MB
Page 91 of 114
89PRACTICAL INFORMATION-
O n l y u s e H 4 b u l b s m a n u f a c -
t u r e d b y : - GE/TUNGSRAM,
- PHILIPS,
- OSRAM,
to avoid damaging the headlamps.
T h e s e m e e t t h e a n t i - U V ( u l t r a - v i o l e t )
s p e c i fi c a t i o n s n e c e s s a r y f o r t h e c o r -
rect operation and reliability of the
headlamps.
T h e h e a d l a m p s a r e fi t t e d w i t h a p o l y -
carbonate lens coated with a protec-
t i v e v a r n i s h . Y o u a r e s t r o n g l y a d v i s e d
t o a v o i d c l e a n i n g t h e m u s i n g a d r y o r
a b r a s i v e c l o t h a n d u s i n g d e t e r g e n t
p r o d u c t s o r s o l v e n t s .
Use a soft, damp cloth.
High pressure washing: w h e n u s i n g
t h i s t y p e o f w a s h i n g o n s t u b b o r n d i r t ,
do not persist on the headlamps, the
l i g h t s a n d t h e i r s u r r o u n d t o a v o i d
damaging their coating and their
seal. Direction indicator side repeaters
( W Y 5 W a m b e r )
- P u s h t h e t r a n s p a r e n t c o v e r f o r -
wards or rearwards and release it.
- T u r n t h e b u l b h o l d e r a q u a r t e r t u r n .
- C h a n g e t h e b u l b .
A m b e r c o l o u r e d b u l b s ( d i -
rection indicators and side
r e p e a t e r s ) m u s t b e r e p l a c e d
b y b u l b s o f i d e n t i c a l s p e c i fi -
c a t i o n a n d c o l o u r . Rear lights
1. F o g l a m p ( P 2 1 W ) .
2. Direction indicators (P21 W).
3. Reversing lights (P21 W).
4. B r a k e l i g h t s / S i d e l i g h t s
( P 2 1 / 5 W ) .
High pressure washing: w h e n u s i n g
t h i s t y p e o f w a s h i n g o n s t u b b o r n d i r t ,
do not persist on the headlamps, the
l i g h t s a n d t h e i r s u r r o u n d t o a v o i d d a m -
aging their coating and their seal.
Page 92 of 114

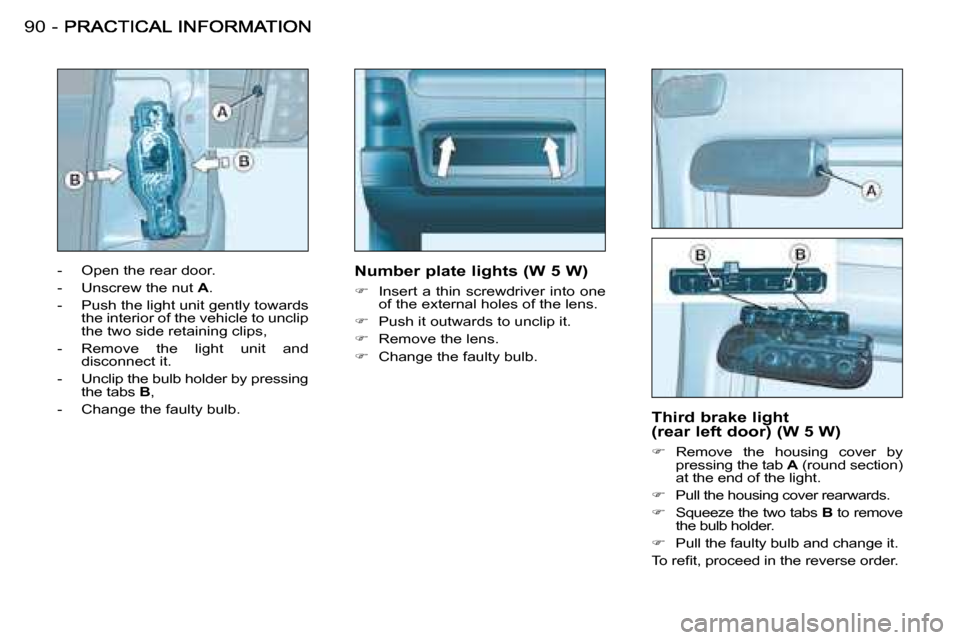

90 - Third brake light
(rear left door) (W 5 W)
R e m o v e t h e h o u s i n g c o v e r b y
pressing the tab A ( r o u n d s e c t i o n )
at the end of the light.
P u l l t h e h o u s i n g c o v e r r e a r w a r d s .
S q u e e z e t h e t w o t a b s B to remove
t h e b u l b h o l d e r .
P u l l t h e f a u l t y b u l b a n d c h a n g e i t .
T o r e fi t , p r o c e e d i n t h e r e v e r s e o r d e r .
- Open the rear door.
- U n s c r e w t h e n u t
A .
- P u s h t h e l i g h t u n i t g e n t l y t o w a r d s t h e i n t e r i o r o f t h e v e h i c l e t o u n c l i p
the two side retaining clips,
- R e m o v e t h e l i g h t u n i t a n d disconnect it.
- U n c l i p t h e b u l b h o l d e r b y p r e s s i n g the tabs B ,
- C h a n g e t h e f a u l t y b u l b . N u m b e r p l a t e l i g h t s ( W 5 W )
Insert a thin screwdriver into one
of the external holes of the lens.
P u s h i t o u t w a r d s t o u n c l i p i t .
Remove the lens.
C h a n g e t h e f a u l t y b u l b .
Page 93 of 114
91PRACTICAL INFORMATION-
R e m o v i n g a n d fi t t i n g a f u s e
B e f o r e c h a n g i n g a f u s e , t h e c a u s e
o f t h e f a u l t m u s t b e f o u n d a n d r e m e -
d i e d . T h e f u s e n u m b e r s a r e i n d i c a t e d
o n t h e f u s e b o x .
Use the pliers B .
CHANGING A FUSE
T h e f u s e b o x e s a r e l o c a t e d u n d e r t h e
fascia and in the engine compartment.
Fascia fuse box
Unclip the cover to gain access to the
f u s e s .
T h e s p a r e f u s e s a n d t h e p l i e r s B are
s e c u r e d o n t h e i n s i d e o f t h e c o v e r A .
Correct
Incorrect
Pliers B
Always replace a faulty fuse with a
f u s e o f t h e s a m e r a t i n g ( t w o f u s e t y p e s
a c c o r d i n g t o m a n u f a c t u r e r - s e e i m a g e s ) .
Page 94 of 114
91PRACTICAL INFORMATION-
R e m o v i n g a n d fi t t i n g a f u s e
B e f o r e c h a n g i n g a f u s e , t h e c a u s e
o f t h e f a u l t m u s t b e f o u n d a n d r e m e -
d i e d . T h e f u s e n u m b e r s a r e i n d i c a t e d
o n t h e f u s e b o x .
Use the pliers B .
CHANGING A FUSE
T h e f u s e b o x e s a r e l o c a t e d u n d e r t h e
fascia and in the engine compartment.
Fascia fuse box
Unclip the cover to gain access to the
f u s e s .
T h e s p a r e f u s e s a n d t h e p l i e r s B are
s e c u r e d o n t h e i n s i d e o f t h e c o v e r A .
Correct
Incorrect
Pliers B
Always replace a faulty fuse with a
f u s e o f t h e s a m e r a t i n g ( t w o f u s e t y p e s
a c c o r d i n g t o m a n u f a c t u r e r - s e e i m a g e s ) .
Page 95 of 114

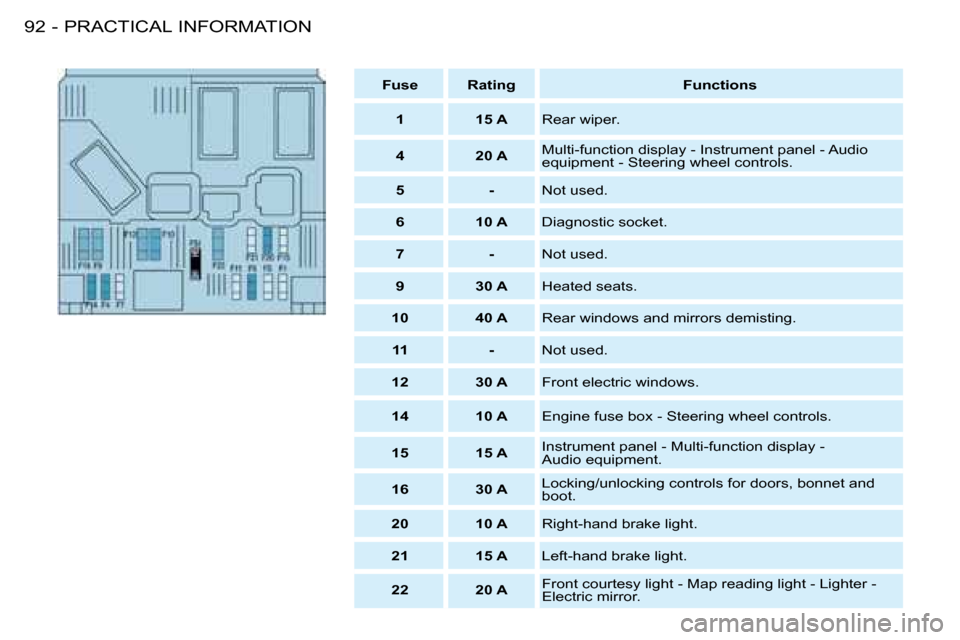

PRACTICAL INFORMATION92 -
Fuse Rating Functions
1 15 A Rear wiper.
4 2 0 A M u l t i - f u n c t i o n d i s p l a y - I n s t r u m e n t p a n e l - A u d i o
e q u i p m e n t - S t e e r i n g w h e e l c o n t r o l s .
5 - N o t u s e d .
6 1 0 A Diagnostic socket.
7 - N o t u s e d .
9 3 0 A Heated seats.
1 0 4 0 A Rear windows and mirrors demisting.
11 - N o t u s e d .
12 3 0 A Front electric windows.
14 1 0 A E n g i n e f u s e b o x - S t e e r i n g w h e e l c o n t r o l s .
15 15 A I n s t r u m e n t p a n e l - M u l t i - f u n c t i o n d i s p l a y -
A u d i o e q u i p m e n t .
16 3 0 A L o c k i n g / u n l o c k i n g c o n t r o l s f o r d o o r s , b o n n e t a n d
boot.
2 0 1 0 A Right-hand brake light.
21 15 A Left-hand brake light.
22 2 0 A F r o n t c o u r t e s y l i g h t - M a p r e a d i n g l i g h t - L i g h t e r -
Electric mirror.
Page 96 of 114
93PRACTICAL INFORMATION-
T h e e l e c t r i c a l c i r c u i t o f y o u r v e h i c l e i s d e s i g n e d t o o p e r a t e w i t h s t a n d a r d o r o p t i o n a l e q u i p m e n t .
B e f o r e i n s t a l l i n g o t h e r e l e c t r i c a l e q u i p m e n t o r a c c e s s o r i e s i n y o u r v e h i c l e , c o n s u l t a C I T R O Ë N d e a l e r .
S o m e e l e c t r i c a l a c c e s s o r i e s o r t h e w a y i n w h i c h t h e y a r e fi t t e d m a y h a v e a n a d v e r s e e f f e c t o n t h e o p e r a t i o n o f y o u r
v e h i c l e ( i t s e l e c t r o n i c c o n t r o l c i r c u i t s , t h e a u d i o c i r c u i t a n d t h e e l e c t r i c a l c h a r g i n g c i r c u i t ) .
C I T R O Ë N d e c l i n e s a n y r e s p o n s i b i l i t y f o r e x p e n s e s i n c u r r e d t h r o u g h t h e r e p a i r o f y o u r v e h i c l e o r f o r a n y m a l f u n c t i o n s
r e s u l t i n g f r o m t h e i n s t a l l a t i o n o f a u x i l i a r y a c c e s s o r i e s , n o t s u p p l i e d a n d n o t r e c o m m e n d e d b y C I T R O Ë N a n d n o t i n s t a l l e d i n
a c c o r d a n c e w i t h i t ' s i n s t r u c t i o n s , i n p a r t i c u l a r f o r a n y e q u i p m e n t t h e p o w e r c o n s u m p t i o n o f w h i c h e x c e e d s 1 0 m i l l i a m p s .
T h e m a x i f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t r i c a l s y s t e m s . A n y w o r k o n t h e s e f u s e s m u s t b e c a r r i e d o u t b y a
CITROËN dealer.
Page 97 of 114
PRACTICAL INFORMATION94 -
Fuse N° Rating Functions
1 1 0 A P r e - h e a t u n i t ( d i e s e l ) - B r a k e a n d c l u t c h s w i t c h e s -
Reversing lights.
2 15 A F u e l p u m p .
3 1 0 A A B S c o n t r o l u n i t .
4 1 0 A E n g i n e c o n t r o l u n i t .
5 - N o t u s e d .
6 15 A Front fog lamps.
7 2 0 A H e a d l a m p w a s h p u m p .
8 2 0 A F a n a s s e m b l y r e l a y - E n g i n e c o n t r o l u n i t .
9 15 A Left-hand dipped beam.
1 0 15 A Right-hand dipped beam.
11 1 0 A Left-hand main beam.
12 1 0 A Right-hand main beam.
13 15 A Horn.
14 1 0 A F r o n t a n d r e a r w i n d s c r e e n w a s h p u m p s .
15 3 0 A O x y g e n s e n s o r - A i r fl o w s e n s o r .
16 3 0 A A i r p u m p r e l a y .
17 3 0 A Front windscreen wiper.
18 4 0 A Air conditioning fan.
E n g i n e c o m p a r t m e n t f u s e b o x
To gain access to the box in the engine
c o m p a r t m e n t ( n e x t t o t h e b a t t e r y ) , u n c l i p
the cover.
A f t e r c a r r y i n g o u t w o r k , c l o s e t h e
c o v e r v e r y c a r e f u l l y .
Page 98 of 114
9 5PRACTICAL INFORMATION-
ECONOMY MODE FUNCTION
After the engine has stopped, with
the key in the "accessories" position,
c e r t a i n f u n c t i o n s ( w i n d s c r e e n w i p e r ,
e l e c t r i c w i n d o w s , c o u r t e s y l i g h t s ,
a u d i o e q u i p m e n t , e t c . ) c a n o n l y b e
u s e d f o r a c o m b i n e d d u r a t i o n o f a p -
p r o x i m a t e l y t h i r t y m i n u t e s , t o p r e v e n t
discharging the battery.
O n c e t h e t h i r t y m i n u t e s a r e o v e r , a
switching to economy mode message a p p e a r s o n t h e m u l t i - f u n c t i o n d i s p l a y
a n d t h e a c t i v e f u n c t i o n s a r e p u t o n
standby.
T h e s e f u n c t i o n s a r e r e a c t i v a t e d
a u t o - m a t i c a l l y n e x t t i m e t h e v e h i c l e
is driven.
I n o r d e r t o r e s u m e t h e u s e o f t h e s e
f u n c t i o n s i m m e d i a t e l y , t h e e n g i n e
m u s t b e s t a r t e d a n d l e f t t o r u n f o r a
f e w m i n u t e s .
T h e t i m e a v a i l a b l e t o y o u w i l l t h e n
b e d o u b l e t h e d u r a t i o n f o r w h i c h t h e
e n g i n e i s l e f t r u n n i n g . H o w e v e r , t h i s
p e r i o d w i l l a l w a y s b e b e t w e e n fi v e
a n d t h i r t y m i n u t e s .
BATTERY
It is advisable to disconnect the
battery if the vehicle is not to be
u s e d f o r a p e r i o d o f m o r e t h a n
o n e m o n t h .
Before disconnecting the
b a t t e r y , y o u m u s t w a i t 2 m i n -
u t e s a f t e r s w i t c h i n g o f f t h e
ignition.
Never disconnect a terminal when
t h e e n g i n e i s r u n n i n g .
N e v e r c h a r g e a b a t t e r y w i t h o u t fi r s t
disconnecting the terminals.
Close the windows and the roof before
disconnecting the battery.
After every reconnection of the bat-
tery, switch on the ignition and wait
1 m i n u t e b e f o r e s t a r t i n g t o a l l o w t h e
electronic systems to be initialised. If
s l i g h t d i f fi c u l t i e s a r e e x p e r i e n c e d a f t e r
this, please contact a CITROËN
dealer. A fl a t b a t t e r y p r e v e n t s t h e
engine from starting.
T o s t a r t t h e v e h i c l e f r o m
another battery:
- Connect the red cable to the
positive (+) terminals of the two
batteries,
- Connect one end of the green or black cable to the negative (-)
terminal of the slave battery,
- Connect the other end of the green or black cable to an earth
point on the broken down vehicle
as far as possible from the battery
(for example, right-hand engine
m o u n t i n g ) .
O p e r a t e t h e s t a r t e r , l e t t h e e n g i n e r u n .
W a i t f o r t h e e n g i n e t o r e t u r n t o i d l e ,
then disconnect the cables.
To charge the battery using a
battery charger:
- Disconnect the battery,
- F o l l o w t h e i n s t r u c t i o n s f o r u s e
given by the battery charger
m a n u f a c t u r e r ,
- Reconnect starting with the negative (-) terminal,
- Check that the terminals and connectors are clean. If they are
c o v e r e d w i t h s u l p h a t e ( w h i t e o r
greenish deposit), disconnect
them and clean them.
Page 99 of 114

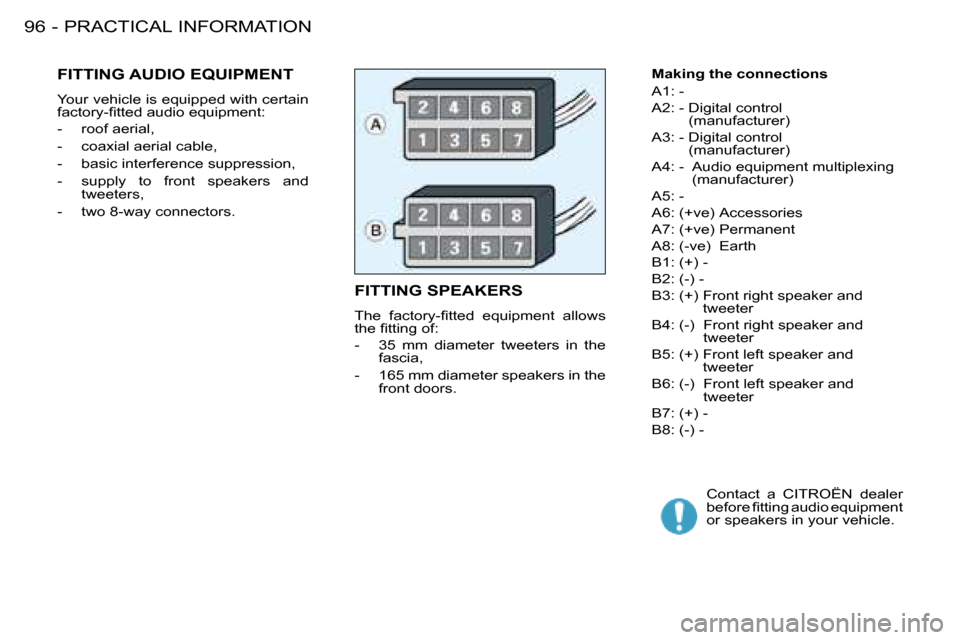

PRACTICAL INFORMATION96 - Making the connections
A1: -
A2: - Digital control ( m a n u f a c t u r e r )
A3: - Digital control ( m a n u f a c t u r e r )
A 4 : - A u d i o e q u i p m e n t m u l t i p l e x i n g ( m a n u f a c t u r e r )
A 5 : -
A6: (+ve) Accessories
A7: (+ve) Permanent
A8: (-ve) Earth
B1: (+) -
B2: (-) -
B3: (+) Front right speaker and tweeter
B4: (-) Front right speaker and tweeter
B 5 : ( + ) F r o n t l e f t s p e a k e r a n d tweeter
B6: (-) Front left speaker and tweeter
B7: (+) -
B8: (-) -
FITTING SPEAKERS
T h e f a c t o r y - fi t t e d e q u i p m e n t a l l o w s
t h e fi t t i n g o f :
- 3 5 m m d i a m e t e r t w e e t e r s i n t h e fascia,
- 1 6 5 m m d i a m e t e r s p e a k e r s i n t h e front doors.
FITTING AUDIO EQUIPMENT
Y o u r v e h i c l e i s e q u i p p e d w i t h c e r t a i n
f a c t o r y - fi t t e d a u d i o e q u i p m e n t :
- roof aerial,
- coaxial aerial cable,
- b a s i c i n t e r f e r e n c e s u p p r e s s i o n ,
- s u p p l y t o f r o n t s p e a k e r s a n d tweeters,
- two 8-way connectors.
Contact a CITROËN dealer
b e f o r e fi t t i n g a u d i o e q u i p m e n t
o r s p e a k e r s i n y o u r v e h i c l e .
Page 100 of 114
97PRACTICAL INFORMATION-
SNOW SCREEN *
The snow screen is installed on the
l o w e r p a r t o f t h e f r o n t b u m p e r t o p r e -
v e n t t h e a c c u m u l a t i o n o f s n o w a t t h e
radiator cooling fan.
Remove the snow screen:
- w h e n t h e e x t e r i o r t e m p e r a t u r e i s higher than 10 °C,
- when towing,
- f o r s p e e d s h i g h e r t h a n 7 5 m p h (120 km/h).

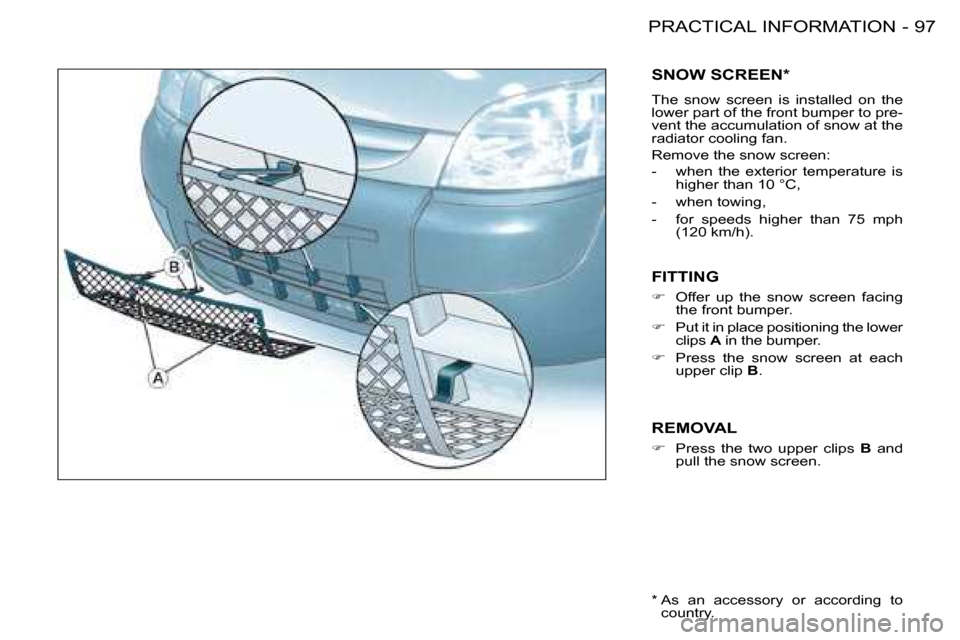

FITTING
O f f e r u p t h e s n o w s c r e e n f a c i n g
t h e f r o n t b u m p e r .
P u t i t i n p l a c e p o s i t i o n i n g t h e l o w e r
clips A i n t h e b u m p e r .
Press the snow screen at each
u p p e r c l i p B .
REMOVAL
P r e s s t h e t w o u p p e r c l i p s B and
p u l l t h e s n o w s c r e e n .
* As an accessory or according to c o u n t r y .
