Page 2 of 123
5FAMILIARISATION-
INSTRUMENTS AND CONTROLS
12. Windscreen demisting vents.
13. Speaker (tweeter).
14. Door window demisting vents.
15. Side adjustable heating/
ventilation vents.
16.
Passenger air bag disarming control.
17. Upper glove box or passenger air bag.
18. Lower glove box.
19. RD3 audio equipment.
20. Heating/air conditioning controls.
21. Storage compartment.
22. Movable ashtray.
23. Gear lever.
24. Lighter.
25. Handbrake.
26. Heated seats control.
27. Steering lock and ignition.
28. Steering wheel adjustment
control.
29. Bonnet release.
30. Fuse box.
31. Headlamp height adjustment.
32. Passenger's electric mirror
control.
1. Speed limiter/cruise control
switch.
2. Lights and direction indicators
controls.
3. Driver's air bag.
Horn.
4. Instrument panel.
5. Audio equipment steering wheel
control.
6. Wipers/wash-wipe controls.
7. Central adjustable heating/
ventilation vents.
8. Hazard warning lights switch.
9. Multifunction display or clock.
10. Central locking button.
11. Controls:
- Electric windows.
- Rear door windows or tailgate demisting.
- Air conditioning.
Page 4 of 123
7FAMILIARISATION-
WINDSCREEN WIPERS STEERING WHEEL STALKS
LIGHTING Front fog lamps (1 st
turn of the ring
forwards).
Front fog lamps and rear fog lamp
(2 nd
turn of the ring forwards).
To switch off: turn the ring rearwards.
Lights off
Side lights
Dipped headlamps/
Main beam headlamps V e h i c l e s fi t t e d w i t h a r e a r
fog lamp (ring B)
Turn the ring forwards.
V e h i c l e s fi t t e d w i t h
front fog lamps and a
rear fog lamp (ring B)
Off Wash-wipe
Intermittent
wipe
Rear
62
63
Front and rear lights (ring A)
Front
2 Rapid wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
Single wipe.
Windscreen wash-wipe: pull the stalk
towards you.
Page 14 of 123
INSTRUMENTS, CONTROLS and DISPLAYS18 -
1. Seat belt not fastened warning
light
2. Front and side air bags warning
light
3. Passenger air bag disarmed
warning light
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)
warning light
6. Rear fog lamp indicator light
7. Diesel pre-heat warning light
8. Left hand direction indicator
9. Total distance recorder, service
indicator and engine oil level
indicator
10. Right hand direction indicator
11. Emission control system warning
light
12.
Main beam headlamps indicator light
13. H a n d b r a k e , l o w b r a k e fl u i d
level and electronic brake force
d i s t r i b u t i o n w a r n i n g l i g h t
14. Dipped beam headlamps
indicator light
15. Battery charge warning light
16. E n g i n e o i l p r e s s u r e a n d
t e m p e r a t u r e w a r n i n g l i g h t
17. W a t e r i n d i e s e l fi l t e r w a r n i n g l i g h t
18. Low coolant level warning light
19. C o o l a n t t e m p e r a t u r e i n d i c a t o r
20. T o t a l d i s t a n c e r e c o r d e r b u t t o n
21. Central (STOP) warning light
22. Speedometer
23. R e v c o u n t e r
24. L i g h t i n g r h e o s t a t b u t t o n
25. F u e l l e v e l i n d i c a t o r
26. L o w f u e l l e v e l w a r n i n g l i g h t
27. S p e e d l i m i t e r / c r u i s e c o n t r o l
display
INSTRUMENT PANEL: PETROL - DIESEL
Page 64 of 123
VISIBILITY62 - Dipped/Main beam change
Pull the stalk towards you.
Note: with the ignition off, when the
driver's door is opened, a buzzer
sounds if you have left your lights on.
LIGHTS STALK
Lights off
Side lights
Dipped/Main beam
headlamps Front fog lamps and rear fog
lamp
Rotate the ring forwards to switch on
and backwards to switch off. The sta-
t u s i s c o n fi r m e d b y t h e i n d i c a t o r l i g h t
on the instrument panel.
"Follow-me-home" lighting
In poor light, or at night, if you leave
your vehicle, the side lights and
dipped headlamps may remain on for
approximately one minute.
To activate this function:
- place the key in the
STOP position,
- place the lights stalk in position 0 ,
- fl a s h t h e h e a d l a m p s ,
- exit the vehicle and lock it.
In good or rainy weather,
both day and night, the front
fog lamps and the rear fog
lamp are dazzling and are
prohibited.
Do not forget to switch them off when
they are no longer needed. Left:
downwards.
Right: upwards.
D i r e c t i o n i n d i c a t o r s ( fl a s h e r s )
V e h i c l e s fi t t e d w i t h a r e a r
f o g l a m p o n l y ( r i n g B )
V e h i c l e s fi t t e d w i t h
front fog lamps and
a rear fog lamp
( r i n g B )
F r o n t f o g l a m p s ( fi r s t r o t a t i o n o f t h e
ring forwards).
Front and rear fog lamps (2nd rotation
of the ring forwards).
Note: to switch off the rear fog lamp
and the front fog lamps, turn the ring
backwards twice in succession.
Front and rear lights
Selection is by turning ring
A.
Rotate the ring forwards.
This only operates with the dipped/
main beam headlamps.
Page 65 of 123
63VISIBILITY-
Windscreen wipers
2 Fast wipe
(heavy rain).
1 Normal wipe
(moderate rain).
I Intermittent wipe.
0 Off.
Single wipe
(press downwards).
WINDSCREEN WIPER STALK Windscreen and headlamp wash
( a c c o r d i n g t o c o u n t r y )
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
f o r a fi x e d p e r i o d .
The headlamp wash is also activated,
if the headlamps are on.
Rear windscreen wiper
Turn ring A t o t h e fi r s t n o t c h .
The wiping speed is inverse-
ly proportional to the speed
of the vehicle.
In winter, in the event of a
considerable amount of snow
or ice, switch on the rear win-
dow demister. Once deicing
is complete, remove the snow
or ice which has accumulated on the
rear wiper blade. You can now ope-
rate the rear windscreen wiper. Rear windscreen wash
Turn ring
A p a s t t h e fi r s t
notch: the windscreen wash
then the windscreen wiper
o p e r a t e f o r a fi x e d t i m e .
Operation
In position 1 or 2 , when the vehicle
stops, the windscreen wiper changes
to a lower wiping speed, then resumes
its initial speed when the vehicle starts
again.
In the I ntermittent position, the wiping
speed is proportional to the speed of
the vehicle. Automatic rear windscreen
wiping
place the front wipers stalk in a
position other than 0 ,
engage reverse gear,
the rear wiper operates with inter-
mittent wiping.
Note : if a bicycle carrier is used, con-
tact a CITROËN dealer to have this
function disarmed.
Page 70 of 123
COMFORT AND SAFETY68 -
STEERING WHEEL HEIGHT ADJUSTMENT HEADLAMP ADJUSTMENT HORN
HAZARD WARNING LIGHTS
Press the button, the direction indicators
fl a s h .
They can operate with the ignition off. Press one of the spokes or
the centre of the steering
wheel.
0 - With no load.
1 - With partial load.
2 - With average load.
3 - With maximum authorised load.
0 - 1 or 2 people in the front seats.
- - 3 people.
1 - 5 to 7 people.
2 - 5 to 7 people + maximum author-
ised load.
3 - Driver + maximum authorised
load.
Initial setting is position 0.
Depending on the load in your vehicle,
it is recommended that the headlamp
beam is adjusted.
When stationary, lower the handle to
unlock the steering wheel.
Adjust to the desired height and
lift the handle to lock the steering
wheel.
Page 84 of 123
PRACTICAL INFORMATION80 -
1. Power steering reservoir
2. Windscreen and headlamp wash
reservoir
3. Coolant reservoir
4. B r a k e fl u i d r e s e r v o i r
5. Battery
6. A i r fi l t e r
7. Dipstick
8. Engine oil reservoir
1.4 LITRE PETROL ENGINE
Page 85 of 123
81PRACTICAL INFORMATION-
1. Power steering reservoir
2. Windscreen and headlamp wash
reservoir
3. Coolant reservoir
4. B r a k e fl u i d r e s e r v o i r
5. Battery
6. A i r fi l t e r
7. Dipstick
8. Engine oil reservoir
1.6 LITRE PETROL ENGINE
Page 86 of 123
PRACTICAL INFORMATION82 -
1. Power steering reservoir
2. Windscreen and headlamp wash
reservoir
3. Coolant reservoir
4. B r a k e fl u i d r e s e r v o i r
5. Battery
6. A i r fi l t e r
7. Dipstick
8. Engine oil reservoir
1.9 LITRE DIESEL ENGINE
Page 87 of 123
83PRACTICAL INFORMATION-

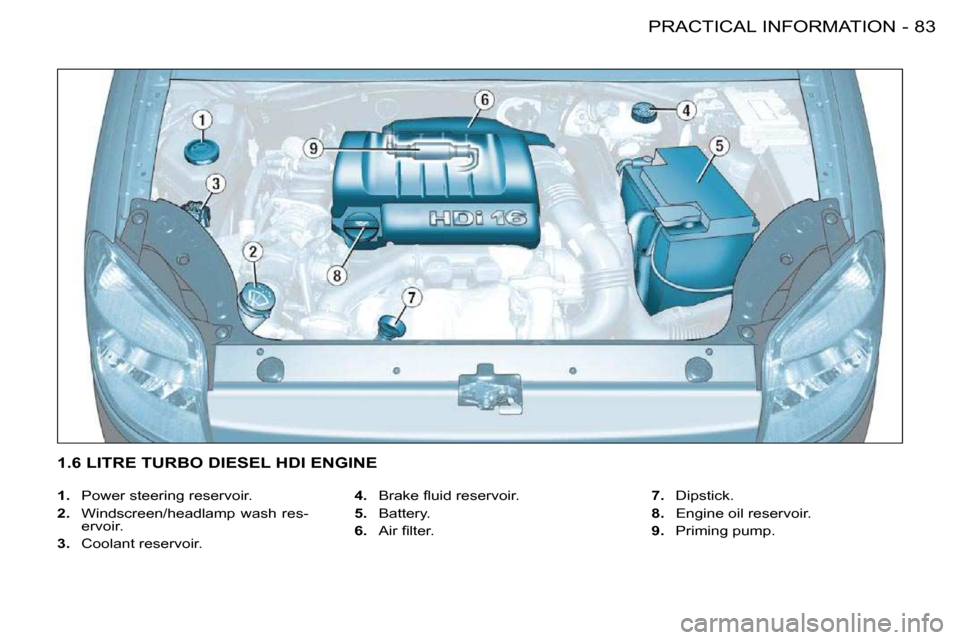

1. Power steering reservoir.
2. Windscreen/headlamp wash res-
ervoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery.
6. A i r fi l t e r .
7. Dipstick.
8. Engine oil reservoir.
9. P r i m i n g p u m p .
1.6 LITRE TURBO DIESEL HDI ENGINE
