ACCESS and STARTING58 -
OPENING THE BONNET

Inside the vehicle: pull the handle on
the left-hand side, under the fascia.

Outside the vehicle: lift the catch
and raise the bonnet.
BONNET STRUT
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace
the strut in its housing.
FILLING WITH FUEL
When the minimum
fuel level in the tank is
reached, this warning
light comes on. When the cap is removed,
the right-hand sliding side
door cannot be opened.
The key cannot be removed
from the lock until the cap
has been replaced on the
fuel tank.
A label reminds you which type of
fuel to use.
When you fi ll your tank, do not con-
tinue after the third cut-off of the
pump. This could cause your vehicle
to malfunction.
To close
Lower the bonnet and release it at
the end of its travel.
Check that the bonnet is locked.
Low fuel level

You have enough fuel remaining
to drive for approximately 30 miles
(50 km).

The engine must be switched off
when fi lling with fuel.

 Insert the key then turn it to the
left.

 Remove the cap.
The capacity of the tank is approxi-
mately 55 litres for petrol engines
and 60 litres for Diesel engines.

 After fi lling the tank, lock the cap.

59VISIBILITY-
Dipped/Main beam change
Pull the stalk towards you.

Note: with the ignition off, when the
driver’s door is opened, a buzzer
sounds if you have left your lights on.
LIGHTS STALK
Lights off
Side lights
Dipped/main beam
headlamps Front fog lamps and rear fog
lamp
Rotate the ring forwards to switch on
and backwards to switch off. The sta-
tus is confi rmed by the indicator light
on the instrument panel.
"Follow-me-home" lighting
In poor light, or at night, if you leave
your vehicle, the side lights and
dipped headlamps may remain on for
approximately one minute.
To activate this function:
- place the key in the
STOP position,
- place the lights stalk in position 0 ,
- fl ash the headlamps,
- exit the vehicle and lock it.
In good or rainy weather,
both day and night, the front
fog lamps and the rear fog
lamp are dazzling and are
prohibited.
Do not forget to switch them
off when they are no longer needed.
Left: downwards.

Right: upwards.
Direction indicators (fl ashers)
Vehicles fi tted with a rear
fog lamp only (ring B)
Vehicles fi tted with
front fog lamps and
a rear fog lamp
(ring B)
Front fog lamps (fi rst rotation of the
ring forwards).
Front and rear fog lamps (2nd rotation
of the ring forwards).

Note: to switch off the rear fog lamp
and the front fog lamps, turn the ring
backwards twice in succession.
Front and rear lights
Selection is by turning ring
A .
Rotate the ring forwards.
This only operates with the dipped/
main beam headlamps.

VISIBILITY60 - Windscreen wipers

2 Fast wipe (heavy rain).

1 Normal wipe (moderate rain).

I Intermittent wipe.

0 Off.

 Single wipe (press downwards).
Windscreen and headlamp wash
(according to country)
Pull the windscreen wiper stalk
towards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp wash is also activated,

if the headlamps are on .
Rear windscreen wiper
Turn ring A to the fi rst notch.
The wiping speed is inversely
proportional to the speed of
the vehicle.
In winter, in the event of a
considerable amount of snow
or ice, switch on the rear
window demister. Once de-
icing is complete, remove the
snow or ice which has accumulated
on the rear wiper blade. You can now
operate the rear windscreen wiper. Rear windscreen wash
Turn ring
A past the fi rst
notch: the windscreen wash
then the windscreen wiper
operate for a fi xed time.
Operation
In position 1 or 2 , when the vehicle
stops, the windscreen wiper chan-
ges to a lower wiping speed, then
resumes its initial speed when the
vehicle starts again.
In the I ntermittent position, the wiping
speed is proportional to the speed of
the vehicle. Automatic rear windscreen
wiping

 place the front wipers stalk in a
position other than 0 ,

 engage reverse gear,

 the rear wiper operates with inter-
mittent wiping.

Note
: if a bicycle carrier is used, con-
tact a
CITROËN if a bicycle carrier bicycle dealer to have this
function disarmed.

61-
ELECTRIC WINDOWS
Always remove the ignition
key when leaving the vehi-
cle, even for a short time.
If an obstacle is encountered
while the electric windows
are in use, you must reverse the
movement of the window. To do this,
press the switch concerned.
When the driver operates the pas-
senger electric window switches, he
must ensure that no one is preven-
ting correct closing of the windows.
The driver must ensure that passengers
use the electric windows correctly.
Be aware of children when operating
the windows.
1. Driver’s electric window switch
2. Passenger electric window switch
You have two options:
- Manual operation:
Press switch 1 . The window
stops as soon as the switch is
released.
- Automatic operation (driver):
Press and hold switch 1 . One
touch completely opens or closes
the window.
Automatic closing only operates when
the engine is running.
REAR WINDOWS
To partially open the rear windows,
tilt the lever and push it fully to lock
the windows in the open position.

VISIBILITY62 -

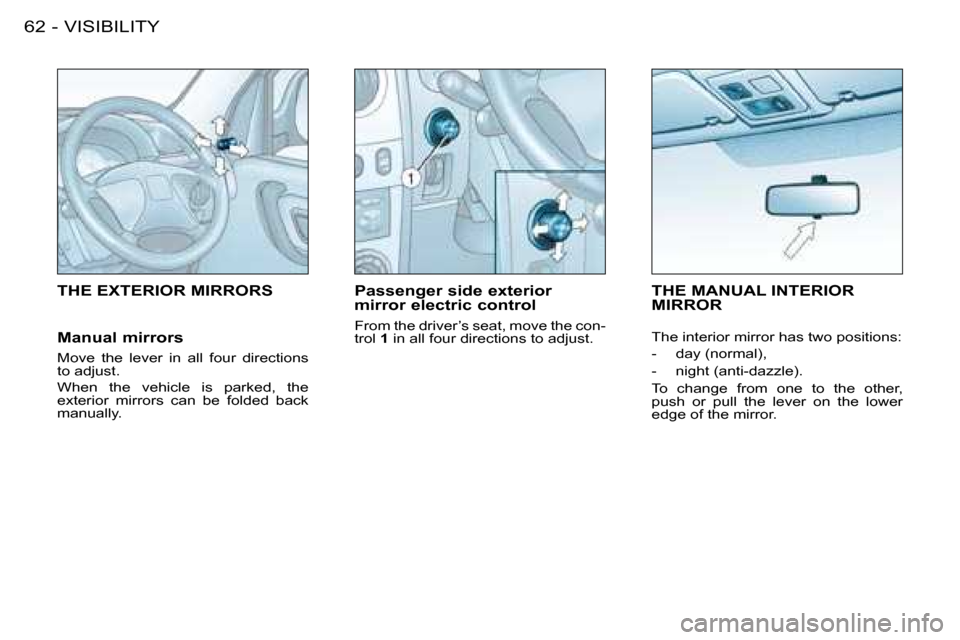

THE EXTERIOR MIRRORS Passenger side exterior
mirror electric control
From the driver’s seat, move the con-
trol 1 in all four directions to adjust. THE MANUAL INTERIOR MIRROR
Manual mirrors
Move the lever in all four directions
to adjust.
When the vehicle is parked, the
exterior mirrors can be folded back
manually. The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other,
push or pull the lever on the lower
edge of the mirror.

COMFORT AND SAFETY64 -

65COMFORT AND SAFETY-

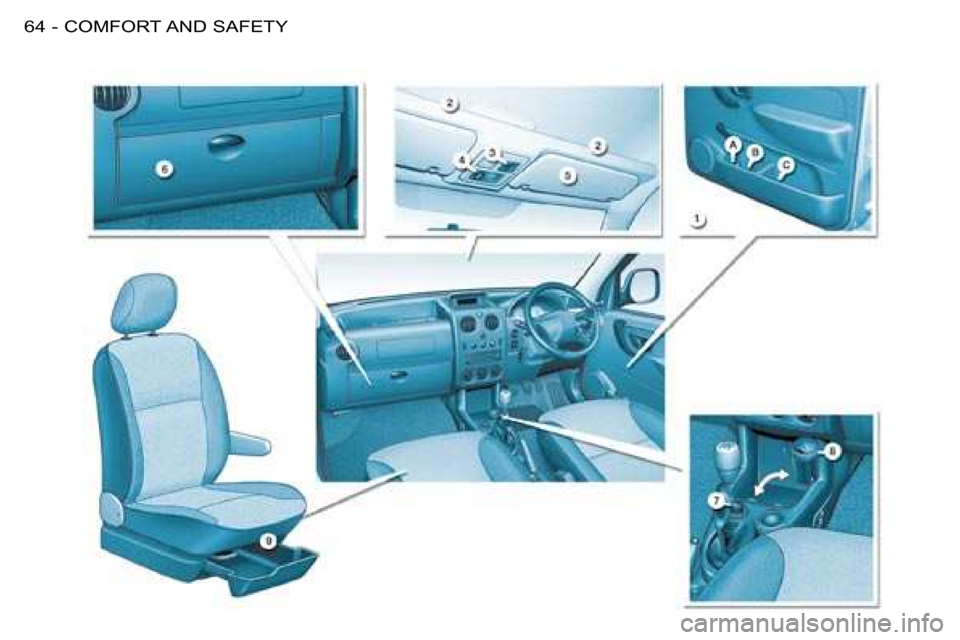

FRONT LAYOUT
4. Courtesy lights 5. Sun visors
Permanently off.
On entering the vehicle: - they come on when the vehicle is unlocked or
when a door is opened,
- they switch off after approxi- mately 30 seconds with the doors
closed, or when the ignition is
switched on.
On leaving the vehicle:
- they come on when the key is removed from the ignition (timing
of approximately 30 seconds) or
when a door is opened,
- they switch off after approximately 30 seconds with all of the doors
closed, or immediately when the
vehicle is locked.
In this position, the courtesy light
may fl ash while driving if a door is not
closed correctly.
If a door is open, it will switch off
automatically after approximately
10 minutes or when the ignition is
switched on. Permanently on when the
key is in the accessories
position or the ignition is on.
1. Storage in the doors

A. Bottle holder.

B. Can holder.

C. Storage compartment.
2. Overhead storage
Maximum load: 5 kg .
3. Map reading lights
Turn the dial to the right or to the left
to switch them on.
Place the dial in the centre to switch
them off. 6. Glove box
7. Lighter
It permits the connection of a telephone
charger, a baby’s bottle warmer, ...
8. Removable ashtray
Pull the cover to open the ashtray.
To empty, after opening, remove it by
pulling upwards.
9. Storage drawer (passenger)
To open the drawer, lift it slightly and
pull it forwards.

COMFORT AND SAFETY66 -
STEERING WHEEL HEIGHT ADJUSTMENT HEADLAMP ADJUSTMENT HORN
HAZARD WARNING LIGHTS
Press the button, the direction indica-
tors fl ash.
They can operate with the ignition off. Press one of the spokes or
the centre of the steering
wheel.

0 - With no load.

1 - With partial load.

2 - With average load.

3 - With maximum authorised load.

0 - 1 or 2 people in the front seats.

- - 3 people.

1 - 5 people.

2 - 5 people + maximum authorised
load.

3 - Driver + maximum authorised
load.

Initial setting is position 0.
Depending on the load in your vehi-
cle, it is recommended that the head-
lamp beam is adjusted.
When stationary, lower the handle to
unlock the steering wheel.
Adjust to the desired height and
lift the handle to lock the steering
wheel.

67COMFORT AND SAFETY-

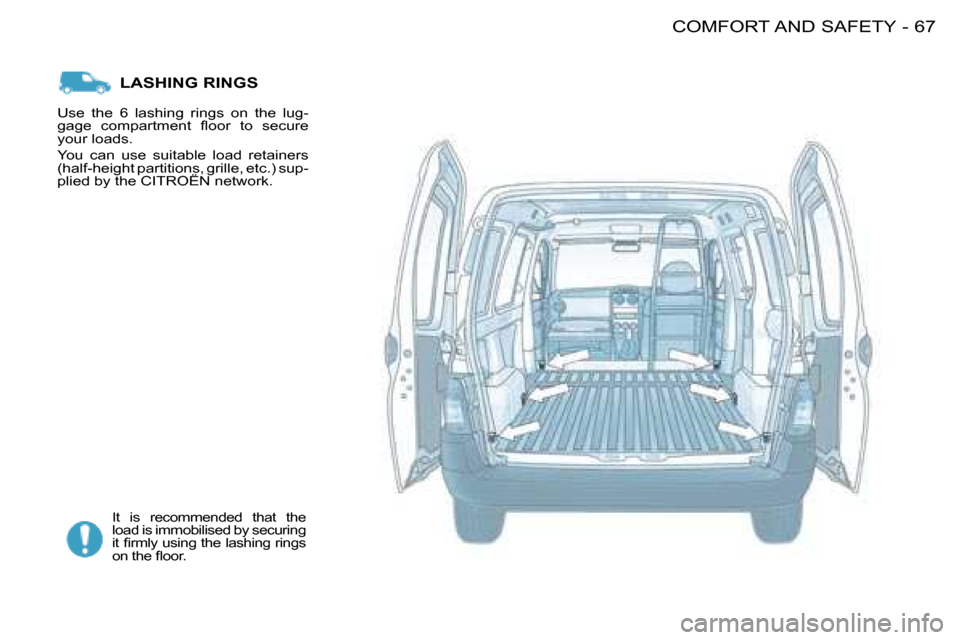

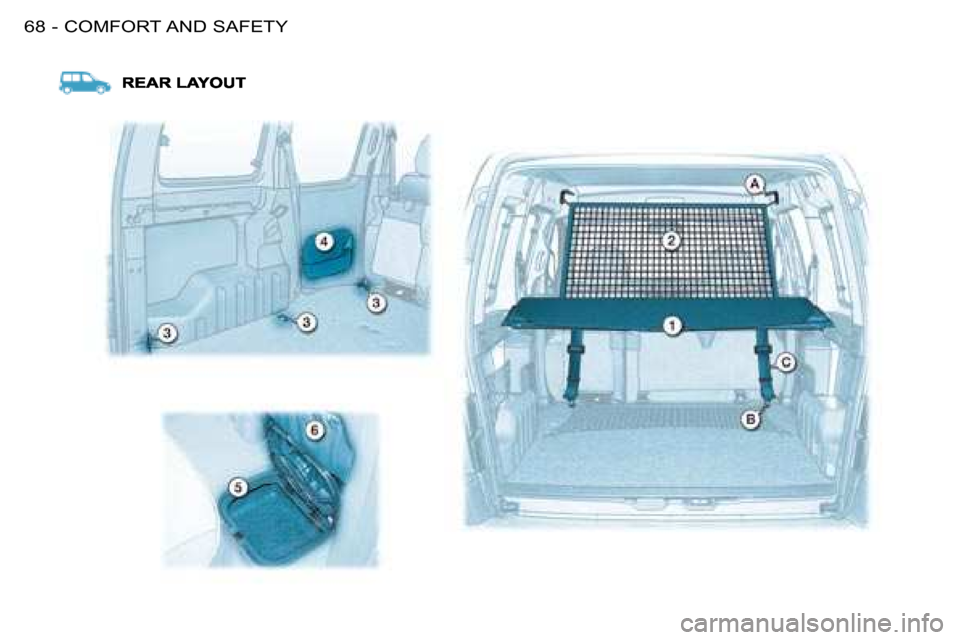

LASHING RINGS
It is recommended that the
load is immobilised by securing
it fi rmly using the lashing rings
on the fl oor.
Use the 6 lashing rings on the lug-
gage compartment fl oor to secure
your loads.
You can use suitable load retainers
(half-height partitions, grille, etc.) sup-
plied by the CITROËN network.

COMFORT AND SAFETY68 -
