TECHNICAL DATA102 -
Model codes
GB9HWC

GC9HWC

GJ9HWC
GB9HXC

GC9HXC

GJ9HXC
GBWJYB

GCWJYB

GJWJYB

ENGINES
1.6 litre Turbo HDI 1.6 litre Turbo HDI 1.9 litre
Cubic capacity (cm 3
) 1 560 1 560 1 867
Bore x stroke (mm) 75 x 88.3 75 x 88.3 82.2 x 88
EU standard maximum power (kW) 55.2 66.2 51
Maximum power at engine speed (rpm) 4 000 4 000 4 60 0
EU standard maximum torque (Nm) 175 215 125
Maximum torque at engine speed (rpm) 1 750 1 750 2 5 00
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes

Gearbox Manual
(5 speed) Manual
(5 speed) Manual
(5 speed)

Oil capacity (in litres)
Engine (with cartridge replacement) 3.75 3.8 4.8
Gearbox - Final drive 1.9 1.9 1.9
DIESEL ENGINES AND GEARBOXES

103TECHNICAL DATA-

Engine Gearbox
Model
codes
Version
Urban
driving
Inter-urban Mixed
Emission
of CO 2 by
weight (g/km)

1.4 litre Manual
GBKFWC 600 kg 9.9 6.3 7.5 175

GCKFWC 800 kg 9.9 6.3 7.5 175

1.6 litre
Turbo HDI Manual
GB9HWC 600 kg 6.7 4.7 5.4 140

GC9HWC 800 kg 6.7 4.7 5.4 140

1.6 litre
Turbo HDI Manual
GB9HXC 600 kg 6.8 4.6 5.4 140

GC9HXC 800 kg 6.8 4.6 5.4 140

1.9 litre Manual
GBWJYB 600 kg 9.3 5.7 7.0 184

GCWJYB 800 kg 9.3 5.7 7.0 184


1.4 litre Manual GJKFWC 9.6 6.2 7.4 175

1.6 litre Manual GJNFUC 9.7 6.2 7.5 177

1.6 litre
Turbo HDI Manual
GJ9HWC 6.7 4.7 5.4 143

1.6 litre
Turbo HDI Manual
GJ9HXC 6.7 4.7 5.4 143

1.9 litre Manual GJWJYB 8.8 5.7 6.9 181
CONSUMPTION IN LITRES/100 KM (IN ACCORDANCE WITH DIRECTIVE 8 0/1268/CEE)
The consumption values presented here correspond to the values communicated at the time of printing. These consumption
values were established in accordance with directive 80/1268/CEE. They may vary depending on the style of driving, traffi c
conditions, weather conditions, the load in the vehicle, t he maintenance of the vehicle and the use of the accessories.

105TECHNICAL DATA-

Engine
1.6 litre Turbo HDI 1.9 litre

Gearbox
Manual Manual Manual Manual

Model codes
GB9HWC GC9HWC

GBWJYB GCWJYB

GB9HXC GC9HXC

Version
600 kg 800 kg 600 kg 800 kg

TECHNICAL DATA106 -
Engine
1.4 litre1.6 litre

Gearbox
Manual Manual

Model codes
GJKFWCGJNFUC

107TECHNICAL DATA-
DIESEL WEIGHTS AND TOWING LOADS (IN KG) FOR LUDOSPACE

Engine 1.6 litre Turbo HDI1.6 litre Turbo HDI1.9 litre

Gearbox
Manual Manual Manual

Model codes:
GJ9HWCGJ9HXCGJWJYB

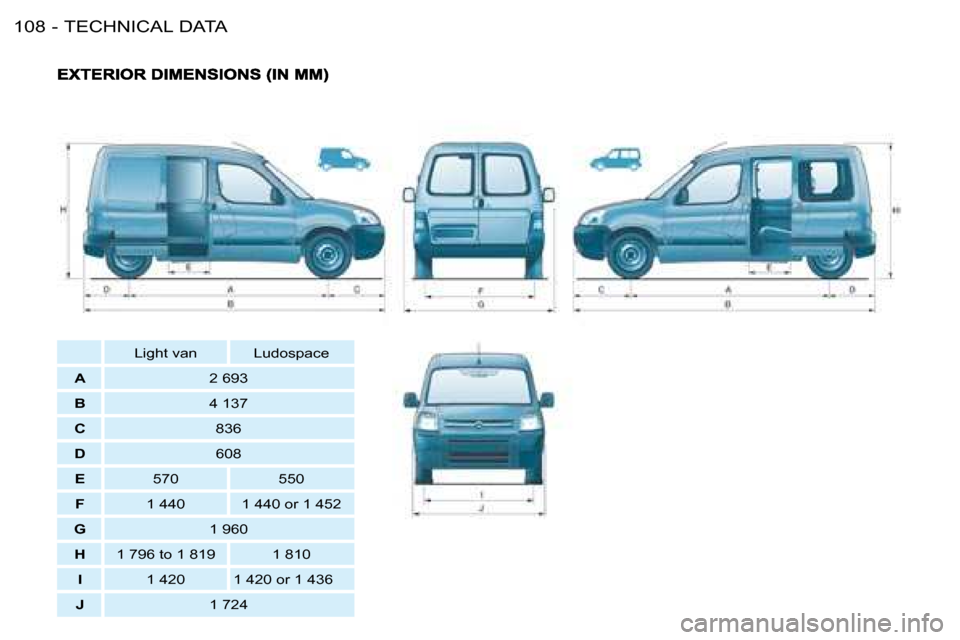

TECHNICAL DATA108 - Light van Ludospace

A 2 693

B 4 137

C 836

D 608

E 570 550

F 1 440 1 440 or 1 452

G 1 960

H 1 796 to 1 819 1 810

I 1 420 1 420 or 1 436

J 1 724
EXTERIOR DIMENSIONS (IN MM)

109TECHNICAL DATA-
INTERIOR DIMENSIONS (IN MM) LIGHT VAN

K 1 155

L 1 320

M 1 190

N 1 190

O 568

P 1 340

TECHNICAL DATA110 -

111TECHNICAL DATA-
IDENTIFICATION FEATURES

B. Serial number on the body-
work (under the bonnet, on the
right-hand crossmember).
C. Tyres and paint colour
reference.
The label C on the driver’s door pillar,
near the hinges, gives:
- the wheel and tyre sizes,
- the tyre pressures: (tyre pres-
sure checks must be carried
out cold, at least every month) ,
- the paint colour reference.

A. Manufacturer’s label (under
the bonnet, on the front right
wing).
