Replacing a cartridge

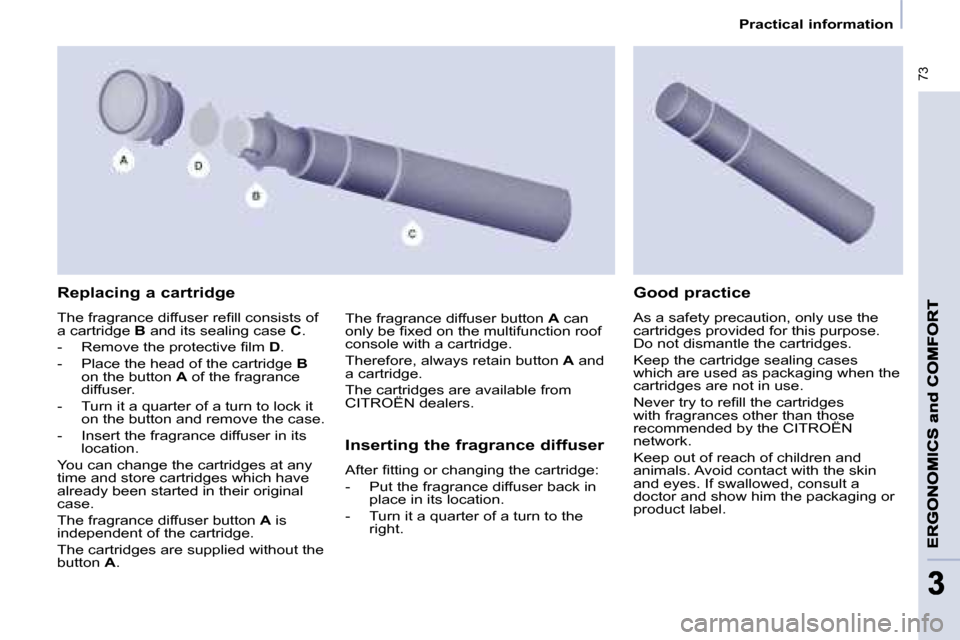

The fragrance diffuser refi ll consists of
a cartridge B and its sealing case C .
- Remove the protective fi lm D .
- Place the head of the cartridge B
on the button A of the fragrance
diffuser.
- Turn it a quarter of a turn to lock it on the button and remove the case.
- Insert the fragrance diffuser in its location.
You can change the cartridges at any
time and store cartridges which have
already been started in their original
case.
The fragrance diffuser button A is
independent of the cartridge.
The cartridges are supplied without the
button A . Inserting the fragrance diffuser
After fi tting or changing the cartridge:
- Put the fragrance diffuser back in
place in its location.
- Turn it a quarter of a turn to the right. Good practice
As a safety precaution, only use the
cartridges provided for this purpose.
Do not dismantle the cartridges.
Keep the cartridge sealing cases
which are used as packaging when the
cartridges are not in use.
Never try to refi ll the cartridges
with fragrances other than those
recommended by the CITROËN
network.
Keep out of reach of children and
animals. Avoid contact with the skin
and eyes. If swallowed, consult a
doctor and show him the packaging or
product label.
The fragrance diffuser button
A can
only be fi xed on the multifunction roof
console with a cartridge.
Therefore, always retain button A and
a cartridge.
The cartridges are available from
CITROËN dealers.

74
Practical information
MODUTOP ROOF BARS
These two longitudinal Modutop roof
bars can be removed. The maximum authorised weight on
each bar is 35 kg.
In all cases, the load must rest on
the non-slip bands provided for this
purpose and must not touch the roof or
the glazing of the roof.

Recommendations for loading on
the roof:

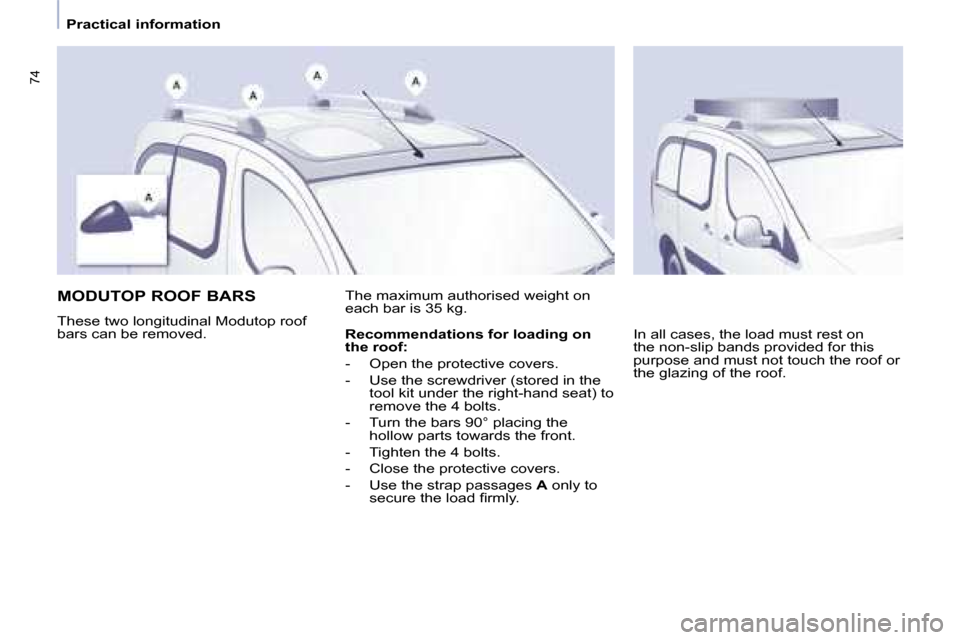

- Open the protective covers.
- Use the screwdriver (stored in the tool kit under the right-hand seat) to
remove the 4 bolts.
- Turn the bars 90° placing the hollow parts towards the front.
- Tighten the 4 bolts.
- Close the protective covers.
- Use the strap passages A only to
secure the load fi rmly.

Practical information
75
ERGONOMICS and COMFORT
33
ROOF BARS

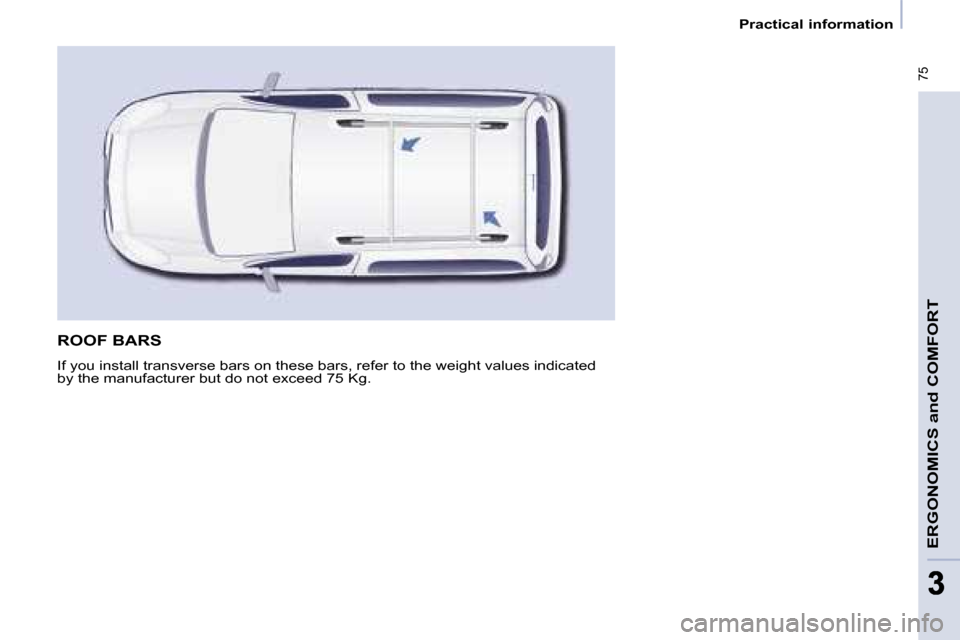

If you install transverse bars on these bars, refer to the weight values indicated
by the manufacturer but do not exceed 75 Kg.

76
Practical information
Automatic switching on/off
The front courtesy light comes on
when the key is removed from the
ignition, when the vehicle is unlocked,
when one of the front doors is opened
and for location of the vehicle using the
remote control.
It switches off gradually after the
ignition is switched on and when the
vehicle is locked. Front seats: comes on when
one of the front doors is
opened.
These are switched on and off by
means of a manual switch, with
the ignition on.
Rear seats: comes on when
one of the rear doors is
opened.
If the doors remain open for
a few minutes, the courtesy
lights are switched off.
Permanently off.
Permanently on, ignition on.
Front courtesy light
COURTESY LIGHTS
Rear courtesy light Front individual reading ligh
ts

Practical information
77
33
TORCH
Using the torch
Remove it from its location by pulling
from the top.
Press the switch, located on the back
of the torch, to switch it on or off.
The retaining clip allows you to position
the torch for precise use (for example,
lighting while changing a wheel). Storing the torch
Always put the torch back starting by
positioning the lower part in its location.
If it is not engaged correctly it may not
charge and may not come on when the
boot is opened.
Putting the torch back in place
switches it off automatically if it has not
been switched off already.
The torch has a maximum operating
time of 45 minutes and charges within
a few hours while driving.
Never replace the storage batteries
with conventional batteries.
A removable torch, incorporated in
the wall of the boot, carries out two
functions:
- boot light,
- torch.
The boot light operates automatically
when the boot is opened.
The torch operates with NiMH type
storage batteries.
Observe the polarities when fi tting
these storage batteries.

78
Practical information
LOAD SPACE COVER
This rigid shelf conceals the objects
stored in the boot. Removing
Fold the load space cover.
Detach it from the notches
A and B
pulling it towards you.
Raise it and remove the assembly.
Refi tting
Place the load space cover in front of

A and B .
Push it forwards to insert the lugs in
the notches.
Unfold and clip into the notches C .
Folding
From the boot, fold the half-shelf,
raising it to detach it from the notch
C . Storing (according to version)
A location is provided in the back of the
rear seats to accommodate the load
space cover folded onto itself.
Slide it vertically between the side
guides located at mid seat back height.
Insert the hinge fi rst, with the free fl aps
turned upwards.
This rigid load space cover can form
a shelf. However, for safety reasons,
do not place objects on it which could
become dangerous projectiles in the
event of sharp braking or rear impact.

Practical information
79
ERGONOMICS and COMFORT
33
12 Volt socket (120 W Max)
It is advisable to limit the use of this
socket to avoid discharging the battery. Protective net
Open the cover located in the hook
support.
Fix the top of the net in the notches,
having fi rst turned the bar 1/4 of a turn.
Ensure that the end of the bar engages
correctly in the metal part of its
location.
Fix the straps in the locations provided
on the fl oor.
Tighten the net using the straps.
Stowing rings
Use these rings to secure loads on the
fl oor.

80
Practical information

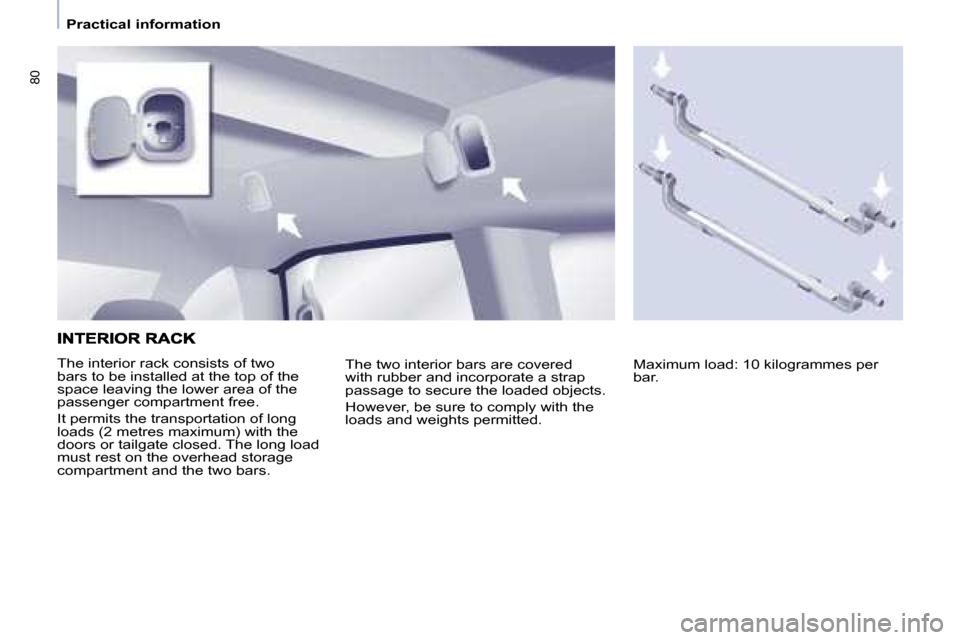

The interior rack consists of two
bars to be installed at the top of the
space leaving the lower area of the
passenger compartment free.
It permits the transportation of long
loads (2 metres maximum) with the
doors or tailgate closed. The long load
must rest on the overhead storage
compartment and the two bars. Maximum load: 10 kilogrammes per
bar.
The two interior bars are covered
with rubber and incorporate a strap
passage to secure the loaded objects.
However, be sure to comply with the
loads and weights permitted.

Practical information
81
ERGONOMICS and COMFORT
33
The interior rack is not compatible
with the Modutop.

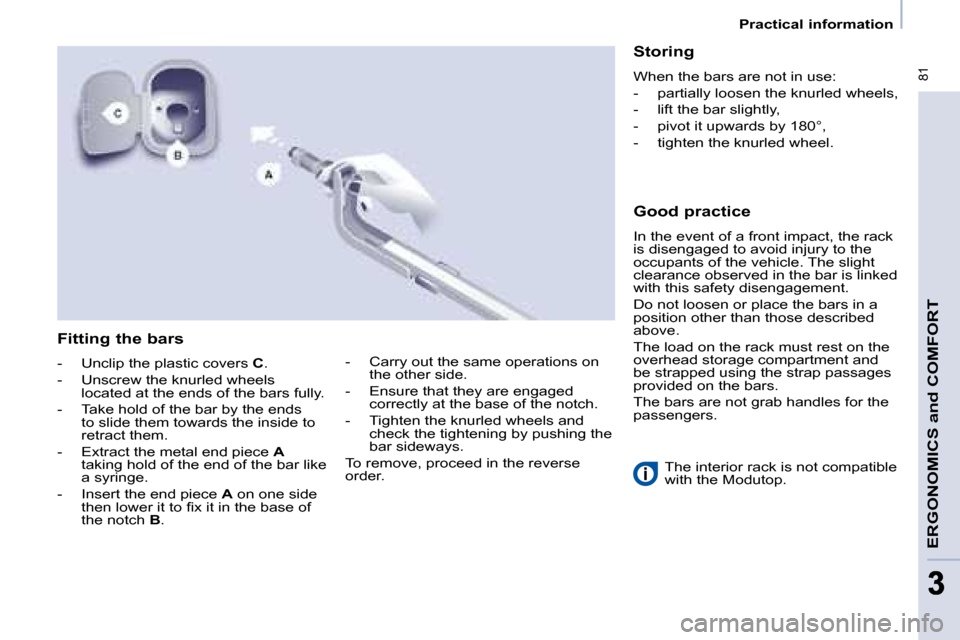

Fitting the bars
- Unclip the plastic covers
C .
- Unscrew the knurled wheels located at the ends of the bars fully.
- Take hold of the bar by the ends to slide them towards the inside to
retract them.
- Extract the metal end piece A
taking hold of the end of the bar like
a syringe.
- Insert the end piece A on one side
then lower it to fi x it in the base of
the notch B . Storing
When the bars are not in use:
- partially loosen the knurled wheels,
- lift the bar slightly,
- pivot it upwards by 180°,
- tighten the knurled wheel.
Good practice
In the event of a front impact, the rack
is disengaged to avoid injury to the
occupants of the vehicle. The slight
clearance observed in the bar is linked
with this safety disengagement.
Do not loosen or place the bars in a
position other than those described
above.
The load on the rack must rest on the
overhead storage compartment and
be strapped using the strap passages
provided on the bars.
The bars are not grab handles for the
passengers.
- Carry out the same operations on
the other side.
- Ensure that they are engaged correctly at the base of the notch.
- Tighten the knurled wheels and check the tightening by pushing the
bar sideways.
To remove, proceed in the reverse
order.

82
Mirrors and windows
Electric exterior mirrors
- Move the control to the right or to the left to select the corresponding
mirror.
- Move the control in all four directions to adjust.
- Return the control to the central position.
Electric folding/unfolding
The mirrors can be folded or unfolded
electrically from the inside, with the
vehicle parked and the ignition on:
- Place the control in the central position.
- Turn the control downwards.
MIRRORS
Heated mirrors
The electric mirrors can be heated.
Manual exterior mirrors
Move the lever in all four directions to
adjust.
When the vehicle is parked, the
exterior mirrors can be folded back
manually.
The mirrors are not equipped with
automatic de-icing.
Forced folding
If the mirror casing has come out of
its initial location, with the vehicle
stationary reposition the mirror casing
manually or use the electric folding
control. Press the rear screen de-icing
button.
