Citroen BERLINGO MULTISPACE 2010 2.G Owner's Manual

9.7
11
22
33
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3, is an audio compression standard which permits the rec ording of several tens of music fi les on a single disc. The playing and displaying of an MP3 compilation may depend on the recording programme and/or the parameters used.
In order to be able to play a recorded CDR or CDRW , when recording select standards ISO 9660 level 1.2 or Joliet. If the disc is recorded in another format, it may not be played correctly. It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible for optimum sound quality. In the particular case of a multi-session CD, the Joliet standard is recommended.
The audio equipment will only play fi les with the extension ".mp3". No other type of fi le (.wma, .mp4...) can be played.
It is advisable to restrict fi le names to 20 characters without using special characters (e.g. : " " ? ; ù) to avoid any playing or displaying problems.
Insert the CDs in a multislot changer one by one. On a single slot changer, press LOAD, select the number of the CD, then insert the CD or press and hold LOAD and insert the CDs one by one. Press the SOURCE button several times in succession and select CD CHANGER.
Press one of the buttons on the numeric keypad to select the corresponding CD.
Press one of the buttons to select a track on the CD. Press and hold one of the buttons for fast forwards or rewind play.
MP3 CD
INFORMATION AND ADVICE
AUDIO/MP3 CD CHANGER *
PLAYING A CD
* According to availability on the vehicle.

9.8
11
22
33
11
22
4411
Select the YES tab on the display using the buttons and confi rm by pressing OK.
HANDS-FREE KIT
For safety reasons and because they require prolonged attention on the part of the driver, the operations for matching of the Bluetooth mobile telephone with the audio equipment hands-fre e kit must be carried out with the vehicle stationary and the ignition on.
Select the accessory which corresponds to the name of the vehicle, a superimposed confi guration display appears on the multifunction display.
Activate the telephone's Bluetooth function and carry out a search of the Bluetooth accessories present for the telephone.
Select the YES tab on the display using the buttons then confi rm by pressing OK.
Enter the vehicle's authentication code (=1234). Depending on the telephone, you may be asked to enter this code before the superimposed confi guration display appears.
YES
YES
The services offered by the hands-free kit depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Consult your telephone's manual and your operator to fi nd out which services are available to you. A list of mobile telephones which offer the best range of services is available from the network. Consult a CITROËN deale r. Refer to the next page: "Correct use of the hands-free kit telephone".
RECEIVING A CALL
An incoming call is announced by a ring and a supe rimposed display on the multifunction display.
Press the end of the steering wheel stalk to accept the call.
Press the end of the steering wheel stalk for more than two seconds to access your directory.
To dial a number, use the keypad on your telephone.
MAKING A CALL
DISPLAY C
MATCHING A TELEPHONE

9.9
vehicle is being driven.
How many mobile telephones can be stored in the audio equipment.
Is it possible to scroll through the phone book contacts more quickly than line by line.
Are all of the numbers associated with a contact d isplayed on the audio equipment display.
For safety reasons and because they require prolon ged attention on the part of the driver, the operations for matching the Bluetooth mobile telephone with the audio equipment hands-free kit m ust be carried out with the vehicle stationary and the ignition on.
Up to 4 different mobile telephones can be stored. The mobile telephone stored as 1 will be connected fi rst, then number 2, …
The controls << >> on the control panel or on the steering wheel control permit direct access to the fi rst contact recorded starting with the next/previous letter of the alphabet.
A maximum of 4 different numbers for one contact i n Vcard format are displayed: "Home", "Work", "Mobile" and "Car".
Correct use of the hands-free kit telephone

9.10
11
04
11
22
33
USB Player
The system puts together playlists (temporary memory) created over a period which depends on the capacity of the USB e quipment. The other sources are available during this time. The playlists are updated each time the ignition is switched off or each time a USB stick is connected. When connecting for the fi rst time, the tracks are classifi ed by folder. When you reconnect, the classifi cation system selec ted previously is retained.
Connect the stick to the socket, directly or using a lead. If the audio equipment is switched on, the USB source is detected as soon as it is connected. Play begins automatically after a delay which depends on the capacity of the USB stick. The fi le formats recognised are .mp3 (mpeg1 layer 3 only), .wma (standard 9 only), .wav and .ogg.
This unit consists of a USB port and a Jack socket. It reads audio fi le formats (.mp3, .ogg, .wma, .wav...) which are transmitted from portable equipment such as a digital player or a USB stick to your Audio system to be listened to via the vehicle's speakers.
USB stick (1.1, 1.2 and 2.0) or Ipod ® of ®
generation 5 or later: - the playlists accepted are of the type m3u, .pls, .wpl., - the Ipod ® lead is essential, ®
- navigation through the fi le base is by means of the steering wheel controls, - the battery of the portable equipment can charge automatically.
Other Ipod ® players of earlier generations ®
and players using the MTP protocol: - play via Jack-Jack lead only (not supplied), - navigation through the fi le base is from the portable equipment.
The list of compatible equipment is available from CITROËN dealers. USING THE USB SOCKET
CONNECTING A USB STICK

9.11
33
04
44
11
55
22
USB Player
USING THE USB SOCKET
Press LIST briefl y to display the list of Folders/Genres/Artists/Playlists on the USB equipment. Navigate through the list using the left/right and up/down buttons. Confi rm the selection by pressing OK.
The lists available are Artist, Genre and Playlist (as defi ned onthe iPod ® ). ®
Selection and Navigation are described in steps 1 to 5 above.
Do not connect a hard disk or USB devices other than audio equipment to the USB socket. This could damage your installation.
CONNECTING AN IPOD ® VIA THE USB SOCKET ®
Press one of these buttons for access to the previous/next track on the classifi cation list currently being played. Press and hold one of the buttons for fast forward or backward.
Press one of these buttons for access to the previous/next Genre, Folder, Artist or Playlist on the classifi cation list currently being played.
Press and hold LIST to display the different classifi cations. Select by Folder/Artist/Genre/Playlist, press OK to select the classifi cation required, then press OK again to confi rm.
- by Folder: all folders containing audio fi les recognised on the peripheral device, classifi ed in alphabetical order without following the fl ow chart. - by Artist: all of the artist names defi ned in the ID3 Tags, classifi ed in alphabetical order. - by Genre: all of the genres defi ned in the ID3 Tags. - by Playlist: in accordance with the playlists recorded on the USB device.
OK

9.12
11
22
22
11
The controls are displayed and managed via the portable equipment.
First adjust the volume of your portable equipment.
Then adjust the volume of your audio equipment.
The auxiliary input, JACK and RCA, permits the con nection of portable equipment (MP3 player...).
Connect the portable equipment (MP3 player…) to the JACK socket or to the audio sockets (white and red, RCA type) using a suitable cable (not supplied).
Press the SOURCE button several times in succession and select AUX.
USING THE AUXILIARY INPUT (AUX)
JACK SOCKET OR RCA SOCKET (according to vehicle)
ADJUSTING THE VOLUME OF THE AUXILIARY SOURCE
Do not connect a single piece of equipment via the USB port and the JACK socket at the same time.

9.13
11
66
22
77
44
99
55
1010
33
88
Saisir code authentiication01OKDel23456789_
BLUETOOTH FUNCTIONS
For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free syst em of your audio equipment must be carried out with the vehicle stationary and the ignition on.
Press the MENU button.
A window is displayed with "Searching...".
Activate the telephone's Bluetooth function.
In the menu, select: - Bluetooth telephone function - Audio - Bluetooth confi guration - Perform a Bluetooth search
The services offered depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Consult your telephone's manual and your operator to fi nd out which services are available to you. A list of mobile telephones which offer the best range of services is available from the networ k. Consult a CITROËN dealer. BLUETOOTH TELEPHONE
SCREEN C
The TELEPHONE menu permits access to the following functions in particular: Directory * , Call list, Pairing management.
The fi rst 4 telephones recognised are displayed in this window.
A virtual keypad is displayed on the screen: enter a code with at least 4 digits. Confi rm by pressing OK.
"Pairing of Name_telephone successful" appears on the screen.
Select the telephone to be connected from the list. Only one telephone can be connected at a time.
The automatic connection authorised is only active after the telephone has been confi gured. The directory and the call list can be accessed after the synchronisation period.
OK
PAIRING A TELEPHONE
The pairing can also be initiated from the telepho ne.
* If your telephone hardware is fully compatible.
A message is displayed on the screen of the telephone chosen: to accept the pairing, enter the same code on the telephone, then confi rm by pressing OK. If pairing fails, the number of attempts is not limited.

9.14
11
22
11
11
22
33
22
YES
RECEIVING A CALL
An incoming call is announced by a ring and a superimposed display on the multifunction screen. Initiate the pairing between the telephone and the vehicle. This pairing can be initiated from the vehicle's telephone function menu or via the telephone's keyp ad. See steps 1 to 10 on the previous pages. During the pairing phase, the vehicle must be stationary with the key in the ignition.
Select the telephone to be connected from the telephone function menu. The audio system connects to a newly paired telephone automatically.
Select the YES tab on the display using the buttons and confi rm by pressing OK.
Press the steering wheel control OK to accept the call.
From the Bluetooth telephone function Audio menu, select Manage the telephone call then Call, Call list or Directory.
Press the end of the steering wheel control for mo re than two seconds to gain access to your directory. Or To dial a number, use your telephone's keypad, wit h the vehicle stationary.
MAKING A CALL
BLUETOOTH AUDIO STREAMING
(AVAILABLE DURING THE YEAR)
Wireless transmission of the telephone's music fi les via the audio equipment. The telephone must be able to manage the appropriate bluetooth profi les (Profi les A2DP/AVRCP).
* In certain cases, playing of the Audio fi les must be initiated from the keypad. ** If the telephone supports the function.
Activate the streaming source by pressing the SOURCE button * . The tracks to be played can be controlled as usual via the buttons on the Radio control panel and the steering wheel controls ** . The contextual information can be displayed on the screen.

9.15
06CONTROL SHORT-CUTS
STEERING WHEEL CONTROLS
RADIO: selection of the next stored station. CD CHANGER: selection of the next CD. Selection of the next item on a menu.
RADIO: selection of the previous stored station. CD CHANGER: selection of the previous CD. Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency. CD/CD CHANGER/MP3: selection of the next track. CD/CD CHANGER: continuous press: fast forward play. Selection of the previous item.
RADIO: automatic search for a lower frequency. CD/CD CHANGER/MP3: selection of the previous track. CD/CD CHANGER: continuous press: backward play. Selection of the next item.
Volume increase.
Volume decrease.
Mute: by pressing the volume increase and decrease buttons simultaneously.
Restore the sound by pressing one of the two volume buttons.
- Change of sound source. - Confi rmation of a selection. - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the telephone menu.

9.16
55
66
77
88
11
22
33
44

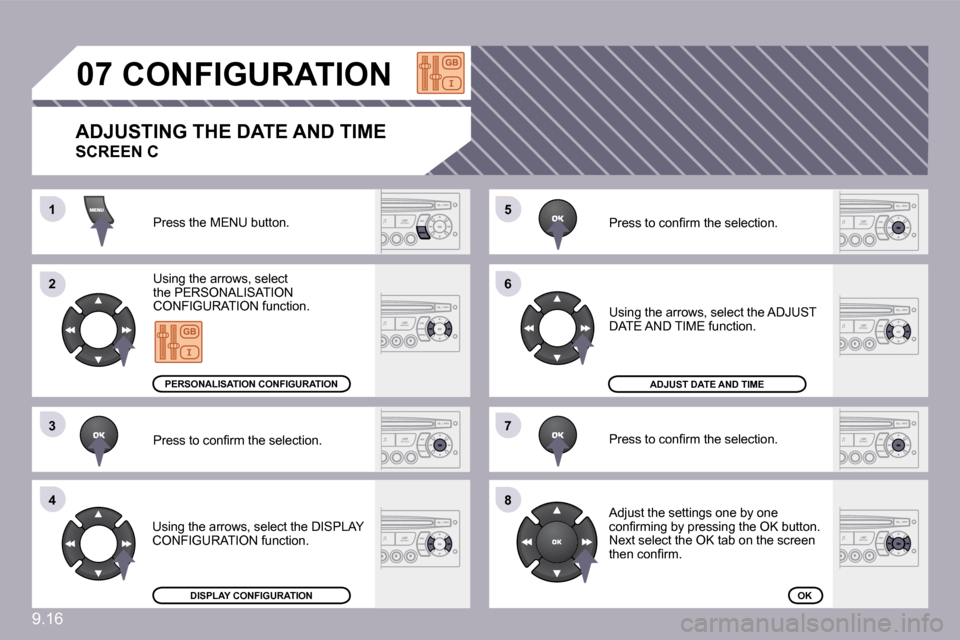

07CONFIGURATION
Press the MENU button.
Using the arrows, select the PERSONALISATION CONFIGURATION function.
Press to confi rm the selection.
Using the arrows, select the DISPLAY CONFIGURATION function.
Press to confi rm the selection.
Press to confi rm the selection.
Using the arrows, select the ADJUST DATE AND TIME function.
Adjust the settings one by one confi rming by pressing the OK button. Next select the OK tab on the screen then confi rm.
DISPLAY CONFIGURATION
ADJUST DATE AND TIME
OK
PERSONALISATION CONFIGURATION
ADJUSTING THE DATE AND TIME
SCREEN C
