Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
 79
Adjusting the angle of the seat back
-
Operate
  the   control   and   adjust   the
angle.
Placing the seat in the table position
-


Lower
  the   head   restraint   fully.
-
o perate the control to fold the seat
back
  onto   the   seat   cushion.
r
eturning the seat back to the
sitting position
-
Release
  the   seat   back   by   pulling
the control, then return it to its
original

  position.
Ensure that the entire seat is anchored
securely.
Placing the seat in the fully folded
position
-
Place
  the   seat   in   the   table   position.
-

Pull the red strap, located behind
the seat, to release the feet of the
seat

  from   their   anchorage   on   the
floor

.
-

T
ilt   the   entire   seat   forwards.
row 2 seat adjustmentsreturning the seat to its original
position
-

Fold
  back   the   entire   seat.
Before folding the seat, ensure
that:
-

in row 3, no passenger's
foot is at one of the seat
anchorages

  on   the   floor,
-

the
  seat   is   locked   securely   on
the

  floor,
-

the seat belt is available for
the

  passenger.
Seats
EASE OF uSE and cOMFOrt
4

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
80
row 3 seat adjustments
Placing the seat back in the table
position
-
Lower
  the   head   restraint   fully.
-
o perate the control to fold the seat
back
  onto   the   seat   cushion.
r

eturning the seat back to the
sitting position
-

Release
  the   seat   back   by   pulling
the control, then return it to its
original

  position.
Ensure that the entire seat is anchored
securely.r eturning the seat to its original
position
-

Push
  the   red   control.
-

Fold
  back   the   entire   seat.
Placing the seat in the fully folded
position
-

Place
  the   seat   in   the   table   position.
-

Raise
  the   bar   fitted   with   a   red
strap, located behind the seat, to
release

  feet   of   the   seat   from   their
anchorage

  on   the   floor.
-

T
ilt   the   entire   seat   forwards.Ensure
  that:
-

the
  seat   is   locked   securely   on
the

  floor,
-

the seat belt is available for
the

  passenger.
Seats

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
81

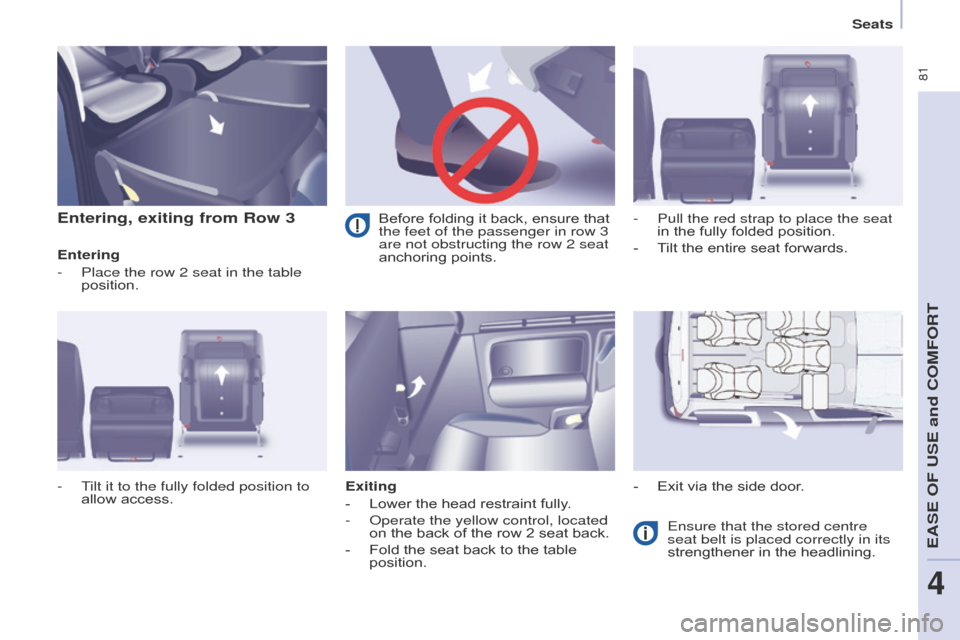

Entering, exiting from row 3
Entering
-
Place the row 2 seat in the table
position.
Exiting
-


Lower
  the   head   restraint   fully.
-
o perate the yellow control, located
on
  the   back   of   the   row   2   seat   back.
-

Fold
  the   seat   back   to   the   table
position.Ensure that the stored centre
seat belt is placed correctly in its
strengthener

  in   the   headlining.
-

T
ilt it to the fully folded position to
allow
  access. -

Pull the red strap to place the seat
in

  the   fully   folded   position.
-  T ilt   the   entire   seat   forwards.
-
Exit
  via   the   side   door.
Before
  folding   it   back,   ensure   that
the feet of the passenger in row 3
are not obstructing the row 2 seat
anchoring

  points.
Seats
EaSE oF USE and CoMFoRT
4

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
82
removing the seat
-
If
  necessary,   move   the   front   seats
forward.
-


Lower
  the   head   restraint.
-

Place the seat in the fully folded
position.
-


T
ilt the entire seat forwards then
lift it.r epositioning the seat
The label on the seat indicates the
position
  in   which   it   must   be   installed.
-

Place
  the   hooks   of   the   front   feet
between

  the   two   bars.
-

Fold
  back   the   seat   to   fix   the   rear
anchoring

  points.
-
o perate the control to raise the
seat
  back   to   its   initial   position.
-

Raise
  the   head   restraint.Ensure
  that   no   object   or   foot   of  a passenger seated in the rear
is obstructing the anchoring
recesses or preventing correct
locking
  of   the   seat.
Handling the row 2 seat
Seats

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
83
Handling the row 3 seat
removing the seat
-
Lower
  the   head   restraint.
-

Place the seat in the fully folded
position.
-


T
ilt   the   entire   seat   forwards.
-

On
  each   side,   take   hold   of   the
uprights of the folded seat, tilting it
forward

  slightly,   and   lift   it.r epositioning the seat
The label on the seat indicates the
position
  in   which   it   must   be   installed.
-

Place
  the   hooks   of   the   front   feet
between

  the   two   bars.
-

Ensure
  that   no   object   or   foot   is
obstructing the rear anchoring
recesses and that the seat belt is
positioned

  correctly   and   available.
-

Fold
  back   the   seat   to   fix   its   rear
anchoring

  feet.
-
o perate the control to raise the
seat
  back   to   its   initial   position.
-

Raise
  the   head   restraint.
Good practice
Do not place hard or heavy objects on the  seat   backs   forming   a   table,   they
could

  become   dangerous   projectiles   in
the

  event   or   sharp   braking   or   impact.
Following
  the   various   operations:
-

do
  not   remove   a   head   restraint
without stowing it; secure it inside
the vehicle,
-


ensure that the passengers can
always access the seat belts and
fasten

  them   easily,
-

passengers
  must   never   take
their

  seat   without   adjusting   and
fastening their seat belt,
-


a
  passenger   seated   in   row   3   must
ensure that he does not obstruct
the row 2 seat anchoring recesses,
-


a
  passenger   seated   in   row   3   must
not

  have   the   seat   in   front   of   them   in
row 2 in the folded position; this is
in case the seat should tip towards
the passenger unexpectedly and
injure

  them.
Seats
EaSE oF USE and CoMFoRT
4

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
84
MOduLArItY And dIFFErEnt SEAt c O n FIG ur At IO n S
5 seat layouts
Seats

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
85
7 seat layouts
The various operations
must  be   carried   out   while
stationary

.
Seats
EaSE oF USE and CoMFoRT
4

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
86
FrOnt FIttInGS1. Lower glove box
This may or may not be fitted with a lid.
upper storage compartment
This is located on the dashboard,
behind  the   steering   wheel.
A


recess   makes   lifting   of   the   lid   easier
when

  opening.   Guide   it   to   its   rest
position.
T

o close, guide the lid then press the
centre
  gently.
Any
  liquid   which   could   spill   risks
causing an electrical short circuit and
therefore

  a   potential   fire.
3. Side storage compartment
4. Bag hook
Only hang flexible bags which are not too  heavy   on   this   hook.
2. Storage pocket and bottle
holder (1.5 L)
Practical information

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
 87
Overhead storage unit
This is located above the sun visors
and  can   accommodate   various   objects
(a

  jumper,   file,   gloves...).
The openings concealed by the sun
visors allow you to see and access the
objects
  stored   in   the   overhead   storage
unit.
The

  maximum   weight   permitted   in   the
overhead

  storage   unit   is   5   Kg.
Do
  not   place   objects   in   this   storage
unit

  which   could   present   a   risk   to   the
occupants.
central storage console
This console offers an appreciable
additional  storage   area:   it   can   be
removed

  and   clips   onto   a   base   which
also incorporates two cup holders at
the

  rear.
Ensure
  that   the   object   (bottle,   can...)
placed in the cup holder is retained
securely

  and   does   not   risk   being
dislodged

  while   driving.
Any
  liquid   which   could   spill   presents
a

  risk   of   damage   on   contact   with   the
instrument

  panel   and   centre   console
controls.
T

ake   care.
Sun visor
To prevent dazzle from ahead, fold the sun  visor   down.
A


pocket   is   provided   in   the   driver's   sun
visor

  for   storing   toll   cards,   tickets,   ...
Practical information
EASE OF uSE and cOMFOrt
4

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
88
drawers under seats
Your vehicle may be fitted with a drawer,   under   each   front   seat.
Storage compartment under
seats
Storage compartments are available, with  or   without   lid,   in   the   floor   under   the
front

  seats.
To
  gain   access   to   them,   move   the   seat
forward.


The
  lid   must   be   lifted   from   the
rear

  of   the   seat.
