Citroen BERLINGO MULTISPACE RHD 2014.5 2.G Owners Manual

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
 89
SEAtI n G A r EA FI tt I n GS
Floor boxes
Two boxes are available, located under
the   rear   passenger   footwells.
To
  open   them,   slide   your   fingers   into
the

  recess   and   lift   the   lid.
Aircraft style tables
To put the table in place, pull it
upwards  and   fold   it   down.
a

s a safety precaution, above a high
pressure, the table is designed to
unhook.
To
  put   it   back   in   place,   with   the   table
vertical, engage one side then the
other

,   forcing   slightly.
Do
  not   place   hard   or   heavy   objects
on

  the   table.
They
  could   become
dangerous

  projectiles   in   the   event   of
sharp

  braking   or   impact.
A


bag   hook   is   provided   on   the   side   of
each

  table.
Side blinds
Side blinds may be available on the sliding   side   doors.
Pull the side blind by the tab to install it.
To avoid damaging the blind when opening  the   door,   check   that   the   tab   is
hooked

  securely.
a

lways guide the blind slowly
using the tab, both when raising
and
  when   lowering.
Practical information
EASE OF uSE and cOMFOrt
4

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
90
MOdutOP rOOF
The multifunction roof extends the overhead
  storage   unit.   It   consists   of
the

  following   components:
Storage compartments
Storage compartments are provided on  each   side   of   the   roof.  The   maximum
authorised

  load   is   6   kg.
The translucent base assists with
finding
  objects   stored   inside.
Do
  not   store   objects   which   could
present

  a   risk   to   the   occupants.
courtesy lamp
The operation of the courtesy lamp is identical  to   that   of   the   front   courtesy   lamp.
Refer
  to   chapter   4   "Comfort   and
Safety",

  "Courtesy   lamps"   section.
Practical information

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
 91
From insideFrom outside
rear box
This roof box can be accessed from the
  rear   seats   and   the   boot.
From
  the   rear   seats,   slide   the   flaps   to
open.
Vents
a 3-position control allows you to
adjust   the   air   flow   through   the   vents.
The
  vents   are   also   fitted   with   a   scented
air

  freshener.
From

the

boot,

place

your

thumb

on
 the recess then pull the handle to
open.
Open

carefully

to

prevent

objects

stored


in

this

interior

roof

box

from

fallin

g

out.
The

maximum

authorised

load

is

10

kg.
Practical information
EASE OF uSE and cOMFOrt
4

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
92
ScEntEd AIr FrESHEnEr
The scented air freshener diffuses
a fragrance in the passenger
compartment  from   the   roof   console
vents.
Adjusting the flow
Turn the chromed button to adjust the diffusion:
-

to the left to decrease,
-


to
  the   right   to   increase.
To
  stop   the   diffusion,   turn   the   chromed
button

  fully   to   the   left.
removing the scented air
freshener
- Press the button down while turning
it   a   quarter   of   a   turn   to   the   left   to
the

  stop.
-

Remove
  the   scented   air   freshener
from

  the   roof   console.
-

Replace
  the   cartridge.
Practical information

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
 93
replacing a cartridge
The scented air freshener refill consists of a cartridge B and its sealing case c .
-

Remove
  the   protective   film  d .
-

Place the head of the cartridge
B
on the button A of the scented air
freshener.
-

T
urn   it   a   quarter   of   a   turn   to   lock   it
on

  the   button   and   remove   the   case.
-

Insert the scented air freshener in
its

  location.
You can change the cartridges at any
time
  and   store   cartridges   which   have
already been started in their original
case.
The scented air freshener button

A is
independent
  of   the   cartridge.
The cartridges are supplied without the
button A.
Inserting the scented air
freshener
After fitting or changing the cartridge:
-
Put
  the   scented   air   freshener   back
in

  place   in   its   location.
-

T
urn   it   a   quarter   of   a   turn   to   the
right.
Good practice
as a safety precaution, only use the
cartridges   provided   for   this   purpose.
Do

  not   dismantle   the   cartridges.
k

eep the cartridge sealing cases
which
  are   used   as   packaging   when   the
cartridges

  are   not   in   use.
Never
  try   to   refill   the   cartridges
with fragrances other than those
recommended

  by   the   CITROËN
network.
k

eep out of reach of children and
animals.

A
void   contact   with   the   skin
and

  eyes.   If   swallowed,   consult   a
doctor

  and   show   him   the   packaging   or
product

  label.
The scented air freshener button A can
only

be

fixed

on

the

multifunction

roof

console


with

a

cartridge.
Therefore, always retain button A and
a

cartridge.
The

cartridges

are

available

from

CITROËN


dealers.
Practical information
EASE OF uSE and cOMFOrt
4

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
94
MOdutOP rOOF BA r S
The maximum authorised weight on each
  roof   bar   is   35   kg. In
  all   cases,   the   load   must   rest   on
the non-slip bands provided for this
purpose

  and   must   not   touch   the   roof   or
the

  glazing   of   the   roof.
r
ecommendations for loading
the roof
This   procedure   requires   the   use   of
a spanner supplied with the tools for
changing

  a   wheel.
These two longitudinal Modutop roof
bars   can   be   removed.
Chapter   9,   "Changing   a   wheel"  section.
-

Open
  the   protective   covers.
-

Slacken
  the   four   screws   using   the
spanner

  and   remove   them.
-

T
urn   the   bars   90°   placing   the
hollow

  parts   towards   the   front.
-

Refit
  the   the   4   screws   and   tighten
them

  using   the   spanner.
-

Close
  the   protective   covers.
-

Use the strap passages
A only to
secure
  the   load   firmly.
Practical information

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
 95
rOOF BArS
If you install transverse bars on these bars, refer to the weight values\
indicated
by  the   manufacturer   but   do   not   exceed   75   Kg.
Practical information
EASE OF uSE and cOMFOrt
4

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
96
Automatic switching on/off
The  front   courtesy   lamp   comes   on
when

  the   key   is   removed   from   the
ignition,

  when   the   vehicle   is   unlocked,
when one of the front doors is opened
and for location of the vehicle using the
remote

  control.
It goes off gradually after the ignition
is switched on and when the vehicle is
locked. Front
  seats:   comes   on   when
one of the front doors is
opened.These are switched on and of

f by
means   of   a   manual   switch,   with
the

  ignition   on.
Rear
  seats:   comes   on   when
one of the rear doors is
opened.
If

  the   doors   remain   open   for
a

  few   minutes,   the   courtesy
lamps

  go   off.
Permanently
  off.
Permanently
  on,   ignition   on.
Front courtesy lamp
cOurtESY LAMPS
rear courtesy lamp
Front individual reading lamps
Practical information

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
 97
LOAd SPAcE cOVEr (5 SEAt VE r SIO n)
This rigid shelf conceals the objects stored
  in   the   boot.
r
emoving
Fold   the   load   space   cover.
Detach   it   from   the   notches   A and B
pulling
  it   towards   you.
Raise
  it   and   remove   the   assembly.
Refitting
Place the load space cover in front
of
A and B.
Push it forwards to insert the lugs in
the
  notches.
Unfold and clip into the notches
c .
Folding
From
  the   boot,   fold   the   half-shelf,
raising

  it   to   detach   it   from   the   notch  c . Storing (according to version)
A
location   is   provided   in   the   back   of   the  rear
  seats   to   accommodate   the   load
space

  cover   folded   onto   itself.
Slide it vertically between the side
guides
  located   at   mid   seat   back   height.
Insert
  the   hinge   first,   with   the   free   flaps
turned

  upwards.
This rigid load space cover can
form
  a   shelf.   However,   for   safety
reasons,

  do   not   place   objects
on

  it   which   could   become   dangerous
projectiles

  in   the   event   of   sharp   braking
or

  rear   impact.
Practical information
EASE OF uSE and cOMFOrt
4

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
98

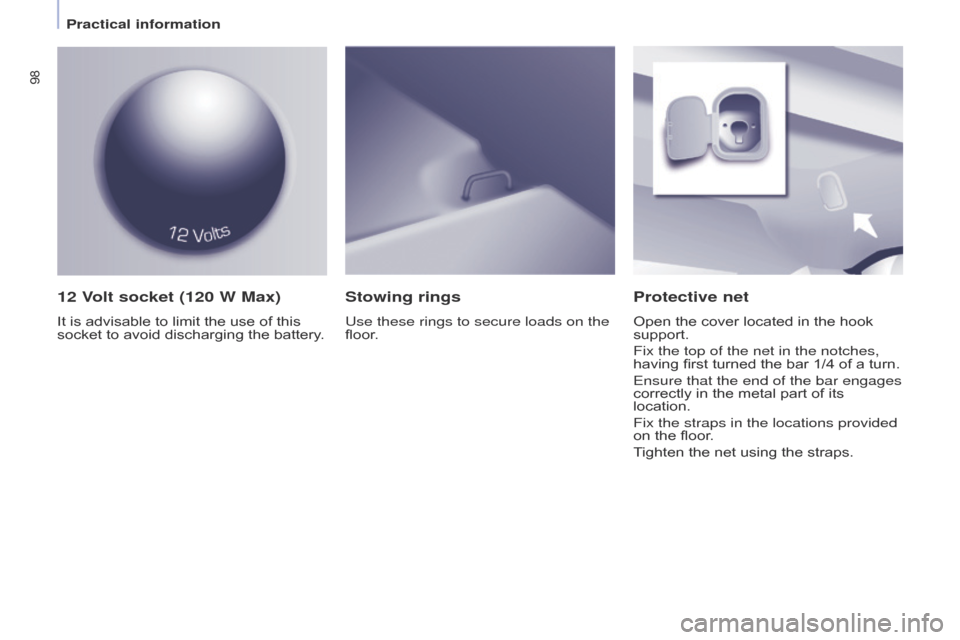

12 Volt socket (120 W Max)
It is advisable to limit the use of this socket  to   avoid   discharging   the   battery.
Protective net
Open the cover located in the hook support.
Fix the top of the net in the notches,
having
  first   turned   the   bar   1/4   of   a   turn.
Ensure that the end of the bar engages
correctly
  in   the   metal   part   of   its
location.
Fix the straps in the locations provided
on

  the   floor.
Tighten
  the   net   using   the   straps.
Stowing rings
Use these rings to secure loads on the
floor.
Practical information
