Citroen BERLINGO MULTISPACE RHD 2017 2.G Owner's Manual

99
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
SCENTED AIR FRESHENER
The scented air freshener diffuses
a fragrance in the passenger
compartment from the roof console
vents.
Adjusting the flow
Turn the chromed button to adjust the diffusion:
-

to the left to decrease,
-


to
  the   right   to   increase.
To stop the diffusion, turn the chromed
button
  fully   to   the   left.
Removing the scented air
freshener
- Press the button down while turning
it a quarter of a turn to the left to
the  stop.
-

Remove the scented air freshener
from

  the   roof   console.
-

Replace
  the   cartridge.
EASE OF USE and COMFORT
4
Practical information

100
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
Replacing a cartridge
The scented air freshener refill consists of a cartridge B and its sealing case C.
-

Remove
  the   protective   film   D.
-

Place the head of the cartridge
B
on the button A of the scented air
freshener.
-

T
urn   it   a   quarter   of   a   turn   to   lock   it
on

  the   button   and   remove   the   case.
-

Insert the scented air freshener in
its

  location.
You can change the cartridges at any
time and store cartridges which have
already been started in their original
case.
The scented air freshener button A is
independent
  of   the   cartridge.
The cartridges are supplied without the
button A.
Inserting the scented air
freshener
After fitting or changing the cartridge:
-
Put
  the   scented   air   freshener   back
in

  place   in   its   location.
-

T
urn it a quarter of a turn to the
right.
Good practice
As a safety precaution, only use the
cartridges   provided   for   this   purpose.
Do

  not   dismantle   the   cartridges.
Keep the cartridge sealing cases
which
  are   used   as   packaging   when   the
cartridges

  are   not   in   use.
Never
  try   to   refill   the   cartridges   with
fragrances other than those available
from

  CITROËN   dealers.
Keep out of reach of children and
animals.

A
void   contact   with   the   skin
and

  eyes.   If   swallowed,   consult   a
doctor

  and   show   him   the   packaging   or
product

  label.
The scented air freshener button A can
only

be

fixed

on

the

multifunction

roof

console


with

a

cartridge.
Therefore, always retain button A and
a

cartridge.
The cartridges are available from
CITROËN

dealers.
Practical information

101
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
MODUTOP ROOF BARS
The maximum authorised weight on
each
  roof   bar   is   35   kg. In all cases, the load must rest on
the non-slip bands provided for this
purpose and must not touch the roof or
the
  glazing   of   the   roof.
Recommendations for loading the
roof
This procedure requires the use of
a spanner supplied with the tools for
changing
  a   wheel.
These two longitudinal Modutop roof
bars   can   be   removed.
Chapter 9, "Changing a wheel"
section.
-

Open
  the   protective   covers.
-

Slacken
  the   four   screws   using   the
spanner

  and   remove   them.
-

T
urn the bars 90° placing the
hollow
  parts   towards   the   front.
-

Refit
  the   the   4   screws   and   tighten
them

  using   the   spanner.
-

Close
  the   protective   covers.
-

Use the strap passages
A only to
secure
  the   load   firmly.
EASE OF USE and COMFORT
4
Practical information

102
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

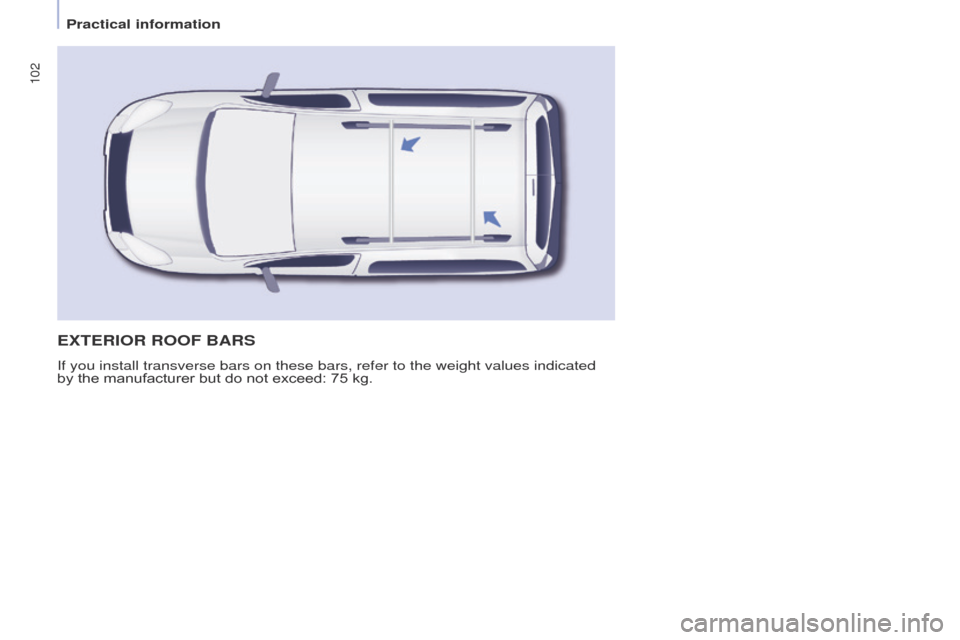

ExTERIOR ROOF BARS
If you install transverse bars on these bars, refer to the weight values\
indicated
by  the   manufacturer   but   do   not   exceed:   75   kg.
Practical information

103
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
Automatic switching on/off
The front courtesy lamp comes on when
the  key   is   removed   from   the   ignition,   when the

  vehicle   is   unlocked,   when   one   of   the
 front doors is opened and for location of


the
  vehicle   using   the   remote   control.
It goes off gradually after the ignition is
switched on and when the vehicle is
locked.Front seats: comes on when one of the front doors is
opened. These are switched on and of
f by
means of a manual switch, with
the
  ignition   on.
Rear
  seats:   comes   on   when
one of the rear doors is
opened.
If the doors remain open for
a few minutes, the courtesy
lamps

  go   off.
Permanently
  off.
Permanently

on,

ignition

on.
Front courtesy lamp
COURTESY
LAMPS
Rear courtesy lamp Front individual reading lamps
EASE OF USE and COMFORT
4
Practical information

104
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
LOAD SPACE COVER (5 SEAT VERSION)
This rigid shelf conceals the objects stored  in   the   boot. Removing
Fold
  the   load   space   cover.
Detach it from the notches A and B
pulling
  it   towards   you.
Raise
  it   and   remove   the   assembly.
Refitting
Place the load space cover in front
of A and B.
Push it forwards to insert the lugs in
the
  notches.
Unfold and clip into the notches C.
Folding
From the boot, fold the half-shelf,
raising it to detach it from the notch C. Storing (according to version)
A
location   is   provided   in   the   back   of   the  rear seats to accommodate the load
space
  cover   folded   onto   itself.
Slide it vertically between the side
guides
  located   at   mid   seat   back   height.
Insert
  the   hinge   first,   with   the   free   flaps
turned

  upwards.
This rigid load space cover can
form
  a   shelf.   However,   as   a   safety
measure,

  do   not   place   objects
on it which could become dangerous
projectiles

  in   the   event   of   sharp   braking
or

  rear   impact.
Practical information

105
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
12 volt socket (120 W max)
It is advisable to limit the use of this
socket  to   avoid   discharging   the   battery.
Protective net
Open the cover located in the hook support.
Fix the top of the net in the notches,
having
  first   turned   the   bar   1/4   of   a   turn.
Ensure that the end of the bar engages
correctly in the metal part of its
location.
Fix the straps in the locations provided
on
  the   floor.
Tighten
  the   net   using   the   straps.
Stowing rings
Use these rings to secure loads on the
floor.
The connection of an electrical
device not approved by CITROËN,
such as a USB charger, may
adversely affect the operation of
vehicle electrical systems, causing
faults such as poor telephone reception
or interference with displays in the
screens.
EASE OF USE and COMFORT
4
Practical information

106
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
REAR FITTINGS
(7 SEAT VERSION )
Cup holder
Any liquid carried in a cup (mug or
other) on board which could spill,
presents   a   risk.
Take
  care.
12 volt socket (120 W max)
It is advisable to limit the use of this
socket   to   avoid   discharging   the   battery.
Stowing rings
Use the stowing rings on the floor to secure  and   retain   your   loads   firmly.
The seat belt anchorages must not be
used
  for   this   purpose.
It is recommended that the load is
immobilised

  by   securing   it   firmly
using the stowing rings on the
floor

.
Practical information

 107
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
Storage flaps
Raise the corresponding flap.Next to the boot sill, the recess is
intended to receive the roller tube
containing
  the   load   space   cover.
Seat belts
Ensure that the centre seat belt has
reeled in correctly to its carrier in the
roof.
Prevent
  the   row   3   seat   belt   buckles
from

  knocking   by   raising   them   as   close
as possible to the anchorages in the
roof.
The

  seat   belt   buckle   attachment   rings
on each side of the boot must not be
used

  to   retain   loads.
EASE OF USE and COMFORT
4
Practical information

108
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
BLIND, LOAD SPACE COVER
Position the load space screen so as to
present  the   rear   load   space   cover   flaps
towards

  you.
Engage the left-hand lug of the roller in
the support A.
The load space cover is the roller blind
type.

T

ake

care

not

to

place

heavy

objects


on

the

load

space

cover

when

unreeled.
Compress then place the right-hand
lug facing the support
B.
Release to engage the roller in its
support.
Unroll the load space cover to the rear
side
  pillars.
Engage the ends in the rear notches to
keep
  it   taut.
To install it
Place the row 3 seats in the fully folded
position.
Raise

the

storage

flap

at

the

boot

sill.
Take

hold

of

the

roller

in

the

centre

and

compress


it

towards

the

left-hand

pillar.
Raise

the

assembly.
Practical information
