REAR BENCH SEAT
Each 1/3 - 2/3 section can be fully folded,  then   removed   individually.
Head restraint
The 1/3 - 2/3 split rear bench seat is fitted with  "comma"   shape   head   restraints.
High position: lift and raise the head restraint.
Low
  position:   press   on   the   head
restraint

  to   lower   it.
To remove the head restraint, after
raising it press the tab and lift the head
restraint.
To install the head restraint, engage
the rods of the head restraint in the
holes
  keeping   it   in   line   with   the   seat
back.
EASE OF USE and COMFORT
4
Seats

80
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
Fully folded position
Example of operations for the
1/3  section.  They   are   identical   for   the
2/3

  section. -

Raise the grey control bar
, located
at   the   rear   of   the   seat   cushion.
-
T
ilt   the   entire   seat   forward.
Putting back in place
Check that the seat is locked on  the   floor   securely   when   it   is
returned

  to   the   sitting   position.
-

Place the head restraints in the low
position.
-


If necessary

, move the front seats
forward.
-
Press the grey control located on
the

upper

part

of

the

seat

backrest.
-

Fold


the

seat

backrest

onto

the

seat


cushion. Tilt the entire seat rearwards until it
locks
  into   place.
Raise   the   seat   backrest.
The

seat   is   locked   correctly   when   the
control

  (at   the   top   of   the   seat   back)   is
no


longer   visible.
Seats

81
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
Removing the bench seatRefitting the bench seat
Refer to the "Fully folded position",
described
  previously. To return the bench seat
(1/3 section
  and/or   2/3   section)   to
the "passenger carrying" position,
refer to the "Fully folded position"
described

  previously.
-

T
ilt the entire seat rearwards by
approximately   45°.
-
Lift the bench seat
vertically to the
limit   of   the   anchorages.
-
Straighten bench seat by tilting it
forwards

  then   lift   it.
-

If necessary
, move the front seats
forward.
-

Place the bench seat (1/3 section and/or 2/3
  section)   in   the   fully   folded   position.
- Offer up  the  bench  seat  (1/3  section  and/or
  2/3   section)   vertically.
-

Place
  the   hooks   between   the
two
  bars.
-

Fold
  the   bench   seat   rearwards.
EASE OF USE and COMFORT
4
Seats

82
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

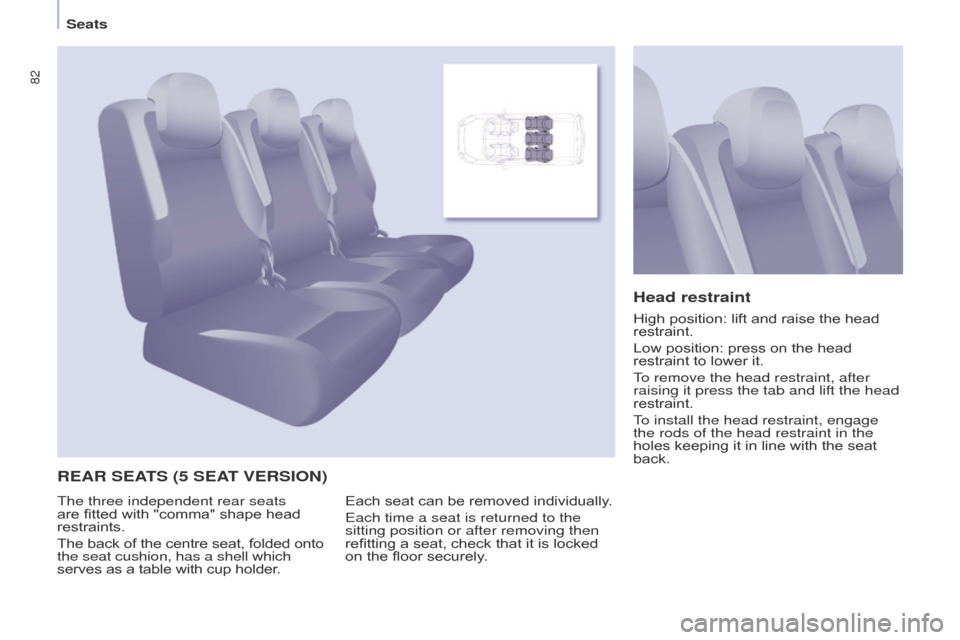

REAR SEATS (5 SEAT VERSION)Head restraint
Each seat can be removed individually.
Each time a seat is returned to the
sitting position or after removing then
refitting
  a   seat,   check   that   it   is   locked
on

  the   floor   securely.
The three independent rear seats
are

fitted

with

"comma"

shape

head

restraints.
The


back

of

the

centre

seat,

folded

onto
 the seat cushion, has a shell which


serves

as

a

table

with

cup

holder. High
  position:   lift   and   raise   the   head
restraint.
Low

  position:   press   on   the   head
restraint

  to   lower   it.
To remove the head restraint, after
raising it press the tab and lift the head
restraint.
To install the head restraint, engage
the rods of the head restraint in the
holes   keeping   it   in   line   with   the   seat
back.
Seats

83
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
Adjusting the angle of the seat backrest
Placing the seat back in the
table position
Returning the seat back to the sitting position
Placing the seat in the fully
folded position
Returning the seat to its original position
- Operate  the   control   and   adjust   the  angle
  of   the   seat   backrest.
-

Pull
  the   control   to   fold   the   seat   back
onto

  the   seat   cushion.
Do
  not   place   hard   or   heavy   objects
on

  the   table.
They
  could   become
dangerous

  projectiles   in   the   event   of
sharp

  braking   or   impact. -

Release
  the   seat   back   by   pulling
the control, then return it to its
original

  position.
When   returning   the   seat   backrest   to
the sitting position, ensure that it is
locked

  securely.
-
Pull the control to place the seat
back

  in   the   table   position.
-

Raise the bar located behind the
seat to release the rear anchoring
points.
-


T
ilt the entire seat forwards, until it
locks. -
 Push   the   red   control.
-

Fold
  back   the   seat   to   fix   the   rear
anchoring

  points.
-

Raise
  the   seat   backrest   by   pulling
the

  control.
-

Check
  that   the   seat   has   correctly
locked

  into   place.
Before
  unfolding   the   seat,   check
that

  no   object   is   obstructing   the
anchorage points or preventing
correct

  locking   of   the   seats.
EASE OF USE and COMFORT
4
Seats

84
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
Removing the seat
- If necessary, move the front
seats forward and lower the head
restraint.
-

Place the seat in the fully folded
position.
Good practice
Following the various operations:
-
do not remove a head restraint
without

  storing   it   and   fix   it   to   a
support,
-


ensure that the passengers can
always access the seat belts and
fasten them easily

,
-

passengers
  must   never   take
their

  seat   without   adjusting   and
fastening

  their   seat   belt.
Refer to the "Fully folded position"
described

previously.
-

Press the red lever to release the
front


feet.
-

T

ilt the entire seat rearwards by
approximately 45° without releasing
the

lever.
-

Release


the

lever.
-

Lift the seat

vertically to the limit of
the

anchorages.
-

Straighten the seat by tilting it
forwards


then

lift

it.
Refitting the seat
- Tilt   the   seat   forward   by   45°.
-
Place
  the   hooks   between   the   two
bars.
-


Fold
  back   the   seat   to   fix   the   rear
anchoring

  points.
-

Pull the control to return the seat
back

  to   its   initial   position.
-

Raise
  the   head   restraint.
Before
  unfolding   the   seat,   check
that

  no   object   is   obstructing   the
anchorage points or preventing
correct

  locking   of   the   seats.
Seats

85
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
Head restraint
This is of the "comma" shape type.
High   position:   press   the   tab,   lift   and
raise

  the   head   restraint.
Low
  position:   push   the   tab   and   press
the

  top   of   the   head   restraint   to   lower   it.
To
  remove   the   head   restraint:   place   it   in
 the

  high   position,   lift   it,   then   remove   it.
Store it inside the vehicle, securing it
firmly.
To
  install   the   head   restraint:   engage
the rods of the head restraint in the
holes

  keeping   it   in   line   with   the   seat
back.
Each seat can be removed and must
be


replaced

in

the

specified

position,

indicated


by

a

symbol

on

its

label.
The seats of row 2 and row 3 are
independent

and

adjustable.
REAR SEATS (7 SEAT VERSION)
EASE OF USE and COMFORT
4
Seats

86
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
Left-hand outer seat
Types of Row 2 seat
Types of Row 3 seat
Centre seatRight-hand outer seat
Right-hand outer seat
Left-hand outer seat
Seats

 87
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
Adjusting the angle of the seat backrest
- Operate  the   control   and   adjust   the  angle.
Placing the seat backrest in the
table position
-

Lower
  the   head   restraint   fully.
-

Operate the control to fold the seat
back

  onto   the   seat   cushion.Returning the seat backrest to the
sitting position
-

Release
  the   seat   backrest   by
pullin

g the control, then return it to
its   original   position.
-
Ensure
  that   it   has   correctly   locked
into

  place.
Placing the seat in the fully folded
position
-
Place
  the   seat   in   the   table   position.
-

Pull the red strap, located behind
the seat, to release the feet of the
seat from their anchorage on the
floor

.
-

T
ilt   the   entire   seat   forwards.
Row 2 seat adjustmentsReturning the seat to its original
position
-
Unfold
  the   entire   seat.
Before folding the seat, ensure
that:
-

in row 3, no passenger's
foot is at one of the seat
anchorages

  on   the   floor,
-

the
  seat   is   locked   securely   on
the

  floor,
-

the seat belt is available for
the

  passenger.
EASE OF USE and COMFORT
4
Seats

88
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
Row 3 seat adjustments
Placing the seat backrest in the
table position
-
Lower
  the   head   restraint   fully.
-

Operate the control to fold the seat
backrest

  onto   the   seat   cushion.
Returning the seat backrest to the
sitting position
-

Release
  the   seat   backrest   by
pullin

g the control, then return it to
its
  original   position.
-

Check
  that   it   has   correctly   locked   in
place. Returning the seat to its original
position
-


Push
  the   red   control.
-

Unfold
  the   entire   seat.
Placing the seat in the fully folded
position
-

Place
  the   seat   in   the   table   position.
-

Raise
  the   bar   fitted   with   a   red
strap, located behind the seat, to
release feet of the seat from their
anchorage

  on   the   floor.
-

T
ilt   the   entire   seat   forwards.Ensure
  that:
-

the
  seat   is   locked   securely   on
the

  floor,
-

the seat belt is available for
the

  passenger.
Seats
