Page 39 of 216
C O M F O R T
II
42
For even air distribution, take care not
t o o b s t r u c t t h e e x t e r i o r a i r i n t a k e g r i l l e
located at the bottom of the windscreen,
the vents, the air outlets under the front
s e a t s a n d t h e a i r e x t r a c t o r l o c a t e d b e -
h i n d t h e fl a p s i n t h e b o o t . The water formed by the air conditioning
condensation is discharged via an open-
ing provided for this purpose. Therefore,
a puddle of water may form underneath
the vehicle when stationary.
If the system does not produce cold air,
do not use it and have it checked by a
CITROËN dealer.
THE AIR CONDITIONING
Do not cover the temperature and hu-
midity sensor
2 and the sunshine sen-
sor
7 .
They are required for regulation of the
air conditioning.
Advice on operation
In hot weather, in order to obtain in-
tense ventilation, it is advisable to
use vents 1 and
4 only.
If, when the vehicle has been parked
in the sun for a long time, the interior
temperature remains very high, do
not hesitate to ventilate the passen-
ger compartment for a few minutes. Switch off the air conditioning when
the climatic conditions permit.
Use of the automatic regulation of the
air conditioning is recommended. It per-
mits automatic and optimised control of
a l l o f t h e f o l l o w i n g f u n c t i o n s : a i r fl o w ,
passenger compartment temperature
and air distribution, by means of vari-
o u s s e n s o r s ( e x t e r i o r t e m p e r a t u r e , i n -
terior temperature, sunshine), so pre-
venting the need for you to change your
reference settings other than the value
displayed.
In certain cases of particularly arduous
u s e ( t o w i n g t h e m a x i m u m l o a d o n a
steep gradient in hot weather), cutting
off the air conditioning permits recovery
of the engine power and therefore im-
provement of the towing capacity.
C l o s e t h e w i n d o w s t o b e n e fi t f r o m t h e
full effectiveness of the air condition-
ing.
Ensure that the passenger compart-
m e n t fi l t e r i s i n g o o d c o n d i t i o n . H a v e
t h e fi l t e r e l e m e n t s r e p l a c e d p e r i o d i c a l l y .
If you drive in a dusty environment, re-
place it twice as often.
The air conditioning system does not
contain chlorine and is not harmful to
the ozone layer.
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in perfect working order.
1. Centre panel vents.
2. Temperature sensor .
3. Air outlet to passenger footwells.
4. Side vents.
5. Front windows de-icing or demisting
vents.
6. Windscreen de-icing or demisting
vents.
7. Sunshine sensor.
Page 41 of 216
C O M F O R T
II
44
AUTOMATIC AIR
CONDITIONING
Automatic operation
Set the temperature control dial 3 to
the temperature required.
P l a c e t h e a i r fl o w c o n t r o l d i a l 2 in
the
“AUTO” position.
Place the air distribution adjustment
dial 1 in the
“AUTO” position. When the engine is cold, to avoid
a n e x c e s s i v e d i s t r i b u t i o n o f c o l d a i r ,
the ventilation will reach its optimum
level gradually.
On entering the vehicle, the interior
temperature may be much colder
(or warmer) than the comfort
temperature. There is no need to
change the temperature displayed in
order to reach the comfort required
rapidly.
The automatic regulation of the air
c o n d i t i o n i n g w i l l o p e r a t e a t m a x i m u m
performance to eliminate the
temperature difference as quickly as
possible.
1. Air distribution adjustment
2. A i r fl o w a d j u s t m e n t
3. Temperature adjustment
4. Rear screen de-icing
5. Air conditioning On / Off
6. I n t a k e o f e x t e r i o r a i r / R e c i r c u l a t i o n
of interior air
In automatic mode:
when the temperature is set to
m a x i m u m ( R a p i d h e a t i n g ) , t h e
i n t a k e o f e x t e r i o r a i r i s a c t i v a t e d a n d
the air conditioning stops.
when the temperature is set to
minimum (Rapid cooling), the air
recirculation is activated and the air
conditioning operates.
In accordance with the level of comfort
selected, the system controls the air
d i s t r i b u t i o n , t h e fl o w , t h e t e m p e r a t u r e
and the air intake to guarantee comfort
a n d a s u f fi c i e n t c i r c u l a t i o n o f a i r i n t h e
passenger compartment. No further ac-
tion on your part is required.
Page 44 of 216
C O M F O R T
II
47
Windows and windscreen de-icing
De-icing
1. Press button A t o s e l e c t “ e x t e r i o r a i r
intake”. The indicator light on this
button is switched off.
2. Place the air distribution dial in the
“windscreen, side windows and foot-
wells” position.
3. S e l e c t t h e a i r fl o w r e q u i r e d .
4. Select the temperature required.
5. Press the “air conditioning on / off”
button
B to activate the air condi-
tioning. The indicator light on this
button comes on. Rapid de-icing
1. Place the air distribution dial in the
“windscreen and side windows”
position.
2. S e l e c t t h e m a x i m u m a i r fl o w .
3. S e l e c t t h e m a x i m u m t e m p e r a t u r e .
Rear screen de-icing (6)
With the engine running, press but-
ton 6 to activate the de-icing of the rear
s c r e e n a n d e x t e r i o r m i r r o r s .
The indicator light on the button comes
on while the de-icing is in operation.
The de-icing switches off automatically
t o p r e v e n t a n e x c e s s i v e c o n s u m p t i o n o f
current.
The operation of the de-icing can be
stopped before it is switched off auto-
matically by pressing the button again.
It is advisable to switch off the rear
screen de-icing as soon as pos-
sible as lower current consumption
reduces the fuel consumption.
Page 46 of 216
C O M F O R T
II
49
Electric mode (driver’s seat only)
Forwards-backwards adjustment
Push the control forwards or rearwards
to move the seat to the position
required. Driver’s seat cushion height and
angle adjustment
Pull or push the front of the control
to raise or lower the front of the seat
cushion.
Pull or push the rear of the control
to raise or lower the rear of the seat
cushion.
Pull or push the entire control to raise or
lower the entire seat cushion. Seat back angle adjustment
Tilt the control forwards or rearwards to
straighten or tilt the seat back.
Seat consisting of a seat cushion, seat
back and head restraint which can all
be adjusted to your optimum driving
and comfort position.
To avoid discharging the battery, use
the electric mode with the engine
running.
Page 47 of 216
C O M F O R T
II
50
Head restraint height adjustment Front armrest
Heated seats adjustment
The adjustment is correct when the
top of the head restraint is aligned
with the top of the head of the seated
person. Never drive with the removed
head restraints in the vehicle
as they could be thrown
around the vehicle on sharp braking.
They must be in place and adjusted
correctly.
After installing the head restraint,
check that the height adjustment
button is locked correctly.
You can move the console housing
cover in order to use it as an armrest.
With the
engine running , tilt the button
to the position required.
The temperature of the seat is regulat-
ed automatically.
There are two setting positions:
- “HI”: High heating
- “LO”: Low heating
When the button is in the intermediate
position, the heating is switched off.
The indicator lights A comes on when
the system is activated . To raise the head restraint, pull it
upwards.
To lower the head restraint, push it
downwards pressing the height adjust-
ment button at the same time.
To remove the head restraint, bring it to
the uppermost position then remove it
pressing the height adjustment button
at the same time.
T o r e fi t t h e h e a d r e s t r a i n t , e n g a g e t h e
stems of the head restraint in the holes
pressing the height adjustment button
at the same time.
Page 56 of 216
C O M F O R T
II
59
EXTERIOR MIRRORS
Electric folding / unfolding
- from inside, with the ignition switch in the “ON” or “ACC” position
by pressing the control C .
- from inside, with the ignition switch in the “LOCK” position:
by pressing the control C, within
30 seconds.
- from outside using the remote control:
by pressing the “closed padlock”
b u t t o n b r i e fl y 3 t i m e s t o f o l d
them,
by pressing the “open padlock”
b u t t o n b r i e fl y 3 t i m e s t o u n f o l d
them.
Adjustment
The mirrors can be adjusted when the
ignition switch is in the “ON” or “ACC”
position.
Move control
A to the right or to
the left to select the corresponding
mirror.
Direct control
B in all four direc-
tions to adjust the mirror.
When adjustment is complete, return
control A to the central position. If you switch the engine off then re-
start it with the mirrors folded, they
will unfold automatically when the
vehicle reaches 20 mph (30 km/h).
If the mirrors have been folded man-
ually or electrically after starting the
engine, they are not unfolded auto-
matically.
In this case:
Press the control C to unfold
them. If you have folded the mirrors
using the control
C , you must
use this control to unfold them,
otherwise the mirrors will not be
locked correctly.
T h e f o l d i n g a n d u n f o l d i n g o f t h e e x t e -
r i o r m i r r o r s c a n b e c o n fi g u r e d v i a t h e
colour display “Equipment” menu or
deactivated by a CITROËN dealer.
The mirrors can also be folded manually.
Page 60 of 216
C O M F O R T
II
64
Lower glove box
T h i s i s fi t t e d w i t h a l o c k .
To unlock it, turn the key to the left.
To open it, pull the handle A .
To close it, push the lid up.
To lock it, turn the key to the right.
I t i s fi t t e d w i t h a p e n h o l d e r a n d a c a r d
holder.
It is lit on opening when the lights stalk
is activated. Lighter
12 volt socket (120 W max)
When the ignition switch is in the “ON”
or “ACC” position, press the lighter.
After a moment you hear a click when
the lighter pops out.
When the lighter socket is used to con-
nect electrical equipment, ensure that
this equipment operates correctly with
a voltage of 12 volts and has an electri-
c a l p o w e r o f 1 2 0 W m a x i m u m .
The prolonged use of electri-
cal equipment without running
the engine may discharge the
battery. Armrest with storage compartments
12 volt socket (120 W max)
Upper storage compartment
Pull the right-hand lever to open the
storage compartment lid, which serves
as an armrest.
To close, fold down the lid until it locks.
Page 66 of 216
C O M F O R T
II
70
12 volt socket (120 W max)
This operates when the ignition switch
is in the “ON” or “ACC” position.
Lift the cover to gain access to the
socket. Check that the electrical equip-
ment operates with 12 volts
a n d t h a t i t s m a x i m u m e l e c t r i -
cal power is 120 W.
The prolonged use of electri-
cal equipment without running the
engine may discharge the battery. Stowing rings
There are four stowing rings in the boot
for securing luggage:
- two rings are located on the boot
fl o o r ,
- two rings are located on the rear side pillars.
* O n 5 - s e a t v e r s i o n o n l y .
R a i s e t h e b o o t fl o o r t o g a i n a c c e s s t o
this compartment.
Right-hand side enclosed storage
compartment
This storage compartment contains the
tools for changing a wheel. S t o r a g e c o m p a r t m e n t i n t h e fl o o r *
Page 69 of 216

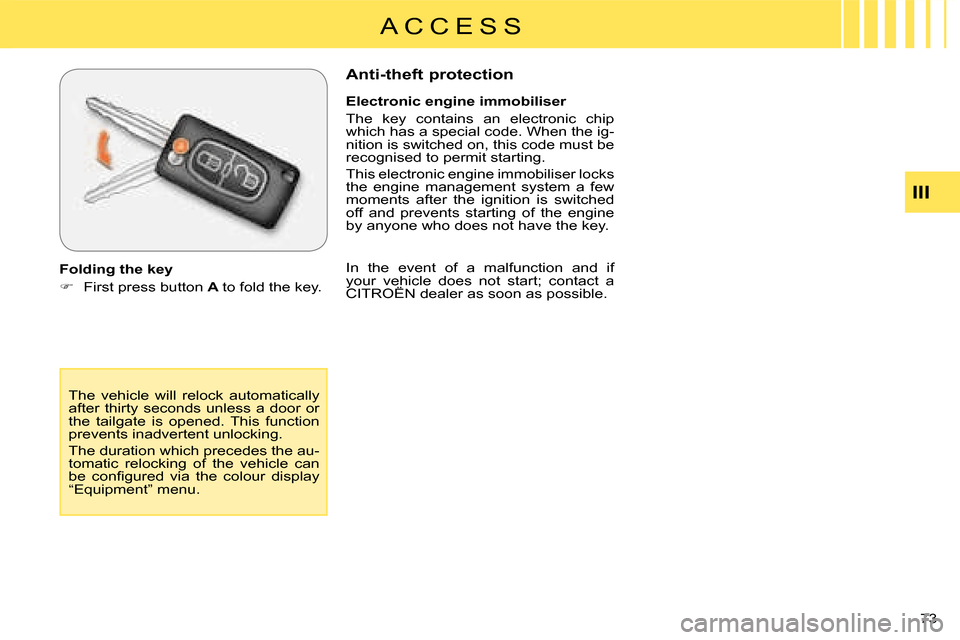

A C C E S S
III
73
The vehicle will relock automatically
after thirty seconds unless a door or
the tailgate is opened. This function
prevents inadvertent unlocking.
The duration which precedes the au-
tomatic relocking of the vehicle can
b e c o n fi g u r e d v i a t h e c o l o u r d i s p l a y
“Equipment” menu.
Folding the key
First press button A to fold the key. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the ig-
nition is switched on, this code must be
recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if
your vehicle does not start; contact a
CITROËN dealer as soon as possible.
Page 70 of 216
A C C E S S
III
74
Starting the vehicle
Insert the key in the ignition switch.
Operate the starter by turning the
key to position 4 (START) .
When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON) automatically. Switching the vehicle off
Park the vehicle.
While pressing the key, turn it to-
wards you to position 1 (LOCK) .
Remove the key from the ignition
switch. Changing the battery
Battery reference: CR1616 / 3 volts.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s h o u s -
ing.
Slide the new battery into its hous-
ing observing the original direction.
Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver’s door, if the key has been left
in the ignition.
