Page 33 of 230
I
!
I N S T R U M E N T S a n d C O N T R O L S
34
When the vehicle is
s t a t i o n a r y , it allows the
user to change the fol-
lowing parameters:
-
the choice of the reini-
tialisation of the average
consumption and average
speed,
- the fuel consumption unit,
- the temperature display unit,
- the display language,
- activation/deactivation of the INFO
button sound,
- the break (rest) reminder display in- terval,
-
restore the manufacturer’s parameters.
FUNCTION PARAMETERS
System which provides access to cer-
tain function parameters.
In order to change the settings, it
is essential that you stop the ve-
hicle and switch on the ignition.
Apply the handbrake and place the
gear lever in neutral.
When the vehicle is moving , the
functions setting display is not dis-
played when you press the INFO
button.
The various menus may differ for the
type 1 instrument panel and the type 2
instrument panel.
With the ignition on , press the INFO
button on the fascia, to the right of the
instrument panel, several times in suc-
cession until the "SETTING MENU"
screen is displayed.
O p e r a t i o n
press and hold the INFO button for
a few seconds to display the menus
screen.
Press and hold the INFO button for
a few seconds to return to the previ-
ous screen.
When the menus screen is dis-
played, if no operation is carried out
within 15 seconds, the function pa-
rameters screen is displayed.
on the menus screen, press the
INFO button to select a function
from the list:
MENU
2 / 3 :
- a/b (choice of displaying a different
language on the instrument panel
display and the navigation display),
- a c t i v a t i o n / d e a c t i v a t i o n o f t h e I N F O
button sound ,
- ALERT (changing of the "BREAK
REMINDER" display interval),
- choice of the direction indicators sound,
- a c t i v a t i o n / d e a c t i v a t i o n o f t h e c u r -
r e n t f u e l c o n s u m p t i o n ,
MENU
1/3 :
- 1 - 2 (choice of the reinitialisation of
the average consumption and aver-
age speed),
- UNIT (choice of the fuel consump-
tion units),
- choice of the t e m p e r a t u r e d i s p l a y
unit ,
- LANGUAGE (choice of the display
language),
M E N U 3 / 3 :
- REINITIALISE (restore the manu-
facturer’s parameters).
Page 132 of 230
VII
D R I V I N G
125
REVERSING CAMERA
Linked with the navigation option, a
reversing camera is activated automati-
cally when reverse gear is engaged.
The colour visual return is provided on
the navigation display with indication of
the limit of the rear bumper and of the
general direction of the vehicle.
Operating fault
If an operating fault occurs, the indicator
light on button
A fl a s h e s w h e n r e v e r s e
gear is engaged.
Consult a CITROËN dealer.
In bad weather or in winter, check
that the sensors are not covered with
mud, ice or snow.
Deactivation
With reverse gear engaged, press
button A , the indicator light switches
off, the system is fully deactivated.
Reactivation
With reverse gear engaged, press
button A again, the indicator light
comes on, the system is reactivated.
M o d i fi c a t i o n o f t h e d e t e c t i o n z o n e s
Press button A to deactivate the
system.
Press button A again for a few seconds
and release it.
T h e d e t e c t i o n z o n e m o d i fi c a t i o n i n f o r -
mation is indicated by an audible signal
which:
- is heard twice o n v e h i c l e s fi t t e d w i t h
a towbar,
- is heard once on vehicles which are
n o t fi t t e d w i t h a t o w b a r .
The red line indicates the distance re-
quired to open the lower tailgate.
Page 133 of 230
VII
D R I V I N G
125
REVERSING CAMERA
Linked with the navigation option, a
reversing camera is activated automati-
cally when reverse gear is engaged.
The colour visual return is provided on
the navigation display with indication of
the limit of the rear bumper and of the
general direction of the vehicle.
Operating fault
If an operating fault occurs, the indicator
light on button
A fl a s h e s w h e n r e v e r s e
gear is engaged.
Consult a CITROËN dealer.
In bad weather or in winter, check
that the sensors are not covered with
mud, ice or snow.
Deactivation
With reverse gear engaged, press
button A , the indicator light switches
off, the system is fully deactivated.
Reactivation
With reverse gear engaged, press
button A again, the indicator light
comes on, the system is reactivated.
M o d i fi c a t i o n o f t h e d e t e c t i o n z o n e s
Press button A to deactivate the
system.
Press button A again for a few seconds
and release it.
T h e d e t e c t i o n z o n e m o d i fi c a t i o n i n f o r -
mation is indicated by an audible signal
which:
- is heard twice o n v e h i c l e s fi t t e d w i t h
a towbar,
- is heard once on vehicles which are
n o t fi t t e d w i t h a t o w b a r .
The red line indicates the distance re-
quired to open the lower tailgate.
Page 187 of 230
XI
!
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
178

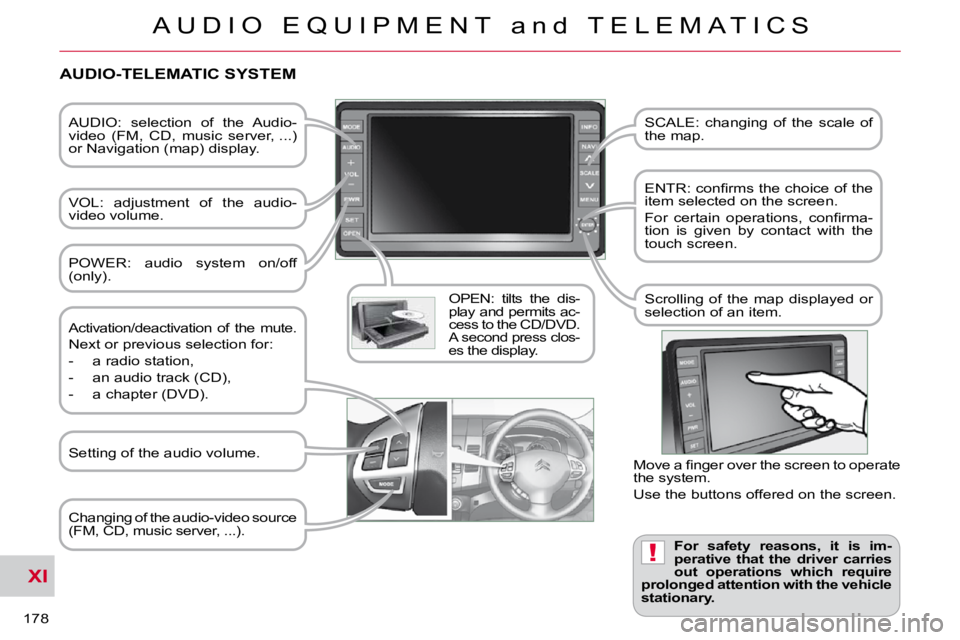

AUDIO: selection of the Audio-
video (FM, CD, music server, ...)
or Navigation (map) display.
VOL: adjustment of the audio-
video volume. OPEN: tilts the dis-
play and permits ac-
cess to the CD/DVD.
A second press clos-
es the display. SCALE: changing of the scale of
the map.
E N T R : c o n fi r m s t h e c h o i c e o f t h e
item selected on the screen.
F o r c e r t a i n o p e r a t i o n s , c o n fi r m a -
tion is given by contact with the
touch screen.
Scrolling of the map displayed or
selection of an item.
For safety reasons, it is im-
perative that the driver carries
out operations which require
prolonged attention with the vehicle
stationary.
AUDIO-TELEMATIC SYSTEM
Changing of the audio-video source
(FM, CD, music server, ...).
Activation/deactivation of the mute.
Next or previous selection for:
- a radio station,
- an audio track (CD),
- a chapter (DVD).
M o v e a fi n g e r o v e r t h e s c r e e n t o o p e r a t e
the system.
Use the buttons offered on the screen.
POWER: audio system on/off
(only).
Setting of the audio volume.
Page 189 of 230
XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
180
NAVIGATION-GUIDANCE
What is the navigation system and
the GPS?
The satellite navigation system guides
the driver to the destination that he has
set in accordance with a chosen route.
Initially, it searches for the destination
required by the user, then it calculates
t h e r o u t e a n d fi n a l l y i t p r o v i d e s t h e v i s u -
al and audible guidance instructions. What precautions should be
observed in order to use the system
under good conditions?
Do not place anything on or near the
GPS aerial.
Do not use any digital communication
equipment (personal computers, etc...)
near the GPS aerial.
D o n o t a f fi x a n y r e fl e c t i v e fi l m s o r fi l m s
containing carbon to the window.
The GPS (Global Position-
ing System) consists of
several satellites distribut-
ed around the earth. They
continuously transmit digi-
tal signals which travel at the speed of
light, on 2 different frequencies.
At any given time, the system receives
its position in relation to the satellites
detected and the time of transmission
of the signal.
This enables the telematic unit to de-
duce its position and therefore that of
the vehicle.
A repositioning process using the map
database stored on the hard disc per-
mits repositioning of the vehicle's po-
sition on the road network in order to
improve the accuracy of the locating
function. What is a point of interest
(POI)?
Up to 40 different icons may
be displayed (refer to the
section "Points of interest
icon").
T h e y a r e c l a s s i fi e d i n 5 g r o u p s
a n d i d e n t i fi e d b y o n e c o l o u r f o r e a c h
group:
- S h o p s , fi n a n c e a n d b u s i n e s s e s (Green),
- Vehicles and travel (Dark blue),
- Restaurants (Orange),
- Public places and emergency serv- ices (Brown),
- Entertainment and attractions (Blue).
GPS
The system's measurements may be
inaccurate if the vehicle is:
- in a tunnel or underground car park,
- underneath a two-level motorway,
- in an area with several very high buildings,
- surrounded by closely planted trees.
Depending on the vehicle's situation and
the reception of the GPS information,
the displayed information may disap-
pear from the display temporarily. A point of interest (POI) is
represented by an icon on
the map, it represents an
airport, a station, a town
hall, ...
Page 201 of 230
XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
192
CD player
Your Audio-Telematic system allows you
to listen to audio CDs (CDDA, CD-Text,
CD-R/RW) or MP3 and WMA CDs.
Playing an audio CD Switching off the engine or removing
the CD during recording will result in the
tracks being faulty.
The operation of the navigation system
may slow down during recording.
The recording speed may be slower
than 4x due to the processing load on
the equipment or the condition of the
audio CD.
If jumps or other errors occur, return to
the beginning of the track and start the
recording again.
Even if there is no gap between the
tracks on the CD, a brief silence be-
tween tracks is stored on the hard disc. What is the Gracenote CDDB?
Copyright
Your Audio equipment may allow you
to listen to music which is usually pro-
tected by copyright in accordance with
current national and international stand-
ards. Please consult these standards
and comply with them.
Recording onto the music server
When the audio CD is
inserted in the player,
playing of the tracks is
automatic and they can
be recorded onto the
hard disc.
Simultaneous access to the music rec-
ognition service "Gracenote CDDB" on
the hard disc permits displaying of the
title information.
The tracks of audio CDs (not
MP3/WMA) can be recorded
onto the hard disc at approximately
4x speed (e.g.: 60 minutes converted
to 15 minutes) and stored on the music
server.
The sounds recorded may be altered
by the noise present and the quality of
the sound may differ from the original.
The tracks recorded on the music serv-
er cannot be reproduced on another
medium (CD-R/RW, HDD, etc...).
Previously recorded tracks cannot be
recorded again from the same CD. The title information for the
track currently being played
can be obtained from the
"Gracenote CDDB" database
stored on the hard disc.
The Gracenote company uses this
standard to identify the music and the
associated information such as:
- the title of the album,
- the name of the artist,
- the title of the tracks,
- the genre, ...
For further details, consult the site:
www.gracenote.com.
The Gracenote CDDB database incor-
porated in this equipment cannot guar-
antee the content of the data 100 %.
You can update this database using a
DVD sold separately.
