Page 126 of 244
VII
DRIVING
124
REVERSING CAMERA
Linked with the navigation option, a
reversing camera is activated automati-
cally when reverse gear is engaged.
The colour image is provided on the naviga-
tion screen with indication of the limit of the
rear bumper and of the general direction of
the vehicle.
Operating fault
If an operating fault occurs, the indicator
lamp in button A
fl ashes when reverse
gear is engaged.
Contact a CITROËN dealer or a qualifi ed
workshop.
In bad weather or in winter, check
that the sensors are not covered with
mud, ice or snow.
Deactivation
)
With reverse gear engaged, press
button A
, the indicator lamp goes
off, the system is fully deactivated.
Reactivation
)
With reverse gear engaged, press
button A
again, the indicator lamp
comes on, the system is reactivated.
Modifi cation of the detection zones
)
Press button A
to deactivate the
system.
)
Press button A
again for a few seconds
and release it.
The detection zone modifi cation information
is indicated by an audible signal:
- double
signal on vehicles fi tted with
a towbar,
- single
signal on vehicles which are
not fi tted with a towbar.
The red line indicates the distance re-
quired to open the lower tailgate.
Page 149 of 244
IX
PRACTICAL INFORMATION
147
Dashboard fuses
The fuseboxes are placed in the lower
dashboard behind the glove box.
Access to the fuses
)
Open the glove box,
)
Push the two opening guides A
in-
wards to pass the fi rst notch,
)
Remove the retaining tab B
pulling
it outwards,
)
Support the cover and tilt it down-
wards,
)
Change the fuse (refer to the cor-
responding paragraph).
Fuse N°
Rating
Functions
1*
30 A
Heating.
2
15 A
Brake lamps, third brake lamp, built-in systems
interface.
3
10 A
Rear foglamps.
4
30 A
Windscreen wipers and screenwash.
5
10 A
Diagnostic socket.
6
20 A
Central locking, door mirrors.
7
15 A
Audio system, telematics, multifunction screen,
hands-free kit.
8
7.5 A
Remote control key, air conditioning control unit,
instrument panel, switch panel, steering mounted
controls.
9
15 A
Multifunction screen, instrument panel.
10
15 A
Built-in systems interface.
11
15 A
Rear wiper.
12
7.5 A
Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction screen, automatic headlamp
adjustment, heated seats, airbag control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.
13
-
Not used.
14
10 A
Ignition switch.
15
20 A
Sunroof.
16
10 A
Door mirrors, audio system, telematics.
Page 150 of 244
IX
!
PRACTICAL INFORMATION
148
Access to the fuses
)
Open the glove box,
)
Push the two opening guides A
in-
wards to pass the fi rst notch,
)
Remove the retaining tab B
pulling
it outwards,
)
Support the cover and tilt it down-
wards,
)
Change the fuse (refer to the cor-
responding paragraph).
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried
out by a CITROËN dealer or a qualifi ed workshop.
Fuse N°
Rating
Functions
17
10 A
4 wheel drive control unit.
18
7.5 A
Reversing lamps, parking sensors control unit,
reversing camera, airbag control unit.
19
15 A
Accessory socket.
20*
30 A
Electric window controls.
21
*
30 A
Rear screen demisting.
22
7.5 A
Heated door mirrors.
23
-
Not used.
24
25 A
Driver’s electric seat, footwell lighting, rear bench
seat release.
25
30 A
Heated seats.
Page 152 of 244
IX
!
PRACTICAL INFORMATION
150
Spare fuses
The spare fuses are located under the engine compartment
fuse box cover.
The cover does not contain spare fuses with an amperage
of 7.5 A, 25 A or 30 A. If one of the fuses with these amper-
ages develops a fault, replace it with the following fuse:
A 7.5 A fuse
must be replaced with the 10 A spare fuse
,
a 25 A fuse
with a 20 A spare fuse
and a 30 A fuse
with
the audio system fuse (N° 31)
.
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried
out by a CITROËN dealer or a qualifi ed workshop.
Fuse N°
Rating
Functions
22
20 A
Engine control unit, water in Diesel detector, injection pump (Diesel), air fl ow sensor, water
presence sensors, oxygen sensor, camshaft position sensor, canister purge electrovalve,
vehicle speed sensor, variable timing (VTC) electrovalve, EGR electrovalve.
23
15 A
Petrol pump, fuel gauge.
24
*
30 A
Starter.
25
-
Not used.
26
*
40 A
ABS control unit, ASC control unit.
27*
30 A
ABS control unit, ASC control unit.
28
*
30 A
Condenser fan.
29
*
40 A
Radiator fan.
30
30 A
Passenger compartment fusebox.
31
30 A
Audio amplifi er.
32
30 A
Diesel engine control unit.
Fuse N°
Rating
33
10 A
34
15 A
35
20 A
Page 160 of 244
IX
!
PRACTICAL INFORMATION
158
A wide range of accessories and genu-
ine parts is available from the CITROËN
dealer network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle and
benefi t from CITROËN's recommenda-
tion and warranty.
"Comfort":
rear parking sensors, side sun blinds,
insulated module...
"Transports solutions":
boot liner, dog guard, roof bars, bicycle
carrier for roof bars, ski carrier, roof
box...
Trailer towbar which must be fi tted by
a CITROËN dealer or a qualifi ed work-
shop.
"Security and safety":
anti-intrusion alarm, glass etching,
wheel security bolts, fi rst aid kit, warn-
ing triangle, high visibility vest, stolen
vehicle tracking system, child seats and
booster cushions, under-infl ation detec-
tion, anti-slip covers...
"Protection":
mat * , side protective mouldings...
"Multimedia":
MP3/USB audio systems, audio-tele-
phone, amplifi ers, satellite navigation
systems, hands-free kit, speakers, DVD
player, connection kit for MP3 player or
portable CD player...
Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle and spare bulbs and
fuses available in the vehicle.
The fi tting of electrical equip-
ment or accessories which are
not recommended by CITROËN
may result in a failure of your vehi-
cle's electronic system and exces-
sive electrical consumption.
Please note this precaution. You are
advised to contact a CITROËN rep-
resentative to be shown the range
of recommended equipment and ac-
cessories.
Installation of radio
communication transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a CITROËN dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).
*
To prevent any risk of jamming of
the pedals:
- ensure that the mat is positioned
and secured correctly,
- never fi t one mat on top of another.
"Style":
PVC door sill protectors, style rear
mudfl aps, Hortaz 18 inch alloy wheels,
chromed door handle shells, diffuser on
rear bumper, brushed aluminium look
boot sill protector...
ACCESSORIES
Page 213 of 244
XI
211
AUDIO and TELEMATICS
Time and date, language, unit,picture size
E - Choose the size of the DVD picture for:
E1 - normal 4/3,
E2 - extends the picture evenly to the right
and to the left in wide screen mode,
E3 - extends the right and left parts only
leaving the centre as it stands in
wide screen mode,
E4 - enlarges the picture in 4/3 format.
The top and the bottom are outside
the frame. D - Choose the base settings of the sys-
tem for:
D1 - setting of the time by the RDS signal,
time zone, summer time,
D2 - the language (English, Français,
Deutsch, Nederlands, Portuguese,
Español, Svenska, Italiano, Dansk),
D3 - the units for calculation of the dis-
tances (km or miles and °C or °F),
D4 - other settings such as:
- the voice guidance volume,
- the type of voice guidance voice
(female or male),
- the volume of the operation bleeps
(1 to 3 and 0=no bleep),
- the type of inputting keypad (alpha-
bet or PC),
- the range of menu colours (red or
blue),
- the displaying or not of the audio
playing icons on the map screen,
- the reinitialisation of the vehicle sensor,
- the interruption or not of the display
when the air conditioning is used.
DE
E1E2E3E4
D1D2
D3D4
Page 226 of 244
224
VISUAL SEARCH
EXTERIOR FRONT
Remote control key,
starting, battery ............................ 73-76
Central locking ...................................79
Sunroof ........................................ 82-83
Windscreen wipers ...................... 90-91
Rain sensor .......................................90
Opening the bonnet .........................126
Engine ..................................... 127-128
Towing .............................................154 Door mirrors .......................................61
Opening/closing the doors ........... 79-80
Filling with fuel ...................................84
Fuel gauge.........................................84
Lighting, direction indicators, foglamps,
headlamps ................................... 86-89
Changing bulbs........................ 137-141
Brakes ..................................... 112, 131
ABS .................................................103
Tyres, pressures ..............................162
Brake pads ......................................131
Alloy wheels.....................................132

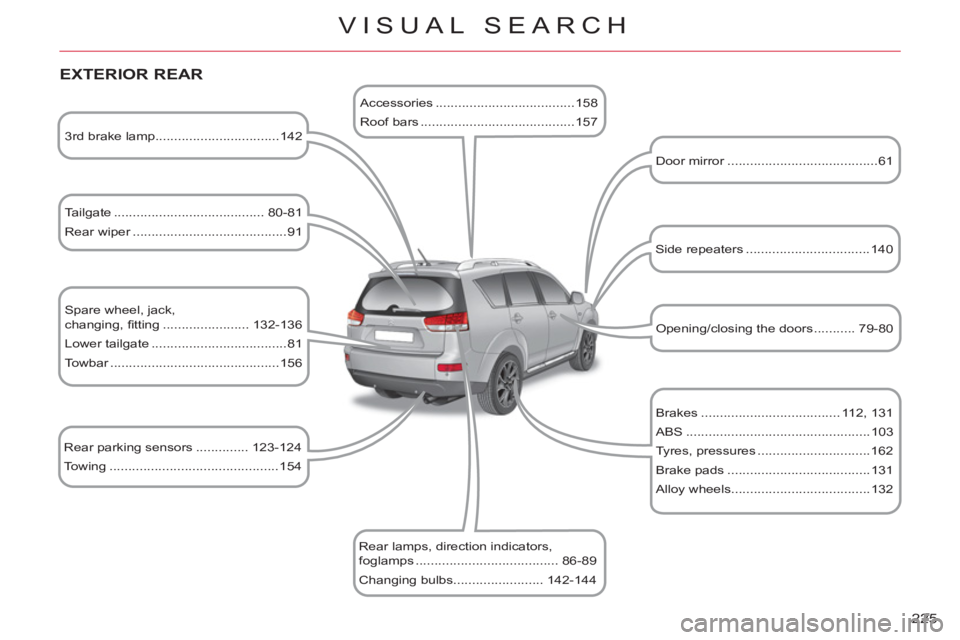

Page 227 of 244
225
VISUAL SEARCH
EXTERIOR REAR
3rd brake lamp.................................142
Tailgate ........................................ 80-81
Rear wiper .........................................91
Spare wheel, jack,
changing, fi tting ....................... 132-136
Lower tailgate ....................................81
Towbar .............................................156
Rear parking sensors .............. 123-124
Towing .............................................154
Rear lamps, direction indicators,
foglamps ...................................... 86-89
Changing bulbs........................ 142-144 Door mirror ........................................61
Side repeaters .................................140
Opening/closing the doors ........... 79-80
Brakes ..................................... 112, 131
ABS .................................................103
Tyres, pressures ..............................162
Brake pads ......................................131
Alloy wheels.....................................132 Accessories .....................................158
Roof bars .........................................157
Page 229 of 244
227
VISUAL SEARCH
STEERING MOUNTED CONTROLS
Lighting ........................................ 86-88
- dipped beam headlamps,
- main beam headlamps,
- foglamps.
Automatic illumination of headlamps .........88
Headlamp wash .................................90
Audio equipment controls ........166, 178
Telephone controls ..........................216 Wipers ......................................... 90-91
Screenwash ................................. 90-91
Cruise control .......................... 121-122
Steering wheel, adjustment ...............63
Horn .................................................102
Airbags ..................................... 108-111 Headlamp adjustment........................89
Parking sensors ....................... 123-124
ASC .................................................104
Page 234 of 244
232
ALPHABETICAL INDEX
LLabels, identifi cation ................. 162
Lamps, front.............................. 137
Lamps, rear .............................. 142
Level, battery ............................ 130
Level, brake fl uid ...................... 129
Level, headlamp wash .............. 129
Level, power steering fl uid ........ 129
Levels and checks ............. 127-130
Lighting bulbs
(replacement) ................ 137, 142
Lighting control stalk ................... 86
Lighting dimmer .......................... 43
Lighting on reminder ................... 87
Loading ....................................... 19
Load space cover ................. 70, 72
Main beam ................................ 137
Maintenance ............................... 19
Map (colour screen).................. 186
Map reading lamps ..................... 92
Mat.............................................. 63
Menus (audio)........................... 179
Mini fuel level .............................. 84
Mirror, rear view .......................... 62
Mirrors, door ............................... 61
Motorway function
(direction indicators) .............. 102
Mountings for ISOFIX seats ... 98-100 MNavigation.................. 180-182, 186
Number plate lamps ................. 142
S MP3 CD .................................... 204
Music server ..... 194, 197, 202, 203Recirculation/exterior air intake ... 46
Recording a CD ................ 194, 197
Reinitialising the sunroof ............ 82
Remote control ........................... 76
Removing a wheel .................... 135
Removing the mat ...................... 63
Replacing bulbs ................ 137, 142
Replacing wiper blades ............ 153
Rev counter ................................ 21
Reversing camera .................... 124
Reversing lamps ....................... 142
Roof bars .................................. 157
Running out of fuel (Diesel) ...... 126 N
Safety for children..................... 101
Screen, instrument
panel ................ 21, 25, 26, 30, 31
Screen, monochrome ................. 39
Screenwash, front....................... 90
Screenwash fl uid level .............. 129
Seat, rear bench ......................... 58
Seat adjustment.............. 50, 51, 53
Seat belts.......................... 106, 107
Seat belts warning lamp ........... 105
Seat confi gurations ..................... 57
Seats, electric ............................. 51
Seats, rear .................................. 53
Serial number, vehicle .............. 162
Service indicator ................... 31, 33 MR
Oil level ..................................... 129
Opening the boot ........................ 80
Opening the fuel fi ller fl ap ........... 84
Opening the sunroof ................... 82
Opening the tailgate ............. 80, 81
Operation indicator lamps........... 22 O
Parking brake ................... 112, 130
Parking sensors, rear ............... 123
Player, CD MP3 ... 166, 172, 177, 196
Protecting children ......... 94, 97-101
Puncture ............................ 132-134 P
Radio ................ 169, 170, 190, 191
Range ................................... 31, 32
Rear demisting ........................... 46
Rear foglamp .............................. 87
Rear screen (demisting) ............. 46 R
