CITROEN C-CROSSER 2012 Handbook (in English)

XI
209
AUDIO and TELEMATICS
Playing a DVD
Result
Explanations

Selecting a chapter Press the MODE button then DVD, if the player already contains a DVD.
Otherwise, insert a DVD in the player, the picture is displayed
automatically. Press the screen to access the menus.
While driving, only the soundtrack is played and no picture is displayed.
Press [
Chapter] to select the previous chapter or return to the beginning
of the chapter currently being played.
Press and hold for fast backwards play.
Press [Chapter

] to select the next chapter.
Press and hold for fast forwards play.

Selecting a title
Press [
Title] to select the previous title.
Press [Title
] to select the next title.
Press

XI
210
AUDIO and TELEMATICS
A - Choose to switch off the display.
To switch it back on, touch the
screen or press any button.
B - Choose the settings of the sound
in the vehicle, if an audio source
is selected (FM, CD, ...), for:
B1 - the sound distribution or the volume
such as the front-rear balance, the
bass, the medium, the treble, the
volume adjustment in relation to the
vehicle speed,
B2 - the type of music (with surround
option) such as classic, jazz, pop,
rock, hip hop, country, normal, ...
B3 - the sound fi eld (with surround op-
tion) such as stage, live, hall, nor-
mal, ...
C - Choose the quality of the picture for:
C1 - the colour (when playing DVDs),
C2 - the intensity of the colours (when
playing DVDs),
C3 - the brightness,
C4 - the contrast,
C5 - the level of black.
SETTINGS

Displa
y, sound, picture
ABCB1B2
B3
C1C2C3C4C5

XI
211
AUDIO and TELEMATICS

Time and date, language, unit,picture size

E - Choose the size of the DVD picture for:
E1 - normal 4/3,
E2 - extends the picture evenly to the right
and to the left in wide screen mode,
E3 - extends the right and left parts only
leaving the centre as it stands in
wide screen mode,
E4 - enlarges the picture in 4/3 format.
The top and the bottom are outside
the frame. D - Choose the base settings of the sys-
tem for:
D1 - setting of the time by the RDS signal,
time zone, summer time,
D2 - the language (English, Français,
Deutsch, Nederlands, Portuguese,
Español, Svenska, Italiano, Dansk),
D3 - the units for calculation of the dis-
tances (km or miles and °C or °F),
D4 - other settings such as:


- the voice guidance volume,

- the type of voice guidance voice
(female or male),

- the volume of the operation bleeps
(1 to 3 and 0=no bleep),

- the type of inputting keypad (alpha-
bet or PC),

- the range of menu colours (red or
blue),

- the displaying or not of the audio
playing icons on the map screen,

- the reinitialisation of the vehicle sensor,

- the interruption or not of the display
when the air conditioning is used.
DE
E1E2E3E4
D1D2
D3D4

XI
212
AUDIO and TELEMATICS

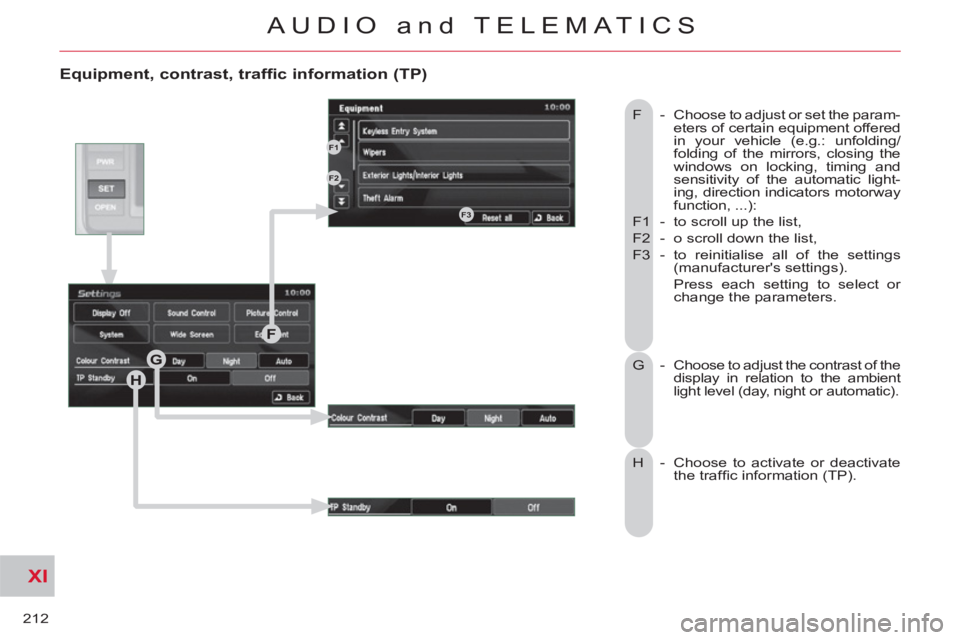

Equipment, contrast, traffic information (TP)

F - Choose to adjust or set the param-
eters of certain equipment offered
in your vehicle (e.g.: unfolding/
folding of the mirrors, closing the
windows on locking, timing and
sensitivity of the automatic light-
ing, direction indicators motorway
function, ...):
F1 - to scroll up the list,
F2 - o scroll down the list,
F3 - to reinitialise all of the settings
(manufacturer's settings).
Press each setting to select or
change the parameters.
G -
Choose to adjust the contrast of the
display in relation to the ambient
light level (day, night or automatic).
H - Choose to activate or deactivate
the traffi c information (TP).
H
G
F
F1
F2
F3

XI
213
AUDIO and TELEMATICS
INFORMATION
A - Consult the system information:
A1 - the software version,
A2 - the map data version,
A3 - the system information database
version.

To update the versions, insert
the DVD containing the new data
and follow the instructions on the
screen.
B - Consult the GPS information:
B1 - the satellite positions diagram
with the direction of movement of
the vehicle. Plus the position of
the satellite signal receivers,
B2 - the name of the current location,
B3 - the longitude and latitude of the
current location,
B4 - the position measurement status
(2D=3 satellites or fewer, 3D=4
satellites or more),
B5 - the number of receiving satellites,
B6 - to have north at the top of the map,
B7 - to have the direction of the ve-
hicle at the top of the map,
B8 - to pivot the map from overhead
or change the angle of the map.

System version, satellite
AB
A2A1
A3
B1B2
B3B4
B5B6B7B8

XI
214
AUDIO and TELEMATICS

Calendar, trip

D - Consult the driving information:
D1 - the average speed,
D2 - the average fuel consumption,
D3 - the current fuel consumption,
D4 - for speed and fuel consumption
graphs in 5 minute intervals,
D5 - choose an automatic reinitiali-
sation (key at off for more than
4 hours) or manual reinitialisation
(press [Reset]),
D6 - the distance which can still be
travelled (in relation to the fuel re-
maining and the recent average
consumption),
D7 - the distance travelled since the
fuel tank was last fi lled (press
[Refuel] to reinitialise),
D8 - the driving time (duration be-
tween the key being turned to on
then to off).
- press [Start] to measure interme-
diate times with:
D9 - the duration,

D10 - the distance,

D11 - the speed,

D12 - the fuel consumption. C - Make a note on the calendar of
special days, birthdays, ...

Use the arrows to fi nd a date and
press directly on the day required
to enter the event.
These double arrows permit
access to the driving infor-
mation screen, previous or
next.
D
C
D1D2D3
D4D5
D6D7D8
D7
D9D10D11D12

XI
215
AUDIO and TELEMATICS
F - Consult the air conditioning con-
ditions:
F1 - the fan speed indicator,
F2 - the air selection indicator,
F3 - the windscreen demisting indicator,
F4 - the air conditioning indicator,
F5 - the rear screen demisting indicator,
F6 - the AUTO mode indicator. E -

Consult the environment information:

E1 - the altitude,
E2 - the atmospheric pressure,
E3 - the ambient temperature. The ice
symbol fl ashes if there is a risk
of ice.
G - Make and receive telephone calls:
G1 - enter the telephone number,
G2 - delete a character,
G3 - make the call.
Refer to the hands-free telephone
section to connect your Bluetooth
®
mobile telephone.

Environment, air conditioning,
telephone
G
EFF1F2
F3F4
F5
F6
E1
E2
E3
G1G2
G3

XI
216
AUDIO and TELEMATICS

What is the Bluetooth® hands-free telephone with voice
recognition?
SPEAK
Pressing activates the voice recognition (“Listening” is displayed).
During voice recognition, a brief press pauses this recognition.
An extended press deactivates the recognition.
A brief press will activate the recognition even if a telephone call is
progress.
Audio system on/off.
PICK UP
Press to answer an incoming call.
If a second incoming call is received,
press this button to place the fi rst call on
hold and speak to the second caller.
In this case, a brief press switches be-
tween callers.
To establish a three-way conversation,
press the SPEAK button to switch to
voice recognition mode and say "In-
corporate the call".
HANG UP
Press to reject an incoming call.
During a call, pressing ends this call.


General notes

Decrease audio volume. Increase audio volume.
HANDS-FREE TELEPHONE

You can make telephone calls using
a microphone, located in the courtesy
lamp making use of the steering mount-
ed controls or by the voice recognition
function using voice commands. Five
languages are available: English (by
default), Spanish, French, German and
Italian. The system uses wireless communication technology referred to as
Bluetooth® which allows you to make hands-free telephone calls in
your vehicle via your Bluetooth® compatible mobile telephone.

XI
217
AUDIO and TELEMATICS
Changing the language,programming the voice

Changing the language of the voice
commands
By default, the recognition system is in
English.
Programming the user's voice
You can use the user's voice program-
ming function to create a voice model
for one person per language.
The characteristics of your voice and
your pronunciation are recorded in this
model for improved voice recognition.
It is essential that the vehicle is parked
in a safe place, with the parking brake
applied.
Switch off your telephone during the
process to avoid any interruption.
1 - Press the SPEAK button. 5 - The system says the fi rst of 45 typical
phrases.
If you do not start the program-
ming process within approximately
3 minutes after pressing the SPEAK
button, the process is cancelled.
If you press the SPEAK button with-
in 5 seconds following the reading of
a voice command, the recording of
this command is repeated.
1 - Press the SPEAK button.
2 - Say "Setup".
3 - Say "Language".
5 - Say the language of your
choice in English, example:
say "French" for French.
7 - Say "Yes" to start the change
of language process or say
"No" to return to steps 4 to 7. 2 - Say "Word training".
4 - When you are ready to start,
press and hold the SPEAK
button. 6 - Repeat each phrase in the
table on the next page.
The system records your voice and
moves on to the recording of the next
command.
Continue the process until all of the
phrases have been recorded.
4 - The system says "Select a language:
English, Spanish, French, German or
Italian".
6 - The system then says "French se-
lected. Is this correct?"
8 - The system repeats the language
chosen and completes the change
of language process. 3 - An explanation message is given. 7 - After reading all the voice com-
mands, the system says "The word
enrolment is complete" and ends the
process.

XI
218
AUDIO and TELEMATICS

Training voice commands

1 # 790 (for # = "Hash")
2 * 671 (for * = "Star")
3 212 - 4 903
4 235 - 3 494
5 315 - 5 657
6 456 - 7 930
7 793 - 5 462
8 794 - 1 826
9 826 - 3 145
10 962 - 7 305
11 (531) 742 - 9 860
12 (632) 807 - 4 591
13 (800) 222 - 5015
14 (888) 555 - 1 212
15 0 123 456 789 16 55 66 77 88 99
17 44 33 22 11 00
18 Call 293 - 5804
19 Call * 350
20 Call 1 (234) 567 - 8 901
21 Dial 639 - 1542
22 Dial # 780
23 Dial (987) 654 - 3210
24 1058# 3794# Send
25 27643# 4321# Send
26 Cancel
27 Continue
28 Emergency number
29 Clear all
30 Help 31 Home, Work, Mobile, Pager
32 List of names
33 No
34 Phone book: Delete

35 Phone book: New entry
36 Previous
37 Phone book: Clear all
38 Redial
39 Repeat the training
40

Confi gure the confi rmation requests

41 Confi gure the language
42 Confi gure the matching options
43 Match a telephone
44 Transfer the call
45 Ye s
