start stop button Citroen C CROSSER DAG 2009.5 1.G Owner's Manual

I
I N S T R U M E N T S a n d C O N T R O L S
23

Warning light is on Cause Actions/Observations
Driver's
seat belt not fastened Fixed The driver has not
fastened or has
unfastened his seat belt. This is accompanied by a message on the
instrument panel display.
Fasten the driver's seat belt.
ABS Fixed This comes on if an
anti-lock braking system
failure occurs. It is accompanied by a message on the
instrument panel display. The vehicle retains
conventional braking without assistance but
you are advised to stop. Have it checked by a
CITROËN dealer.
Air bags and
pretensioners Fixed This comes on for a few
seconds when the ignition
is turned to "ON" then
switches off.
It should switch off when the engine is started.
If it does not switch off, contact a CITROËN
dealer.
This comes on if an air
bag or pretensioner
failure occurs. It is accompanied by a message on the
instrument panel display. Have the system
checked by a CITROËN dealer without delay.
Dynamic
stability control system (ASC) Fixed This comes on if the
dynamic stability control
system fails. It is accompanied by a message on the
instrument panel screen. Have the system
checked by a CITROËN dealer without delay.
Directional lighting off
(AFS OFF) Fixed
This comes on when the
mode is not active. Press the "AFS OFF" button to activate/
deactivate the mode.
Flashing This fl ashes if the
systems fails. Consult a CITROËN dealer.

I
I N S T R U M E N T S a n d C O N T R O L S
39
Set the time using the buttons as indi-
cated below:

 with the ignition on or in the ACC
(Accessories) position, press and
hold the CLOCK button until the
time display fl ashes.

 Press the appropriate button to set
the time:

Button
H: setting of the hours
The hours digits scroll when you press
this button.

Button M: setting of the minutes
The minutes digits scroll when you
press this button.

Button 00: resetting of the minutes to
zero.
- from 1 to 29 min
: rounded down to
the previous hour,
- from 30 to 59 min: rounded up to
the next hour.
Manual mode
Automatic mode
In this mode, setting is automatic using
the signal from the RDS radio stations.
 After setting the time, press the

DISP button; the time display stops
fl ashing.
The digital clock does not display
seconds.
When the "minutes" display is set or
reset to zero, the clock starts at the
zero second of the minute selected.
The time setting is lost if the battery
is disconnected.

 Turn button B "TUNE" to the left or
to the right to select "CT ON" (auto-
matic mode) or "CT OFF" (manual
mode).

 After selecting the mode, you can
exit the "Functions setting mode"
menu by pressing button B "TUNE"
for approximately 2 seconds.
If no action is carried out within
10 seconds, the system will exit the
"functions setting mode" menu auto-
matically.

III
!
A C C E S S
76

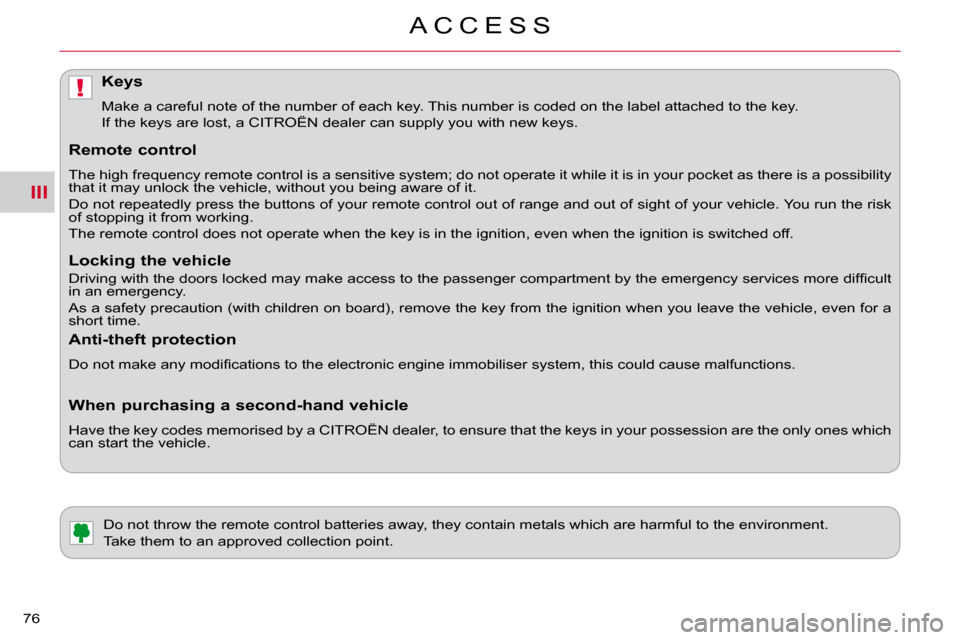

Do not throw the remote control batteries away, they contain metals which are harmful to the environment.
Take them to an approved collection point.
Keys
Make a careful note of the number of each key. This number is coded on the label attached to the key.
If the keys are lost, a CITROËN dealer can supply you with ne w keys.
Remote control
The high frequency remote control is a sensitive system; do not o perate it while it is in your pocket as there is a possibility
that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk
of stopping it from working.
The remote control does not operate when the key is in the i gnition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart ment by the emergency services more diffi cult
in an emergency.
As a safety precaution (with children on board), remove the key fro m the ignition when you leave the vehicle, even for a
short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system, this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the keys in your possession are the only ones which
can start the vehicle.

III
!
A C C E S S
76
Do not throw the remote control batteries away, they contain metals which are harmful to the environment.
Take them to an approved collection point.
Keys
Make a careful note of the number of each key. This number is coded on the label attached to the key.
If the keys are lost, a CITROËN dealer can supply you with ne w keys.
Remote control
The high frequency remote control is a sensitive system; do not o perate it while it is in your pocket as there is a possibility
that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk
of stopping it from working.
The remote control does not operate when the key is in the i gnition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart ment by the emergency services more diffi cult
in an emergency.
As a safety precaution (with children on board), remove the key fro m the ignition when you leave the vehicle, even for a
short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system, this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the keys in your possession are the only ones which
can start the vehicle.

XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
217
Matching your Bluetooth®
telephone
The system can register up to 7 Blue-
tooth®
compatible mobile telephones.
The telephone which has the highest
level of priority is matched automati-
cally.
It is absolutely essential that the vehicle
is parked in a safe place with the hand-
brake applied.
1 - Press the SPEAK button.
7 - Say a 4-digit number which will be recorded as the match-
ing code. 11 - When it detects a Bluetooth
®

compatible mobile telephone,
the system says "Please say
the name of the telephone af-
ter the bleep". If the system does not detect the
Bluetooth
®
compatible mobile tel-
ephone, the matching process stops
accompanied by an audible signal.
If you select a level of priority which
has already been allocated to an-
other telephone, the system asks
you if you wish to replace this level
of priority.
Remember this matching code as
you must enter it in the telephone
in one of the following steps of the
matching procedure.
9 - The system says "Start the matching procedure on the telephone. Con-
sult the instructions in the telephone
manual".
2 - Say "Confi gure".
3 - Say "Matching options".
5 - Say "Match a telephone". 8 - The system confi rms the va-
lidity of the number spoken,
answer "Yes". Say "No" to re-
turn to step 7.
10 - Consult your mobile tele- phone's user manual and
enter the matching code
recorded in step 7 in the
telephone. 12 - After the audible signal, allo-
cate a name to the telephone
by saying the name of your
choice.
13 - The system says "Allocate an order of priority between 1 and 7. One is
the highest level of priority".
14 - Say a number between 1 and 7 to establish the level
of priority of the mobile tel-
ephone.
15 - The system says and confi rms the and the
of its priority.
4 - The system says "Do you wish to match a telephone, delete a tele-
phone or obtain the list of matched
telephones?".
6 - The systems says "Please say the 4 digits of a matching code". If the code is incorrect, the system
locks. To clear the code:
- check that the telephone's voice
recognition is not activated,
- with the ignition on and the audio system active, press the HANG UP
button for 2 seconds, 3 times in
succession. 16 - Answer "Yes" or say "No" to
return to step 13.
17 - The systems says "Matching complete" then emits an au-
dible signal and deactivates
the voice recognition.
