CITROEN C CROSSER DAG 2009 Owners Manual
Manufacturer: CITROEN, Model Year: 2009, Model line: C CROSSER DAG, Model: CITROEN C CROSSER DAG 2009Pages: 216, PDF Size: 4.87 MB
Page 151 of 216
T E C H N I C A L D A T A
X
149

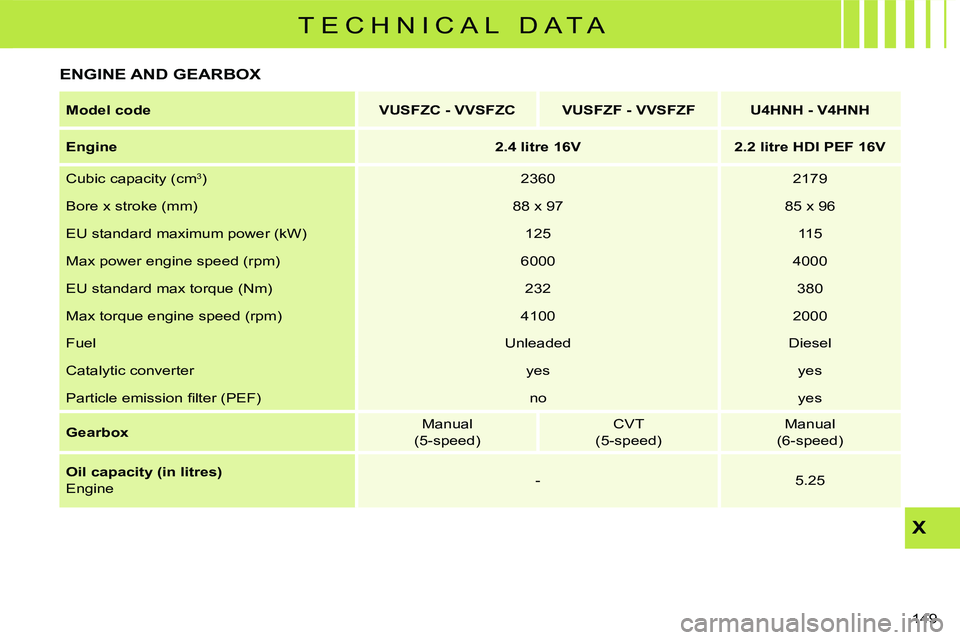

ENGINE AND GEARBOX
Model code VUSFZC - VVSFZC VUSFZF - VVSFZF U4HNH - V4HNH
Engine
2.4 litre 16V 2.2 litre HDI PEF 16V
Cubic capacity (cm 3
) 2360 2179
B o r e x s t r o k e ( m m ) 8 8 x 9 7 8 5 x 9 6
E U s t a n d a r d m a x i m u m p o w e r ( k W ) 125 115
M a x p o w e r e n g i n e s p e e d ( r p m ) 6000 4000
E U s t a n d a r d m a x t o r q u e ( N m ) 232 380
M a x t o r q u e e n g i n e s p e e d ( r p m ) 4100 2000
Fuel Unleaded Diesel
Catalytic converter yes yes
P a r t i c l e e m i s s i o n fi l t e r ( P E F ) no yes
Gearbox Manual
(5-speed) CVT
(5-speed) Manual
(6-speed)
Oil capacity (in litres)
Engine - 5.25
Page 152 of 216
T E C H N I C A L D A T A
X
150

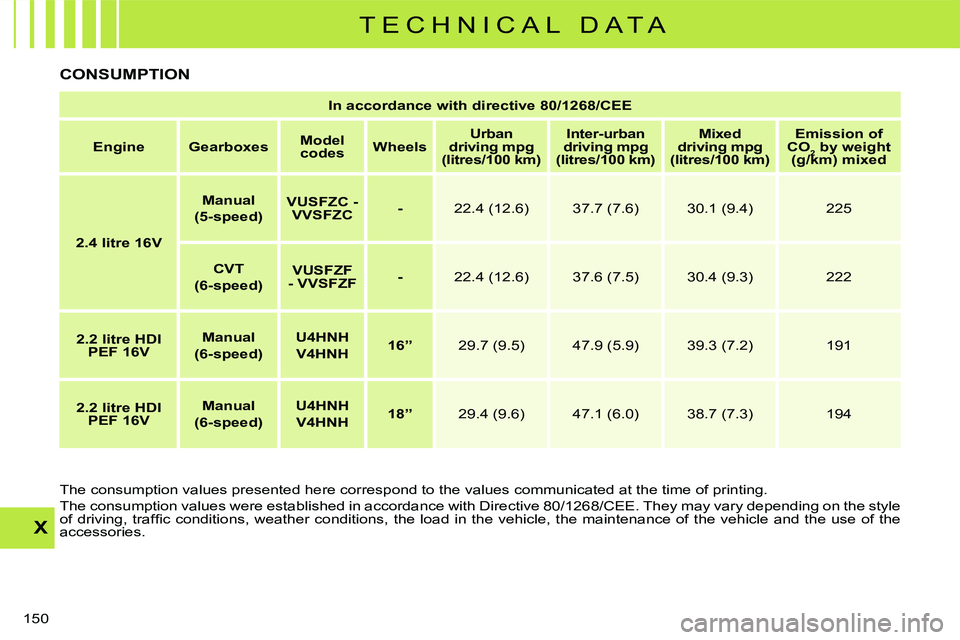

CONSUMPTION
The consumption values presented here correspond to the values communicated at the time of printing.
The consumption values were established in accordance with Dire ctive 80/1268/CEE. They may vary depending on the style
o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d t h e u s e o f t h e
accessories.
In accordance with directive 80/1268/CEE
Engine Gearboxes
Model
codes
Wheels
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission of
CO 2 by weight
(g/km) mixed
2.4 litre 16V
Manual
(5-speed)
VUSFZC -
VVSFZC
- 22.4 (12.6) 37.7 (7.6) 30.1 (9.4) 225
CVT
(6-speed)
VUSFZF
- VVSFZF
- 22.4 (12.6) 37.6 (7.5) 30.4 (9.3) 222
2.2 litre HDI
PEF 16V
Manual
(6-speed)
U4HNH
V4HNH
16” 29.7 (9.5) 47.9 (5.9) 39.3 (7.2) 191
2.2 litre HDI
PEF 16V
Manual
(6-speed)
U4HNH
V4HNH
18” 29.4 (9.6) 47.1 (6.0) 38.7 (7.3) 194
Page 153 of 216
T E C H N I C A L D A T A
151

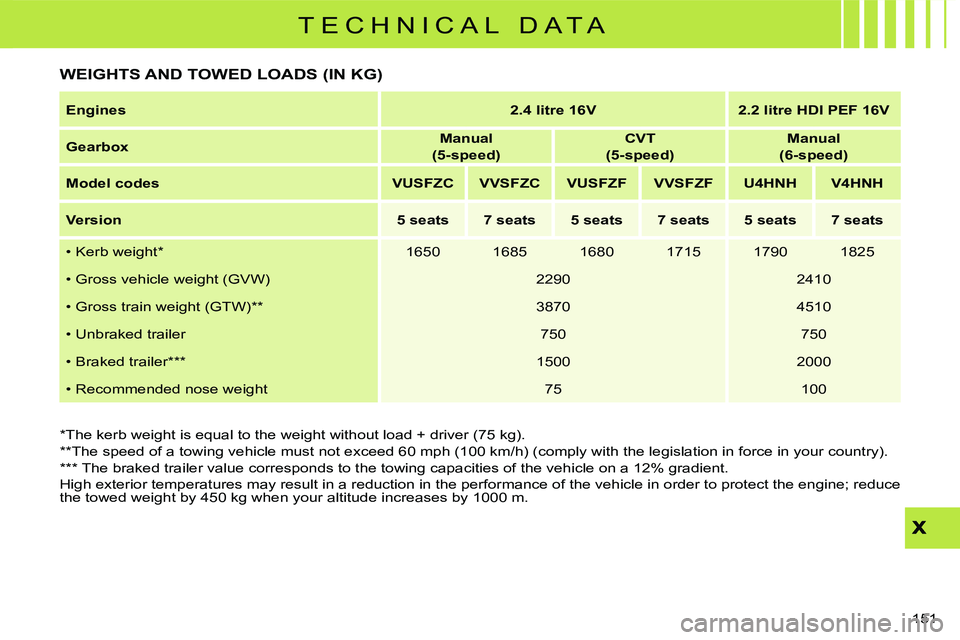

WEIGHTS AND TOWED LOADS (IN KG)
* T h e k e r b w e i g h t i s e q u a l t o t h e w e i g h t w i t h o u t l o a d + d r i v e r ( 7 5 k g ) .
* * T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y ) .
* * * T h e b r a k e d t r a i l e r v a l u e c o r r e s p o n d s t o t h e t o w i n g c a p a c i t i e s o f t h e v e h i c l e o n a 1 2 % g r a d i e n t .
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e i n o r d e r t o p r o t e c t t h e e n g i n e ; r e d u c e
the towed weight by 450 kg when your altitude increases by 1 000 m.
Engines
2.4 litre 16V 2.2 litre HDI PEF 16V
Gearbox
Manual
(5-speed)
CVT
(5-speed)
Manual
(6-speed)
Model codes VUSFZC VVSFZC VUSFZF VVSFZF U4HNH V4HNH
Version
5 seats 7 seats 5 seats 7 seats 5 seats 7 seats
• K e r b w e i g h t * 1650 1685 1680 1715 1790 1825
Page 154 of 216
T E C H N I C A L D A T A
X
152

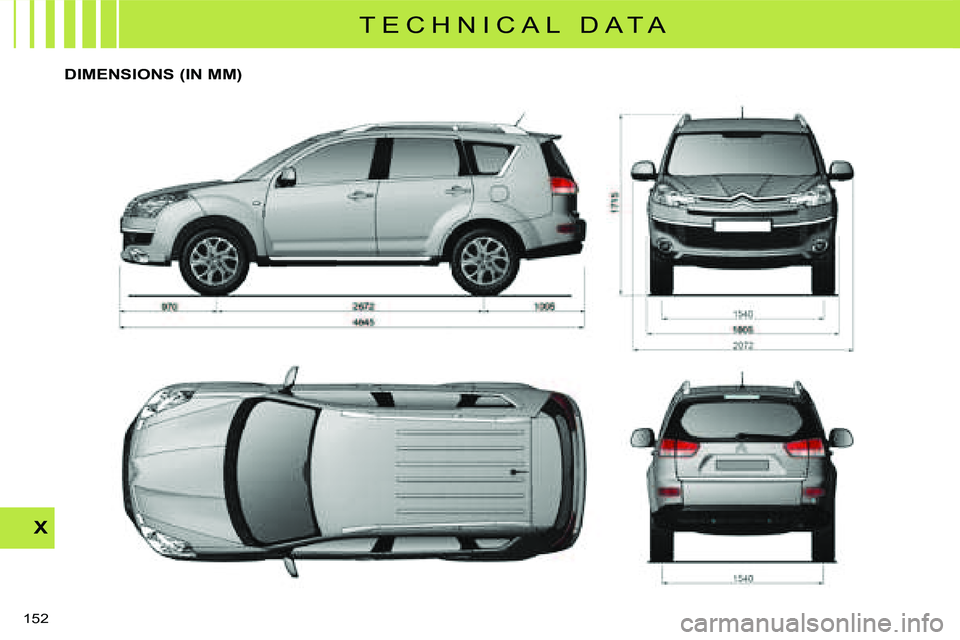

DIMENSIONS (IN MM)
Page 155 of 216
T E C H N I C A L D A T A
X
153
A.
Manufacturer’s plate.
This number is indicated on a plate
riveted on the centre pillar, on the
passenger’s side.
B.
Serial number under the bonnet.
This number is engraved on the
bodywork near the windscreen.
C.
After Sales plate.
This plate is riveted on the inside of
the bonnet.
D.
Front number plate.
E.
Tyres / paint label.
T h i s l a b e l i s a f fi x e d t o t h e d r i v e r ’ s door centre pillar.
It indicates the following information:
- the tyres pressures without load and with load,
- the rim and tyre sizes,
- the pressure of the spare wheel,
- the paint colour reference.

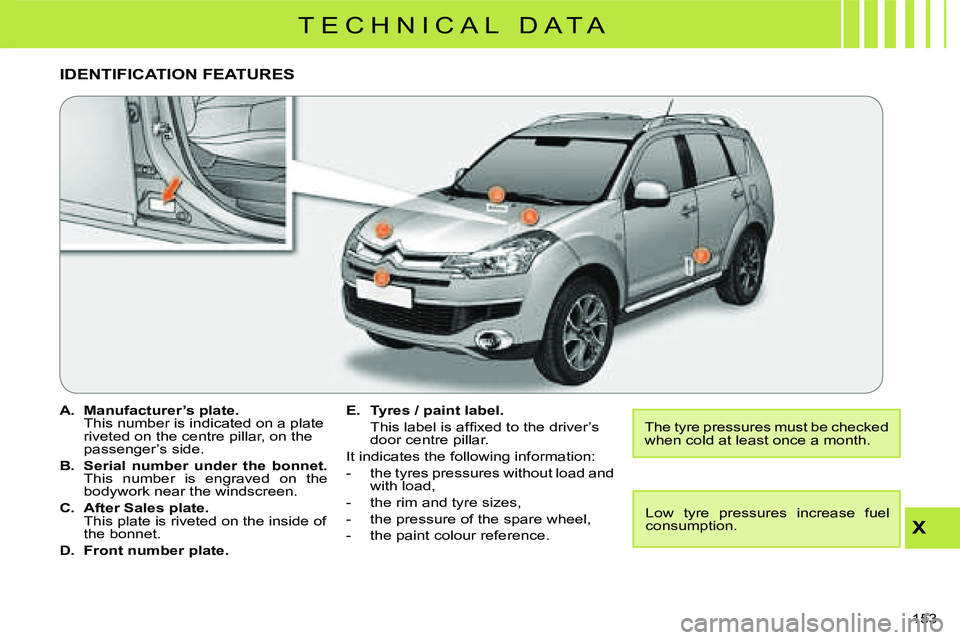

IDENTIFICATION FEATURES
The tyre pressures must be checked
when cold at least once a month.
Low tyre pressures increase fuel
consumption.
Page 156 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
154
YOUR AUDIO-CD SYSTEM
This consists of the following
components:
- a control panel,
- a multifunction display,
- steering wheel audio controls,
- 4 or 6 speakers (according to version),
- a CD changer (according to version),
- a u x i l i a r y s o c k e t s , l o c a t e d a t t h e r e a r of the centre console (according to
version),
- a radio aerial, located on the roof at the rear of the vehicle. Steering wheel audio controls
1.
On / Off and selection of the
radio or CD mode
2.
Decreasing of the volume
3.
Increasing of the volume
4.
Search for a higher radio
frequency / Next track / Fast
forwards play
5
.
Search for a lower radio frequency / Previous track / Rewind play
They can be used when the ignition
switch is in the “ON” or “ACC” position.
Switching on
Press button 1 for more than two
seconds.
The last source selected before switching
off comes back into operation.
Selecting the source
Press button 1 .
The source changes in the following
order: FM1 / FM2 / FM3 / MW / LW /
CD / FM1...
Searching in radio mode
Press button 4 or
5 to search for a higher
or lower radio frequency respectively.
While a track is being played,
press button 5 once to return to the
beginning of this track.
Adjusting the volume
Press and hold button
2 or
3 to decrease
or increase the volume respectively.
It allows you to:
- listen to the radio in FM/MW/LW,
- listen to audio CDs (CD-DA, CD- T e x t , C D - R / R W ) o r C D s w i t h M P 3
fi l e s . Switching off
Press button 1 for more than two
seconds. Searching in CD mode
Press button
4 or
5 t o s e l e c t t h e n e x t o r
previous track on the CD respectively.
Press and hold button 4 or 5 for fast
forwards or rewind playing of the current
track of the CD respectively.
Page 157 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
155
Audio equipment On / Off.
Decreasing / Increasing of the volume.
Selection of the CD /
Changer / AUX mode.
Automatic search for a
lower radio frequency.
Search for the previous track.
Selection and setting of
the audio modes (BASS, TREBLE, ...).
Manual search for a lower
or higher radio frequency / PTY.
Functions setting mode (AF, REG, TP, SCV, ...).
Search for the previous or next MP3 folder.
Ejecting of one
or more CDs.
CD slot.
Loading of one or more
discs.
Control panel
Selection of the radio
mode.
Selection of the wavebands (FM, MW, LW).
Automatic station storing (autostore).
Automatic search for a
higher radio frequency.
Search for the next track.
Page 158 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
156

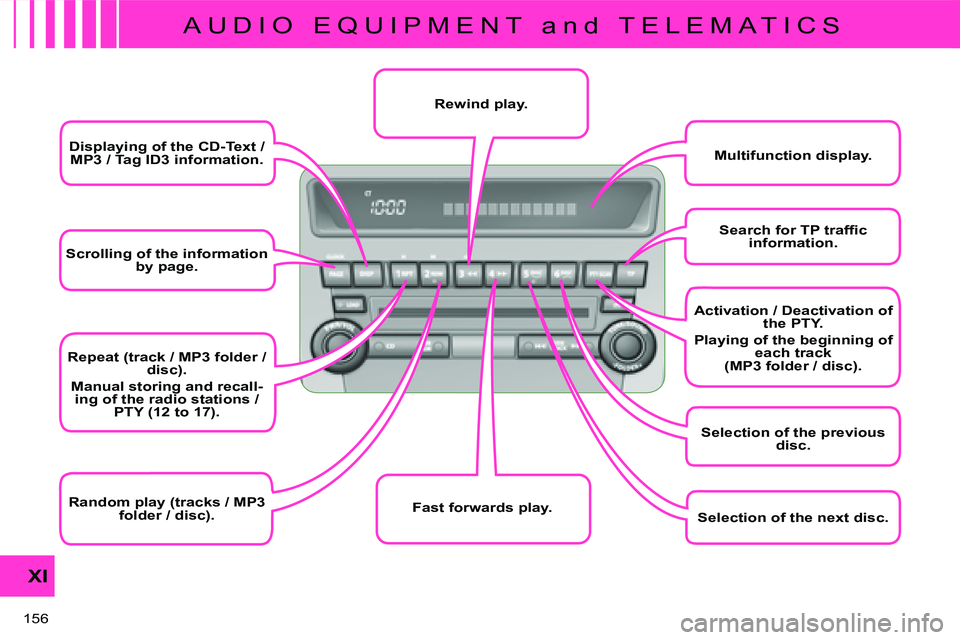

Scrolling of the information
by page.
Displaying of the CD-Text /
MP3 / Tag ID3 information.
Repeat (track / MP3 folder /
disc).
Manual storing and recall- ing of the radio stations / PTY (12 to 17).
Random play (tracks / MP3
folder / disc).
Multifunction display.
Rewind play.
Fast forwards play.
S e a r c h f o r T P t r a f fi c
information.
Activation / Deactivation of
the PTY.
Playing of the beginning of each track
(MP3 folder / disc).
Selection of the previous
disc.
Selection of the next disc.
Page 159 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
157

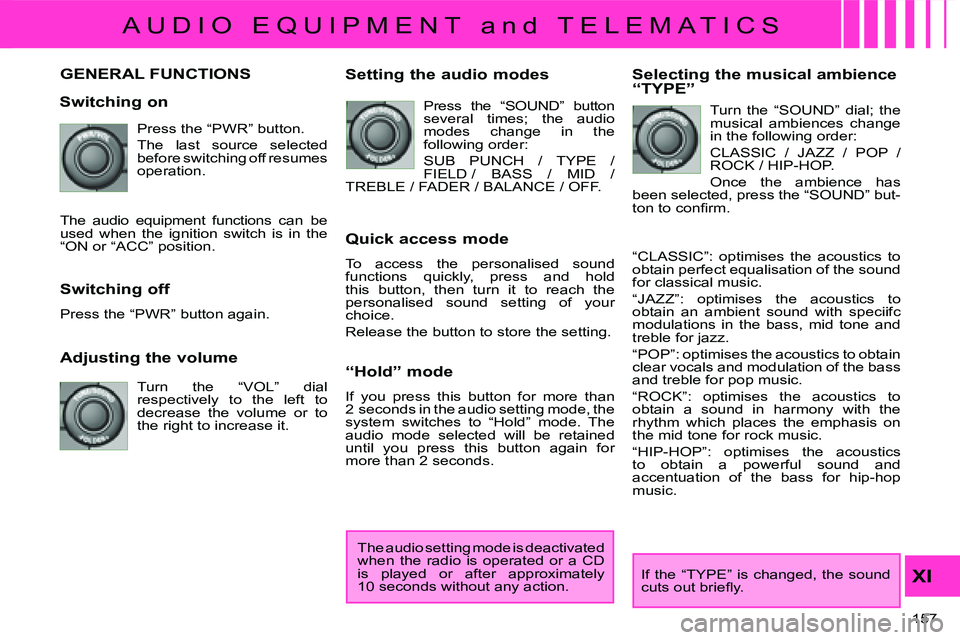

GENERAL FUNCTIONS
Switching on Press the “PWR” button.
The last source selected
before switching off resumes
operation.
The audio equipment functions can be
used when the ignition switch is in the
“ON or “ACC” position.
Adjusting the volume Turn the “VOL” dial
respectively to the left to
decrease the volume or to
the right to increase it.
Switching off
Press the “PWR” button again. Setting the audio modes
Press the “SOUND” button
several times; the audio
modes change in the
following order:
SUB PUNCH / TYPE /
FIELD / BASS / MID /
TREBLE / FADER / BALANCE / OFF.
Quick access mode
To access the personalised sound
functions quickly, press and hold
this button, then turn it to reach the
personalised sound setting of your
choice.
Release the button to store the setting.
“Hold” mode
If you press this button for more than
2 seconds in the audio setting mode, the
system switches to “Hold” mode. The
audio mode selected will be retained
until you press this button again for
more than 2 seconds. Selecting the musical ambience
“TYPE”
Turn the “SOUND” dial; the
musical ambiences change
in the following order:
CLASSIC / JAZZ / POP /
ROCK / HIP-HOP.
Once the ambience has
been selected, press the “SOUND” but-
t o n t o c o n fi r m .
“CLASSIC”: optimises the acoustics to
obtain perfect equalisation of the sound
for classical music.
“JAZZ”: optimises the acoustics to
obtain an ambient sound with speciifc
modulations in the bass, mid tone and
treble for jazz.
“POP”: optimises the acoustics to obtain
clear vocals and modulation of the bass
and treble for pop music.
“ROCK”: optimises the acoustics to
obtain a sound in harmony with the
rhythm which places the emphasis on
the mid tone for rock music.
“HIP-HOP”: optimises the acoustics
to obtain a powerful sound and
accentuation of the bass for hip-hop
music.
If the “TYPE” is changed, the sound
c u t s o u t b r i e fl y .
The audio setting mode is deactivated
when the radio is operated or a CD
i s p l a y e d o r a f t e r a p p r o x i m a t e l y
10 seconds without any action.
Page 160 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
158

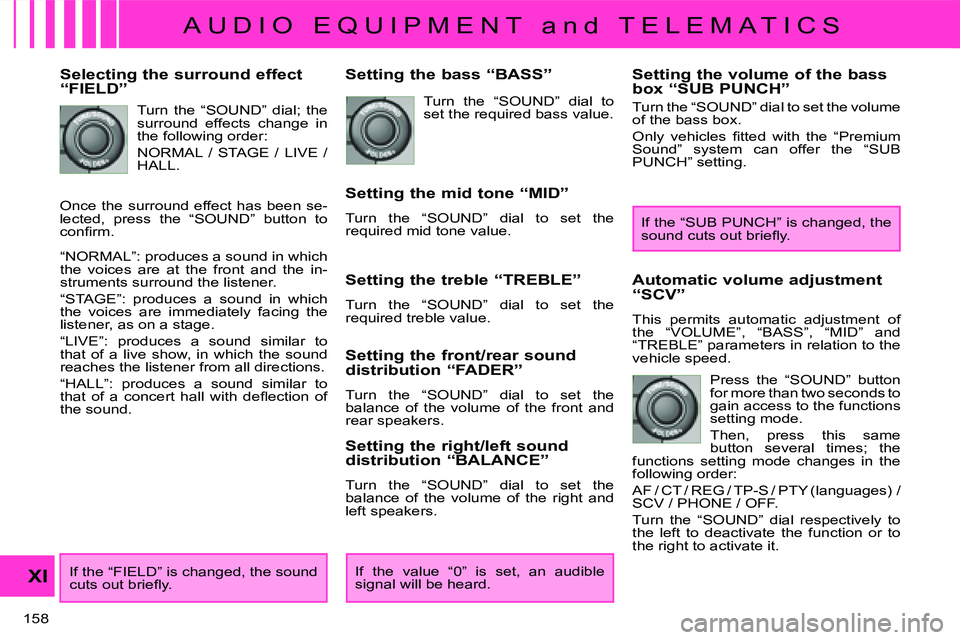

Selecting the surround effect
“FIELD” Turn the “SOUND” dial; the
surround effects change in
the following order:
NORMAL / STAGE / LIVE /
HALL.
“NORMAL”: produces a sound in which
the voices are at the front and the in-
struments surround the listener.
“STAGE”: produces a sound in which
the voices are immediately facing the
listener, as on a stage.
“LIVE”: produces a sound similar to
that of a live show, in which the sound
reaches the listener from all directions.
“HALL”: produces a sound similar to
t h a t o f a c o n c e r t h a l l w i t h d e fl e c t i o n o f
the sound. Setting the bass “BASS”
Turn the “SOUND” dial to
set the required bass value.
Setting the mid tone “MID”
Turn the “SOUND” dial to set the
required mid tone value.
Setting the treble “TREBLE”
Turn the “SOUND” dial to set the
required treble value.
Setting the front/rear sound
distribution “FADER”
Turn the “SOUND” dial to set the
balance of the volume of the front and
rear speakers.
Setting the right/left sound
distribution “BALANCE”
Turn the “SOUND” dial to set the
balance of the volume of the right and
left speakers.
If the “FIELD” is changed, the sound
c u t s o u t b r i e fl y . If the value “0” is set, an audible
signal will be heard. Automatic volume adjustment
“SCV”
This permits automatic adjustment of
the “VOLUME”, “BASS”, “MID” and
“TREBLE” parameters in relation to the
vehicle speed.
Press the “SOUND” button
for more than two seconds to
gain access to the functions
setting mode.
Then, press this same
button several times; the
functions setting mode changes in the
following order:
AF / CT / REG / TP-S / PTY (languages) /
SCV / PHONE / OFF.
Turn the “SOUND” dial respectively to
the left to deactivate the function or to
the right to activate it. If the “SUB PUNCH” is changed, the
s o u n d c u t s o u t b r i e fl y .
Setting the volume of the bass
box “SUB PUNCH”
Turn the “SOUND” dial to set the volume
o f t h e b a s s b o x .
O n l y v e h i c l e s fi t t e d w i t h t h e “ P r e m i u m
Sound” system can offer the “SUB
PUNCH” setting.
Once the surround effect has been se-
lected, press the “SOUND” button to
c o n fi r m .
