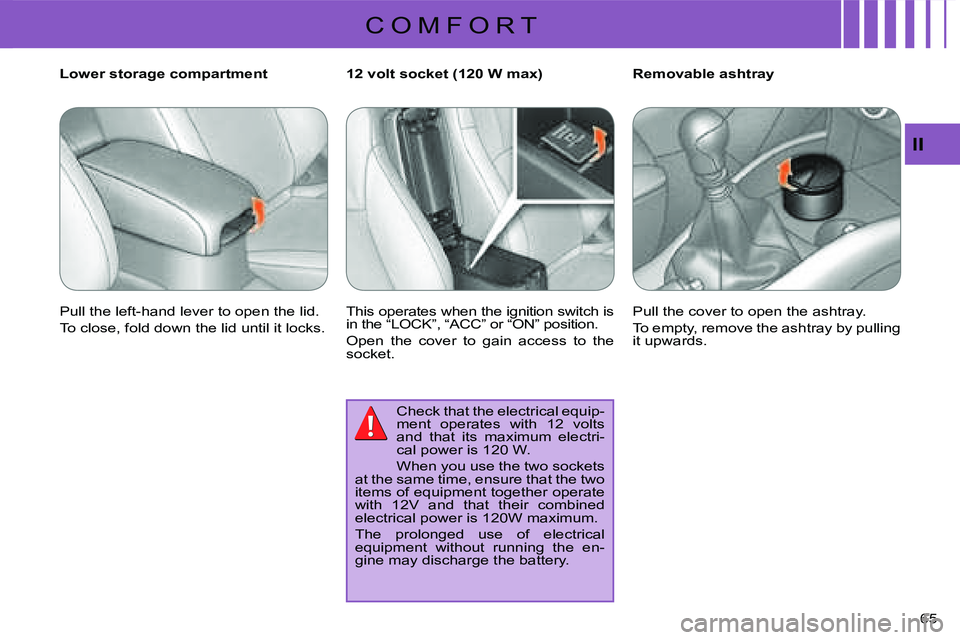

C O M F O R T
II
65
Removable ashtray
Pull the cover to open the ashtray.
To empty, remove the ashtray by pulling
it upwards.
Lower storage compartment
Pull the left-hand lever to open the lid.
To close, fold down the lid until it locks.
12 volt socket (120 W max)
This operates when the ignition switch is
in the “LOCK”, “ACC” or “ON” position.
Open the cover to gain access to the
socket.
Check that the electrical equip-
ment operates with 12 volts
and that its maximum electri-
cal power is 120 W.
When you use the two sockets
at the same time, ensure that the two
items of equipment together operate
with 12V and that their combined
electrical power is 120W maximum.
The prolonged use of electrical
equipment without running the en-
gine may discharge the battery.

C O M F O R T
II
66
Enclosed storage compartment
Pull the storage compartment lid to
open it. Cup holder
There is a cup holder incorporated in
the fascia on the driver’s side.
Press on the centre of the cover to ex-
tract the plate.
Pull it fully to use it.
Push it fully to store it.
Two further cup holders are available in
front of the front armrest.

C O M F O R T
II
67
REAR INTERIOR LAYOUT
Rear armrest
Pull the armrest forwards to lower it.
Cup holder
Open the cover A located at the end of
the armrest holding the side with your
hand. Bottle holder
There is a bottle holder in each rear
door.
Grab handle
Pull the handle downwards to lower it.
Coat hook
The rear left grab handle is fi tted with a
coat hook.

C O M F O R T
II
68
DVD player
This video assembly will allow the rear
passengers to pass the time agree-
ably while watching their favourite fi lm
or playing their favourite game, in par-
ticular by means of the connection of a
DVD player or games console. The screen is incorporated in a central
console on the roof.
The three video sockets are located un-
der the cover at the rear of the central
armrest.
This video assembly consists of:
- a 9 inch colour screen,
- two wireless HF stereo headphones,
- a remote control.

C O M F O R T
II
69
BOOT LAYOUT

1. 12 volt socket (120 W max).

2. Open storage compartment.

3. Right-hand side enclosed storage
compartment.

4. Storage compartment in the fl oor * .

5. Stowing rings.

6. Left-hand side storage compartment
or audio equipment.

7. Load space cover.
* 5-seat version only.

C O M F O R T
II
70
12 volt socket (120 W max)
This operates when the ignition switch
is in the “ON” or “ACC” position.
Lift the cover to gain access to the
socket. Check that the electrical equip-
ment operates with 12 volts
and that its maximum electri-
cal power is 120 W.
The prolonged use of electri-
cal equipment without running the
engine may discharge the battery. Stowing rings
There are four stowing rings in the boot
for securing luggage:
- two rings are located on the boot
fl oor,
- two rings are located on the rear side pillars.
* On 5-seat version only.
Raise the boot fl oor to gain access to
this compartment.
Right-hand side enclosed storage
compartment
This storage compartment contains the
tools for changing a wheel. Storage compartment in the fl oor *

C O M F O R T
II
71
Load space cover
Unroll the load space cover and install it
in the securing groove A .
To store the load space cover, release
it from the securing groove, it rolls up to
its initial position. Second installation position.
The load space cover can be secured
in two different positions
B , so that the
row 2 seat backs can be tilted.

1. Roll up the load space cover.

2. Move one of the slides C towards
the inside of the vehicle and insert
the tab D in the installation hole to
be used.
Move the opposite slide in the same
way.

3. After changing the position, check
that the load space cover is secured
correctly. Removing the load space cover.

1. Roll up the load space cover.

2. Move one of the slides C towards the
inside of the vehicle and raise it.
Release the opposite slide in the
same way.
To put the load space cover in place,
carry out the operations in reverse
order.
Take care not to place heavy
objects on the load space cover
when it is unfolded.
The load space cover can be stored
along the lower tailgate, unless audio
equipment is present.

A C C E S S
III
72
Unfolding the key

 First press button A to unfold the
key.
Unlocking the vehicle

 Press the open padlock
to unlock the vehicle.
Unlocking using the remote control
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It also folds and
unfolds the mirrors, closes the electric
windows and starts the vehicle, as well
as providing protection against theft. Locking the vehicle
Unlocking using the key

 Turn the key to the right in the

driver’s door lock to unlock the
vehicle.
 Press the closed padlock
to lock the vehicle.
If one of the doors or the tailgate is
still open, the central locking will not
take place.
Unlocking is confi rmed by the interior
lighting which comes on for approxi-
mately 15 seconds and the direction
indicators which fl ash
twice .
If you press the open padlock twice in
succession within 30 seconds after
unlocking the vehicle, the exterior mir-
rors unfold.
Normal locking using the key

 Turn the key to the left in the driver’s
door lock to lock the vehicle.
Locking is confi rmed by the direction in-
dicators which come on
once .
If you press the closed padlock twice
in succession within 30 seconds after
locking the vehicle, the exterior mirrors
fold.

An extended press on the closed pad-
lock within 30 seconds after locking the
vehicle permits automatic closing of the
windows.
Normal locking using the remote
control

A C C E S S
III
73
The vehicle will relock automatically
after thirty seconds unless a door or
the tailgate is opened. This function
prevents inadvertent unlocking.
The duration which precedes the au-
tomatic relocking of the vehicle can
be confi gured via the colour display
“Equipment” menu.
Folding the key

 First press button A to fold the key. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the ig-
nition is switched on, this code must be
recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if
your vehicle does not start; contact a
CITROËN dealer as soon as possible.

A C C E S S
III
74
Starting the vehicle

 Insert the key in the ignition switch.

 Operate the starter by turning the
key to position 4 (START) .

 When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON) automatically. Switching the vehicle off

 Park the vehicle.

 While pressing the key, turn it to-
wards you to position 1 (LOCK) .

 Remove the key from the ignition
switch. Changing the battery
Battery reference: CR1616 / 3 volts.

 Unclip the casing using a coin at the
notch.

 Slide the fl at battery out of its hous-
ing.

 Slide the new battery into its hous-
ing observing the original direction.

 Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver’s door, if the key has been left
in the ignition.
