Page 71 of 216
A C C E S S
III
75
Do not throw the remote control batteries away, they contain metals which are harmful to the environment.
Take them to an approved collection point. Keys
Make a careful note of the number of each key. This number is
coded on the label attached to the key.
If the keys are lost, a CITROËN dealer can supply you wit h new keys.
Remote control
The high frequency remote control is a sensitive system; do not o perate it while it is in your pocket as there is a possibility
that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle.
You run the risk of stopping it from working. The remote contro l does not operate when the key is in the ignition, even when
the ignition is switched off.
Locking the vehicle
D r i v i n g w i t h t h e d o o r s l o c k e d m a y m a k e a c c e s s t o t h e p a s s e n g e r c o m p a r t m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t
in an emergency.
As a safety precaution (with children on board), remove the key fro m the ignition when you leave the vehicle, even for a
short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m , t h i s c o u l d c a u s e m a l f u n c t i o n s .
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure that the keys in your possession are the only ones which
can start the vehicle.
Page 72 of 216
A C C E S S
III
73
The vehicle will relock automatically
after thirty seconds unless a door or
the tailgate is opened. This function
prevents inadvertent unlocking.
The duration which precedes the au-
tomatic relocking of the vehicle can
b e c o n fi g u r e d v i a t h e c o l o u r d i s p l a y
“Equipment” menu.

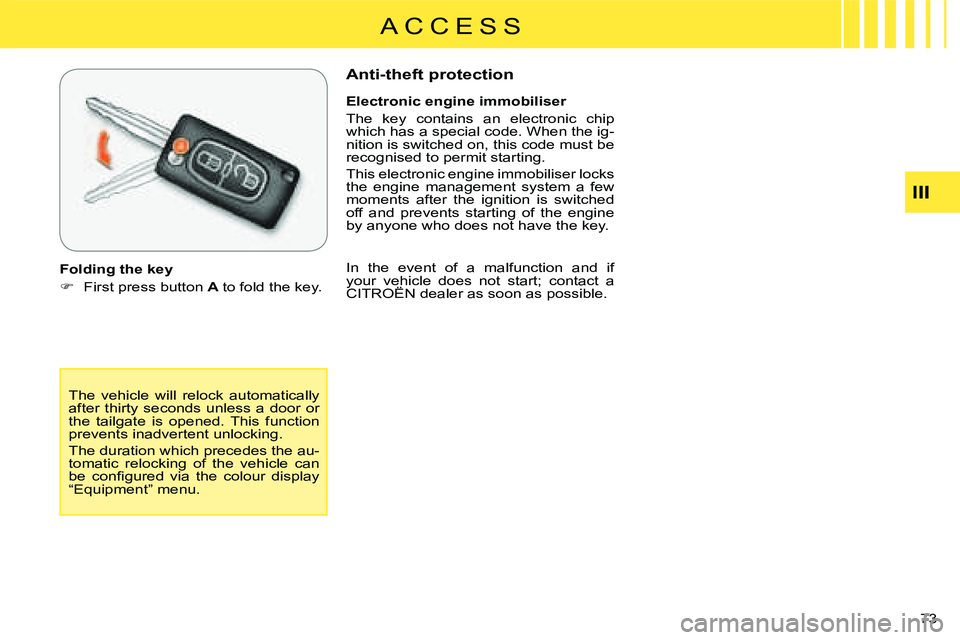

Folding the key
First press button A to fold the key. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the ig-
nition is switched on, this code must be
recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if
your vehicle does not start; contact a
CITROËN dealer as soon as possible.
Page 73 of 216
A C C E S S
III
76
The electric window switches can
b e c o n fi g u r e d v i a t h e c o l o u r d i s p l a y
“Equipment” menu.
The electric window switches remain
o p e r a t i o n a l f o r a p p r o x i m a t e l y
30 seconds after the ignition is
switched off and the switch on the
driver’s door remains operational for
a further 30 seconds when the door
is opened.
The windows can no longer be
opened or closed after the driver’s
door is closed.
The rear windows do not lower fully.
ELECTRIC WINDOWS
1. Driver’s electric window switch.
2. Passenger’s electric window switch.
3. Rear right electric window switch.
4. Rear left electric window switch.
5. Disarming of the passenger and rear electric window switches. In the event of unwanted opening of
t h e w i n d o w o n c l o s i n g ( f o r e x a m p l e
in the presence of frost), reinitialise
the electric windows (refer to the cor-
responding paragraph).
Safety auto-reverse
In automatic mode, when the window
rises and meets an obstacle, it stops
and lowers again.
Operation
With the ignition on, you have two op-
tions:
-
manual mode
Press the switch gently to open or
pull it gently to close. The window
stops as soon as the switch is re-
leased.
- automatic mode
Press the switch fully to open or
pull it fully to close. The window
opens or closes completely when
the switch is released.
Pressing the switch again stops
the movement of the window.
System which opens or closes a win-
d o w m a n u a l l y o r a u t o m a t i c a l l y . I t i s fi t -
ted with a system which provides pro-
tection if an obstacle is detected on
one-touch models and a deactivation
system to prevent misuse of the rear
controls.
Page 74 of 216
A C C E S S
77
Disarming the passenger and rear
electric window switches Reinitialising the electric
windows
Following reconnection of the battery or
after the safety auto-reverse has been
triggered three times in succession, you
must reinitialise the safety auto-reverse
function:
with the door closed, lower the win-
dow completely then raise it again, it
will rise in steps of a few centimetres
each time the switch is pressed, re-
peat the operation until the window
is fully closed,
continue to press the switch for at
least one second after reaching the
window closed position. Always remove the key from
the ignition when leaving the
vehicle, even for a short time.
In the event of contact during opera-
tion of the windows, you must reverse
the movement of the window. To do
this, press the switch concerned.
When the driver operates the pas-
senger electric window switches, he
must ensure that no one is prevent-
ing correct closing of the windows.
The driver must ensure that the pas-
sengers use the electric windows
correctly.
Be aware of children when operating
the windows.
For the safety of your children, press
switch 5 to prevent operation of the
passenger and rear electric windows
irrespective of their position.
When the button is pressed down,
disarming is active.
When the button is raised, disarming is
deactivated.
When the button is pressed down,
you can open or close all of the
windows using the switches on the
driver’s door.
The safety auto-reverse function is
not active during these operations.
Page 75 of 216
A C C E S S
III
78
DOORS
From outside
After unlocking the vehicle using the
remote control or the key, pull the
door handle. From inside
Pull the front or rear door control to
open the door.
If the doors are locked, opening the
driver’s door unlocks all of the doors.
The front passenger door or the rear
d o o r s m u s t fi r s t b e u n l o c k e d m a n u a l l y
using the locking control before being
opened.
Closing
If a door is not closed correctly,
this warning light comes on on
the instrument panel display
until the door concerned is
closed. Manual centralised control
System which provides full manual
locking or unlocking of the doors and
tailgate from the inside.
Locking
Press the front of button A to lock
the vehicle.
If the driver’s door is open when you
operate the central locking from in-
s i d e , a l l o f t h e d o o r s l o c k w i t h t h e e x -
ception of the driver’s door.
Unlocking
Press the rear of button A to unlock
the vehicle.
Opening
Page 76 of 216
A C C E S S
III
79
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the central locking.
Locking the driver’s door
Insert the key in the lock, then turn it
to the left.
Unlocking the driver’s door
Insert the key in the lock, then turn it
to the right. Unlocking the front and rear doors
(from inside)
Tilt the interior control B rearwards.
Using the key
Locking the front passenger door
and the rear doors (from inside)
Tilt the interior control B forwards.
Page 77 of 216
A C C E S S
III
80
Opening
After unlocking the vehicle using the
remote control or the key, press the
handle A and raise the tailgate.
“Tailgate open” warning
This warning light comes on on
the instrument panel display
when the tailgate is not closed
correctly.
TAILGATE LOWER TAILGATE
Opening
Push the handle C to the right and
tilt the tailgate
D gently.
Closing
Pull the handle B downwards to
guide the tailgate,
release the handle and press the
e x t e r i o r s u r f a c e o f t h e t a i l g a t e g e n t l y
to close it. Closing
Raise the tailgate D , push it to close
it, then check that it is secured
correctly. Before opening the tailgate, ensure
that no one is within the radius of
opening.
For reasons of safety and correct op-
eration, do not drive with the tailgate
open.
If the battery is disconnected, the
tailgate cannot be opened.
Do not climb onto the lower tailgate
and do not subject it to heavy knocks,
it may be damaged.
Always close the lower tailgate and
check that it is secured correctly be-
fore closing the main tailgate.
When closing the lower tailgate, en-
sure that no person or object is in the
p r o x i m i t y o f t h e m o v i n g p a r t s t o a v o i d
any risk of injury or damage.
Do not open the lower tailgate when
a t o w b a r i s fi t t e d .
M a x i m u m a u t h o r i s e d w e i g h t o n t h e
lower tailgate when open: 200 kg .
Page 78 of 216
A C C E S S
III
81
Tailgate release
This enables the tailgate to be unlocked
in the event of a central locking fault.
- Fold back the rear seats to gain access to the tailgate release from
inside the boot.
- Remove the plastic cap from the opening A in the tailgate interior
pillar. SUNROOF
Complete opening
With the ignition on, push the control
rearwards (in the direction 1 ).
A d e fl e c t o r i s d e p l o y e d g r a d u a l l y o n
opening to prevent unwanted gusts of
air.
Operation
Complete closing
With the ignition on, push the control
forwards (in the direction 2 ).
T h e d e fl e c t o r f o l d s d o w n g r a d u a l l y o n
closing.
Temporary stop
To stop opening or closing, press
part 3 of the control or push the
control in the opposite direction.
Partial opening
To open , with the ignition on, press
part 3 of the control.
The rear part of the sunroof opens.
To close , with the ignition on, press
part
3 of the control.
The rear part of the sunroof closes.
- Move the control B to the right to
unlock and open the tailgate. The sunroof stops automatically just
before complete opening. Push the
control again for complete opening.
System which improves the ventilation
and light in the passenger compartment.
I t i s fi t t e d w i t h a p r o t e c t i o n s y s t e m t o
prevent pinching and a shutter to help
maintain a comfortable temperature.
Page 79 of 216
A C C E S S
III
81
Tailgate release
This enables the tailgate to be unlocked
in the event of a central locking fault.
- Fold back the rear seats to gain access to the tailgate release from
inside the boot.
- Remove the plastic cap from the opening A in the tailgate interior
pillar. SUNROOF
Complete opening
With the ignition on, push the control
rearwards (in the direction 1 ).
A d e fl e c t o r i s d e p l o y e d g r a d u a l l y o n
opening to prevent unwanted gusts of
air.
Operation
Complete closing
With the ignition on, push the control
forwards (in the direction 2 ).
T h e d e fl e c t o r f o l d s d o w n g r a d u a l l y o n
closing.
Temporary stop
To stop opening or closing, press
part 3 of the control or push the
control in the opposite direction.
Partial opening
To open , with the ignition on, press
part 3 of the control.
The rear part of the sunroof opens.
To close , with the ignition on, press
part
3 of the control.
The rear part of the sunroof closes.
- Move the control B to the right to
unlock and open the tailgate. The sunroof stops automatically just
before complete opening. Push the
control again for complete opening.
System which improves the ventilation
and light in the passenger compartment.
I t i s fi t t e d w i t h a p r o t e c t i o n s y s t e m t o
prevent pinching and a shutter to help
maintain a comfortable temperature.
Page 80 of 216

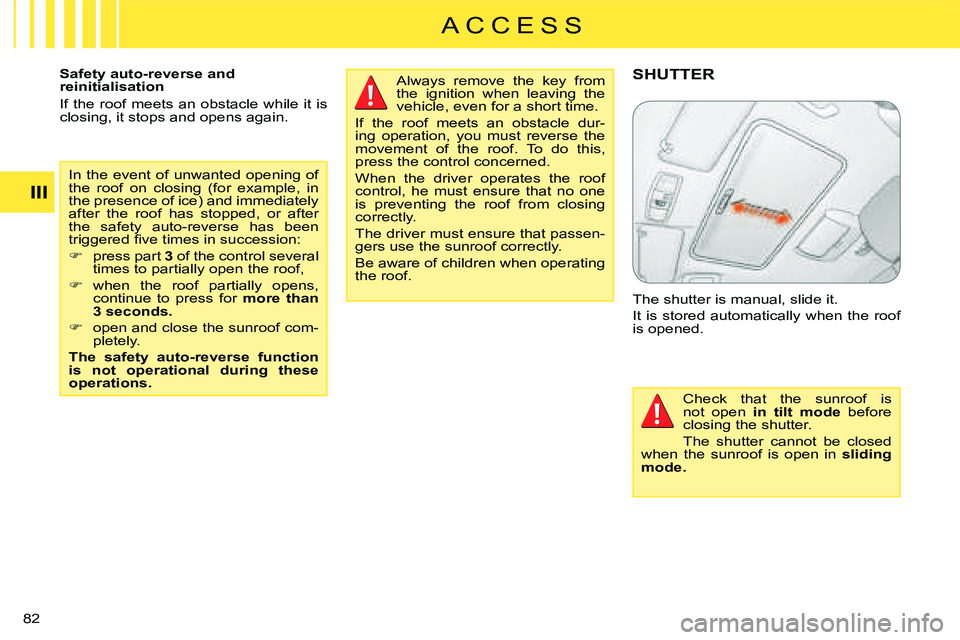

A C C E S S
III
82
Safety auto-reverse and
reinitialisation
If the roof meets an obstacle while it is
closing, it stops and opens again. Always remove the key from
the ignition when leaving the
vehicle, even for a short time.
If the roof meets an obstacle dur-
ing operation, you must reverse the
movement of the roof. To do this,
press the control concerned.
When the driver operates the roof
control, he must ensure that no one
is preventing the roof from closing
correctly.
The driver must ensure that passen-
gers use the sunroof correctly.
Be aware of children when operating
the roof.
In the event of unwanted opening of
t h e r o o f o n c l o s i n g ( f o r e x a m p l e , i n
the presence of ice) and immediately
after the roof has stopped, or after
the safety auto-reverse has been
t r i g g e r e d fi v e t i m e s i n s u c c e s s i o n :
press part 3 of the control several
times to partially open the roof,
when the roof partially opens,
continue to press for more than
3 seconds .
open and close the sunroof com-
pletely.
The safety auto-reverse function
is not operational during t hese
operations. SHUTTER
The shutter is manual, slide it.
It is stored automatically when the roof
is opened.
Check that the sunroof is
not open in tilt mode before
closing the shutter.
The shutter cannot be closed
when the sunroof is open in sliding
mode .
