CITROEN C-ELYSÉE 2015 Owners Manual

Handbook

On-line handbook
If the "MyCITRoËn" function is not available on the CITR o Ë n public website for your country, you
can find your handbook at the following address:
http://service.citroen.com/ddb/ Find your handbook on the C ITR o Ë n website, under "MyCITROËN".
Select:
Select one of the following means of access to
view your handbook on-line... This personal and customisable space allows you to establish direct and special contact with
C
ITR o Ë n.
the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration of your vehicle.
Scan this code for direct access to your handbook.
Referring to the handbook on-line also gives you
access to the latest information available, easily
identified by the bookmark, associated with this
symbol:

We draw your attention to the following...
keys

afety warning
additional information
contributes to the protection of the environment
refer to the page indicated
Reading the detailed sections is essential to
make the most of your vehicle, in complete
safety.
Your vehicle is fitted with only some of the
equipment described in this document,
depending on the trim level, version and the
specifications for the country in which it is sold.
The fitting of electrical equipment or
accessories which are not recommended
by CITROËN may result in a failure of
your vehicle's electronic system. Contact
a CITROËN dealer for information on the
recommended equipment and accessories.
CITRoËn
has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.
Happy motoring!
at the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.

.
.
Instrument panel 10
Indicator and warning lamps
1
1
Service indicator

2
0
Distance recorders

2
2
Setting the date and time

2
3
Trip computer

2
4
Monochrome screen C (Audio system / Bluetooth)

2
6
Monitoring
ove
r view
Remote control key 3
0
Alarm
3
4
Doors

3
6
Boot
3

7
Windows
3

9
access
Front seats 40
Rear seats
4
2
Mirrors

4
3
Steering wheel adjustment

4
5
Ventilation
4

6
Heating
4

8
Manual air conditioning
(without display screen)

4
8
Electronic air conditioning (with display screen)

5
0
Front demist - defrost

5
3
Rear screen demist - defrost

5
4
Comfort
Driving recommendations 60
Starting-switching off the engine
6
1
Parking brake

6
4
Manual gearbox
6

5
Electronic gearbox

6
6
Automatic gearbox

7
0
Gear shift indicator

7
4
Speed limiter

7
5
Cruise control

7
7
Rear parking sensors

7
9
Driving
Lighting control 81
Headlamp adjustment
8
6
Wiper control stalk

87
C

ourtesy lamps
8
9
Visibility
Eco-driving
Interior fittings 5
5
Boot fittings
5
8
Fittings
Contents

.
.
Direction indicators 90
Hazard warning lamps
9
0
Horn

9
0
Under-inflation detection
9

1
Braking assistance systems

9
4
Trajectory control systems

9
5
Front seat belts

9
6
Airbags
9

9
Safety
Child seats 103
Deactivating the passenger's front airbag
1
06
ISOFIX mountings

1
12
Child lock

1
17
Child safety
Fuel tank 118
Misfuel prevention (Diesel)
1
19
Running out of fuel (Diesel)

1
21
Temporary puncture
repair kit

1
22
Changing a wheel

1
28
Snow chains

1
35
Changing a bulb

1
36
Changing a fuse

1
42
Battery
1

47
Electrical energy economy mode

1
50
Changing a wiper blade

1
51
Towing the vehicle

1
52
Towing a trailer

1
54
Very cold climate screen(s)

1
56
Advice on care and maintenance

1
57
Accessories
1

57
Mats
15

9
Roof bars

1
60
Practical information
Petrol engines 1 71
Petrol weights
1
72
Diesel engine

1
73
Diesel weights

1
74
Dimensions
1

75
Identification markings
1

76
Technical data
Audio system / Bluetooth 177
Audio system
2
09
Audio and telematics
Visual search
Alphabetical index
Checks
Bonnet 16
2
Petrol engines
1
63
Diesel engine

1
64
Checking levels

1
65
Checks
16

9
Contents

4
C-Elysee_en_Chap00b_vue-ensemble_ed01-2014
91122 79
Under-inflation detection
This system automatically checks the pressures of
the tyres when driving and alerts you in the event of
under-inflation.
Exterior
Temporary puncture repair kit
This kit is a complete system consisting of a compressor and
a sealant cartridge, to allow the temporary repair of a tyre.
Rear parking sensors
This system provides a warning when manoeuvring
backwards by detecting obstacles located behind
the
vehicle.
Over view

5
C-Elysee_en_Chap00b_vue-ensemble_ed01-2014
17 7
209
50
75 / 77
Interior
Electronic air conditioning (with display screen)
This system, equipped with a display screen, provides you with optimum
control of temperature and air circulation in the passenger compartment.
Speed limiter / Cruise control
These two systems allow you to control the
speed of your vehicle according to a value you
have set.
Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible audio systems,
USB player, Bluetooth hands-free system,
auxiliary inputs, ...
Audio system / Bluetooth
Audio system
.
Over view

6
C-Elysee_en_Chap00b_vue-ensemble_ed01-2014
Instruments and controls
1. Cruise control / speed limiter controls.
2. Steering wheel adjustment control.
3.
L

ighting and direction indicator stalk.
4.
I

nstrument panel.
5.
D

river's airbag and horn.
6.
C

igarette lighter / 12 V accessory socket.
U

SB port / auxiliary socket.
7.
H

eated seat control.
8.
F

uel filler flap release.
B

oot lid release lever*.
9.
B

onnet release.
10.
F

usebox.
11.
H

eadlamp height adjustment.
12 .
D

ynamic Stability Control (ESP/ASR)
button
B

oot lid release button*.
A

larm warning lamp.
13.
D

oor mirror adjustment control.
14 .
S

ide adjustable and air vent.
15.
F

ront door glass demisting/defrosting vent.
* Depending on version.
Over view

7
C-Elysee_en_Chap00b_vue-ensemble_ed01-2014

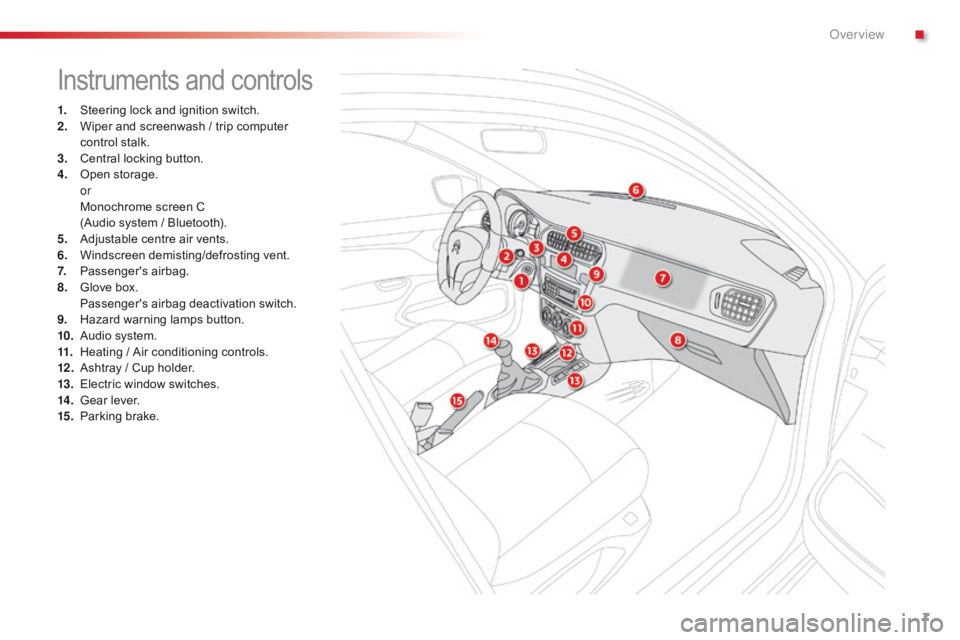

Instruments and controls
1. Steering lock and ignition switch.
2. Wiper and screenwash / trip computer
control stalk.
3.
C

entral locking button.
4.
O

pen storage.


or
M

onochrome screen C
(Audio system / Bluetooth).
5.
A

djustable centre air vents.
6.
W

indscreen demisting/defrosting vent.
7.
P

assenger's airbag.
8.
G

love box.
P

assenger's airbag deactivation switch.
9.
H

azard warning lamps button.
10.
A

udio system.
11.
H

eating / Air conditioning controls.
12 .
A

shtray / Cup holder.
13.
E

lectric window switches.
14 .
G

ear lever.
15.
P

arking brake.
.
Over view

8
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.

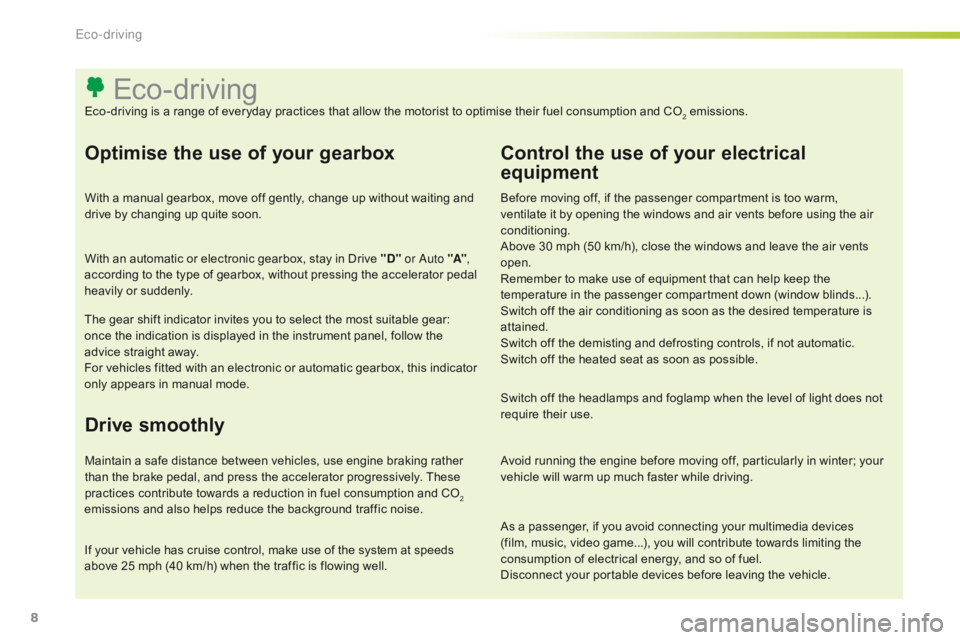

Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox
With a manual gearbox, move off gently, change up without waiting and
drive by changing up quite soon.
With an automatic or electronic gearbox, stay in Drive "D" or
a
u
to "A",
according to the type of gearbox, without pressing the accelerator pedal
heavily or suddenly.
The gear shift indicator invites you to select the most suitable gear:
once the indication is displayed in the instrument panel, follow the
advice straight away.
For vehicles fitted with an electronic or automatic gearbox, this indicator
only appears in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and CO
2
emissions and also helps reduce the background traffic noise.
If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.
Control the use of your electrical
equipment
Before moving off, if the passenger compartment is too warm,
ventilate it by opening the windows and air vents before using the air
conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (window blinds...).
Switch off the air conditioning as soon as the desired temperature is
attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and foglamp when the level of light does not
require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
Eco-driving
