Slacken fixing screw D
, while holding the
bumper away.
)
Slacken fixing screw E
.
)
Pull the lamp towards you, and disengage
the tab F
to remove it completely.
Page 102 of 164
i
Practical information
100
Changing a sidelamp bulb
)
Turn the bulb holder to the left and
pull it out.
)
Pull the bulb out and replace it.
To refit, carry out these operations in reverse
order.
Changing a main beam headlamp
bulb
)
Turn the bulb holder to the left and
pull it out.
)
Pull the bulb out, pressing its tab.
)
Replace the bulb.
To refit, carry out these operations in reverse
order.
Changing a direction indicator
bulb
)
Turn the bulb holder to the left and
remove it.
)
Pull the bulb and change it.
To refit, carry out these operations in reverse
order.
Coloured bulbs must be replaced with
bulbs of identical specification and
colour.
Page 103 of 164
8
Practical information
101

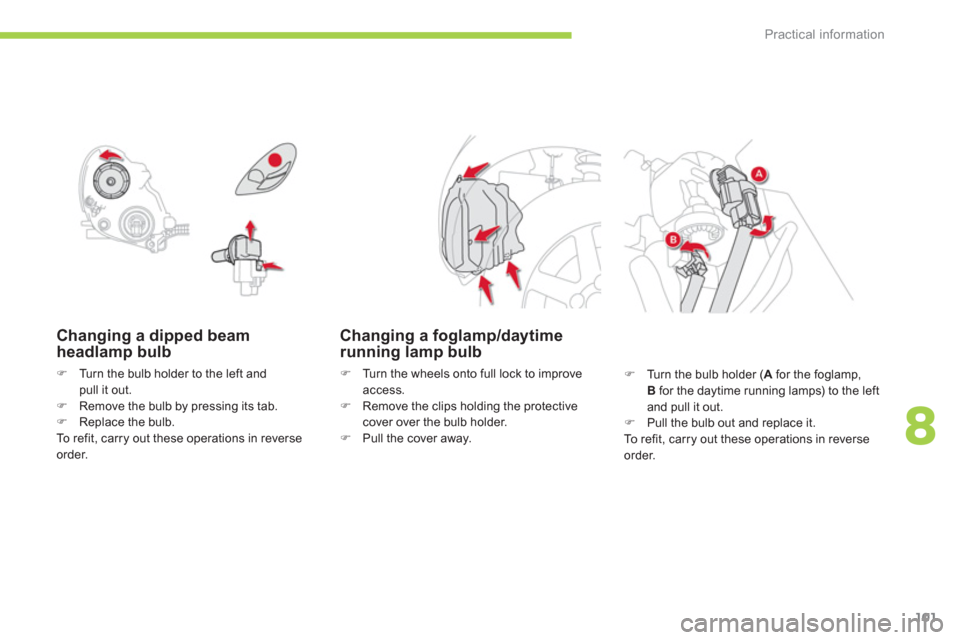

Changing a dipped beam
headlamp bulb
)
Turn the bulb holder to the left and
pull it out.
)
Remove the bulb by pressing its tab.
)
Replace the bulb.
To refit, carry out these operations in reverse
order.
Changing a foglamp/daytime
running lamp bulb
)
Turn the wheels onto full lock to improve
access.
)
Remove the clips holding the protective
cover over the bulb holder.
)
Pull the cover away.
)
Turn the bulb holder ( A
for the foglamp,
B
for the daytime running lamps) to the left
and pull it out.
)
Pull the bulb out and replace it.
To refit, carry out these operations in reverse
order.
Page 104 of 164
i
i
Practical information
102
1.
Brake lamps/Sidelamps (LEDs).
2.
Direction indicators (W Y21W - 21 W).
3.
Reversing lamps (W21W - 21 W).
Rear lamps
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specification and
colour. In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Changing an integrated direction
indicator side repeater
(WY5W - 5 W)
)
Push the repeater towards the rear and
detach it.
)
Turn the bulb holder to the left and
pull it out.
)
Pull the bulb out and replace it.
To refit, carry out these operations in reverse
order.
Page 105 of 164
8
Practical information
103
Changing a direction indicator
bulb
)
Turn the bulb holder to the left and pull it out.
)
Pull the bulb out and replace it.
To refit, carry out these operations in reverse
order.
Access to bulbs
)
Remove the two screws.
)
Disengage the lamp unit by pulling it
towards you.
Changing a brake/sidelamp bulb
All work on the LED lamps must be carried out
by a CITROËN dealer or a qualified workshop.
Changing a reversing lamp bulb
)
Turn the bulb holder to the left and pull it out.
)
Pull the bulb out and replace it.
To refit, carry out these operations in reverse
order.
Page 106 of 164
Practical information
104

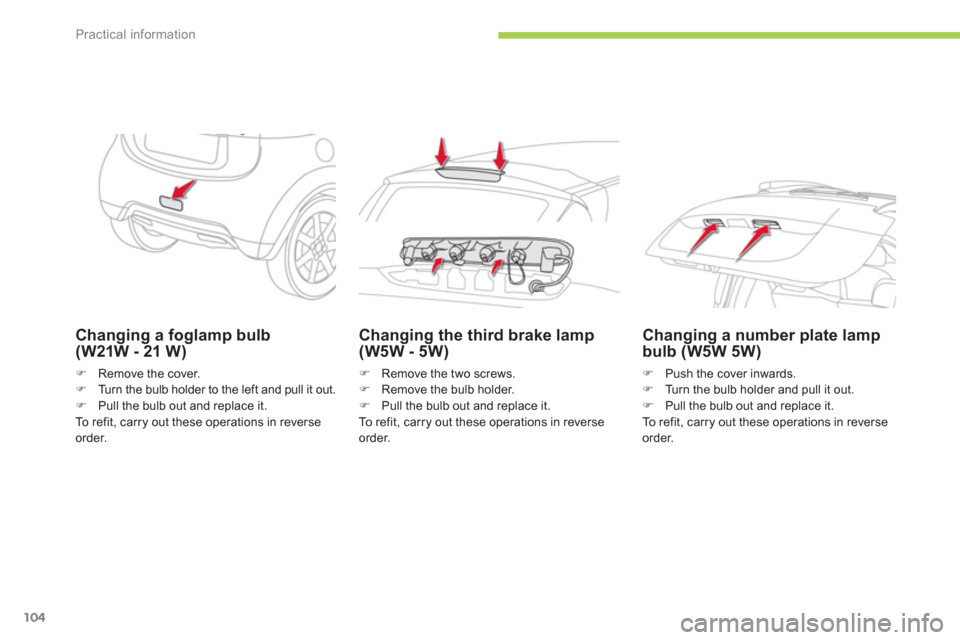

Changing a foglamp bulb
(W21W - 21 W)
)
Remove the cover.
)
Turn the bulb holder to the left and pull it out.
)
Pull the bulb out and replace it.
To refit, carry out these operations in reverse
order.
Changing the third brake lamp
(W5W - 5W)
)
Remove the two screws.
)
Remove the bulb holder.
)
Pull the bulb out and replace it.
To refit, carry out these operations in reverse
order.
Changing a number plate lamp
bulb (W5W 5W)
)
Push the cover inwards.
)
Turn the bulb holder and pull it out.
)
Pull the bulb out and replace it.
To refit, carry out these operations in reverse
order.
Page 107 of 164
8
i
!
Practical information
105
Changing a fuse
The extraction tweezer is fitted to the back of
the fusebox cover in the dashboard (right hand
side).
For access:
)
Unclip the cover and remove it completely
by pulling it towards you.
)
Remove the tweezer.
Access to tools
Before changing a fuse, the cause of
the failure must be identified
and rectified.
)
Check that the ignition switch is in
the " LOCK
" position.
)
Identify the failed fuse by checking
the condition of its filament.
Changing a fuse
Good Failed
)
Use the special tweezer to extract the fuse
from its location.
)
Always replace the failed fuse with a fuse
of the same rating.
)
Check that the number marked on the box,
the rating marked on the top of the fuse
and the tables below all agree. CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in par ticular when the
consumption of all of the additional
equipment connected exceeds
10 milliamperes. Your vehicle’s electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a CITROËN dealer or a
qualified workshop.
Page 108 of 164
Practical information
106
Dashboard fuses
The fusebox is placed in the lower dashboard
(right-hand side).
Fuse N°
Rating
Functions
1
7. 5 A
Left hand front and rear sidelamps.
2
15 A
Accessory socket.
3
-
Not used.
4
7. 5 A
Star ter motor.
5
20 A
Audio system.
6
-
Not used.
7
7. 5 A
Vehicle equipment, right hand front and rear sidelamps.
8
7.5 A
Electric door mirrors.
9
7.5 A
Supervisor controller.
10
7.5 A
Air conditioning.
11
10 A
Rear foglamp.
12
15 A
Door locking.
13
10 A
Cour tesy lamp.
Page 109 of 164
8
Practical information
107
Fuse N°
Rating
Functions
14
15 A
Rear wiper.
15
7.5 A
Instrument panel.
16
7.5 A
Heating.
17
20 A
Heated seat.
18
10 A
Option.
19
7.5 A
Door mirror heating.
20
20 A
Windscreen wiper.
21
7.5 A
Airbags.
22
30 A
Heated rear screen.
23
30 A
Heating.
24
-
Non used.
25
10 A
Radio.
26
15 A
Passenger compartment fuse.
Access to the fuses
See "Access to tools".
Page 110 of 164
i
Practical information
108
Fuse N°
Rating
Functions
1
-
Not used.
2
30 A
Internal fuse.
3
40 A
Electric motor.
4
40 A
Radiator fan.
5
40 A
Electric windows.
6
30 A
Vacuum pump.
7
15 A
Main batter y ECU.
8
15 A
Third brake lamp.
9
15 A
Front foglamps.
10
15 A
Water pump.
Front compartment fuses
The fusebox is placed in the front compar tment
under the heating system reser voir. Only these
fuses can be replaced.
The replacement of fuses for other units
(vacuum pump and battery accessories)
requires the involvement of a CITROËN
dealer or a qualified workshop.
