7
i
Safety
69
Direction indicators
Selection of the left or right direction indicators
to signal a change of direction of the vehicle.
)
Left: lower the lighting stalk beyond the
point of resistance.
)
Right: raise the lighting stalk beyond the
point of resistance.
Hazard warning lamps
A visual warning by means of the direction
indicators to aler t other road users to a vehicle
breakdown, towing or accident.
)
Press this button, the direction indicators
flash.
They can operate with the ignition off.
Horn
Audible warning system to aler t other road
users to an imminent danger.
)
Press the central part of the steering
wheel.
Use the horn moderately and only in the
following circumstances:
- immediate danger,
- approaching a location lacking
visibility.
Page 72 of 164
!
Safety
70
Braking assistance systems
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the stability and
manoeuvrability of your vehicle when braking,
in par ticular on poor or slippery sur faces. Group of supplementary systems which help
you to obtain optimum braking in complete
safety in emergency situations:
- anti-lock braking system (ABS),
- electronic brake force distribution (EBFD),
- emergency braking assistance (EBA).
Emergency or
assistance call
This system allows you to make an emergency
or assistance call to the emergency ser vices or
to the dedicated CITROËN ser vice.
For more information on the use of this
function, refer to the "Audio and telematics"
section.
When braking in an emergency, press
very firmly without releasing the
pressure.
Activation
The anti-lock braking system comes into
operation automatically when there is a risk of
wheel lock.
Normal operation of the ABS may make itself
felt by slight vibration of the brake pedal.
Page 73 of 164
7
i
!
Safety
71
Operating fault
When the vehicle is stationary
The warning lamp comes on for a few
seconds when the ignition is switched
on (ON position). If it does not go off or
does not come on, contact a CITROËN
dealer or a qualified workshop. Fixed illumination of this warning
lamp indicates a malfunction of the
wheel anti-lock braking system which
could result in a loss of control of the
vehicle on braking.
You must stop as soon as it is safe to do so.
Contact a CITROËN dealer or a qualified
workshop.
When the vehicle is moving
Illumination of these two
warning lamps indicates a
malfunction of the electronic
brake force distribution
which could result in a loss of control of the
vehicle on braking.
You must stop as soon as it is safe to do so.
Contact a CITROËN dealer or a qualified
workshop.
When replacing wheels (tyres and rims),
ensure that they conform to the manufacturer's
recommendations.
Illumination of this warning lamp
indicates a malfunction of the wheel
anti-lock braking system, which
could result in a loss of control of the
vehicle when braking.
Contact a CITROËN dealer or a qualified
workshop.
Emergency braking assistance
System which, in an emergency, enables you
to obtain the optimum braking pressure more
quickly, thus reducing the stopping distance.
Activation
It is triggered by the speed at which the brake
pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase in
braking efficiency.
When braking in an emergency, press
firmly without releasing the pressure.
Page 74 of 164
!
Safety
72
Anti-slip regulation (ASR)
and electronic stability
programme (ESP)
Trajectory control systems
Deactivation
In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on soft
ground, ...), it may be advisable to deactivate
the ASR and ESP systems, so that the wheels
can move freely and regain grip.
)
Press this button button, located on the
dashboard to the right of the steering
wheel, until the corresponding symbol
appears in the instrument panel screen.
Activation
These systems are activated automatically
each time the vehicle is star ted.
They come into operation in the event of a grip
or trajectory problem.
The display of this symbol indicates
that the ASR and ESP systems are
deactivated.
Reactivation
These systems are not reactivated
automatically.
)
Press this button again to reactivate them
manually.
The symbol going off in the instrument panel
indicates the reactivation of the ASR and ESP
systems.
The anti-slip regulation (also known as Traction
Control) optimises traction to prevent skidding
of the wheels, by acting on the brakes of the
driving wheels and on the engine.
The electronic stability programme acts on the
brake of one or more wheels and on the engine
to keep the vehicle on the trajectory required
by the driver, within the limits of the laws of
physics.
This is indicated by flashing of this
warning lamp in the instrument panel.
The ASR /ESP systems offer
exceptional safety in normal driving, but
this should not encourage the driver to
take extra risks or drive at high speed.
The correct functioning of these
systems depends on obser vation of
the manufacturer’s recommendations
regarding the wheels (tyres and rims),
the braking components, the electronic
components and the assembly
and repair procedures used by the
CITROËN dealer network.
After an impact, have these systems
checked by a CITROËN dealer or a
qualified workshop.
Operating fault
The display of this message
in the instrument panel
indicates a malfunction of
these systems.
Contact a CITROËN dealer or a qualified
workshop to have the ASR /ESP systems checked.
Page 75 of 164
7
Safety
73
Seat belts
Front seat belts
Fastening
)
Pull the strap, then inser t the tongue in the
buckle A
.
)
Check that the seat belt is fastened
correctly by pulling the strap.
Front seat belt not fastened/
unfastened warning lamp
If the driver does not fasten their seat belt
within one minute after switching on the
ignition, the warning lamp flashes accompanied
by an intermittent audible signal.
After about 90 seconds, the warning lamp, the
audible signal and the display stop, and then
return until the driver fastens their seat belt.
If the seat belt is unfastened while the vehicle
is moving
, you are warned by the same aler ts.
The front seat belts are fitted with a
pretensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side impact.
Depending on the severity of the impact, the
pretensioning system instantly tightens the seat
belts against the body of the occupants.
The pretensioning seat belts are active when
the ignition is on.
The force limiter reduces the pressure of the
seat belt on the chest of the occupant,
so improving their protection.
Unfastening
)
Press the red button on the buckle A
.
When the ignition is switched on, this
warning lamp comes on accompanied
by an audible signal for a few seconds
if the driver and/or passenger has not
fastened their seat belt.
Page 76 of 164
Safety
74
Rear seat belts
Each rear seat is fitted with a three-point iner tia
reel seat belt.
Fastening
)
Pull the strap, then inser t the tongue in the
buckle.
)
Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
)
Press the red button in the buckle.
Seat belt unfastened warning
lamps
Right hand rear seat belt warning lamp.
Left hand rear seat belt warning lamp.
Illumination of one of these warning lamps in
the instrument panel indicates that one of the
rear passengers has unbuckled their seat belt.
Page 77 of 164
7
i
Safety
75

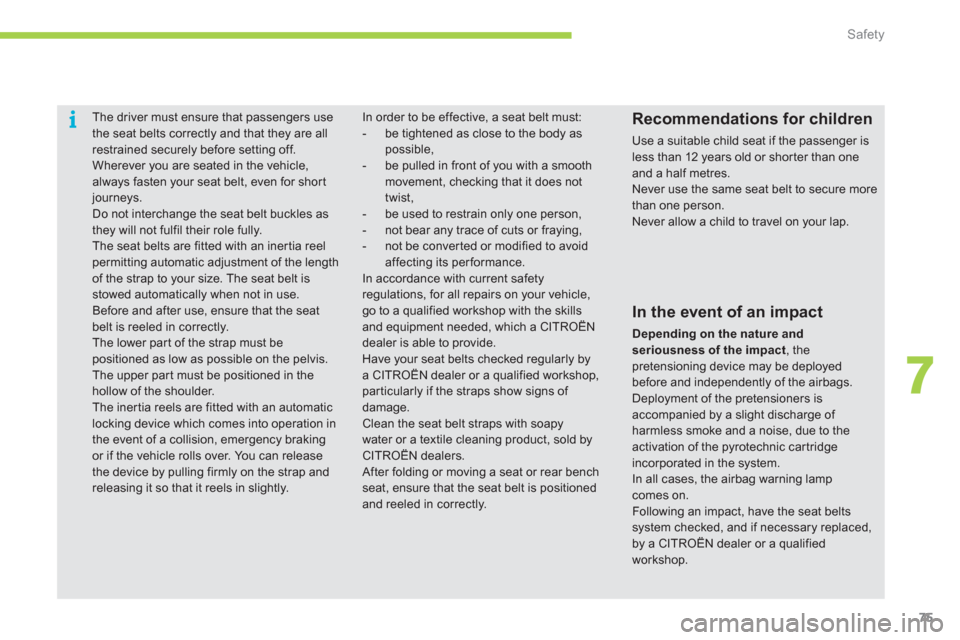

The driver must ensure that passengers use
the seat belts correctly and that they are all
restrained securely before setting off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
Do not interchange the seat belt buckles as
they will not fulfil their role fully.
The seat belts are fitted with an iner tia reel
permitting automatic adjustment of the length
of the strap to your size. The seat belt is
stowed automatically when not in use.
Before and after use, ensure that the seat
belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the pelvis.
The upper par t must be positioned in the
hollow of the shoulder.
The iner tia reels are fitted with an automatic
locking device which comes into operation in
the event of a collision, emergency braking
or if the vehicle rolls over. You can release
the device by pulling firmly on the strap and
releasing it so that it reels in slightly.
Recommendations for children
Use a suitable child seat if the passenger is
less than 12 years old or shor ter than one
and a half metres.
Never use the same seat belt to secure more
than one person.
Never allow a child to travel on your lap. In order to be effective, a seat belt must:
- be tightened as close to the body as
possible,
- be pulled in front of you with a smooth
movement, checking that it does not
twist,
- be used to restrain only one person,
- not bear any trace of cuts or fraying,
- not be conver ted or modified to avoid
affecting its per formance.
In accordance with current safety
regulations, for all repairs on your vehicle,
go to a qualified workshop with the skills
and equipment needed, which a CITROËN
dealer is able to provide.
Have your seat belts checked regularly by
a CITROËN dealer or a qualified workshop,
par ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold by
CITROËN dealers.
After folding or moving a seat or rear bench
seat, ensure that the seat belt is positioned
and reeled in correctly.
In the event of an impact
Depending on the nature and
seriousness of the impact
, the
pretensioning device may be deployed
before and independently of the airbags.
Deployment of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic car tridge
incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat belts
system checked, and if necessary replaced,
by a CITROËN dealer or a qualified
workshop.
Page 78 of 164
i
!
Safety
76
Airbags
The airbags have been designed to maximise
the safety of the occupants in the event of
violent collisions. They supplement the action
of the force-limiting seat belts.
In this case, the electronic detectors record and
analyse the front and side impacts suffered in
the impact detection zones:
- in the event of a serious impact, the airbags
are deployed instantaneously and protect
the occupants of the vehicle; immediately
after the impact, the airbags deflate rapidly
so that they do not hinder the visibility of
the occupants or their possible exit from
the vehicle,
- in the event of a minor impact or rear
impact and in cer tain roll-over conditions,
the airbags will not be deployed; the seat
belt alone is sufficient to provide maximum
protection in these situations.
The airbags do not operate when the
ignition is off.
This equipment only operates once. If a
second impact occurs (during the same
or a subsequent accident), the airbag
will not operate. The deployment of one or more airbags
is accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic car tridge
incorporated in the system.
This smoke is not harmful, but sensitive
individuals may experience some
irritation.
The noise of the detonation may result
in a slight loss of hearing for a short
time.
Impact detection zones
A.
Front impact zone.
B.
Side impact zone.
Front airbags
Deployment
The airbags are deployed simultaneously,
unless the passenger's front airbag is
deactivated, in the event of a serious front
impact applied to all or par t of the front impact
zone A
, in the longitudinal centreline of the
vehicle on a horizontal plane and directed from
the front to the rear of the vehicle.
The front airbag inflates between the front
occupant of the vehicle and the dashboard to
cushion their for ward movement. System which protects the head and chest of
the driver and front passenger in the event of a
front impact.
The driver's airbag is fitted in the centre of the
steering wheel; the front passenger's airbag is
fitted in the dashboard above the glove box.
Page 79 of 164
7
!
Safety
77
Deactivation
Only the front passenger's airbag can be
deactivated:
)
with the ignition off
, inser t the key in the
passenger airbag deactivation switch A
,
)
turn it to the "OFF"
position,
)
remove the key. This warning lamp comes on in the centre
console when the ignition is on and until the
airbag is reactivated.
To ensure the safety of your child, the
passenger airbag must be deactivated
when you install a "rear facing" child
seat on the front passenger seat.
Other wise, the child would risk being
seriously injured or killed if the airbag
were deployed.
Reactivation
When you remove the child seat, turn
switch A
to the "ON"
position to reactivate the
airbag and so ensure the safety of your front
passenger in the event of an impact.
The associated warning lamp goes off.
Operating fault
If this warning lamp comes on in the
instrument panel, contact a CITROËN
dealer or a qualified workshop to have
the system checked. The airbags may
no longer be deployed in the event of
a serious impact.
Page 80 of 164
!
Safety
78
Lateral airbags
Deployment
The lateral airbags are deployed unilaterally in
the event of a serious side impact applied to all
or par t of the side impact zone B
, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The lateral airbag inflates between the hip and
shoulder of the front occupant of the vehicle
and the corresponding door trim panel. System which protects the driver and front
passenger in the event of a serious side impact
in order to limit the risk of injury to the chest,
between the hip and the shoulder.
Each lateral airbag is fitted in the seat backrest
frame, door side.
Impact detection zones
A.
Front impact zone.
B.
Side impact zone.
Curtain airbags
System which protects the driver and
passengers in the event of a serious side
impact in order to limit the risk of injury to
the head.
Each cur tain airbag is fitted in the pillars
and the upper section of the passenger
compartment. In the event of a minor impact or bump
on the side of the vehicle or if the
vehicle rolls over, the airbag may not be
triggered.
In the event of a rear or front collision,
the airbag is not triggered.
Deployment
Each cur tain airbag is deployed at the same
time as the corresponding lateral airbag in the
event of a serious side impact applied to all or
par t of the side impact zone B
, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The cur tain airbag inflates between the front or
rear occupant of the vehicle and the windows.
If this warning lamp comes on in
the instrument panel, contact a
CITROËN dealer or a qualified
workshop to have the system
checked. The airbags may no longer
be deployed in the event of a serious
impact.
Operating fault
