Citroen C ZERO 2015 1.G Owner's Manual

04
149
C-Zero_en_Chap11b_RDE2_ed01-2014
USING THE TELEPHONE
Make along press on SRC/TEL to
display the calls list.
In the list of calls, select the number and choose
"Missed calls", "Dialed calls" or "Answered
calls". Previous or next page in the calls list.
"OK" starts the call.
Making a call - Recently called numbers*
Navigation in the calls list.
The calls list includes the calls sent from and by from the vehicle via
the connected telephone.
It is possible to make a call directly from the telephone; stop the
vehicle as a safety measure.
* Depending on the compatibility of the telephone.
For access to the calls list, it is also possible to press
MENU, select
"Telephone", then select "Call", and finally select "Calls list".

04
150
C-Zero_en_Chap11b_RDE2_ed01-2014
USING THE TELEPHONE
Press MENU, select "Telephone".
Select Call then "Directory" . An incoming call is announced by a ring and a superimposed display
in the screen.
Select the desired number and confirm.
"OK" to start the call. Press SRC/TEL or select "YES" to
accept the call,
or
select "NO" to reject the call.
Making a call - From the directory
Receiving a call
A long press on ESC or on SRC/TEL
also rejects an incoming call.

04
151
C-Zero_en_Chap11b_RDE2_ed01-2014
USING THE TELEPHONE
Hang upIn the contextual menu:
-
select "Combined mode"

to
transfer the call to the telephone.
-
select "Combined mode"

to
transfer the call to the vehicle.
In the contextual menu:
-
select "Micro OFF"

to switch off
the microphone.
-
select "Micro OFF"

to switch the
microphone on again.
In certain cases, the combined mode has to activated from the
telephone.
The Bluetooth connection will be restored automatically if the ignition
has been switched off, then on again (depending on the compatibility
of the telephone).
Managing calls
A long press on SRC/TEL also ends
the call. In the contextual menu, select "Hang
up" to end the call. Secret - Mute
(so that the caller cannot hear)
Combined mode
(to leave the vehicle without ending the call)

05
152
C-Zero_en_Chap11b_RDE2_ed01-2014
Press ¯ to display the audio settings
menu.
Press ¯ to go to the next setting.
The settings available are:
-
AMBIANCE: BASS, TREBLE and LOUDNESS.
-
BALANCE (left/right balance), FADER (front/rear balance).
-
SOUND DIST. (driver or passenger).
-
AUTO VOLUME. The distribution, or spatialisation of sound, is an audio process
which allows the sound quality to be improved according to the
setting chosen, corresponding to the position of the listeners in

the vehicle.
The

AMBIANCE, TREBLE and BASS audio settings are different
and independent for each sound source.
AUDIO SETTINGS

06
153
C-Zero_en_Chap11b_RDE2_ed01-2014

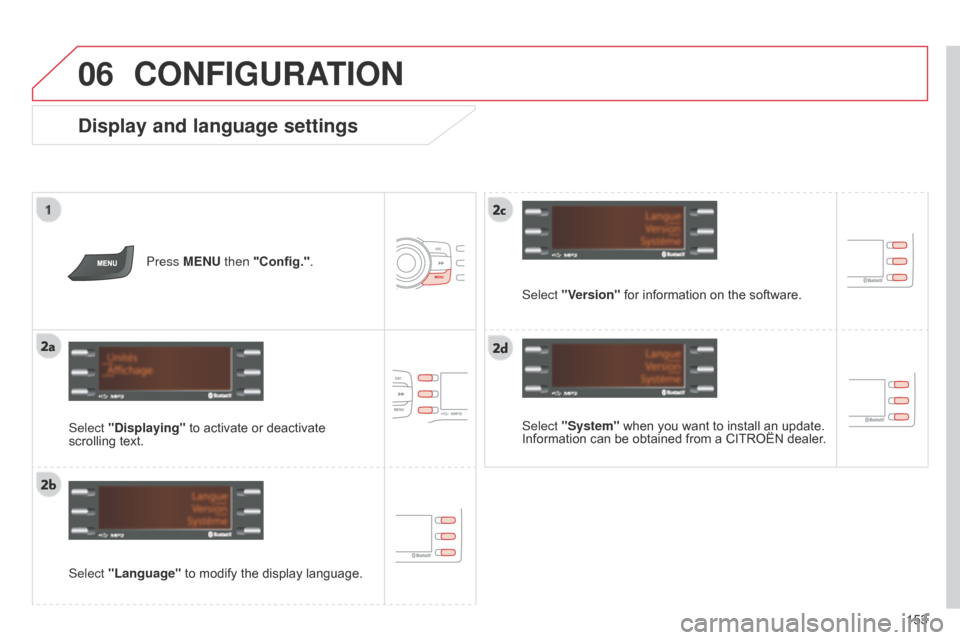

Display and language settings
Select "System" when you want to install an update.
Information can be obtained from a CITROËN dealer.
Select "Language" to modify the display language. Press MENU then "Config.".
Select "Displaying" to activate or deactivate
scrolling text. Select
"Version" for information on the software.
CONFIGURATION

07
154
C-Zero_en_Chap11b_RDE2_ed01-2014
SCREEN MENU MAP(S)
1
2
2
2
2
1
2
2
2
1
2
2
2
2
3
3
1
2
2
4
4
4
1
2
3
2
3
3
3
3
3
3
3
2
2
3
3
3
MENURadio
T
a
RdS
TXT
W

rite freq.
Media
Normal
Random
Random all Telephone
Call
Repeat
T
a
Phone status
directory
Calls list
Bluetooth
BT

management
Search Missed calls
Dialed calls
Answered calls
Config.
Displaying
Scrolling
Language
deutsch
English
Español
Français
Italiano
Nederlands
Português
V

ersion
System Português-Brasil
Русский
Türkçe

155
C-Zero_en_Chap11b_RDE2_ed01-2014
FREqUENTLY ASKED qUESTIONS
qUESTION ANSWER SOLUTION
There is a difference in
sound quality between
the dif
ferent audio
sources (radio, CD...). For optimum sound quality, the audio settings (volume, bass, treble,
ambience, loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source (radio,
CD...). Check that the audio settings (volume, bass,
treble, ambience, loudness) are adapted to the
sources listened to. It is advisable to adjust audio
settings (bass, treble, Front-Rear balance, Left-
Right balance) to the middle position, select the
musical ambience and set the loudness correction
to the "Active" position in CD mode or to the
"Inactive" position in radio mode.
When changing the
settings for treble and
bass, the ambience
setting is deselected.
When changing the
ambience setting, treble
and bass are reset to
zero. Choosing an ambience imposes settings for treble and bass. Modifying
one without the other is only possible with a personalised ambience.
Modify the treble and bass settings or the
ambience setting to obtain the desired sound
quality.
When changing the
balance setting,
distribution is deselected. Choosing the "driver" distribution setting imposes a balance setting.
Modify the balance setting or the distribution
setting to obtain the desired sound quality.
The following tables contain answers to the most frequently asked questions.

156
C-Zero_en_Chap11b_RDE2_ed01-2014
FREqUENTLY ASKED qUESTIONS
qUESTION ANSWER SOLUTION
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5
MHz is
displayed...). The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling.
Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer

.
Sound cut-outs of 1 to
2
seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
T

raffic announcement
TA is displayed. I do
not receive any traffic
information. The radio station does not broadcast traffic information.
Tune to a radio station which broadcasts traffic
information.
The stored stations are
not found (no sound,
87.5 MHz is displayed...). An incorrect waveband is selected.
Press the SRC/TEL button to return to the
waveband (FM1 or FM2) on which the stations are
stored.

157
C-Zero_en_Chap11b_RDE2_ed01-2014
FREqUENTLY ASKED qUESTIONS
qUESTION ANSWER SOLUTION
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play
.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment. -
Check that the CD is inserted in the player the
right way up.
-
Check the condition of the CD: the CD cannot
be played if it is too damaged.
-
Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.
-
The audio equipment's CD player does not
play DVDs.
-
Due to their quality level, certain writeable
CDs will not be played by the audio system.
The CD player sound is
poor. The CD used is scratched or of poor quality

.Insert good quality CDs and store them in suitable
conditions.
The audio settings (bass, treble, ambience) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.
The
bluetooth connection
is cut. The battery of the peripheral may not be sufficiently charged.
Recharge the battery of the peripheral device.
The message "USB
device error" is displayed
on the screen. The USB memory stick is not recognised.
Use only USB memory sticks formatted to F

AT 32
(28-bit file allocation table).
a telephone connects
automatically,
disconnecting another
telephone. Automatic connection overrides manual connection.
Modify the telephone settings to remove automatic
connection.

158
C-Zero_en_Chap11b_RDE2_ed01-2014
FREqUENTLY ASKED qUESTIONS
qUESTION ANSWER SOLUTION
An iPod is not recognised
when connecting to the
USB port. The iPod is of a generation that is not compatible with the USB.
The hard disk or device
is not recognised when
connecting to the USB
port. Some hard disks and devices need a power supply greater than is
provided by the audio system.
Connect the device to the 230 V socket, the 12 V
socket or an external power supply.
Caution
: ensure that the device does not transmit
a voltage greater than 5 V (risk of destruction of
the system).
When streaming, the
sound cuts momentarily. Some telephones prioritise connection of the "hands-free" profile.
Delete the "hands-free" connection profile to
improve streaming.
In "Random all" play,
not all of the tracks are
played. In "Random all" play, the system can only take into account up
to 999 tracks.
With the engine off, the
audio system switches
off after a few minutes
of use. When the engine is switched off, the audio system operating time
depends on the battery charge.
The switch-off is normal: the audio system switches to economy mode
and switches off to prevent discharging the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature is too
high, the audio system switches to an automatic thermal protection mode
leading to a reduction of the volume or stopping of the playing of the CD. Switch the audio system off for a few minutes to
allow the system to cool.
