Direction indicators 56
A utomatic operation of brake lamps
56
H

azard warning lamps
56
H

orn
57
E

mergency or assistance call
57
U

nder-inflation detection
58
B

raking assistance systems
62
T

rajectory control systems
64
F

ront seat belts
65
A

irbags
68
Safety
Child seats 72
D eactivating the passenger's front airbag
75
I

SOFIX child seats
81
C

hild lock
84
Child safety
Charging the main battery 85
A ncillaries battery
93
T

emporary puncture repair kit
97
C

hanging a wheel
10
1
Snow chains
10

5
Changing a bulb
10

6
Changing a fuse
11

4
Changing a wiper blade
11

9
Towing the vehicle
11

9
Precautions for washing
12

0
Accessories
12

0
Practical information
Bonnet 123
F ront compartment
12
4
Rear compartment
12

5
Checking levels
12

6
Chec ks
128
Checks
Motor and main battery 12 9
Weights
13 0
D

imensions
13
1
Identification markings
13

2
Technical data
Emergency or assistance 133
Audio system / Bluetooth
13
5
Audio and telematics
Visual search
Alphabetical index

Contents

53
C-zero_en_Chap05_visibilite_ed01-2014
Daytime running lamps
Special daytime lighting so that the vehicle can
be seen more easily.
The daytime running lamps come on
automatically when starting the motor, if no
other lighting is on.
They cannot be deactivated.Automatic illumination of headlamps
With the main lighting control ring in the AUTO
position, the sidelamps and dipped beam headlamps
come on automatically, without any action by the
driver, when a low level of ambient light is detected.
When the light returns to a sufficient level or the
wipers are switched off, the lighting is switched off
automatically.
The sensor is located at the base of the windscreen.
Automatic illumination of
headlamps
Automatic lighting off
When the lighting stalk is in the
"AUTO" p osition, if the ignition switch is in
the "LOCK" or "ACC" position or if the key
has been removed, the lighting switches off
automatically when the driver's door is
opened . The initial setting is position "0"
.
Headlamp
adjustment
To avoid causing a nuisance to other road
users, the height of the halogen headlamps
should be adjusted according to the load in
the
v

ehicle.
0.
Dr

iver only or driver + 1 front passenger.
1 or 2.
4 pe

ople (including the driver).
3.
4 pe

ople (including the driver) + maximum
authorised load.
4.
Dr

iver + maximum authorised load.
Although these lamps are located in
the same unit as the front foglamp, they
operate with a specific bulb.
Their use is covered by road vehicle
lighting regulations.
In foggy weather or in snow, the
sunshine sensor may detect sufficient
light. The lighting will not come on
automatically.
do no

t cover the sunshine sensor, the
associated functions will no longer be
controlled.
5
Visibility

106
C-zero_en_Chap08_info-pratiques_ed01-2014
Changing a bulb
1. Direction indicators (W21W - 21 W).
2. Si delamps (W5W - 5 W).
3.
Ma

in beam headlamps (HB3 - 60 W).
4.
Di

pped beam headlamps (H11 - 55 W).
The headlamps are fitted with
polycarbonate glass with a protective
coating:
F
do n

ot clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
us

e a sponge and soapy water or a
pH neutral product,
F
wh

en using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F
Do n

ot touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Front lamps
5. Front foglamps (H8 - 35 W).
6. Da ytime running lamps
(P13W - 13 W).
Practical information

107
C-zero_en_Chap08_info-pratiques_ed01-2014
F Lift the cover B, u sing a screwdriver
protected by a cloth.
F
Sl

acken fixing screw C until the head of the
screw touches the trim. F Re
move the bumper retaining clips, using a
screwdriver.
F
Ca

refully lift the bumper.
To replace a failed bulb, you must first remove
the lamp.
To remove the lamp:
F
Op

en the bonnet.
F
Pr

ess tab A to release the connector.
Access to bulbs
8
Practical information

109
C-zero_en_Chap08_info-pratiques_ed01-2014
Changing sidelamp bulbs
F Turn the bulb holder to the left and pull it
out.
F
Pu

ll the bulb out and and change it.
To reassemble, carry out these operations in
reverse order.
Changing main beam headlamp
bulbs
F Turn the bulb holder to the left and pull it
o ut.
F
Re

move the bulb by pressing on the tongue.
F
Ch

ange the bulb.
For reassembly, carry out these operations in
reverse order.
Changing direction indicator
bulbs
F Turn the bulb holder to the left and pull it
o ut.
F
Pu

ll the bulb out and change it.
To refit, carry out these operations in reverse
o r d e r.
Amber coloured bulbs must be replaced
with bulbs of identical specifications
and colour.
8
Practical information

110
C-zero_en_Chap08_info-pratiques_ed01-2014
Changing dipped beam headlamp
bulbs
F Turn the bulb holder to the left and pull it
out.
F
Re

move the bulb by pressing on the tongue.
F
Ch

ange the bulb.
To refit, carry out these operations in reverse
o r d e r.
Changing front foglamp bulbs /
daytime running lamp bulbs
F Put the front wheels onto full lock,
t o f acilitate access.
F
Re

move the clips securing the protective
covers on the bulb holders.
F
Mov

e the cover aside. F Tu
rn the bulb holder (A for the front fog
lamp, B for the daytime running lamp) to
the left and pull it out.
F
Pu

ll the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
Practical information

111
C-zero_en_Chap08_info-pratiques_ed01-2014
1. Brake lamps / Sidelamps
(21 W / 1 5 W or LEDs).
2.
Di

rection indicators (WY21W - 21 W).
3.
Re

versing lamps (W21W - 21 W).
Rear lamps
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specification and
c o l o u r.
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Changing integrated direction
indicator side repeater bulbs
(WY5W - 5
W

)
F Push the repeater towards the rear and
disengage it.
F
Tu

rn the bulb holder to the left and pull it
out.
F
Pu

ll the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
Access to bulbs
F Remove the two screws.
F Disengage the lamp unit by pulling it towards you.
8
Practical information

112
C-zero_en_Chap08_info-pratiques_ed01-2014

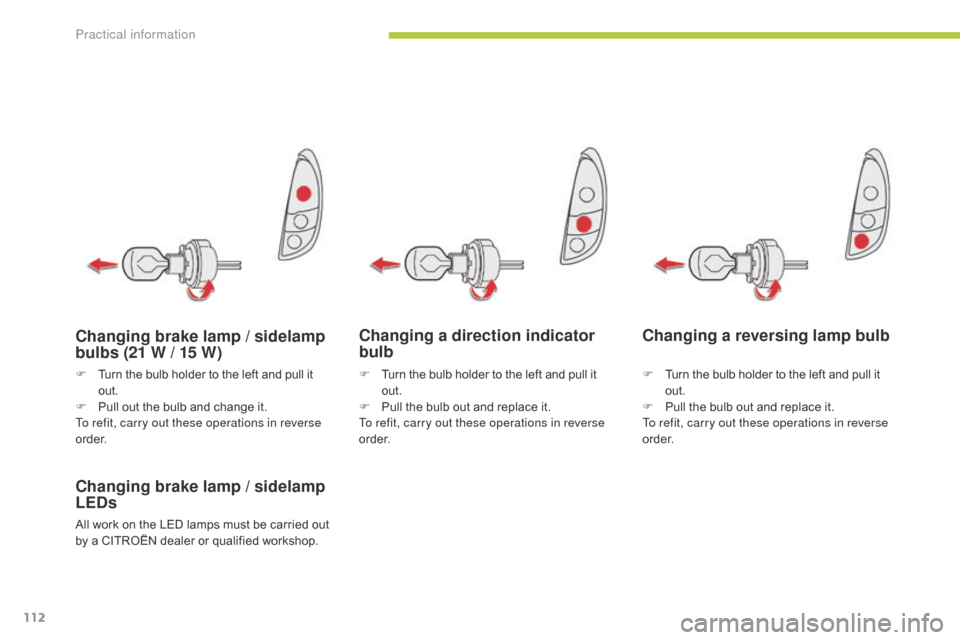

Changing a direction indicator
bulb
Changing brake lamp
/ s

idelamp
LEDs
All work on the LED lamps must be carried out
by a CITROËN dealer or qualified workshop.
Changing a reversing lamp bulb
Changing brake lamp / s
idelamp
bulbs (21 W
/

15 W)
F Turn the bulb holder to the left and pull it
o
ut.
F
Pu

ll out the bulb and change it.
To refit, carry out these operations in reverse
o r d e r. F Tu
rn the bulb holder to the left and pull it
out.
F
Pu

ll the bulb out and replace it.
To refit, carry out these operations in reverse
o r d e r. F Tu
rn the bulb holder to the left and pull it
out.
F
Pu

ll the bulb out and replace it.
To refit, carry out these operations in reverse
o r d e r.
Practical information

113
C-zero_en_Chap08_info-pratiques_ed01-2014

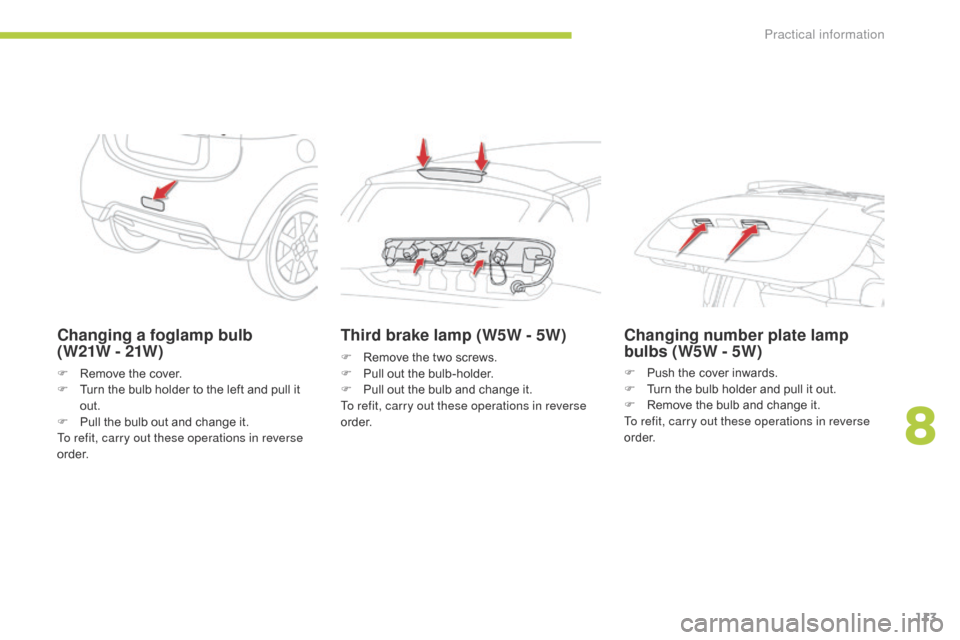

Changing a foglamp bulb
( W21W - 21W )
F Remove the cover.
F Tu rn the bulb holder to the left and pull it
out.
F
Pu

ll the bulb out and change it.
To refit, carry out these operations in reverse
o r d e r.
Third brake lamp (W5W - 5W)
F Remove the two screws.
F Pu ll out the bulb-holder.
F
Pu

ll out the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
Changing number plate lamp
bulbs (W5W - 5W)
F Push the cover inwards.
F Tu rn the bulb holder and pull it out.
F
Re

move the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
8
Practical information

121
C-zero_en_Chap08_info-pratiques_ed01-2014
"Protection":
mats, boot carpet, vehicle cover, translucent
bumper protectors, side rubbing strips...
"Multimedia":
audio systems, driving aids, semi-integral
navigation system, iPhone® compatible phone
charger, hands-free kit, DVD players...
Installation of radio
communication
transmitters
Before installing any after-market radio
communication transmitter, you can
contact a CITROËN dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility
Directive
(

2004/104/EC). The fitting of electrical equipment
or accessories which are not
recommended by CITROËN may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Contact a CITROËN dealer for informa-
tion on the range of recommended
equipment and accessories. Depending on the legislation in force
in the country, certain safety equip
-
ment may be compulsory: high visibility
safety vests, warning triangles, breatha-
lyzers, spare bulbs, spare fuses, fire
extinguisher, first aid kit, mud flaps at
the rear of the vehicle.
