Citroen C ZERO RHD 2012 1.G Service Manual

3
Comfort
39






Head restraint height adjustment
)To raise it, pull upwards. )To lower it, push it downwards, pressing
the height adjustment button at the same
time.)To remove it, raise it to the high position,
then remove it pressing the height
adjustment button at the same time.)To refit it, engage the rods of the head restraint in the apertures, pressing the height adjustment button at the same time.
Never drive with the removed headrestraints in the vehicle as they couldbe thrown around the vehicle on sharp braking. They must always be in placeand adjusted correctly.
After installing the head restraint, checkthat the height adjustment button has engaged correctly. The adjustment is correct when the top of the head restraint is aligned with thetop of the head of the seated person.
Press the control switch, located on the
dashboard, to switch on the driver's seat
heatin
g.
The warning lamp in the switch comes on.
The temperature is controlled automatically.
Pressing a second time stops operation.


Heated seat control

Comfort
40













Rear seats Rear seat comprising two adjustable, foldable backrests and a fixed cushion.
Rear head restraints
These have a high position (comfor t and bestsafety) and a low position (best rear vision for
the driver).
They can also be removed.
T
o remove a head restraint:)pull the head restraint fully upwards, )then, press the lug.

When carrying rear passengers, never
drive with their head restraints removed;ensure that they are in place and in the high position.

Adjusting the backrest
angle
To adjust the backrest: )
pull the control for wards to release the backrest, )
adjust the backrest then release the control.
The backrest can be adjusted to one of
seven positions.
Always ensure that the backrest has
engaged correctly.

3
Comfort
41
Returning the seat backrest to its original position
) Push the seat backrest in position and secure it,)
refit the head restraints or put them back in
place.
1. Place the head restraints in the low position
or remove them if necessary,2.pull the control for wards to release
backrest,
3.fold the backrest forward.

Folding the backrest
When returning the backrest to itsoriginal position, take care not to trapthe seat belts.

Comfort
42





Door mirrors
The mirrors can be adjusted when the ignitionswitch is in the "ON" or "ACC" position. )Move control A
to the right or to the left to
select the corresponding mirror.)Direct control B in all four directions to adjust the mirror.
When adjustment is complete, return control Ato the central position.
Adjustment


The mirrors can also be foldedmanually.
However, you must never unfold them manually, other wise the mirrors may ynot remain in place correctly whendriving.
Always use control C
to unfold them.

)
With the ignition switch in the "ON" or "ACC" position: press control Cto unfold
them ) With the ignition switch in the "LOCK"
position: press control C within
30 secondsto fold them.
Electric folding / unfolding
*

*
Depending on version.

3
Comfort
43

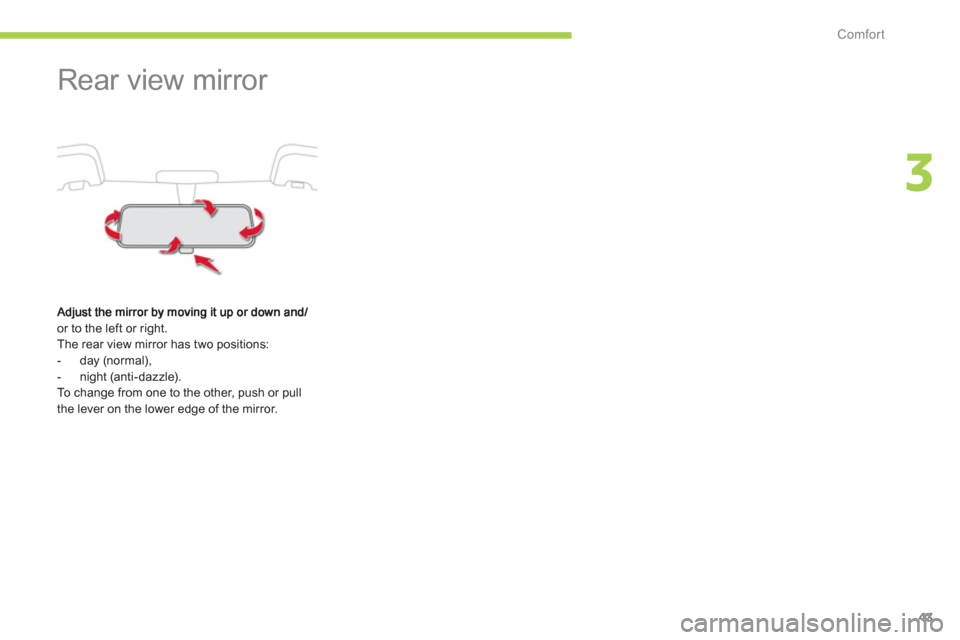

Rear view mirror
or to the left or right.
The rear view mirror has two positions:


- day (normal),

- night (anti-dazzle).
To change from one to the other, push or pull
the lever on the lower edge of the mirror.

Comfort
44




















Interior fi ttings
Glove box2.Retractable cup holderPress the cover to open the cup holder 3.12 V accessory socket(120 W)Observe the maximum power rating to
avoid damaging your accessory4.Open storage5.USB Player
6.Door pocket

3
Comfort
45





12 V accessory
socket
) To connect a 12 V accessory (max power:
120 W), lift the cover and connect a suitable adaptor.












Mat

To prevent any risk of jamming under the pedals:


- only use mats suited to the fixings already present in the vehicle; it is imperative that these fixings are used.

- never fit one mat on top of another.

When removin
g the mat on the driver's side,
move back the seat as far as possible and
remove the fixin
gs.
When refitting, position the mat correctly on the
pins and clip the fixings. Check that the mat issecured firmly. The sun visors fold for wards, and to the side
when the
y are unhooked.
They are fitted with a cour tesy mirror and a
ticket holder.





Sun visor

Comfort
46

When connected to the USB por t, the por table
device charges automatically.
For more information on the use of this system, refer to the "Audio and Telematics" section.









USB Player
This USB port, is located on the centre console.
It permits the connection of por table devices,
such as a digital audio player of the iPod ®type
or a USB memory stick.
It reads the audio files which are transmittedto your audio equipment and played via the
vehicle's speakers.
You can mana
ge these files using the audiosystem controls.

3
Comfort
47








Vent ilat ion

The air circulating in the passenger compartment is filtered and originates either
from the outside via the grille located at the base of the windscreen or from the inside in air
recirculation mode. S
ystem which creates and maintains goodconditions of comfor t and visibility in the
vehicle's passenger compartment.

Controls

The incoming air follows various routes
depending on the controls selected.
The temperature control enables you to obtain
the level of comfor t required by mixing the air of
the various circuits.
The air distribution control enables you toselect the air vents used in the passenger compartment.
The air flow control enables you to increase or
reduce the speed of the ventilation fan.
These controls are
grouped together on controlpanel Aon the centre console.
Air distribution
1.Windscreen demisting/defrosting vents.
2. Front side window demisting/defrosting
vents. 3. Side adjustable air vents.
4.Central adjustable air vents.
5.Air outlets to the front footwells.

Comfort
48
In order for these systems to be fully effective, follow the operation and maintenance guidelines below: )If the interior temperature remains very high after the vehicle has been parked in the
sun for a considerable time, first ventilate the passenger compar tment for a few minutesby opening the windows. Place the air flow control at a sufficient level to provide an adequate renewal of air in the passenger compartment.)Condensation created by the air conditioning results in a discharge of water under thevehicle when stationary, which is per fectly normal.)To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as wellas the air extractor located in the boot. )Use in preference the intake of exterior air as prolonged use of the air recirculation maycause misting of the windows and side windows.)Operate the air conditioning system for 5 to 10 minutes, once or twice a month to keep itin good working order. )Ensure that the passenger compar tment filter is in good condition and have the filter elements replaced regularly (refer to "Checks").)To ensure correct operation of the air conditioning system, you are also advised to have it checked regularly.)If the system does not produce cold air, do not use it and contact a CITROËN dealer or a qualified workshop.
Recommendations for ventilation and air conditioning

The heating and air conditioning useenergy from the main battery. Their useincreases electrical consumption and reduces the range of the vehicle.
Remember to switch off the heating or air conditioning as soon as it is no longer needed.
