71
Deactivation
Only the front passenger's airbag can be
deactivated:
F
w
ith the ignition off , insert the key in the
passenger airbag deactivation switch A ,
F

t
urn it to the "OFF" position,
F

r
emove the key. This warning lamp comes on in the centre
console when the ignition is on and until the
airbag is reactivated.
To ensure the safety of your child, the
passenger airbag must be deactivated
when you install a rear ward facing child
seat on the front passenger seat.
Other wise, the child would risk being
seriously injured or killed if the airbag
were deployed.
Reactivation
When you remove the child seat, turn
switch A to the "ON" position to reactivate the
airbag and so ensure the safety of your front
passenger in the event of an impact.
The associated warning lamp goes off.
Operating fault
If this warning lamp comes on in the
instrument panel, contact a CITROËN
dealer or a qualified workshop
without
delay to have the system checked. The
airbags may no longer be deployed in
the event of a serious impact.
In this case, do not install a child seat
or seat an adult on the front passenger
seat.
5
Safety

82
The incorrect installation of a child seat in a
vehicle compromises the child's protection
in the event of an accident.
Check that there is no seat belt or seat belt
buckle under the child seat as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child's body to a minimum,
even for short journeys.
When installing a child seat using the seat
belt, check that the seat belt is tightened
correctly on the child seat and that it
secures the child seat firmly on the seat
of your vehicle. If your passenger seat is
adjustable, move it for ward if necessary.
At the rear seats, always leave sufficient
space between the front seat and:
-
a r
ear ward facing child seat,
-

t
he feet of a child seated in a for ward
facing child seat.
For this, move the front seat for ward and if
necessary straighten its backrest.
Advice on child seats
Children at the front
The legislation on carrying a child on the
front passenger seat is specific to each
c o unt r y.
Refer to the legislation in force in your
c o unt r y.
Deactivate the passenger's airbag when
a rear ward facing child seat is installed on
the front seat.
Other wise, the child would risk being
seriously injured or killed if the airbag were
deployed. For optimum installation of a for ward facing
child seat, ensure that the back of the
child seat is as close as possible to the
backrest of the vehicle's seat, or in contact
if possible.
The head restraint must be removed before
installing a child seat with a backrest on
the passenger seat. Ensure that the head
restraint is stowed or attached securely so
that it is not thrown around the vehicle in
the event of sharp braking.
Refit the head restraint as soon as the child
seat is removed.
Installing a booster seat
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a
booster seat which has a back, fitted with a
seat belt guide at shoulder level.
As a safety precaution, do not leave:
-

o
ne or more children alone and
unsupervised in a vehicle,
-

a c
hild or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
-

t
he keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors,
use the "Child lock".
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
Safety

88
Starting - stopping the vehicle
- Position 1: LOCK The steering is locked.
-

P
osition 2: ACC
T

he ancillaries (radio, 12 V socket, etc.)
can be used.
-

P
osition 3: ON
I

gnition on.
-

P
osition 4: S TA R T
"

Ready" lamp on.
M

otor ready to drive the vehicle.
Ignition switch
F Check that the drive selector is in position P.
F

I
nsert the key in the ignition switch.
F

T
urn the key to position 4 (S TA R T ) .
StartingStopping
F Stop the vehicle.
F
K eep your foot on the brake pedal.
F

P
lace the drive selector in position P .
F

A
pply the parking brake.
F

T
urn the key to position 1 (LOCK) .
F

R
emove the key from the ignition switch.
F

H

old it in this position for a few
seconds until the " RE ADY" lamp
comes on accompanied by an
audible signal.
F

R

elease the key.
T

he key returns automatically to
position


3


(ON) . Do not attach any heavy objects to the
key as this could weigh down on it when
in the ignition switch and cause a fault.
If you use the ancillaries for a prolonged
period (with the key in the ACC
position), you risk discharging the 12 V
battery. Starting your vehicle will then
no longer be possible. Be aware.
Driving

91
To tow your vehicle, the drive selector
must be in position N.
For more information on Towing the
vehicle , refer to the corresponding
section.
Parking the vehicle
To stop the motor, you must select position P .
You must apply the parking brake to immobilise
the vehicle.
To remove the key from the ignition switch, the
drive selector must be in position P .
6
Driving

115

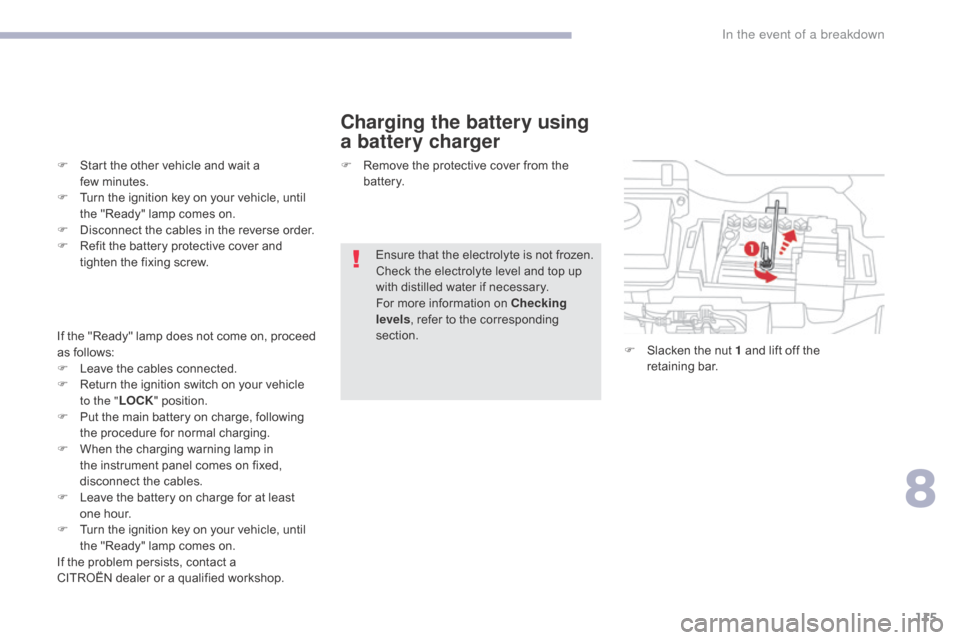

Charging the battery using
a battery charger
F Start the other vehicle and wait a few m inutes.
F

T
urn the ignition key on your vehicle, until
the "Ready" lamp comes on.
F

D
isconnect the cables in the reverse order.
F

R
efit the battery protective cover and
tighten the fixing screw.
If the "Ready" lamp does not come on, proceed
as follows:
F

L
eave the cables connected.
F

R
eturn the ignition switch on your vehicle
to the " LOCK" position.
F

P
ut the main battery on charge, following
the procedure for normal charging.
F

W
hen the charging warning lamp in
the instrument panel comes on fixed,
disconnect the cables.
F

L
eave the battery on charge for at least
one hour.
F

T
urn the ignition key on your vehicle, until
the "Ready" lamp comes on.
If the problem persists, contact a
CITROËN
dealer or a qualified workshop. F
R emove the protective cover from the
battery.
Ensure that the electrolyte is not frozen.
Check the electrolyte level and top up
with distilled water if necessary.
For more information on Checking
levels , refer to the corresponding
section. F

S
lacken the nut 1 and lift off the
retaining
ba

r.
8
In the event of a breakdown

152
Telephone
Pairing a Bluetooth® telephone
For safety reasons and because they
require prolonged attention on the part
of the driver, the operations for pairing
of the Bluetooth mobile telephone
with the Bluetooth hands-free system
of your audio system must be carried
out with the vehicle stationary and the
ignition on.
Visit www.citroen.co.uk for more information
(compatibility, more help, etc.).
Activate the telephone's Bluetooth function and
ensure that it is set as visible to all (refer to the
telephone instructions). Press the MENU button. The services available depend on
the network, the SIM card and the
compatibility of the Bluetooth telephone
used.
Consult your telephone's manual and
your operator to find out which services
are available to you.
Only one telephone can be paired at a time. A message is displayed on the screen of the
telephone: enter the same code and confirm.
If pairing fails, try again; the number of
attempts is not limited.
A message appears on the screen to confirm
the result of the connection.
Pairing can also be initiated from the
telephone by searching for detected
Bluetooth devices.
The directory and the calls list can be
accessed after the synchronisation
period (if the telephone is compatible).
Automatic connection must be
configured in the telephone to allow
the connection each time the vehicle is
started.
Select "Bluetooth"
. Select the telephone to be paired
from the list. A virtual keypad is displayed on the
screen: choose a 4 digit code.
Select " Search". A window is displayed with "
Searching
device ".
In some cases, the Bluetooth address of the
telephone may appear instead of the name of
the telephone. Confirm with "OK"
. Confirm with "OK"
.
Audio and Telematics
