Page 94 of 99
1010
83
TECHNICAL DATA

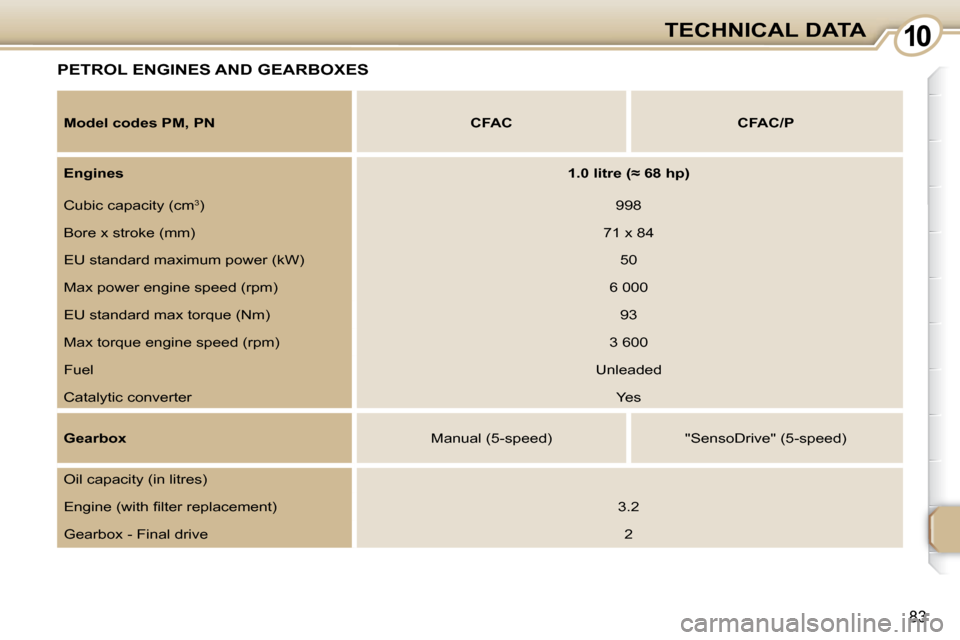

PETROL ENGINES AND GEARBOXES
Model codes PM, PN CFAC CFAC/P
Engines
1 . 0 l i t r e ( ≈ 6 8 h p )
Cubic capacity (cm 3
) 998
Bore x stroke (mm) 71 x 84
EU standard maximum power (kW) 50
Max power engine speed (rpm) 6 000
EU standard max torque (Nm) 93
Max torque engine speed (rpm) 3 600
Fuel Unleaded
Catalytic converter Yes
Gearbox Manual (5-speed) "SensoDrive" (5-speed)
Oil capacity (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.2
Gearbox - Final drive 2
Page 95 of 99
1010
85
TECHNICAL DATA

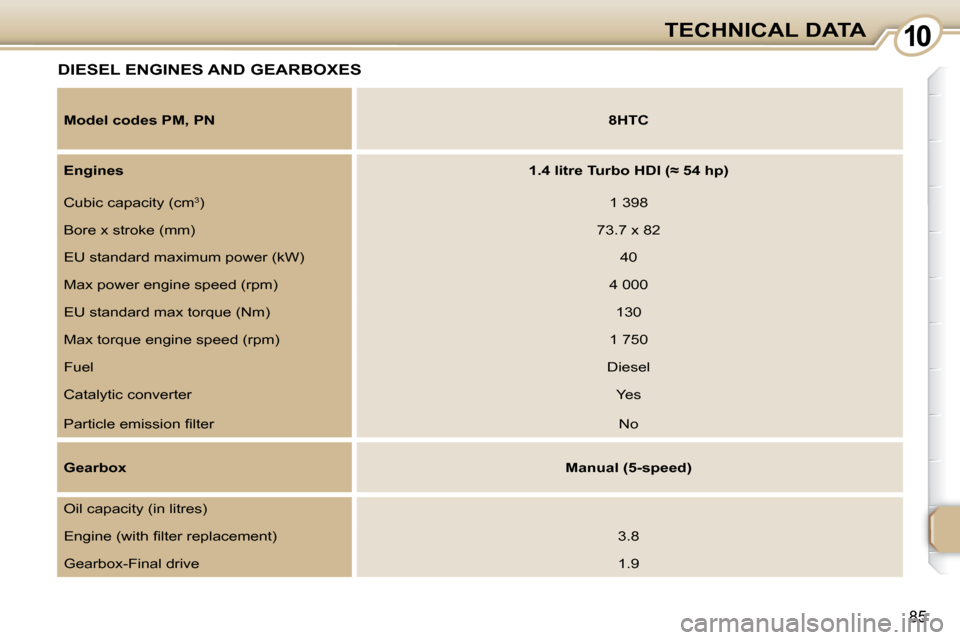

DIESEL ENGINES AND GEARBOXES
Model codes PM, PN
8 H T C
Engines
1 . 4 l i t r e T u r b o H D I ( ≈ 5 4
h p
)
Cubic capacity (cm 3
) 1 398
Bore x stroke (mm) 73.7 x 82
EU standard maximum power (kW) 40
Max power engine speed (rpm) 4 000
EU standard max torque (Nm) 130
Max torque engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter Yes
P a r t i c l e e m i s s i o n fi l t e r No
Gearbox
M a n u a l ( 5 - s p e e d )
Oil capacity (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.8
Gearbox-Final drive 1.9
Page 96 of 99
1010
84
TECHNICAL DATA
Fuel consumption values correct at time of printing. These consu mption values are established in accordance with EC
D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) . T h e y m a y v a r y d e p e n d i n g u p o n c i r c u m s t a n c e s : h a n d l i n g o f t h e v e h i c l e , t r a f fi c a n d w e a t h e r
conditions, loading of the vehicle, vehicle maintenance and the use of the equipment.

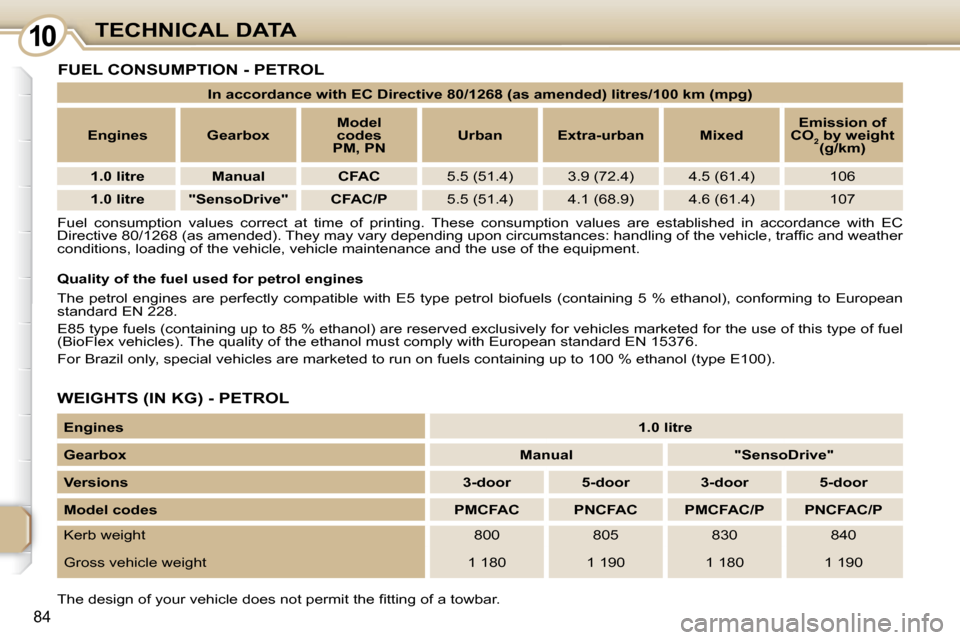

FUEL CONSUMPTION - PETROL
W E I G H T S ( I N K G ) - P E T R O L
T h e d e s i g n o f y o u r v e h i c l e d o e s n o t p e r m i t t h e fi t t i n g o f a t o w b a r .
I n a c c o r d a n c e w i t h E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) l i t r e s / 1 0 0 k m ( m p g )
Engines Gearbox
Model
codes
PM, PN
Urban Extra-urban Mixed
E m i s s i o n o f
CO 2 b y w e i g h t
( g / k m )
1.0 litre Manual CFAC 5.5 (51.4) 3.9 (72.4) 4.5 (61.4) 106
1.0 litre "
S e n s o D r i v e " CFAC/P 5.5 (51.4) 4.1 (68.9) 4.6 (61.4) 107
Engines
1.0 litre
Gearbox
Manual "
S e n s o D r i v e
"
Versions
3-door 5-door 3-door 5-door
Model codes
PMCFAC PNCFAC PMCFAC/P PNCFAC/P
Kerb weight 800 805 830 840
Gross vehicle weight 1 180 1 190 1 180 1 190
Q u a l i t y o f t h e f u e l u s e d f o r p e t r o l e n g i n e s
The petrol engines are perfectly compatible with E5 type pet
rol biofuels (containing 5 % ethanol), conforming to European
standard EN 228.
E85 type fuels (containing up to 85 % ethanol) are reserved e xclusively for vehicles marketed for the use of this type of fuel
(BioFlex vehicles). The quality of the ethanol must comply with European standard EN 15376.
For Brazil only, special vehicles are marketed to run on fuels co ntaining up to 100 % ethanol (type E100).
Page 97 of 99
1010
86
TECHNICAL DATA

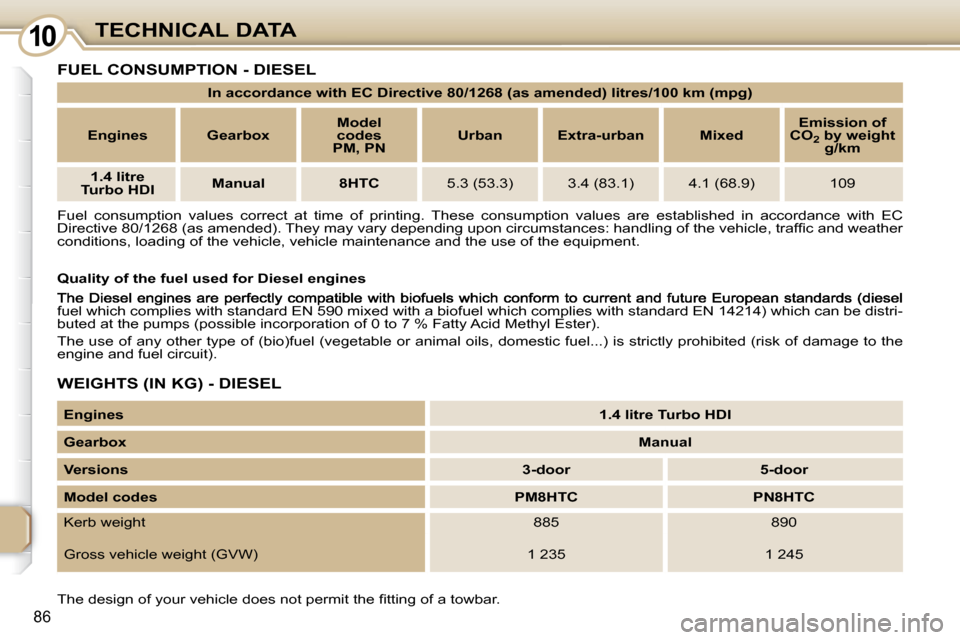

FUEL CONSUMPTION - DIESEL
Fuel consumption values correct at time of printing. These consumption values are established in accordance with EC
D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) . T h e y m a y v a r y d e p e n d i n g u p o n c i r c u m s t a n c e s : h a n d l i n g o f t h e v e h i c l e , t r a f fi c a n d w e a t h e r
conditions, loading of the vehicle, vehicle maintenance and the use of the equipment.
I n a c c o r d a n c e w i t h E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d )
l i t r e s / 1 0 0 k m
(
m p g
)
Engines Gearbox
Model
codes
PM, PN
Urban Extra
-urban Mixed
E m i s s i o n o f
CO 2 b y w e i g h t
g / k m
1.4 litre
Turbo HDI
Manual 8 H T C 5.3 (53.3) 3.4 (83.1) 4.1 (68.9) 109
Q u a l i t y o f t h e f u e l u s e d f o r D i e s e l e n g i n e s
fuel which complies with standard EN 590 mixed with a biofue l which complies with standard EN 14214) which can be distri-buted at the pumps (possible incorporation of 0 to 7 % Fatty Acid Methyl Ester).
The use of any other type of (bio)fuel (vegetable or animal oils, domestic fuel...) is strictly prohibited (risk of damage to t he
engine and fuel circuit).
W E I G H T S ( I N K G ) - D I E S E L
T h e d e s i g n o f y o u r v e h i c l e d o e s n o t p e r m i t t h e fi t t i n g o f a t o w b a r .
Engines
1.4 litre Turbo HDI
Gearbox
Manual
Versions
3-door 5-door
Model codes
P M 8 H T C P N 8 H T C
Kerb weight 885 890
Gross vehicle weight (GVW) 1 235 1 245
