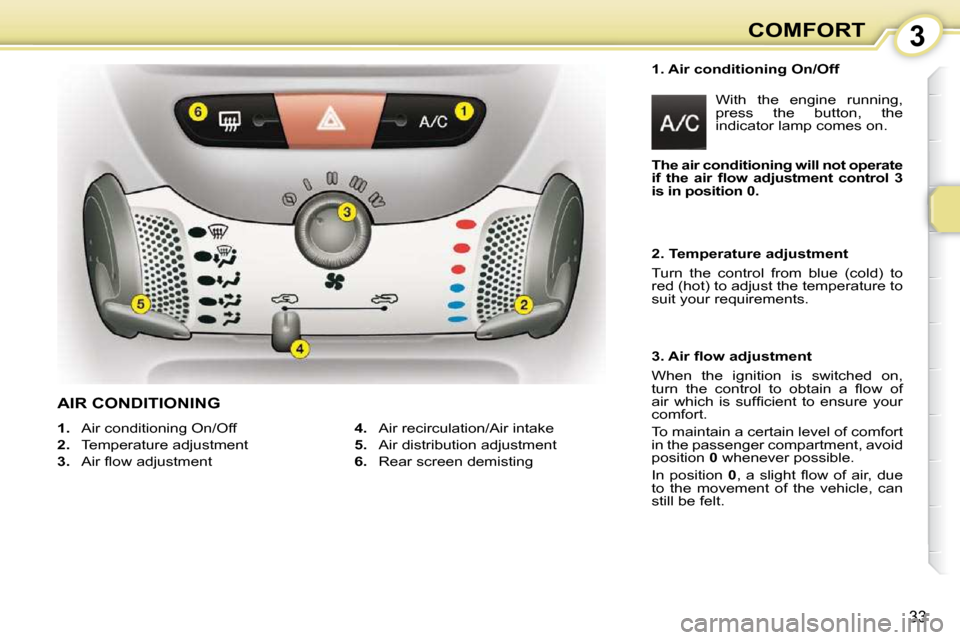

Page 33 of 99
3
33
COMFORT
1. Air conditioning On/Off With the engine running,
press the button, the
indicator lamp comes on.
1. Air conditioning On/Off
2. Temperature adjustment
3. A i r fl o w a d j u s t m e n t
AIR CONDITIONING
2. Temperature adjustment
Turn the control from blue (cold) to
red (hot) to adjust the temperature to
suit your requirements.
4. Air recirculation/Air intake
5. Air distribution adjustment
6. Rear screen demisting 3 . A i r fl o w a d j u s t m e n t
When the ignition is switched on,
t u r n t h e c o n t r o l t o o b t a i n a fl o w o f
a i r w h i c h i s s u f fi c i e n t t o e n s u r e y o u r
comfort.
To maintain a certain level of comfort
in the passenger compartment, avoid
position
0 whenever possible.
In position 0 , a s l i g h t fl o w o f a i r , d u e
to the movement of the vehicle, can
still be felt.
T h e a i r c o n d i t i o n i n g w i l l n o t o p e r a t e
i f t h e a i r fl o w a d j u s t m e n t c o n t r o l 3
is in position 0.

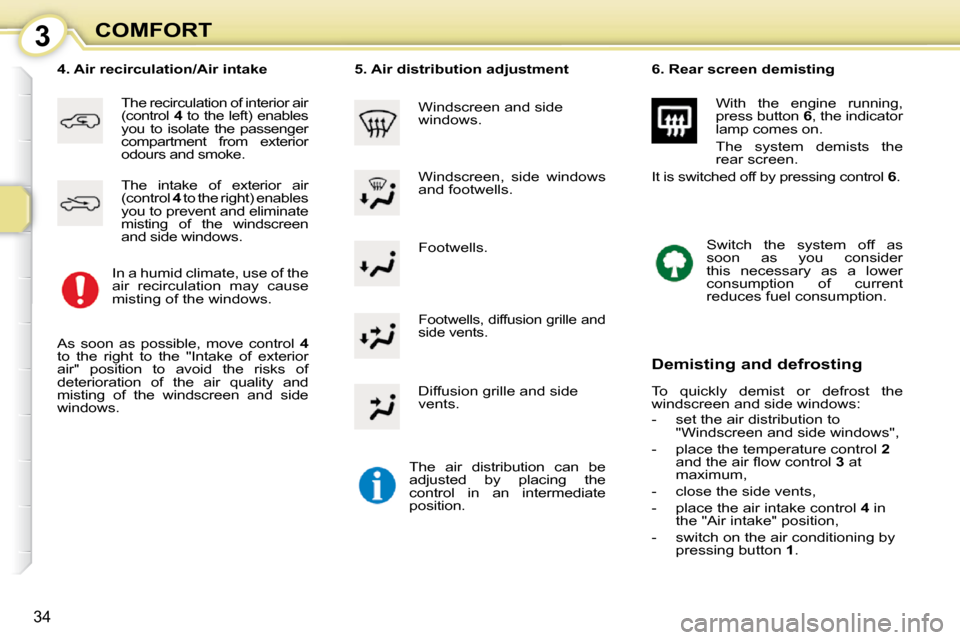

Page 34 of 99
3
34
COMFORT Footwells.
4 . A i r r e c i r c u l a t i o n / A i r i n t a k e
The recirculation of interior air
(control 4 to the left) enables
you to isolate the passenger
compartment from exterior
odours and smoke. 5. Air distribution adjustment
Windscreen and side
windows.
The air distribution can be
adjusted by placing the
control in an intermediate
position. Windscreen, side windows
and footwells.
Footwells, diffusion grille and
side vents.
Diffusion grille and side
vents. 6. Rear screen demisting
As soon as possible, move control 4
to the right to the "Intake of exterior
air" position to avoid the risks of
deterioration of the air quality and
misting of the windscreen and side
windows. The intake of exterior air
(control
4 to the right) enables
you to prevent and eliminate
misting of the windscreen
and side windows. With the engine running,
press button
6 , the indicator
lamp comes on.
The system demists the
rear screen.
It is switched off by pressing control 6 .
In a humid climate, use of the
air recirculation may cause
misting of the windows. Switch the system off as
soon as you consider
this necessary as a lower
consumption of current
reduces fuel consumption.
Demisting and defrosting
To quickly demist or defrost the
windscreen and side windows:
- set the air distribution to "Windscreen and side windows",
- place the temperature control 2
a n d t h e a i r fl o w c o n t r o l 3 at
maximum,
- close the side vents,
- place the air intake control 4 in
the "Air intake" position,
- switch on the air conditioning by pressing button 1 .
Page 49 of 99
4
47
ACCESS
IMMOBILISER
This locks the engine control system
as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
In the event of a malfunction, your
vehicle will not start.
Consult a CITROËN dealer.
Changing the remote control
battery
To change the battery, remove the
screw then unclip the housing using
a coin inserted at the ring.
Battery CR2016/3 volts.
If the remote control does not work
after the battery has been changed,
reinitialise it.
Reinitialising the remote
control
Following replacement of the remote
control battery or in the event of a
remote control malfunction, it may be
necessary to reinitialise the system.
Switch off the ignition.
Switch the ignition on again.
Press one of the remote control
buttons immediately for a few
seconds.
Switch off the ignition and remove
the key from the ignition lock.
The remote control is now working
again.
If the malfunction persists, contact a
CITROËN dealer. Driving with the doors locked
may make access to the
passenger compartment by
the emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
As a safety measure (with children
on board), remove the key from the
ignition when leaving the vehicle,
even for a short time.
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Do not discard the remote
control batteries, they contain
metals which are harmful to
the environment.
Take them to a CITROËN dealership,
or to any other approved collection
point. The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of
your vehicle, you risk rendering it
inoperative. It would then have to be
reinitialised.
Page 50 of 99
4
47
ACCESS
IMMOBILISER
This locks the engine control system
as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
In the event of a malfunction, your
vehicle will not start.
Consult a CITROËN dealer.
Changing the remote control
battery
To change the battery, remove the
screw then unclip the housing using
a coin inserted at the ring.
Battery CR2016/3 volts.
If the remote control does not work
after the battery has been changed,
reinitialise it.
Reinitialising the remote
control
Following replacement of the remote
control battery or in the event of a
remote control malfunction, it may be
necessary to reinitialise the system.
Switch off the ignition.
Switch the ignition on again.
Press one of the remote control
buttons immediately for a few
seconds.
Switch off the ignition and remove
the key from the ignition lock.
The remote control is now working
again.
If the malfunction persists, contact a
CITROËN dealer. Driving with the doors locked
may make access to the
passenger compartment by
the emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
As a safety measure (with children
on board), remove the key from the
ignition when leaving the vehicle,
even for a short time.
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Do not discard the remote
control batteries, they contain
metals which are harmful to
the environment.
Take them to a CITROËN dealership,
or to any other approved collection
point. The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of
your vehicle, you risk rendering it
inoperative. It would then have to be
reinitialised.
Page 55 of 99
4
51
ACCESS
FILLING THE FUEL TANK
O p e n t h e f u e l fi l l e r fl a p .
Insert the key, turn it slightly to the
left then return to the right. The
key returns to its initial position
and the cap is unlocked.
Low fuel level
When the fuel tank minimum
level is reached, the last
s e g m e n t fl a s h e s , a c c o m p a n i e d
by an audible signal.
You have approximately 5 litres
remaining.
In certain driving conditions and depending
on the engine, the distance which can be
travelled with the fuel remaining may be
less than 30 miles (50 km).
W h e n t h e f r e q u e n c y o f t h e fl a s h i n g
increases, you have approximately
3 litres remaining .
Unscrew the cap and hook it onto
the clip located on the inside of
t h e fl a p .
A l a b e l a f fi x e d o n t h e i n s i d e o f t h e
fl a p r e m i n d s y o u w h i c h t y p e o f f u e l
to use.
W h e n y o u fi l l t h e f u e l t a n k , d o n o t
continue after the 3rd cut-off of the
pump. This could cause malfunctions.
Remove the key.
Note : if you run out of fuel,
the emission control system
warning lamp may come on
on the instrument panel. It
will switch off automatically after the
engine has been started a few times.
T h e f u e l t a n k m u s t b e fi l l e d
with the engine switched
off .
The capacity of the fuel tank is
approximately 35 litres.
A f t e r fi l l i n g t h e f u e l t a n k , s c r e w
the cap back on fully to the right
u n t i l i t c l i c k s a n d c l o s e t h e fl a p .
Page 61 of 99
6
56
SAFETY When this warning lamp
comes on, it indicates that
there is a malfunction of the
ABS, which can cause a
loss of control of the vehicle
when braking.
C o n s u l t a C I T R O Ë N d e a l e r .
When these warn-
ing lamps come
on simultaneously,
it indicates that
there is a malfunc-
tion of the braking system or that the
parking brake has not been released
fully, which can cause a loss of con-
trol of the vehicle when braking.
Stop immediately.
C o n s u l t a C I T R O Ë N d e a l e r .
N o r m a l o p e r a t i o n o f t h e
ABS may make itself felt by
slight vibrations of the brake
pedal.
In emergency braking,
p r e s s v e r y fi r m l y w i t h o u t
releasing the pressure. TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP)
These systems are linked and supplement the ABS.
T h e A S R s y s t e m o p t i m i s e s d r i v e t o prevent the wheels skidding, by acting on the brakes of the driving wheels and on the engine. It also allows the directional stability of the vehicle to be improved on acceleration.
If there is a variation between the trajectory followed by the vehicle and that required by the driver, the ESP system automatically acts on the brake of one or more wheels and on the engine to put the vehicle back on course, within the limits of the laws of physics.
Operating check
Operation of the ASR and ESP systems When one of these two systems is operating, this warning lamp comes on.
When a malfunction of the systems occurs, this warning lamp comes on.
T h e A S R / E S P s y s t e m s o f f e r exceptional safety during normal driving, but this should not encourage the driver to take extra risks or drive at high speed.
Correct operation of these systems depends on observation of the manufacturer's recommendations regarding the wheels (tyres and rims), the braking components and the electronic components as well as the C I T R O Ë N d e a l e r r e p a i r p r o c e d u r e s . electronic components as well as the electronic
After an impact, have these systems c h e c k e d b y a C I T R O Ë N d e a l e r . After an impact, have these systems have these
Activation of the ESP system is also accompanied by an audible signal.
C o n t a c t a C I T R O Ë N d e a l e r t o h a v e the systems checked.
Page 62 of 99
6
56
SAFETY When this warning lamp
comes on, it indicates that
there is a malfunction of the
ABS, which can cause a
loss of control of the vehicle
when braking.
C o n s u l t a C I T R O Ë N d e a l e r .
When these warn-
ing lamps come
on simultaneously,
it indicates that
there is a malfunc-
tion of the braking system or that the
parking brake has not been released
fully, which can cause a loss of con-
trol of the vehicle when braking.
Stop immediately.
C o n s u l t a C I T R O Ë N d e a l e r .
N o r m a l o p e r a t i o n o f t h e
ABS may make itself felt by
slight vibrations of the brake
pedal.
In emergency braking,
p r e s s v e r y fi r m l y w i t h o u t
releasing the pressure. TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP)
These systems are linked and supplement the ABS.
T h e A S R s y s t e m o p t i m i s e s d r i v e t o prevent the wheels skidding, by acting on the brakes of the driving wheels and on the engine. It also allows the directional stability of the vehicle to be improved on acceleration.
If there is a variation between the trajectory followed by the vehicle and that required by the driver, the ESP system automatically acts on the brake of one or more wheels and on the engine to put the vehicle back on course, within the limits of the laws of physics.
Operating check
Operation of the ASR and ESP systems When one of these two systems is operating, this warning lamp comes on.
When a malfunction of the systems occurs, this warning lamp comes on.
T h e A S R / E S P s y s t e m s o f f e r exceptional safety during normal driving, but this should not encourage the driver to take extra risks or drive at high speed.
Correct operation of these systems depends on observation of the manufacturer's recommendations regarding the wheels (tyres and rims), the braking components and the electronic components as well as the C I T R O Ë N d e a l e r r e p a i r p r o c e d u r e s . electronic components as well as the electronic
After an impact, have these systems c h e c k e d b y a C I T R O Ë N d e a l e r . After an impact, have these systems have these
Activation of the ESP system is also accompanied by an audible signal.
C o n t a c t a C I T R O Ë N d e a l e r t o h a v e the systems checked.
Page 70 of 99
7
62
DRIVING Driver information
The symbol which corresponds to the
selection, R , N , E or M and the number
of the gear engaged 1 to 5 , are displayed on the instrument panel screen.
SENSODRIVE GEARBOX
T h e fi v e - s p e e d " S e n s o D r i v e " g e a r -
box offers a choice between the
ease of automatic operation or
t h e d r i v i n g p l e a s u r e o f manual gear
changing .
Driving mode
S e l e c t t h e d r i v i n g m o d e b y m o v i n g
t h e g e a r l e v e r .
R e v e r s e " R " . T h i s g e a r w i l l b e e n -
gaged when stationary or at a
speed below approximately 4 mph
(6 km/h).
E n g a g e m e n t o f r e v e r s e g e a r i s
accompanied by an audible signal.
N e u t r a l " N " .
P o s i t i o n t h e l e v e r t o t h e r i g h t i n p o s i -
tion N , to start the engine .
E a s y " E " : a u t o m a t i c g e a r c h a n g i n g .
M a n u a l ( + / - ) " M " : m a n u a l g e a r
changing. Starting the engine
With the parking brake applied, press
the brake pedal then select position
N to start the engine.
With your foot on the brake, select
position R , E or M .
R e l e a s e t h e p a r k i n g b r a k e , t a k e
your foot off the brake pedal, then
accelerate.
Notes: w i t h t h e e n g i n e r u n -
n i n g , i n t h e s e t h r e e p o s i -
tions, an audible signal is
h e a r d w h e n t h e d r i v e r ' s d o o r
is opened.
You can change from position E to
position M a n d v i c e v e r s a a t a n y
time.
Page 71 of 99
7
63
DRIVING
EASY mode (automatic mode)
Select position E u s i n g t h e g e a r l e v e r .
The gear engaged is displayed on
the instrument panel screen.
The gearbox continuously selects
the most suitable gear.
Manual mode
P l a c e t h e g e a r l e v e r i n p o s i t i o n M ,
then change up or down through the
g e a r s b y p r e s s i n g :
- r e a r w a r d s , "+" to change up,
- f o r w a r d s , "-" to change down.
The gear engaged is displayed on
the instrument panel screen.
If the engine speed is too low, the
gearbox automatically changes down
t o p r e v e n t s t a l l i n g .
I n t h e e v e n t o f o v e r h e a t i n g o f
the clutch, position N is selected
automatically and the symbol N
fl a s h e s a c c o m p a n i e d b y a n a u d i b l e
signal. Operating fault
Stopping the engine
Before switching off the engine, you
can change to position N to be in
neutral.
In all cases, it is essential that you
apply the parking brake to immobilise
t h e v e h i c l e . With the ignition on, the
lighting of this warning
lamp indicates a gearbox
malfunction.
On a slope, use the brake
t o i m m o b i l i s e t h e v e h i c l e
a n d p l a c e t h e g e a r l e v e r i n
position N , E or R .
D o n o t k e e p t h e v e h i c l e i m m o b i l i s e d
using the accelerator.
Always press the brake pedal
while starting the engine.
N e v e r s e l e c t n e u t r a l N while
t h e v e h i c l e i s m o v i n g .
In all cases, it is essential to
apply the parking brake to
i m m o b i l i s e t h e v e h i c l e .
C o n t a c t a C I T R O Ë N d e a l e r .
Page 73 of 99
8
66
CHECKS
1.0 LITRE PETROL ENGINE
1. Coolant reservoir
2. Windscreen wash reservoir
3. B r a k e fl u i d r e s e r v o i r
4. Fuse box
5. Battery
6. A i r fi l t e r
7. Engine oil dipstick
8. E n g i n e o i l fi l l e r c a p
1.4 LITRE TURBO DIESEL HDI ENGINE
1. Coolant reservoir
2. Windscreen wash reservoir
3. P r i m i n g p u m p
4. A i r fi l t e r
5. B r a k e fl u i d r e s e r v o i r
6. Fuse box
7. Battery
8. Engine oil dipstick
9. E n g i n e o i l fi l l e r c a p
