display CITROEN C1 2022 User Guide

59
C1_en_Chap03_ergonomie-confort_ed01-2016
Avoid driving for long periods with the air conditioning   switched   off   (risk   of   misting a

nd   reduction   of   the   air   quality   in   the   cabin).
This action switches off all of the functions of
the  air   conditioning   system.
Thermal
  comfort   is   no   longer   controlled.
A s

light   flow   of   air   resulting   from   the   movement
o

f   the   vehicle,   remains   perceptible   however.
Pressing
  the   "AUTO"

button   again   reactivates
t

he   system   with   the   values   set   before   it   was
s

witched   off.
Switching the system off
F Press   the   air   flow   adjustment  b
utton   until   the   fan   symbol
d

isappears.
F
P
ress this button to stop the air
conditioning.
Air conditioning on / off
Stopping the air conditioning may cause some p roblems   (humidity,   misting).
Automatic
  operation   of   the   air   conditioning   is
r

esumed   when   the   button   is   pressed   again.
The "A /C "


symbol   is   displayed.
3
Ease of use and comfort

77
C1_en_Chap04_conduite_ed01-2016
Gear selector
ETG electronic gearbox
The five-speed ETG electronic gearbox offers a choice between the ease of automated operation o r the pleasure of manual gear changing.
R.
 R
everse:   with   your   foot   on   the   brake   pedal,
m

ove   the   gear   selector   to   the   right   then
f

or ward   to   select   this   position.
N.
 N

eutral:   with   your   foot   on   the   brake   pedal,
s

elect   this   position   to   start   the   engine.
E.

A
utomatic   (Easy)   mode:   move   the   gear
s

elector   back   to   select   this   mode.
M.
 M

anual   mode   with   sequential   gear
c

hanging:   move   the   gear   selector   back
t

hen   to   the   left   to   select   this   mode.Press
  behind   the   "+"
 s
teering
 m

ounted   control   paddle   to   change   up.
Steering mounted control paddles
The position of the gear selector (R , N, E or M )  i
s   displayed   in   the   instrument   panel.
In
  automatic   (Easy)   mode,   when   you
t

emporarily   take   control   of   gear   changing,
t

he   gear   engaged   is   also   displayed   in   the
in

strument
 pan
el.
Display in the instrument panel
Press behind the "-"  steering  m
ounted   control   paddle   to   change
d

own.
The
  steering   mounted   control   paddles
c

annot   be   used   to   select   neutral   or   to
e

ngage   or   come   out   of   reverse   gear.
4
Driving

79
C1_en_Chap04_conduite_ed01-2016
Temporarily taking control of
gear changes
You can temporarily take control of gear changes   using   the   "+"  and   "-" steering

m

ounted   control   paddles.
Gear
  change   commands   are   only   acted   on   if
t

he   engine   speed   allows.   There   is   an   audible
s

ignal   if   a   command   is   not   accepted.
The
  gear   engaged   is   displayed   in   the
in

strument
 pan
el.
This function allows you to anticipate certain
situations
  such   as   overtaking   a   vehicle   or
a

pproaching   a   corner.
After
  a   few   moments   with   no   action   on   the
c

ontrols,   the   gearbox   returns   to   automatic
c

ontrol   of   the   gears. It
  is   possible   to   change   mode   at   any   time,   by
m

oving   the   gear   selector   from   position   E to
position M
  and   the   other   way   round.
Never select neutral N when the vehicle
is
  moving.
F

P
lace   the   gear   selector   in   position   M
.
F
C
hange   up   or   down   using:
-  t he   gear   selector,   pushing:
-  b ack,   "+"  to   change   up,
-

f
or ward,   "-"

to   change   down.
-

o
r   the   "+" or "-"


steering   mounted
c

ontrol   paddle.
The
  gear   engaged   is   displayed.
Gear
  change   commands   are   only   acted   on   if
t

he   engine   speed   allows.
It is not necessary to release the accelerator
peal
  during   gear   changes.   There   is   an   audible
s

ignal   if   a   command   is   not   accepted.
When
  braking   or   slowing   down,   the   gearbox
a

utomatically   changes   down   so   that   pick-up   is
i

n   the   right   gear.
Manual mode
Under sharp acceleration, the gearbox will not   change   up   without   action   by   the   driver   on
t

he   gear   selector   or   steering   mounted   control
p

addles   (unless   the   engine   speed   is   close   to
m

aximum).
To
  engage   reverse,   the   vehicle   must   be
s

tationary   with   your   foot   on   the   brake   pedal.
F

Sel
ect position R .
Reverse
There is an audible signal on engaging reverse.
4
Driving

83
C1_en_Chap04_conduite_ed01-2016
Stop & Start (VTi 68 S&S engine)
Operation
Going into engine STOP
mode
This indicator lamp comes on in the instrument   panel   and   the   engine
g

oes   into   standby   automatically:
-

w

hen
  stationary,   in   neutral,   and   you
r

elease   the   clutch   pedal.
Never
  refuel   with   the   engine   in
S

TOP mode;   you   must   switch   off   the
i

gnition   with   the   button.
For
  smoother   operation,   during  p
arking   manoeuvres   STOP   mode   is  n
ot   available   for   a   few   seconds   after
c

oming   out   of   reverse   gear.
The
  Stop   &   Start   does   not   affect   the
v

ehicle's   systems,   such   as   for   example,
b

raking,   power   steering...
The

Stop

&

Start system

puts

the

engine

t

emporarily

into

standby

-

STOP

mode

-

during

s

tops

in

the

traffic

(red

lights,

traffic

jams,

or
 o
ther...).

The

engine

restarts

automatically

-
 S
TART

mode

-

as

soon

as

you

want

to

move

o

ff.

The

restart

takes

place

instantly,

quickly

a

nd

silently.
Per fect

for

urban

use,

the

Stop

&

Start

system

r

educes

fuel

consumption

and

exhaust

e

missions

as

well

as

the

noise

level

when

s

tationary.
Stop & Start time counters
A partial time counter counts the periods in S TOP   mode   during   a   journey.
It
  is   displayed   in   the   trip   computer   once   the
S

top   &   Start   is   operating.
Press one of the " DISP" buttons to return to the
previous
 d

isplay.
A
  global   time   counter   counts   the   periods   in
S

TOP   mode   since   the   last   reset.
When
  it   is   displayed,   press   one   of   the
"D

ISP " buttons
  to   reset   the   counter.
4
Driving

86
C1_en_Chap04_conduite_ed01-2016
The speed limiter cannot, in any circumstances,   replace   the   need   to o

bserve   speed   limits,   nor   can   it   replace   the
 n

eed   for   vigilance   on   the   part   of   the   driver.
Speed limiter (PureTech 82 engine)
The speed limiter is switched on  manually: t
his   can   be   done   whatever   the   speed   of   the
v

ehicle.   However,   if   you   are   driving   at   less   than
2

0   mph   (30   km/h),   the   programmed   speed   will
b

e   fixed   at   20   mph   (30   km/h).
The
  speed   limiter   is   paused by operation of the
control.
The
  programmed   speed   can   be   exceeded
t

emporarily   by   pressing   the   accelerator   firmly
b

eyond   the   point   of   resistance.
To
  return   to   the   programmed   speed,   simply
r

elease   the   accelerator   pedal   until   the   vehicle
r

eturns   to   the   programmed   speed   limit.
System
  which   prevents   the   vehicle   from   exceeding   the   speed   programmed   by   the   driver.Steering mounted controls
The controls are grouped together on this c
ontrol   stalk   at   the   steering   wheel.
1.
 S

peed   limiter   on   /   off:   by   pressing   the   end
o

f   the   control   stalk.
2.
 D

ecrease   the   setting:   by   pushing   the
c

ontrol   stalk   down.
3.
 I

ncrease   the   setting:   by   pushing   the   control
s

talk   up.
4.
 S

peed   limiter   on   /   pause:   by   pulling   the
c

ontrol   stalk   towards   you.
Displays in the instrument panel
The information is grouped together in the instrument   panel   screen.
5.
 S

peed   limiter   mode   selection   indication.
6.
 S

peed   limiter   on   /   pause   indication.
7.
 S

peed   value   setting.
The

programmed

speed

remains

in

the
 m

emory

when

the

ignition

is

switched

off.
Driving

87
C1_en_Chap04_conduite_ed01-2016

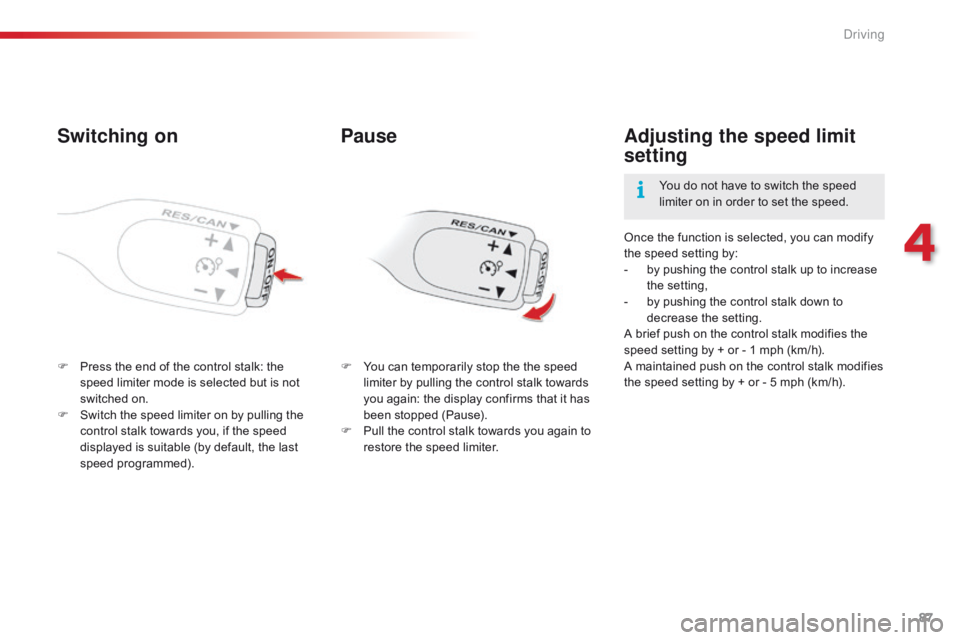

Switching on
F Press  the   end   of   the   control   stalk:   the  s
peed   limiter   mode   is   selected   but   is   not
s

witched   on.
F

S
witch   the   speed   limiter   on   by   pulling   the
c

ontrol   stalk   towards   you,   if   the   speed
d

isplayed   is   suitable   (by   default,   the   last
s

peed
 pro
grammed). Once
  the   function   is   selected,   you   can   modify
t

he   speed   setting   by:
-
b
y   pushing   the   control   stalk   up   to   increase
t

he
 se
tting,
-
b
y   pushing   the   control   stalk   down   to
d

ecrease
 t
he
 se
tting.
A   brief   push   on   the   control   stalk   modifies   the
s

peed   setting   by   +   or   -   1   mph   (km/h).
A   maintained   push   on   the   control   stalk   modifies  t
he   speed   setting   by   +   or   -   5   mph   (km/h).
Adjusting the speed limit
setting
You do not have to switch the speed l
imiter   on   in   order   to   set   the   speed.
Pause
F You  can   temporarily   stop   the   the   speed  l
imiter   by   pulling   the   control   stalk   towards
y

ou   again:   the   display   confirms   that   it   has
b

een   stopped   (Pause).
F

P
ull   the   control   stalk   towards   you   again   to
r

estore   the   speed   limiter.
4
Driving

88
C1_en_Chap04_conduite_ed01-2016

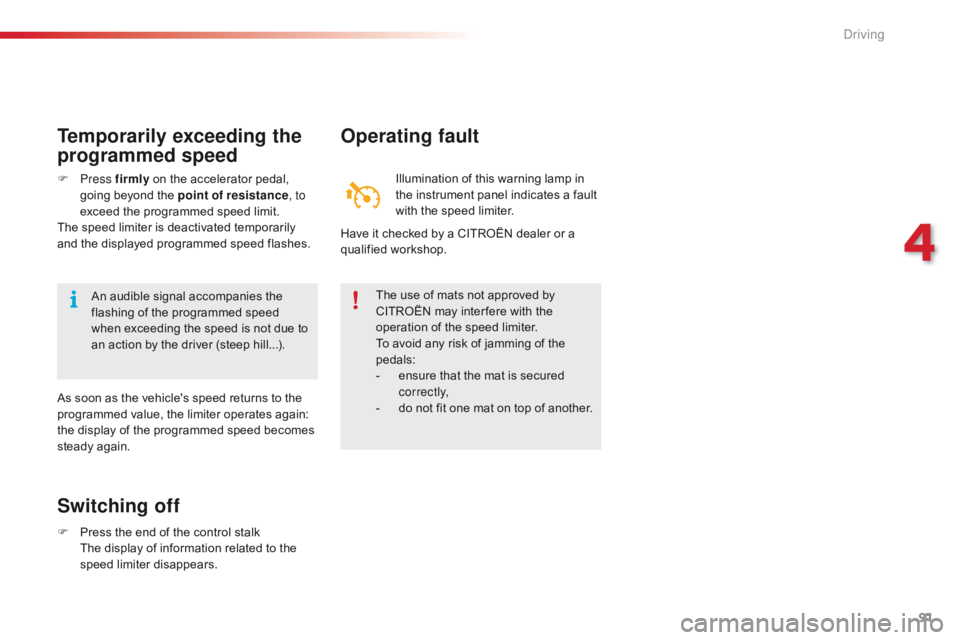

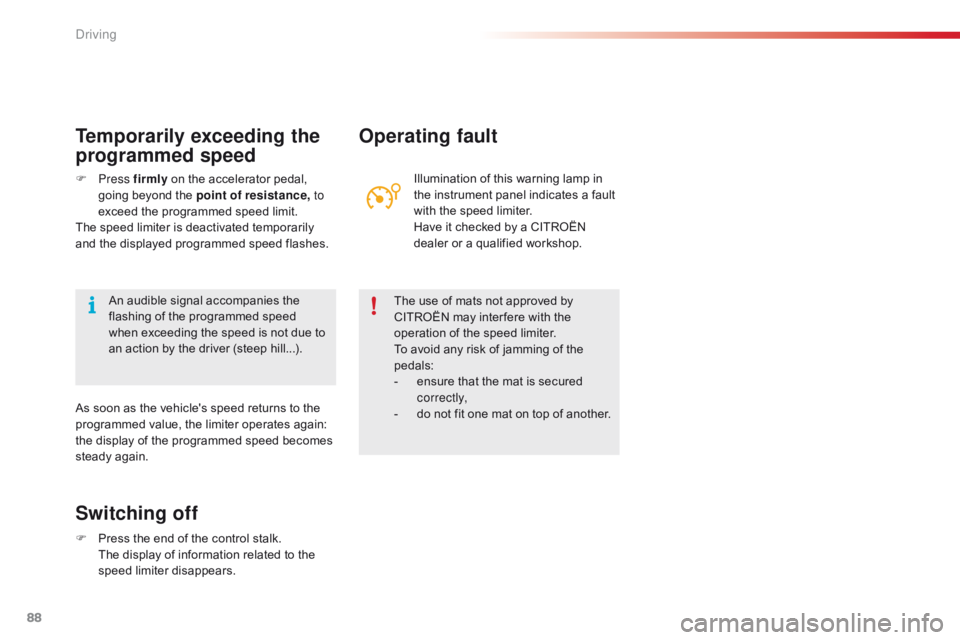

Switching off
F Press  the   end   of   the   control   stalk. T
he   display   of   information   related   to   the
sp

eed
 l
imiter
 d
isappears.
Operating fault
Illumination of this warning lamp in the   instrument   panel   indicates   a   fault
w

ith   the   speed   limiter.
Have
  it   checked   by   a   CITROËN
d

ealer   or   a   qualified   workshop.
The
  use   of   mats   not   approved   by
C

ITROËN   may   inter fere   with   the
o

peration   of   the   speed   limiter.
To

avoid   any   risk   of   jamming   of   the
ped

als:
-

e
nsure   that   the   mat   is   secured
c

o r r e c t l y,
-

d
o   not   fit   one   mat   on   top   of   another.
Temporarily exceeding the
programmed speed
F Press f irmly  on   the   accelerator   pedal,  g
oing   beyond   the   point of resistance, to
exceed
  the   programmed   speed   limit.
The
  speed   limiter   is   deactivated   temporarily
a

nd   the   displayed   programmed   speed   flashes.
As
  soon   as   the   vehicle's   speed   returns   to   the
p

rogrammed   value,   the   limiter   operates   again:
t

he   display   of   the   programmed   speed   becomes
s

teady   again.
An
  audible   signal   accompanies   the
f

lashing   of   the   programmed   speed
w

hen   exceeding   the   speed   is   not   due   to
a

n   action   by   the   driver   (steep   hill...).
Driving

89
C1_en_Chap04_conduite_ed01-2016
Speed limiter (VTi 68 engine)
System which prevents the vehicle from exceeding the speed programmed by the driver.
T he   speed   limiter   is   switched on
 m
anually:
 t

his   can   be   done   whatever   the   speed   of   the
v

ehicle.   However,   if   you   are   driving   at   less   than
2

0   mph   (30   km/h),   the   programmed   speed   will
b

e   fixed   at   20   mph   (30   km/h).
The
  speed   limiter   is   paused by operation of the
control.
The
  programmed   speed   can   be   exceeded
t

emporarily   by   pressing   the   accelerator   firmly
b

eyond   the   point   of   resistance.
To
  return   to   the   programmed   speed,   simply
r

elease   the   accelerator   pedal   until   the   vehicle
r

eturns   to   the   programmed   speed   limit.
The
  programmed   limit   speed   is   erased
w

hen   switching   off   the   ignition.
Steering mounted controls
The controls are grouped together on this control   stalk   at   the   steering   wheel.
1.
 S

peed   limiter   on   /   off:   by   pressing   the   end
o

f   the   control   stalk.
2.
 P

rogramming   the   speed
 D

ecrease   the   setting:   by   pushing   the
c

ontrol   stalk   down.
3.
 R

estore   speed   limiter
 I

ncrease   the   setting:   by   pushing   the   control
s

talk   up.
4.
 P

ause   speed   limiter:   by   pulling   the   control
s

talk   towards   you.
Displays in the instrument panel
The information is grouped together in the instrument   panel   screen.
5.
 S

peed   limiter   on   /   pause   indication.
6.
 S

peed   value   setting.
The speed limiter cannot, in any circumstances,   replace   the   need   to   observe s

peed   limits,   nor   can   it   replace   the   need   for
 v

igilance   on   the   part   of   the   driver.
If you choose to display other information (trip  A
  for   example),   the   speed   limiter
i

nformation   is   automatically   displayed   again
a

fter   about   6   seconds.
4
Driving

91
C1_en_Chap04_conduite_ed01-2016
Switching off
F Press  the   end   of   the   control   stalk T
he   display   of   information   related   to   the
sp

eed
 l
imiter
 d
isappears.
Operating fault
Illumination of this warning lamp in the   instrument   panel   indicates   a   fault
w

ith   the   speed   limiter.
The
  use   of   mats   not   approved   by
C

ITROËN   may   inter fere   with   the
o

peration   of   the   speed   limiter.
To

avoid   any   risk   of   jamming   of   the
ped

als:
-

e
nsure   that   the   mat   is   secured
c

o r r e c t l y,
-

d
o   not   fit   one   mat   on   top   of   another.
Temporarily exceeding the
programmed speed
F Press f irmly  on   the   accelerator   pedal,  g
oing   beyond   the   point of resistance,
to
exceed
  the   programmed   speed   limit.
The
  speed   limiter   is   deactivated   temporarily
a

nd   the   displayed   programmed   speed   flashes.Have
  it   checked   by   a   CITROËN   dealer   or   a
q

ualified
 w
orkshop.
An
  audible   signal   accompanies   the
f

lashing   of   the   programmed   speed
w

hen   exceeding   the   speed   is   not   due   to
a

n   action   by   the   driver   (steep   hill...).
As
  soon   as   the   vehicle's   speed   returns   to   the
p

rogrammed   value,   the   limiter   operates   again:
t

he   display   of   the   programmed   speed   becomes
s

teady   again.
4
Driving

93
C1_en_Chap04_conduite_ed01-2016
Lane departure warning system
System which detects the unintended crossing of longitudinal traffic lane markings on the ground, using a camera that recognises both solid and broken   lines.
To
  improve   your   safety,   the   camera   analyses   the   image   and   then   triggers   a   warning   if   the   vehicle   wanders   over   a   lane   marking   (speed   higher   than
3

0 mph   (50   km/h)).
This
  system   is   particularly   suitable   for   motor ways   and   dual   carriageways.
The
  lane   departure   warning   system
c

annot   in   any   circumstances   replace
t

he   need   for   vigilance   on   the   part   of   the
d

river.
It
  is   necessary   to   observe   driving
r

egulations   and   take   a   break   every
two
  hours.
Activation
F Press  this   button,   located   on   the   steering  w
heel.
Detection
You are alerted by an audible signal and the display   of   a   warning   lamp   in   the   instrument   panel.
No
  alert   is   given   if   the   direction
i

ndicators   are   on   and   for   around
20
  seconds   after   they   stop   flashing.
The

s

ystem

s

hould

b

e

d

eactivated

w

hen

d

riving

with

snow

chains

or

the

spare

w

heel

fitted.
4
Driving
