Citroen C1 DAG 2008 1.G Owner's Manual

4
FAMILIARISATION

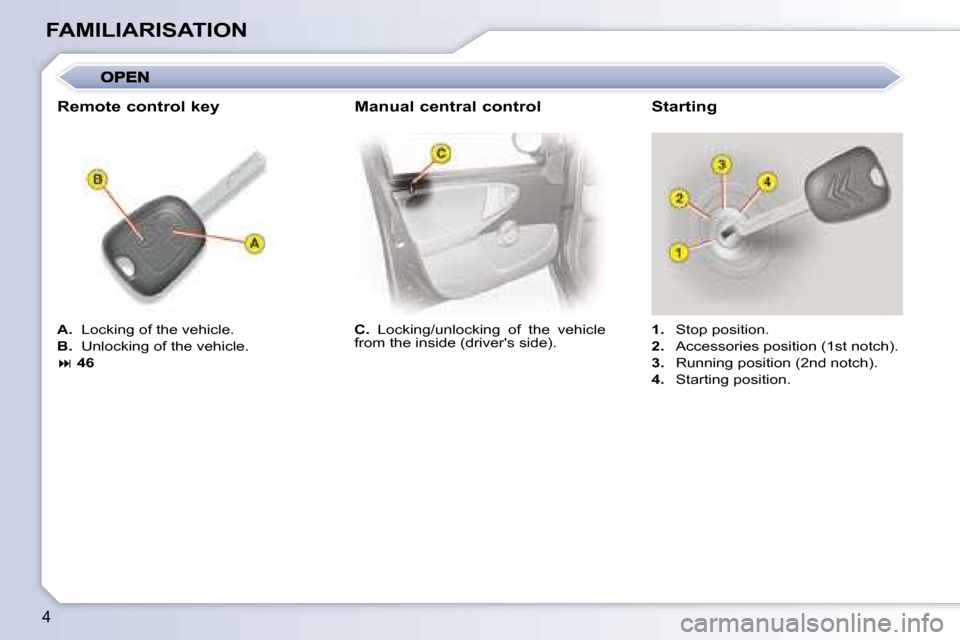

C. Locking/unlocking of the vehicle
from the inside (driver's side).
1. Stop position.

2. Accessories position (1st notch).

3. Running position (2nd notch).

4. Starting position.

A. Locking of the vehicle.

B. Unlocking of the vehicle.

 46
Remote control key Manual central control Starting

5
When this block fl ashes,
accompanied by an audible
signal, you have enough
fuel left to drive approxi-
mately 30 miles (50 km).
1. Internal control.

2. External control.

3. Bonnet strut.

 64

 51
Low fuel level
Remove the key and unscrew the
cap.
After fi lling the fuel tank, screw the
cap back on fully to the right until it
clicks and close the fl ap.
Fuel tank capacity: approximately
35 litres.
After opening the fl ap, insert the key,
turn it slightly to the left then return to
the right. The key returns to its initial
position and the cap is unlocked. OPEN
Fuel tank Bonnet

6
FAMILIARISATION Manual air conditioning
This air conditioning system opti-
mises the distribution of the air and
its temperature inside the passen-
ger compartment.

 33
SensoDrive gearbox
This fi ve-speed robotised manual
gearbox offers a choice between
the comfort of fully automatic op-
eration and the pleasure of manual
gear changing.

 62 Auxiliary socket for portable
equipment
Compatible with many MP3 play-
ers, this socket allows you to listen
to your favourite tracks while trav-
elling. Refer to the conditions of
use in the "Audio" section.

 23
INTERIOR

7

1. Bonnet release

2. Headlamp adjustment

3. Passenger air bag disarming

4. Side adjustable and closing vent

5. Lights and direction indicators
stalk

6. Driver's front air bag
Horn

7. Fascia fuse box (under the
instrument panel trim, on the
right and on the left)

8. Rev counter

9. Passenger exterior mirror control

10. Passenger electric window control

11. Gear lever

12. Cup holder

13. Steering wheel height adjustment
INSTRUMENTS AND CONTROLS

8
FAMILIARISATION
1. Driver's exterior mirror control

2. Instrument panel

3. Wipers stalk

4. Steering lock and ignition

5. Hazard warning lights

6. Storage compartments

7. Diffusion grille

8. Windscreen deicing and
demisting vent

9. Passenger front air bag

10. Side adjustable and closing vent

11. Storage box

12. Audio equipment

13. Ventilation, heating or air
conditioning controls

14. Storage compartments

15. 12 V socket (120 W max)

16. Handbrake

17. Driver's electric window control
INSTRUMENTS AND CONTROLS

9

1. Forwards-backwards adjustment. 2. Seat back angle adjustment. 3. Access to rear seats.

 36
Front seats

10
FAMILIARISATION
A. Opening and closing control.
Push or pull control A .

 48
B. Exterior mirrors adjustment control.
When the vehicle is parked, the
mirrors can be folded and unfolded
manually.

 35 C.
Steering wheel height adjustment
locking and unlocking control.

1. Control unlocked.

2. Control locked.

 35
SIT COMFORTABLY
Front electric windows Mirrors Steering wheel adjus tment
(with power steering)

11
Lights stalk
Front and rear lights
Ring A Lights off.
Side lights.
Dipped headlamps/Main
beam headlamps. Rear fog lamp
Ring B

 52 Wipers stalk
Windscreen wipers

MIST Single wipe.

OFF Off.

INT Intermittent wipe.

LO Normal wipe (moderate rain).

HI Rapid wipe (heavy rain).
Rear wiper and wash-wipe
Ring C
 53

12
FAMILIARISATION Temperature adjustment
Air fl ow adjustment
Air distribution
adjustment Rear screen
demisting

 32 Air conditioning
Temperature adjustment
Air recirculation/ Air intake
Air distribution
adjustment Air conditioning
On/Off

 33 Air fl ow adjustment
Rear screen demisting
Heating

13

I require...
Heating or Manual air conditioning

Air distribution Air fl ow
Air recirculation/
Intake of exterior air
Temperature Manual AC

HOT

COLD

DEMISTING
DE-ICING
Recommended interior settings
