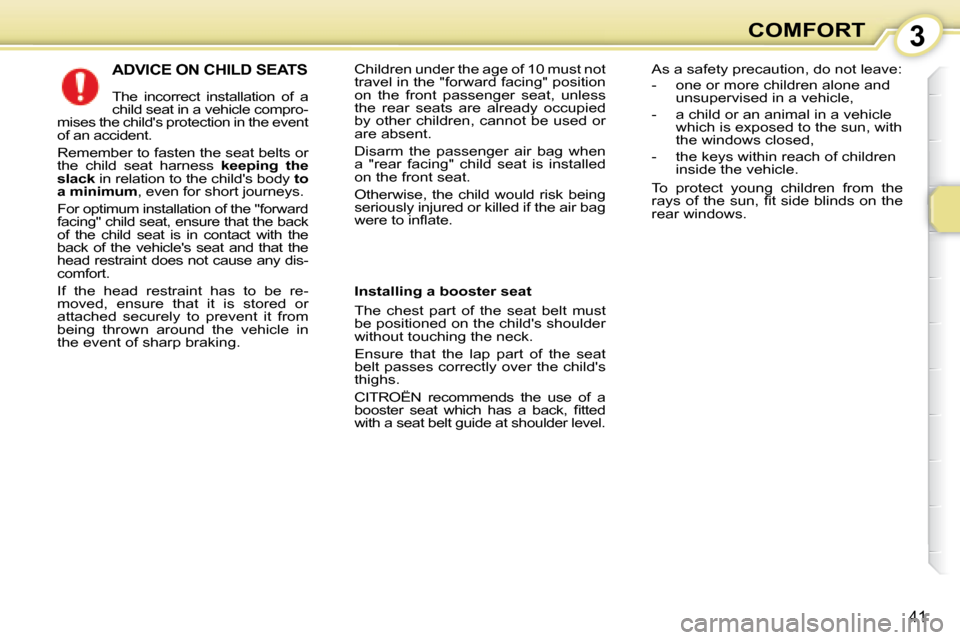

ADVICE ON CHILD SEATS
The incorrect installation of a
child seat in a vehicle compro-
mises the child's protection in the event
of an accident.
Remember to fasten the seat belts or
the child seat harness k e e p i n g t h e
s l a c k in relation to the child's body to
a minimum , even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back
of the child seat is in contact with the
back of the vehicle's seat and that the
head restraint does not cause any dis-
comfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking. Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Disarm the passenger air bag when
a "rear facing" child seat is installed
on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
w e r e t o i n fl a t e .
As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
I n s t a l l i n g a b o o s t e r s e a t
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
CITROËN recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
with a seat belt guide at shoulder level.
Page 42 of 97
3
42
COMFORT

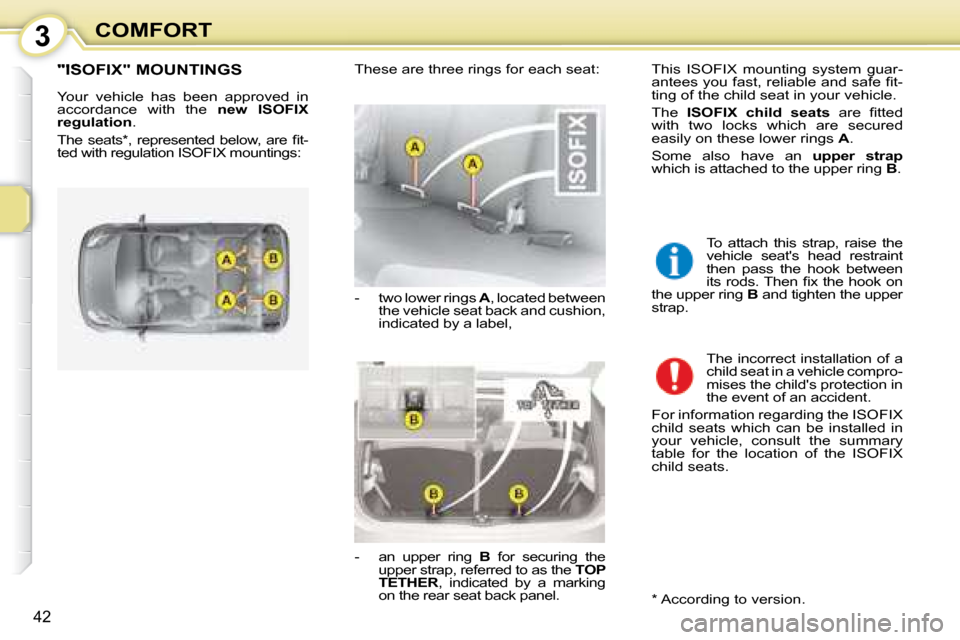

"ISOFIX" MOUNTINGS
Your vehicle has been approved in
accordance with the n e w I S O F I X
r e g u l a t i o n .
T h e s e a t s * , r e p r e s e n t e d b e l o w , a r e fi t -
ted with regulation ISOFIX mountings: These are three rings for each seat: This ISOFIX mounting system
guar-
a n t e e s y o u f a s t , r e l i a b l e a n d s a f e fi t -
ting of the child seat in your vehicle.
The I S O F I X c h i l d s e a t s a r e fi t t e d
with two locks which are secured
easily on these lower rings A .
Some also have an upper strap
which is attached to the upper ring B .
- two lower rings A , located between
the vehicle seat back and cushion,
indicated by a label,
* According to version.
- an upper ring
B for securing the
upper strap, referred to as the TOP
TETHER , indicated by a marking
on the rear seat back panel. To attach this strap, raise the
vehicle seat's head restraint
then pass the hook between
i t s r o d s . T h e n fi x t h e h o o k o n
the upper ring B and tighten the upper
strap.
The incorrect installation of a
child seat in a vehicle compro-
mises the child's protection in
the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary
table for the location of the ISOFIX
child seats.
Page 43 of 97
3
43
COMFORT
T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X m o u n t i n g s . I n t h i s c a s e , i t m u s t b e a t t a c h e d
to the vehicle seat using the three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u f a c t u r e r ' s i n s t a l l a t i o n g u i d e .

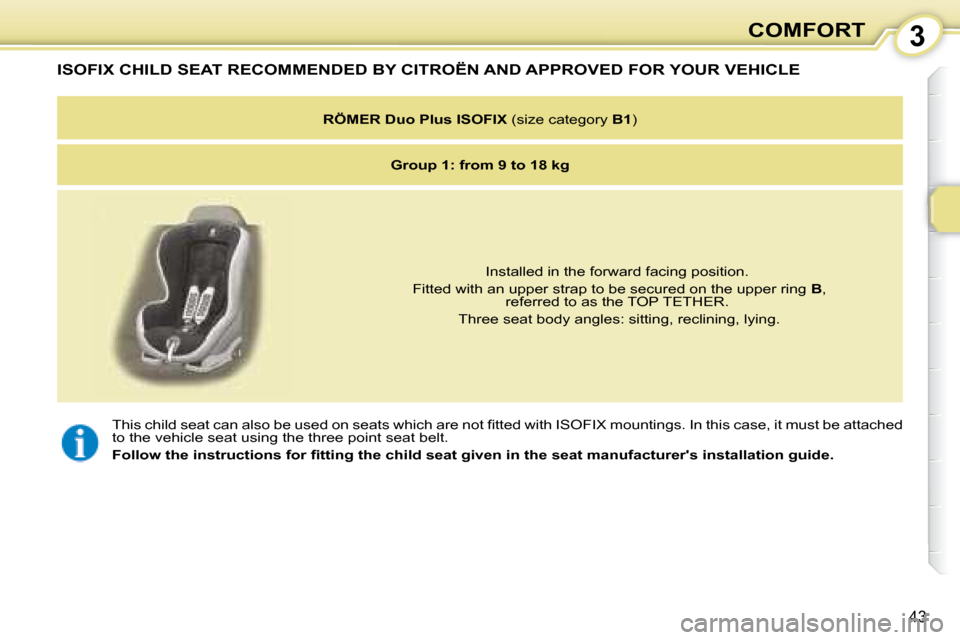

ISOFIX CHILD SEAT RECOMMENDED BY CITROËN AND APPRO VED FOR YOUR VEHICLE
R Ö M E R D u o P l u s I S O F I X (size category B1 )
G r o u p 1 : f r o m 9 t o 1 8 k g
Installed in the forward facing position.
Fitted with an upper strap to be secured on the upper ring B ,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
Page 44 of 97
3
44
COMFORT
SUMMARY TABLE FOR THE LOCATION OF ISOFIX CHILD SEATS
IUF : seat approved for a Universal
I s o fi x s e a t , " F o r w a r d f a c i n g " w i t h
the "Top Tether" upper strap.
IL-SU : seat suitable for the installation
of a semi-universal ISOFIX
seat, that is:
- " r e a r f a c i n g " fi t t e d w i t h a n u p p e r strap or a support
- " f o r w a r d f a c i n g " fi t t e d w i t h a support
- a n i n f a n t c a r s e a t fi t t e d w i t h a n upper strap or a support.
* T h e I S O F I X i n f a n t c a r s e a t i s fi x e d to the lower rings of an ISOFIX seat
and occupies the two rear seats.
X
: seat not suitable for the installation
of an ISOFIX child seat of the size
category indicated.
In accordance with the European
regulation
ECE 16 , this table indi-
cates the options for the installation
of ISOFIX child seats on the vehicle
s e a t s fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of the universal and semi-
universal ISOFIX child seats, the
child seat's ISOFIX size category,
determined by a letter A , B , B1 , C ,
D , E , F , G , is indicated on the child
seat next to the ISOFIX logo.
W e i g h t o f t h e c h i l d /indicative age
L e s s t h a n 1 0 k g
(group 0)
Up to 6 months approx
L e s s t h a n 1 0 k g
(group 0)
L e s s t h a n 1 3 k g (group 0+)
Up to 1 year approx
F r o m 9 t o 1 8 k g ( g r o u p 1 )
From 1-3 years approx
T y p e o f I S O F I X c h i l d s e a t Infant car seat * "rear facing" "rear facing" " f o r w a r d f a c i n g "
ISOFIX size category F G C D E C D A B B1
U n i v e r s a l I S O F I X c h i l d s e a t s
w h i c h c a n b e i n s t a l l e d o n t h e rear seats
X X X X X
IUF
IL-SU
Page 45 of 97
3
45
COMFORT

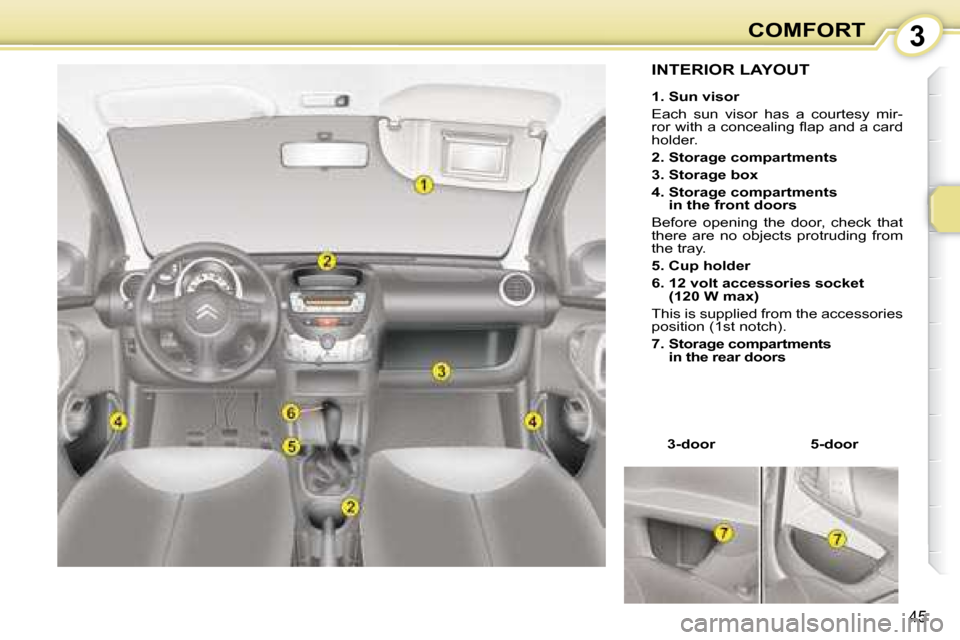

INTERIOR LAYOUT
1 . S u n v i s o r
Each sun visor has a courtesy mir-
r o r w i t h a c o n c e a l i n g fl a p a n d a c a r d
holder.
2. Storage compartments
3. Storage box
4. Storage compartments
in the front doors
Before opening the door, check that
there are no objects protruding from
the tray.
5 . C u p h o l d e r
6 . 1 2 v o l t a c c e s s o r i e s s o c k e t
(120 W max)
This is supplied from the accessories
position (1st notch).
7. Storage compartments in the rear doors
3-door 5-door
Page 46 of 97
4
46
ACCESS

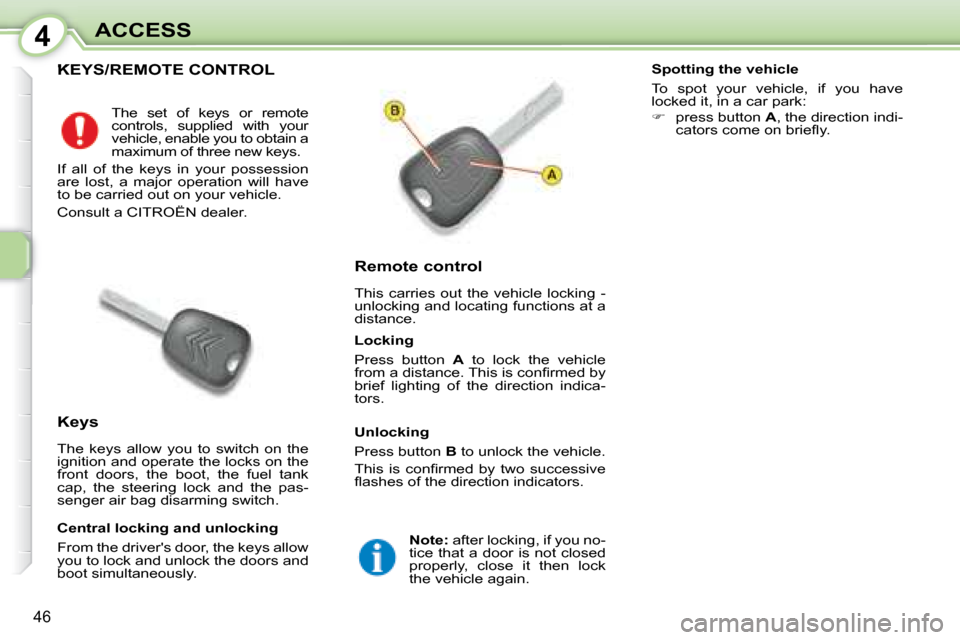

KEYS/REMOTE CONTROL
Remote control
This carries out the vehicle locking -
unlocking and locating functions at a
distance.
Keys
The keys allow you to switch on the
ignition and operate the locks on the
front doors, the boot, the fuel tank
cap, the steering lock and the pas-
senger air bag disarming switch. Locking
Press button
A to lock the vehicle
f r o m a d i s t a n c e . T h i s i s c o n fi r m e d b y
brief lighting of the direction indica-
tors.
Central locking and unlocking
From the driver's door, the keys allow
you to lock and unlock the doors and
boot simultaneously. Unlocking
Press button
B to unlock the vehicle.
T h i s i s c o n fi r m e d b y t w o s u c c e s s i v e
fl a s h e s o f t h e d i r e c t i o n i n d i c a t o r s . Spotting the vehicle
To spot your vehicle, if you have
locked it, in a car park:
press button A , the direction indi-
c a t o r s c o m e o n b r i e fl y .
Note: after locking, if you no-
tice that a door is not closed
properly, close it then lock
the vehicle again.
The set of keys or remote
controls, supplied with your
vehicle, enable you to obtain a
maximum of three new keys.
If all of the keys in your possession
are lost, a major operation will have
to be carried out on your vehicle.
Consult a CITROËN dealer.
Page 47 of 97
4
47
ACCESS
IMMOBILISER This locks the engine control sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
In the event of a malfunction, your
vehicle will not start.
Consult a CITROËN dealer.

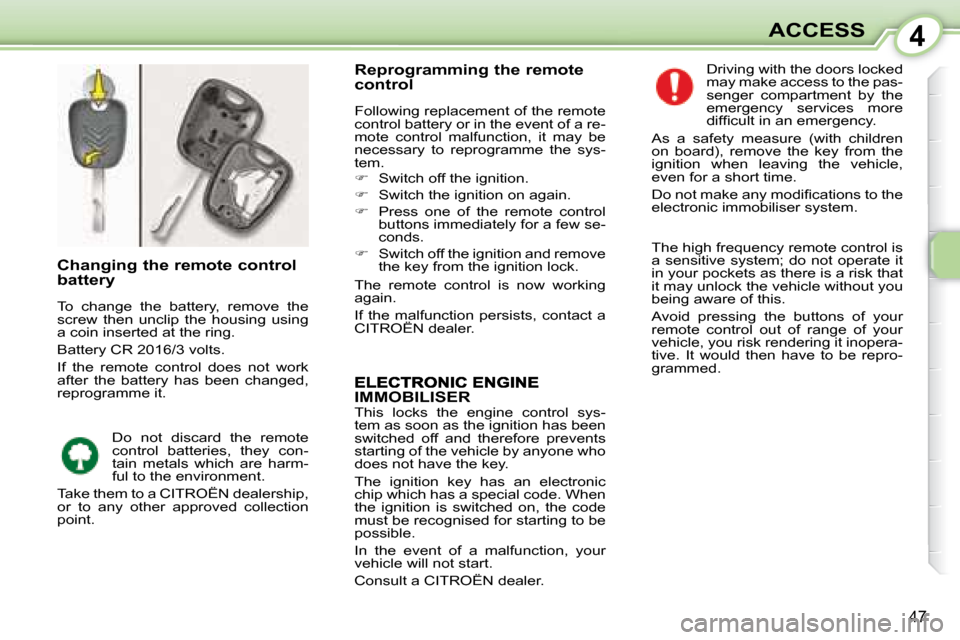

Changing the remote control
battery
To change the battery, remove the
screw then unclip the housing using
a coin inserted at the ring.
Battery CR 2016/3 volts.
If the remote control does not work
after the battery has been changed,
reprogramme it. Reprogramming the remote
control
Following replacement of the remote
control battery or in the event of a re-
mote control malfunction, it may be
necessary to reprogramme the sys-
tem.
Switch off the ignition.
Switch the ignition on again.
Press one of the remote control
buttons immediately for a few se-
conds.
Switch off the ignition and remove
the key from the ignition lock.
The remote control is now working
again.
If the malfunction persists, contact a
CITROËN dealer. Driving with the doors locked
may make access to the pas-
senger compartment by the
emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
As a safety measure (with children
on board), remove the key from the
ignition when leaving the vehicle,
even for a short time.
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Do not discard the remote
control batteries, they con-
tain metals which are harm-
ful to the environment.
Take them to a CITROËN dealership,
or to any other approved collection
point. The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of your
vehicle, you risk rendering it inopera-
tive. It would then have to be repro-
grammed.
Page 48 of 97
4
47
ACCESS
IMMOBILISER This locks the engine control sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
In the event of a malfunction, your
vehicle will not start.
Consult a CITROËN dealer.
Changing the remote control
battery
To change the battery, remove the
screw then unclip the housing using
a coin inserted at the ring.
Battery CR 2016/3 volts.
If the remote control does not work
after the battery has been changed,
reprogramme it. Reprogramming the remote
control
Following replacement of the remote
control battery or in the event of a re-
mote control malfunction, it may be
necessary to reprogramme the sys-
tem.
Switch off the ignition.
Switch the ignition on again.
Press one of the remote control
buttons immediately for a few se-
conds.
Switch off the ignition and remove
the key from the ignition lock.
The remote control is now working
again.
If the malfunction persists, contact a
CITROËN dealer. Driving with the doors locked
may make access to the pas-
senger compartment by the
emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
As a safety measure (with children
on board), remove the key from the
ignition when leaving the vehicle,
even for a short time.
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Do not discard the remote
control batteries, they con-
tain metals which are harm-
ful to the environment.
Take them to a CITROËN dealership,
or to any other approved collection
point. The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of your
vehicle, you risk rendering it inopera-
tive. It would then have to be repro-
grammed.
Page 49 of 97
4
48

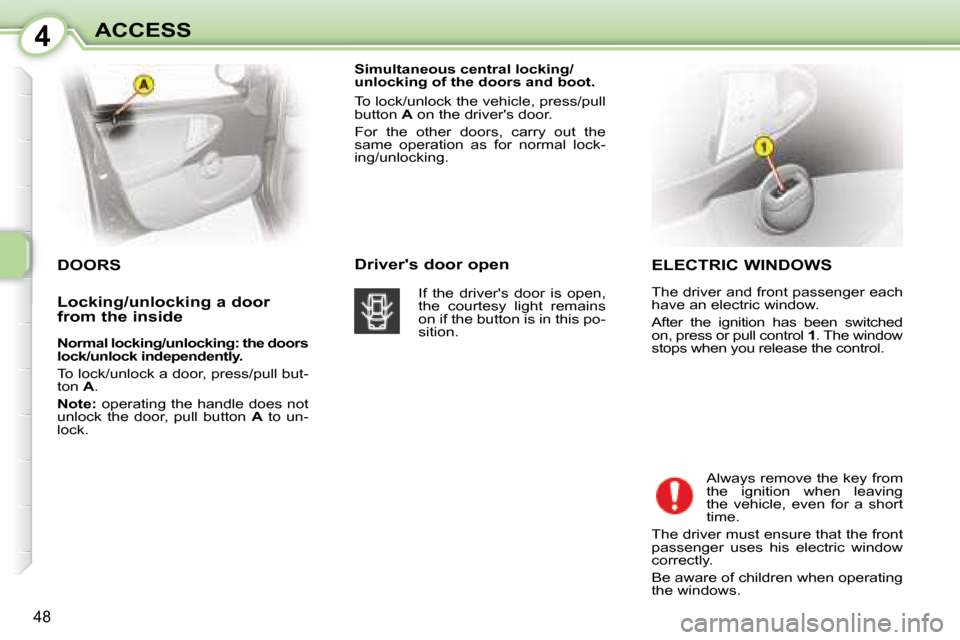

ACCESS ELECTRIC WINDOWS
The driver and front passenger each
have an electric window.
After the ignition has been switched
on, press or pull control 1 . The window
stops when you release the control.
Always remove the key from
the ignition when leaving
the vehicle, even for a short
time.
The driver must ensure that the front
passenger uses his electric window
correctly.
Be aware of children when operating
the windows.
DOORS
Simultaneous central locking/
unlocking of the doors and boot.
To lock/unlock the vehicle, press/pull
button A on the driver's door.
For the other doors, carry out the
same operation as for normal lock-
ing/unlocking.
Driver's door open
If the driver's door is open,
the courtesy light remains
on if the button is in this po-
sition.
Locking/unlocking a door
from the inside
Normal locking/unlocking: the doors
lock/unlock independently.
To lock/unlock a door, press/pull but-
ton A .
Note: operating the handle does not
unlock the door, pull button A to un-
lock.
Page 50 of 97
4
49
ACCESS

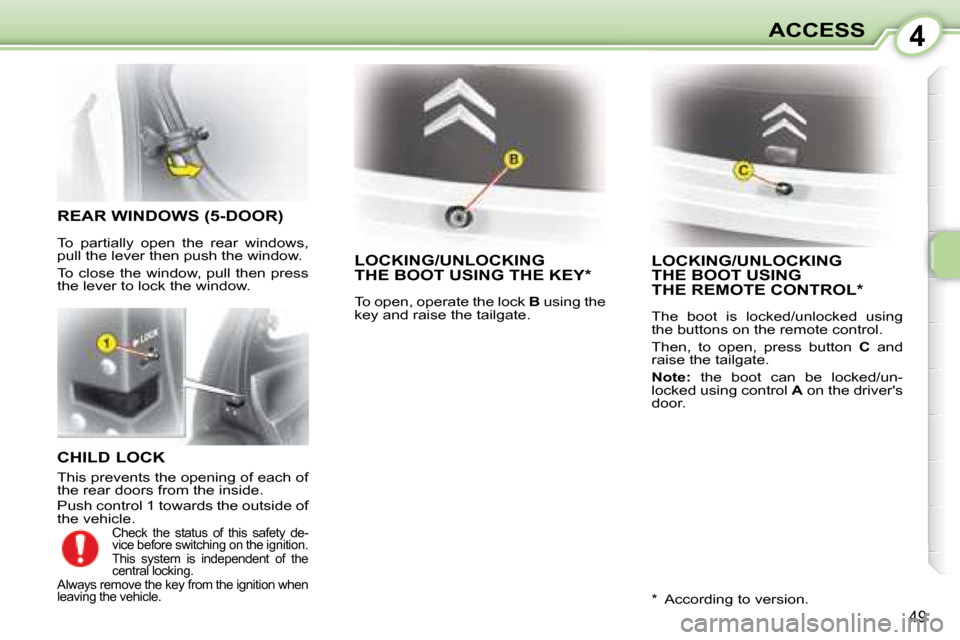

CHILD LOCK
This prevents the opening of each of
the rear doors from the inside.
Push control 1 towards the outside of
the vehicle.
LOCKING/UNLOCKING THE BOOT USING THE KEY*
To open, operate the lock B using the
key and raise the tailgate.
LOCKING/UNLOCKING THE BOOT USING THE REMOTE CONTROL *
The boot is locked/unlocked using
the buttons on the remote control.
Then, to open, press button C and
raise the tailgate.
Note: the boot can be locked/un-
locked using control A on the driver's
door.
REAR WINDOWS (5-DOOR)
To partially open the rear windows,
pull the lever then push the window.
To close the window, pull then press
the lever to lock the window.
Check the status of this safety de-
vice before switching on the ignition.
This system is independent of the
central locking.
Always remove the key from the ignition when
leaving the vehicle.
* According to version.
