Citroen C1 DAG 2008 1.G Workshop Manual

4
49

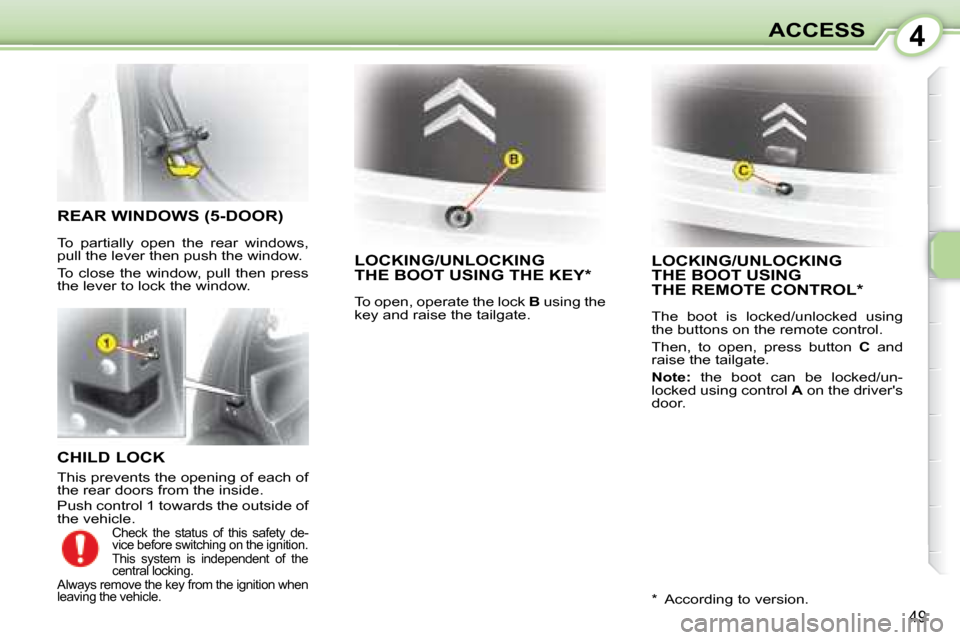

ACCESS
CHILD LOCK
This prevents the opening of each of
the rear doors from the inside.
Push control 1 towards the outside of
the vehicle.
LOCKING/UNLOCKING THE BOOT USING THE KEY*
To open, operate the lock B using the
key and raise the tailgate.
LOCKING/UNLOCKING THE BOOT USING THE REMOTE CONTROL *
The boot is locked/unlocked using
the buttons on the remote control.
Then, to open, press button C and
raise the tailgate.

Note: the boot can be locked/un-
locked using control A on the driver's
door.
REAR WINDOWS (5-DOOR)
To partially open the rear windows,
pull the lever then push the window.
To close the window, pull then press
the lever to lock the window.

Check the status of this safety de-
vice before switching on the ignition.
This system is independent of the
central locking.
Always remove the key from the ignition when
leaving the vehicle.
* According to version.

4
50
ACCESS

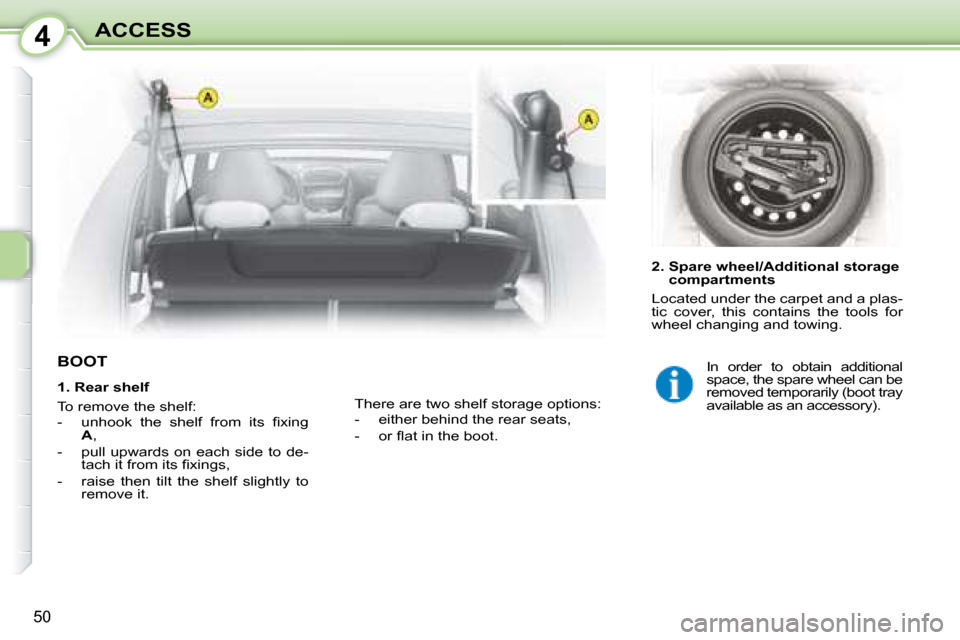

BOOT
2. Spare wheel/Additional storage compartments
Located under the carpet and a plas-
tic cover, this contains the tools for
wheel changing and towing.
There are two shelf storage options:
- either behind the rear seats,
- or fl at in the boot.
1. Rear shelf
To remove the shelf:
- unhook the shelf from its fi xing

A ,
- pull upwards on each side to de- tach it from its fi xings,
- raise then tilt the shelf slightly to remove it. In order to obtain additional
space, the spare wheel can be
removed temporarily (boot tray
available as an accessory).

4
51
ACCESS

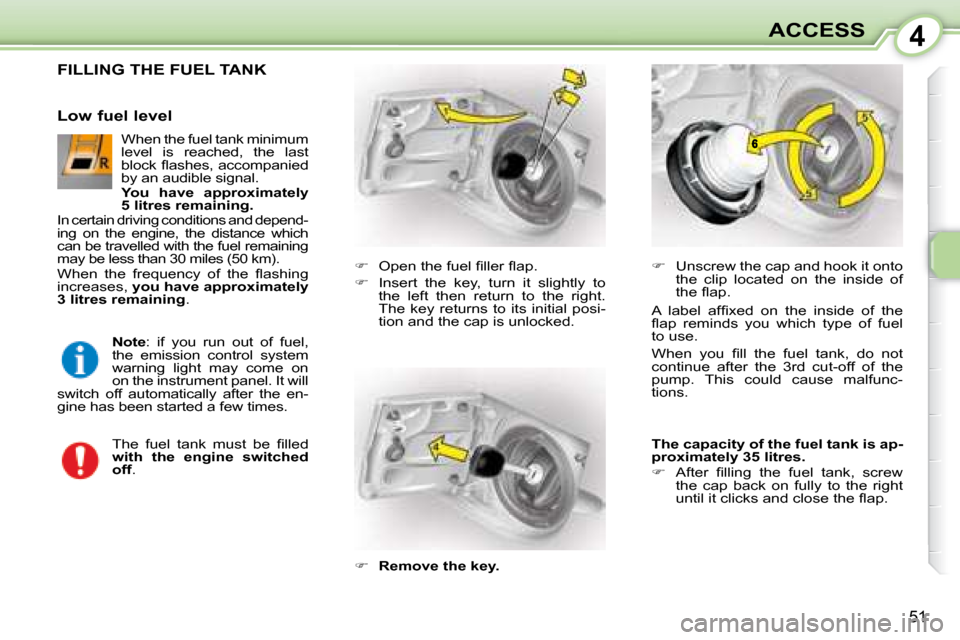

FILLING THE FUEL TANK

 Open the fuel fi ller fl ap.

 Insert the key, turn it slightly to
the left then return to the right.
The key returns to its initial posi-
tion and the cap is unlocked.
Low fuel level
When the fuel tank minimum
level is reached, the last
block fl ashes, accompanied
by an audible signal.

You have approximately
5 litres remaining.
In certain driving conditions and depend-
ing on the engine, the distance which
can be travelled with the fuel remaining
may be less than 30 miles (50 km).
When the frequency of the fl ashing
increases, you have approximately
3 litres remaining .
 Unscrew the cap and hook it onto
the clip located on the inside of
the fl ap.
A label affi xed on the inside of the
fl ap reminds you which type of fuel
to use.
When you fi ll the fuel tank, do not
continue after the 3rd cut-off of the
pump. This could cause malfunc-
tions.

 Remove the key.

Note : if you run out of fuel,
the emission control system
warning light may come on
on the instrument panel. It will
switch off automatically after the en-
gine has been started a few times.
The fuel tank must be fi lled

with the engine switched
off .
The capacity of the fuel tank is ap-
proximately 35 litres.

 After fi lling the fuel tank, screw
the cap back on fully to the right
until it clicks and close the fl ap.

5
52
VISIBILITY
LIGHTS STALK

1. Lights off

2. Side lights

3. Dipped headlamps/
Main beam
headlamps Dipped headlamps/main beam
headlamps

Dipped headlamps: pull the stalk.

Main beam headlamps: push the
stalk.
Lights on buzzer
When the driver's door is opened with
the ignition off, a continuous audible
signal is heard if you have left your
lights on. Rear fog lamp
With the dipped head-
lamps on, selection is
by rotation of ring B
forwards to switch on
and rearwards to switch
off. The status is displayed by the in-
dicator light on the instrument panel.
In clear weather or in rain,
both day and night, the rear
fog lamps are dazzling and
are prohibited.
Do not forget to switch them off when
they are no longer needed.
Direction indicators
(flashers)
Left: stalk downwards.

Right: stalk upwards.
Headlamp flash
Pull the stalk fully towards you.
Front and rear lights
Selection is by rotation of ring
A .
Note: Switching to side lights does
not switch off the rear fog lamps if
they are on.

5
53
VISIBILITY

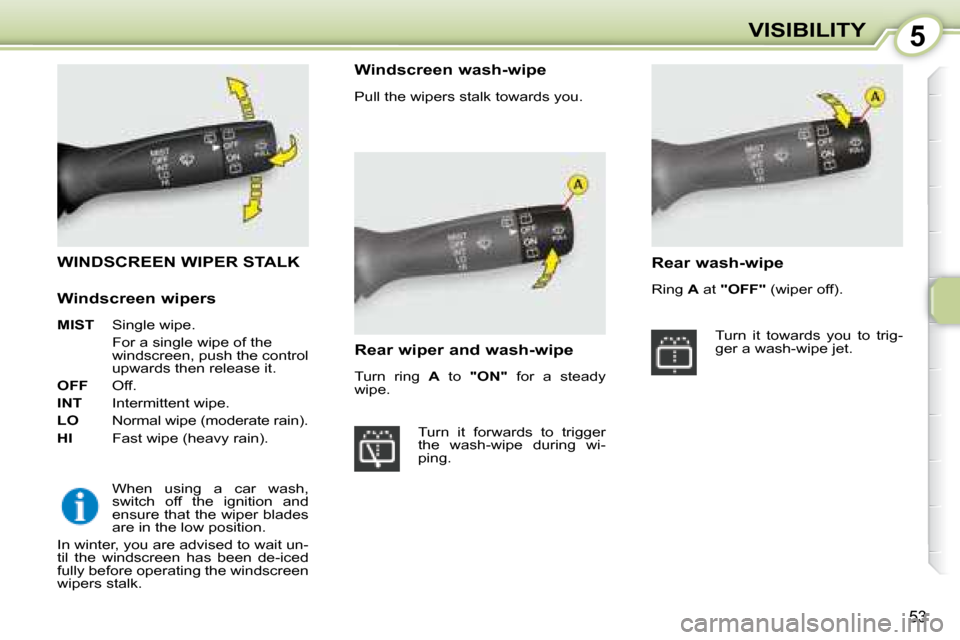

WINDSCREEN WIPER STALK
When using a car wash,
switch off the ignition and
ensure that the wiper blades
are in the low position.
In winter, you are advised to wait un-
til the windscreen has been de-iced
fully before operating the windscreen
wipers stalk. Windscreen wash-wipe
Pull the wipers stalk towards you.
Rear wiper and wash-wipe
Turn ring
A to "ON" for a steady
wipe.
Turn it forwards to trigger
the wash-wipe during wi-
ping. Rear wash-wipe
Ring
A at "OFF" (wiper off).
Turn it towards you to trig-
ger a wash-wipe jet.
Windscreen wipers

MIST Single wipe.
For a single wipe of the windscreen, push the control
upwards then release it.

OFF Off.

INT Intermittent wipe.

LO Normal wipe (moderate rain).

HI Fast wipe (heavy rain).

5
54
VISIBILITY
HEADLAMP ADJUSTMENT
To avoid causing a nuisance to other
road users, the height of the hea-
dlamps should be adjusted in relation
to the load in the vehicle.

0. 1 or 2 people in the front seats.

-. 3 people.

1. 4 people.

2. 4 people + maximum authorised
load.

3. Driver + maximum authorised load.
The initial setting is position "0" . In this position, it comes
on on opening the driver's
door.
The courtesy light is deacti-
vated and is permanently off.
COURTESY LIGHT
Permanently on.

6
55
SAFETY
HORN
Press one of the spokes of the steer-
ing wheel.
HAZARD WARNING LIGHTS
Press the button, the direction indica-
tors fl ash.
They can operate with the ignition off.
ANTI-LOCK BRAKING SYSTEM (ABS) AND EBFD AND CSC * BRAKING SYSTEMS
The ABS, in conjunction with the
EBFD and CSC * braking systems,
increases the stability and manoeu-
vrability of your vehicle on braking
and provides improved control, in
particular on poor or slippery road
surfaces.
The ABS prevents wheel lock in the
event of emergency braking.
The EBFD and CSC * systems pro-
vide full control of the braking pres-
sure wheel by wheel. A distribution
between:
- the front and the rear in the case of the EBFD (Electronic Brake
Force Distribution),
- the left and the right in the case of the CSC * (Cornering Stability
Control).

When the vehicle is being
driven, illumination of this
warning light indicates that
the handbrake is still on or has
not been properly released.


When parking on a slope,
direct your wheels towards
the pavement and pull the
handbrake.
HANDBRAKE
Applying
Pull the handbrake to immobilise
your vehicle.

Note: when changing wheels
(tyres), make sure that these
are approved.
The anti-lock braking system
comes into operation automatically
when there is a risk of wheel lock.
* The CSC system is linked with the EBFD on vehicles which are not fi t-
ted with ASR/ESP systems.
Releasing
Pull on the handle and press the but-
ton to release the handbrake.

6
55
SAFETY
HORN
Press one of the spokes of the steer-
ing wheel.
HAZARD WARNING LIGHTS
Press the button, the direction indica-
tors fl ash.
They can operate with the ignition off.
ANTI-LOCK BRAKING SYSTEM (ABS) AND EBFD AND CSC * BRAKING SYSTEMS
The ABS, in conjunction with the
EBFD and CSC * braking systems,
increases the stability and manoeu-
vrability of your vehicle on braking
and provides improved control, in
particular on poor or slippery road
surfaces.
The ABS prevents wheel lock in the
event of emergency braking.
The EBFD and CSC * systems pro-
vide full control of the braking pres-
sure wheel by wheel. A distribution
between:
- the front and the rear in the case of the EBFD (Electronic Brake
Force Distribution),
- the left and the right in the case of the CSC * (Cornering Stability
Control).

When the vehicle is being
driven, illumination of this
warning light indicates that
the handbrake is still on or has
not been properly released.


When parking on a slope,
direct your wheels towards
the pavement and pull the
handbrake.
HANDBRAKE
Applying
Pull the handbrake to immobilise
your vehicle.

Note: when changing wheels
(tyres), make sure that these
are approved.
The anti-lock braking system
comes into operation automatically
when there is a risk of wheel lock.
* The CSC system is linked with the EBFD on vehicles which are not fi t-
ted with ASR/ESP systems.
Releasing
Pull on the handle and press the but-
ton to release the handbrake.

6
56
SAFETY When this warning light
comes on, it indicates that
there is a malfunction of the
ABS, which can cause a
loss of control of the vehicle
when braking.
Consult a CITROËN dealer.
When these warn-
ing lights come on
s i m u l t a n e o u s l y,
it indicates that
there is a malfunc-
tion of the braking system or that the
handbrake has not been released
fully, which can cause a loss of con-
trol of the vehicle when braking.

Stop immediately.
Consult a CITROËN dealer.
Normal operation of the ABS
may make itself felt by slight
vibrations of the brake pedal.

In emergency braking, press
very fi rmly without releasing
the pressure. TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP)
These systems are linked and sup-
plement the ABS.
The ASR system optimises drive to
prevent the wheels skidding, by act-
ing on the brakes of the driving wheels
and on the engine. It also allows the
directional stability of the vehicle to
be improved on acceleration.
If there is a variation between the tra-
jectory followed by the vehicle and
that required by the driver, the ESP
system automatically acts on the
brake of one or more wheels and on
the engine to put the vehicle back on
course, within the limits of the laws
of physics.
Operating check
Operation of the ASR
and ESP systems When one of these two
systems is operating, this
warning light comes on. When a malfunction of the
systems occurs, this warn-
ing light comes on.
The ASR/ESP systems of-
fer exceptional safety dur-
ing normal driving, but this
should not encourage the
driver to take extra risks or drive at
high speed.
Correct operation of these systems
depends on observation of the man-
ufacturer's recommendations re-
garding the wheels (tyres and rims),
the braking components and the
electronic components as well as the
CITROËN assembly and operation
procedures.
After an impact, have these systems
checked by a CITROËN dealer.
Activation of the ESP system is also
accompanied by an audible signal. Contact a CITROËN dealer to have
the systems checked.

6
56
SAFETY When this warning light
comes on, it indicates that
there is a malfunction of the
ABS, which can cause a
loss of control of the vehicle
when braking.
Consult a CITROËN dealer.
When these warn-
ing lights come on
s i m u l t a n e o u s l y,
it indicates that
there is a malfunc-
tion of the braking system or that the
handbrake has not been released
fully, which can cause a loss of con-
trol of the vehicle when braking.

Stop immediately.
Consult a CITROËN dealer.
Normal operation of the ABS
may make itself felt by slight
vibrations of the brake pedal.

In emergency braking, press
very fi rmly without releasing
the pressure. TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP)
These systems are linked and sup-
plement the ABS.
The ASR system optimises drive to
prevent the wheels skidding, by act-
ing on the brakes of the driving wheels
and on the engine. It also allows the
directional stability of the vehicle to
be improved on acceleration.
If there is a variation between the tra-
jectory followed by the vehicle and
that required by the driver, the ESP
system automatically acts on the
brake of one or more wheels and on
the engine to put the vehicle back on
course, within the limits of the laws
of physics.
Operating check
Operation of the ASR
and ESP systems When one of these two
systems is operating, this
warning light comes on. When a malfunction of the
systems occurs, this warn-
ing light comes on.
The ASR/ESP systems of-
fer exceptional safety dur-
ing normal driving, but this
should not encourage the
driver to take extra risks or drive at
high speed.
Correct operation of these systems
depends on observation of the man-
ufacturer's recommendations re-
garding the wheels (tyres and rims),
the braking components and the
electronic components as well as the
CITROËN assembly and operation
procedures.
After an impact, have these systems
checked by a CITROËN dealer.
Activation of the ESP system is also
accompanied by an audible signal. Contact a CITROËN dealer to have
the systems checked.
