Citroen C1 DAG 2008.5 1.G Owner's Guide
Manufacturer: CITROEN, Model Year: 2008.5, Model line: C1 DAG, Model: Citroen C1 DAG 2008.5 1.GPages: 99, PDF Size: 4.05 MB
Page 21 of 99
2
23
AUDIO EQUIPMENT

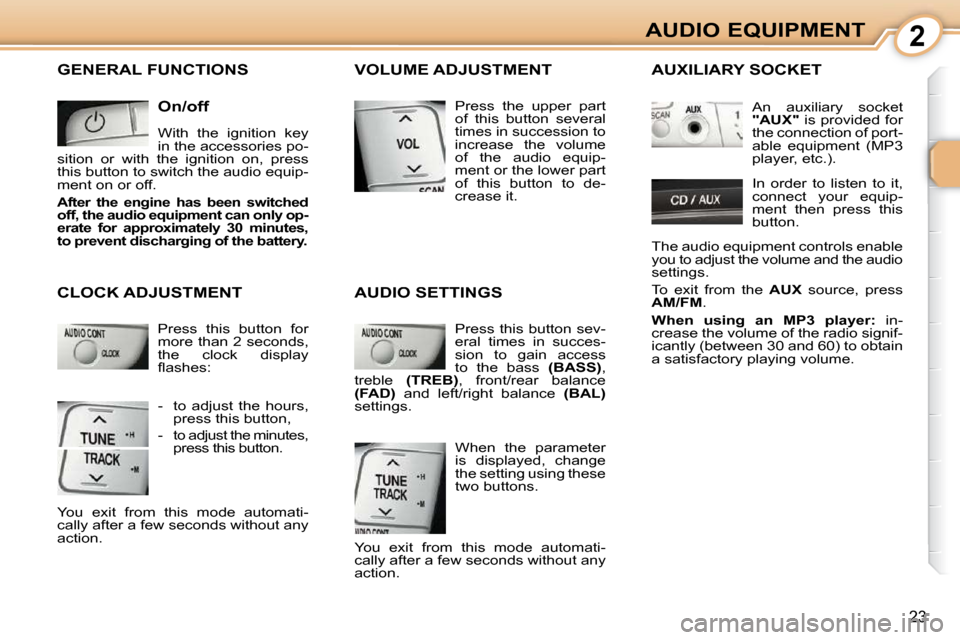

GENERAL FUNCTIONS
On/off
With the ignition key
in the accessories po-
sition or with the ignition on, press
this button to switch the audio equip-
ment on or off.
After the engine has been switched
off, the audio equipment can only op-
erate for approximately 30 minutes,
to prevent discharging of the battery.
Press the upper part
of this button several
times in succession to
increase the volume
of the audio equip-
ment or the lower part
of this button to de-
crease it.
VOLUME ADJUSTMENT
CLOCK ADJUSTMENT
Press this button sev-
eral times in succes-
sion to gain access
to the bass
(BASS) ,
treble (TREB) , front/rear balance
(FAD) and left/right balance (BAL)
settings.
AUDIO SETTINGS
Press this button for
more than 2 seconds,
the clock display
fl a s h e s :
AUXILIARY SOCKET
An auxiliary socket
"AUX" is provided for
the connection of port-
able equipment (MP3
player, etc.).
When the parameter
is displayed, change
the setting using these
two buttons.
You exit from this mode automati-
cally after a few seconds without any
action. In order to listen to it,
connect your equip-
ment then press this
button.
The audio equipment controls enable
you to adjust the volume and the audio
settings.
To exit from the AUX source, press
AM/FM .
When using an MP3 player: in-
crease the volume of the radio signif-
icantly (between 30 and 60) to obtain
a satisfactory playing volume.
-
to adjust the hours,
press this button,
-
to adjust the minutes,
press this button.
You exit from this mode automati-
cally after a few seconds without any
action.
Page 22 of 99
2
24
AUDIO EQUIPMENT

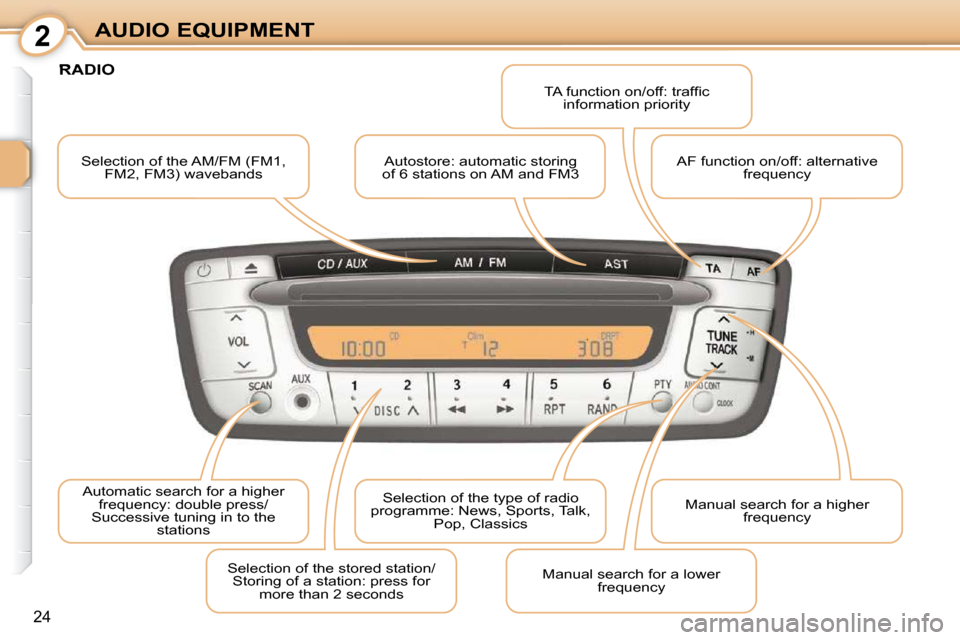

Selection of the AM/FM (FM1, FM2, FM3) wavebands Autostore: automatic storing
of 6 stations on AM and FM3 T A f u n c t i o n o n / o f f : t r a f fi c
information priority
Automatic search for a higher frequency: double press/
Successive tuning in to the stations Selection of the type of radio
programme: News, Sports, Talk, Pop, Classics AF function on/off: alternative
frequency
Manual search for a higher frequency
Selection of the stored station/ Storing of a station: press for more than 2 seconds Manual search for a lower
frequency
RADIO
Page 23 of 99
2
25
AUDIO EQUIPMENT

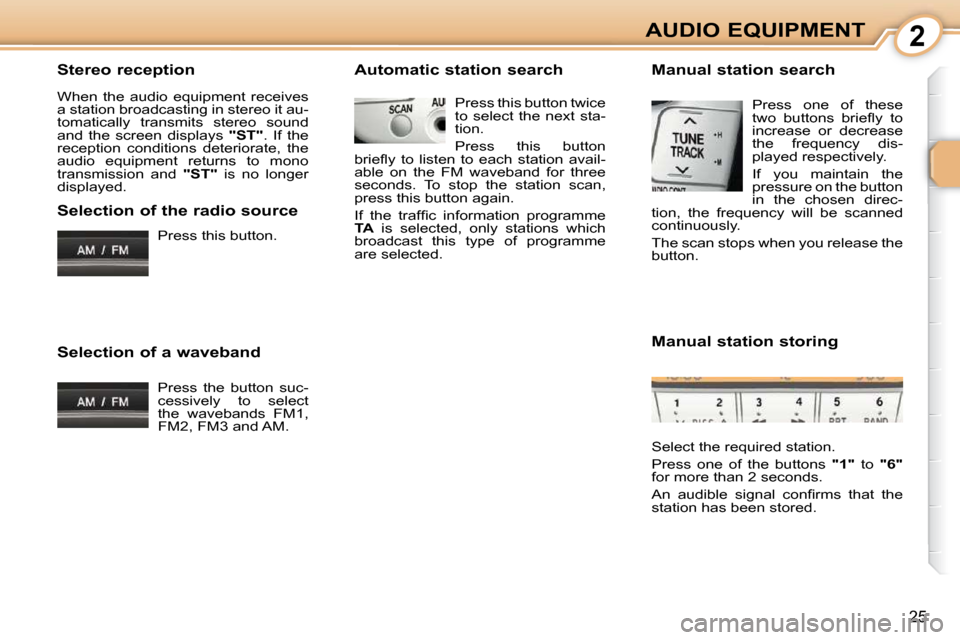

Stereo reception
When the audio equipment receives
a station broadcasting in stereo it au-
tomatically transmits stereo sound
and the screen displays "ST" . If the
reception conditions deteriorate, the
audio equipment returns to mono
transmission and "ST" is no longer
displayed. Press one of these
t w o b u t t o n s b r i e fl y t o
increase or decrease
the frequency dis-
played respectively.
If you maintain the
pressure on the button
in the chosen direc-
tion, the frequency will be scanned
continuously.
The scan stops when you release the
button.
Manual station search
Automatic station search
Manual station storing
Selection of the radio source
Selection of a waveband
Press this button. Press this button twice
to select the next sta-
tion.
Press this button
b r i e fl y t o l i s t e n t o e a c h s t a t i o n a v a i l -
able on the FM waveband for three
seconds. To stop the station scan,
press this button again.
I f t h e t r a f fi c i n f o r m a t i o n p r o g r a m m e
TA is selected, only stations which
broadcast this type of programme
are selected.
Press the button suc-
cessively to select
the wavebands FM1,
FM2, FM3 and AM. Select the required station.
Press one of the buttons "1" to "6"
for more than 2 seconds.
A n a u d i b l e s i g n a l c o n fi r m s t h a t t h e
station has been stored.
Page 24 of 99
2
26

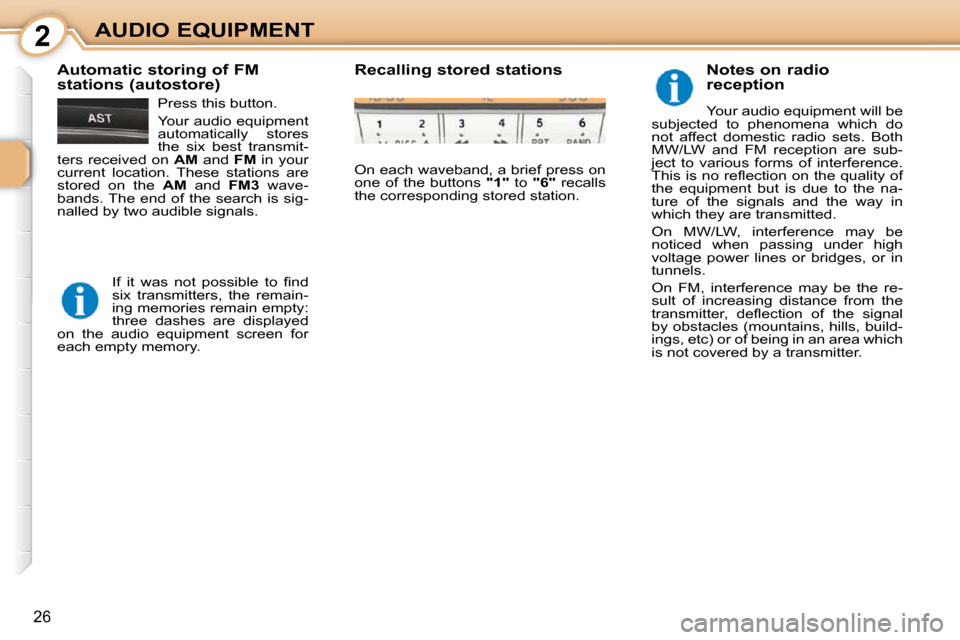

AUDIO EQUIPMENT Notes on radio
reception
Your audio equipment will be
subjected to phenomena which do
not affect domestic radio sets. Both
MW/LW and FM reception are sub-
ject to various forms of interference.
T h i s i s n o r e fl e c t i o n o n t h e q u a l i t y o f
the equipment but is due to the na-
ture of the signals and the way in
which they are transmitted.
On MW/LW, interference may be
noticed when passing under high
voltage power lines or bridges, or in
tunnels.
On FM, interference may be the re-
sult of increasing distance from the
t r a n s m i t t e r , d e fl e c t i o n o f t h e s i g n a l
by obstacles (mountains, hills, build-
ings, etc) or of being in an area which
is not covered by a transmitter.
Automatic storing of FM
stations (autostore)
Press this button.
Your audio equipment
automatically stores
the six best transmit-
ters received on AM and FM in your
current location. These stations are
stored on the AM and FM3 wave-
bands. The end of the search is sig-
nalled by two audible signals. Recalling stored stations
On each waveband, a brief press on
one of the buttons
"1" to "6" recalls
the corresponding stored station.
I f i t w a s n o t p o s s i b l e t o fi n d
six transmitters, the remain-
ing memories remain empty:
three dashes are displayed
on the audio equipment screen for
each empty memory.
Page 25 of 99
2
27
AUDIO EQUIPMENT

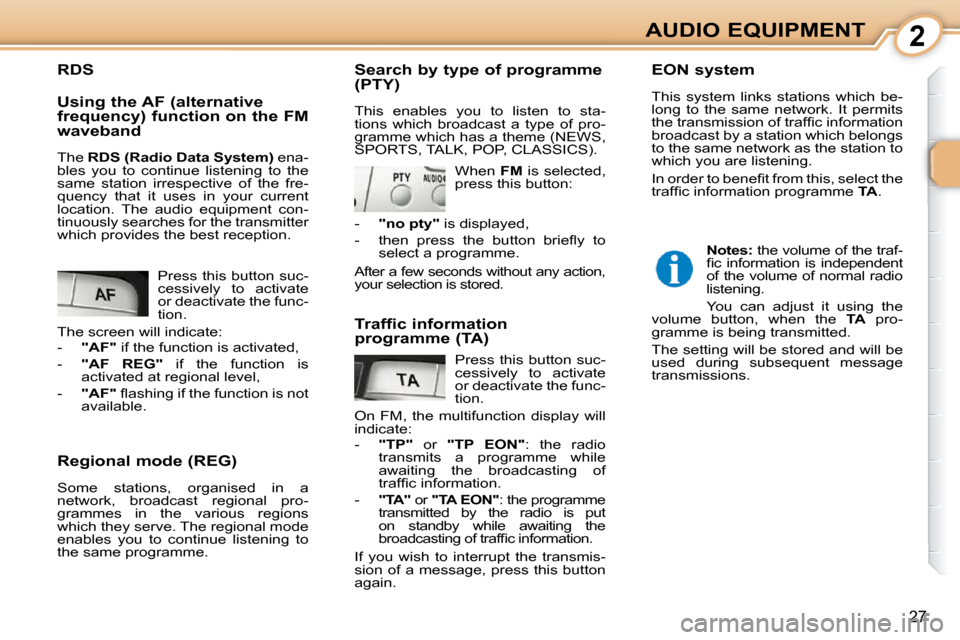

Regional mode (REG)
Some stations, organised in a
network, broadcast regional pro-
grammes in the various regions
which they serve. The regional mode
enables you to continue listening to
the same programme. Search by type of programme
(PTY)
This enables you to listen to sta-
tions which broadcast a type of pro-
gramme which has a theme (NEWS,
SPORTS, TALK, POP, CLASSICS).
EON system
This system links stations which be-
long to the same network. It permits
t h e t r a n s m i s s i o n o f t r a f fi c i n f o r m a t i o n
broadcast by a station which belongs
to the same network as the station to
which you are listening.
I n o r d e r t o b e n e fi t f r o m t h i s , s e l e c t t h e
t r a f fi c i n f o r m a t i o n p r o g r a m m e
TA .
Using the AF (alternative
frequency) function on the FM
waveband
The
RDS (Radio Data System) ena-
bles you to continue listening to the
same station irrespective of the fre-
quency that it uses in your current
location. The audio equipment con-
tinuously searches for the transmitter
which provides the best reception.
Press this button suc-
cessively to activate
or deactivate the func-
tion.
On FM, the multifunction display will
indicate:
- "TP" or "TP EON" : the radio
transmits a programme while
awaiting the broadcasting of
t r a f fi c i n f o r m a t i o n .
- "TA" or "TA EON" : the programme
transmitted by the radio is put
on standby while awaiting the
b r o a d c a s t i n g o f t r a f fi c i n f o r m a t i o n .
If you wish to interrupt the transmis-
sion of a message, press this button
again.
Traffic information
programme (TA)
Press this button suc-
cessively to activate
or deactivate the func-
tion.
The screen will indicate:
- "AF" if the function is activated,
- "AF REG" if the function is
activated at regional level,
- "AF" fl a s h i n g i f t h e f u n c t i o n i s n o t
available. When
FM is selected,
press this button:
Notes: the volume of the traf-
fi c i n f o r m a t i o n i s i n d e p e n d e n t
of the volume of normal radio
listening.
You can adjust it using the
volume button, when the TA pro-
gramme is being transmitted.
The setting will be stored and will be
used during subsequent message
transmissions.
RDS
- "no pty" is displayed,
- t h e n p r e s s t h e b u t t o n b r i e fl y t o select a programme.
After a few seconds without any action,
your selection is stored.
Page 26 of 99
2
28

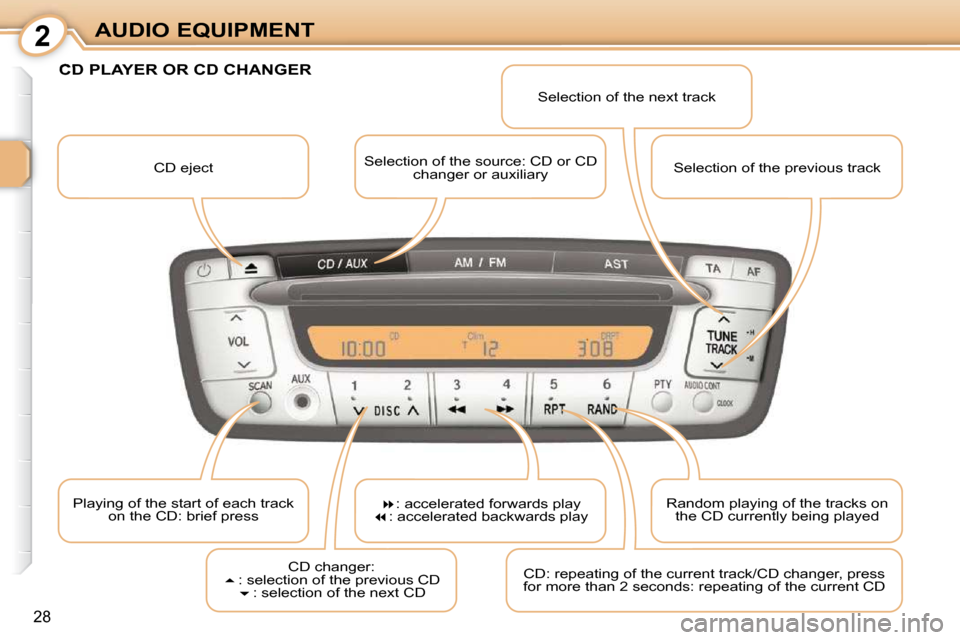

AUDIO EQUIPMENT CD eject Selection of the source: CD or CD
changer or auxiliary Selection of the next track
Playing of the start of each track on the CD: brief press
: accelerated forwards play
: accelerated backwards play Selection of the previous track
Random playing of the tracks on the CD currently being played
CD changer:
: selection of the previous CD
: selection of the next CD CD: repeating of the current track/CD changer, press
for more than 2 seconds: repeating of the current CD
CD PLAYER OR CD CHANGER
Page 27 of 99
2
29
AUDIO EQUIPMENT

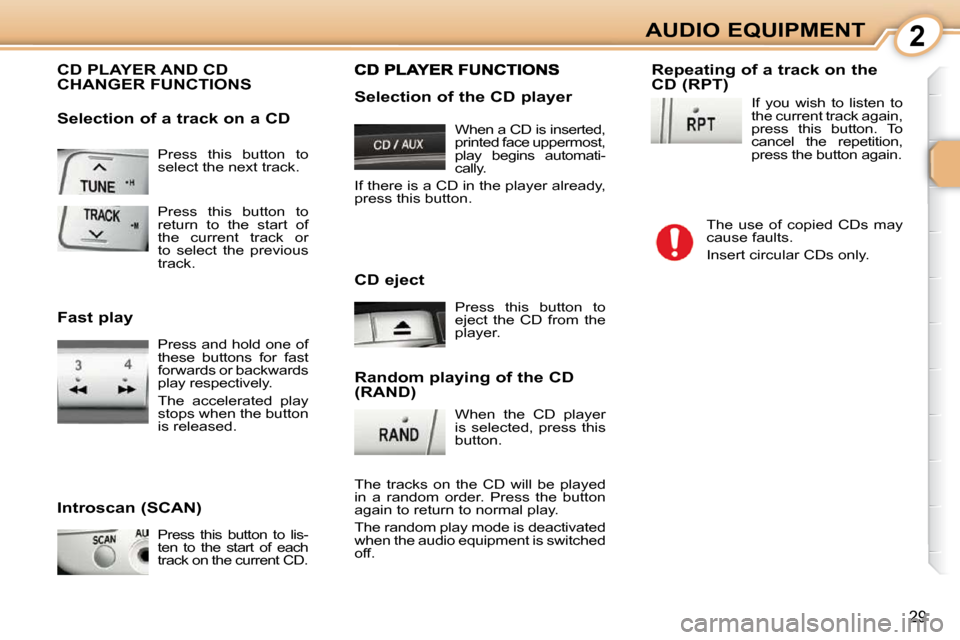

Press this button to
select the next track.
CD PLAYER AND CD CHANGER FUNCTIONS
Introscan (SCAN)
Press this button to lis-
ten to the start of each
track on the current CD.
Fast play Press and hold one of
these buttons for fast
forwards or backwards
play respectively.
The accelerated play
stops when the button
is released. When a CD is inserted,
printed face uppermost,
play begins automati-
cally.
If there is a CD in the player already,
press this button.
Repeating of a track on the
CD (RPT)
Random playing of the CD
(RAND) When the CD player
is selected, press this
button. If you wish to listen to
the current track again,
press this button. To
cancel the repetition,
press the button again.
CD eject Press this button to
eject the CD from the
player.
The tracks on the CD will be played
in a random order. Press the button
again to return to normal play.
The random play mode is deactivated
when the audio equipment is switched
off. The use of copied CDs may
cause faults.
Insert circular CDs only.
Selection of a track on a CD
Press this button to
return to the start of
the current track or
to select the previous
track. Selection of the CD player
Page 28 of 99
2
28
AUDIO EQUIPMENT CD eject Selection of the source: CD or CD
changer or auxiliary Selection of the next track
Playing of the start of each track on the CD: brief press
: accelerated forwards play
: accelerated backwards play Selection of the previous track
Random playing of the tracks on the CD currently being played
CD changer:
: selection of the previous CD
: selection of the next CD CD: repeating of the current track/CD changer, press
for more than 2 seconds: repeating of the current CD
CD PLAYER OR CD CHANGER
Page 29 of 99
2
29
AUDIO EQUIPMENT
Press this button to
select the next track.
CD PLAYER AND CD CHANGER FUNCTIONS
Introscan (SCAN)
Press this button to lis-
ten to the start of each
track on the current CD.
Fast play Press and hold one of
these buttons for fast
forwards or backwards
play respectively.
The accelerated play
stops when the button
is released. When a CD is inserted,
printed face uppermost,
play begins automati-
cally.
If there is a CD in the player already,
press this button.
Repeating of a track on the
CD (RPT)
Random playing of the CD
(RAND) When the CD player
is selected, press this
button. If you wish to listen to
the current track again,
press this button. To
cancel the repetition,
press the button again.
CD eject Press this button to
eject the CD from the
player.
The tracks on the CD will be played
in a random order. Press the button
again to return to normal play.
The random play mode is deactivated
when the audio equipment is switched
off. The use of copied CDs may
cause faults.
Insert circular CDs only.
Selection of a track on a CD
Press this button to
return to the start of
the current track or
to select the previous
track. Selection of the CD player

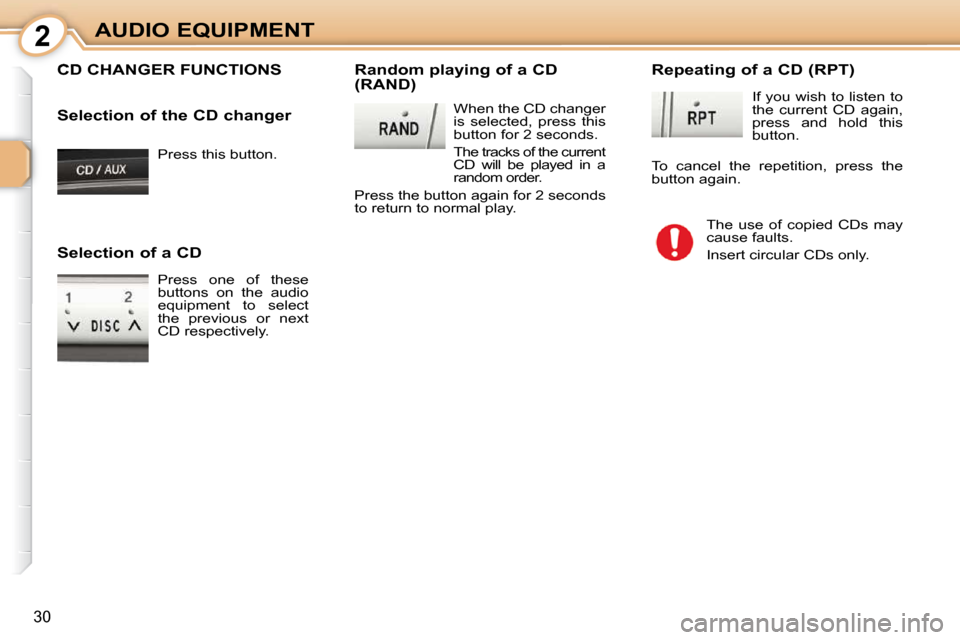

Page 30 of 99
2
30
AUDIO EQUIPMENT Press this button.
CD CHANGER FUNCTIONS Random playing of a CD
(RAND) When the CD changer
is selected, press this
button for 2 seconds.
The tracks of the current
CD will be played in a
random order.
Press the button again for 2 seconds
to return to normal play.
Selection of a CD Press one of these
buttons on the audio
equipment to select
the previous or next
CD respectively. Repeating of a CD (RPT)
If you wish to listen to
the current CD again,
press and hold this
button.
The use of copied CDs may
cause faults.
Insert circular CDs only.
To cancel the repetition, press the
button again.
Selection of the CD changer
