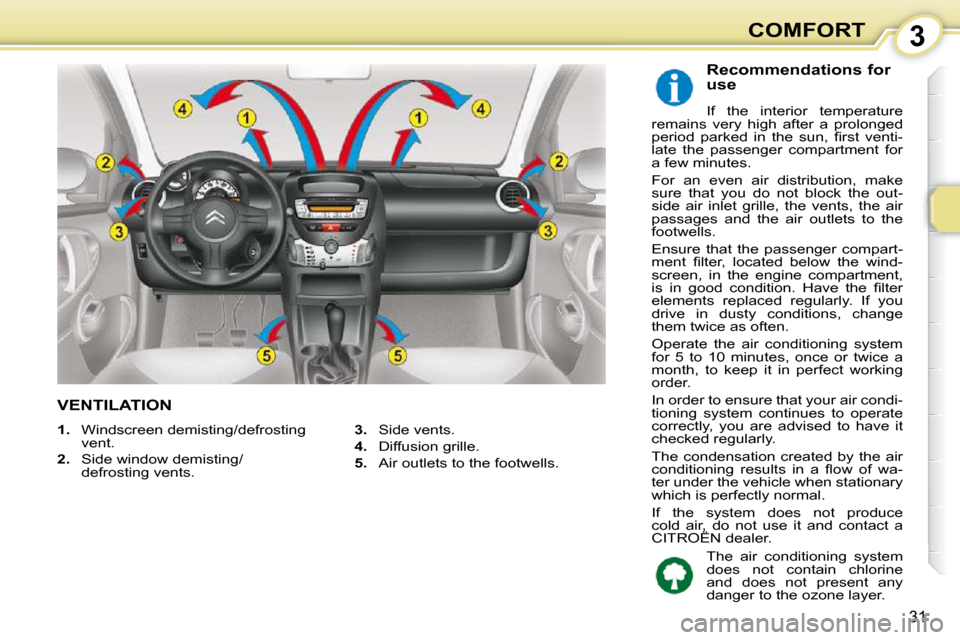

Page 31 of 99
3
31
COMFORT
VENTILATION
Recommendations for
use
If the interior temperature
remains very high after a prolonged
p e r i o d p a r k e d i n t h e s u n , fi r s t v e n t i -
late the passenger compartment for
a few minutes.
For an even air distribution, make
s u r e t h a t y o u d o n o t b l o c k t h e o u t -
side air inlet grille, the vents, the air
passages and the air outlets to the
footwells.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t -
m e n t fi l t e r , l o c a t e d b e l o w t h e w i n d -
screen, in the engine compartment,
i s i n g o o d c o n d i t i o n . H a v e t h e fi l t e r
elements replaced regularly. If you
drive in dusty conditions, change
them twice as often.
Operate the air conditioning system
for 5 to 10 minutes, once or twice a
month, to keep it in perfect working
order.
I n o r d e r t o e n s u r e t h a t y o u r a i r c o n d i -
tioning system continues to operate
correctly, you are advised to have it
checked regularly.
The condensation created by the air
c o n d i t i o n i n g r e s u l t s i n a fl o w o f w a -
ter under the vehicle when stationary
which is perfectly normal.
If the system does not produce
cold air, do not use it and contact a
CITROËN dealer.
3. Side vents.
4. Diffusion grille.
5. Air outlets to the footwells.
1. Windscreen demisting/defrosting
vent.
2. Side window demisting/
defrosting vents.
The air conditioning system
does not contain chlorine
and does not present any
danger to the ozone layer.

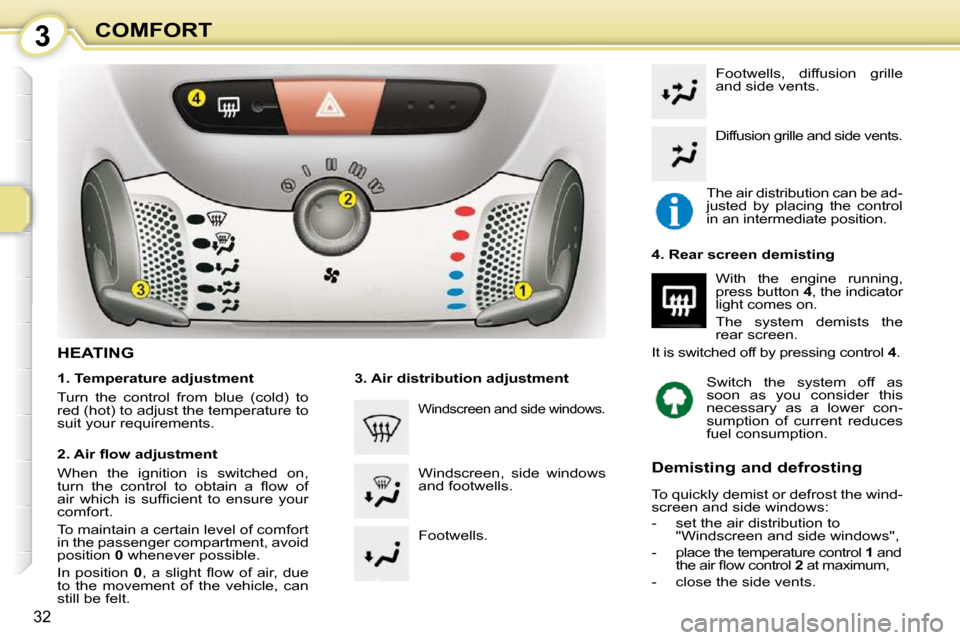

Page 32 of 99
3
32
COMFORT
HEATING
1. Temperature adjustment
Turn the control from blue (cold) to
red (hot) to adjust the temperature to
suit your requirements.
2 . A i r fl o w a d j u s t m e n t
When the ignition is switched on,
t u r n t h e c o n t r o l t o o b t a i n a fl o w o f
a i r w h i c h i s s u f fi c i e n t t o e n s u r e y o u r
comfort.
To maintain a certain level of comfort
in the passenger compartment, avoid
position 0 whenever possible.
In position 0 , a s l i g h t fl o w o f a i r , d u e
to the movement of the vehicle, can
still be felt. T h e a i r d i s t r i b u t i o n c a n b e a d -
justed by placing the control
in an intermediate position.
Footwells. 4. Rear screen demisting
With the engine running,
press button 4 , the indicator
light comes on.
The system demists the
rear screen.
It is switched off by pressing control 4 .
Windscreen, side windows
and footwells. Footwells, diffusion grille
and side vents.
Diffusion grille and side vents.
3. Air distribution adjustment
Windscreen and side windows.
Switch the system off as
soon as you consider this
n e c e s s a r y a s a l o w e r c o n -
sumption of current reduces
fuel consumption.
Demisting and defrosting
T o q u i c k l y d e m i s t o r d e f r o s t t h e w i n d -
screen and side windows:
- s e t t h e a i r d i s t r i b u t i o n t o "Windscreen and side windows",
- p l a c e t h e t e m p e r a t u r e c o n t r o l 1 and
t h e a i r fl o w c o n t r o l 2 at maximum,
- c l o s e t h e s i d e v e n t s .

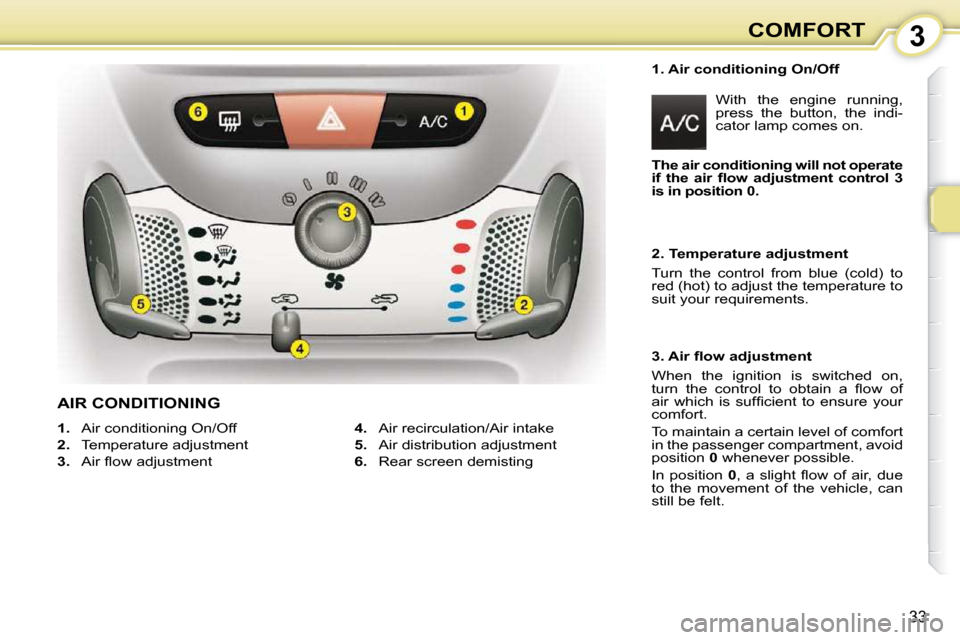

Page 33 of 99
3
33
COMFORT
1. Air conditioning On/Off With the engine running,
p r e s s t h e b u t t o n , t h e i n d i -
cator lamp comes on.
1. Air conditioning On/Off
2. Temperature adjustment
3. A i r fl o w a d j u s t m e n t
AIR CONDITIONING
2. Temperature adjustment
Turn the control from blue (cold) to
red (hot) to adjust the temperature to
suit your requirements.
4. Air recirculation/Air intake
5. Air distribution adjustment
6. Rear screen demisting 3 . A i r fl o w a d j u s t m e n t
When the ignition is switched on,
t u r n t h e c o n t r o l t o o b t a i n a fl o w o f
a i r w h i c h i s s u f fi c i e n t t o e n s u r e y o u r
comfort.
To maintain a certain level of comfort
in the passenger compartment, avoid
position
0 whenever possible.
In position 0 , a s l i g h t fl o w o f a i r , d u e
to the movement of the vehicle, can
still be felt.
T h e a i r c o n d i t i o n i n g w i l l n o t o p e r a t e
i f t h e a i r fl o w a d j u s t m e n t c o n t r o l 3
is in position 0.

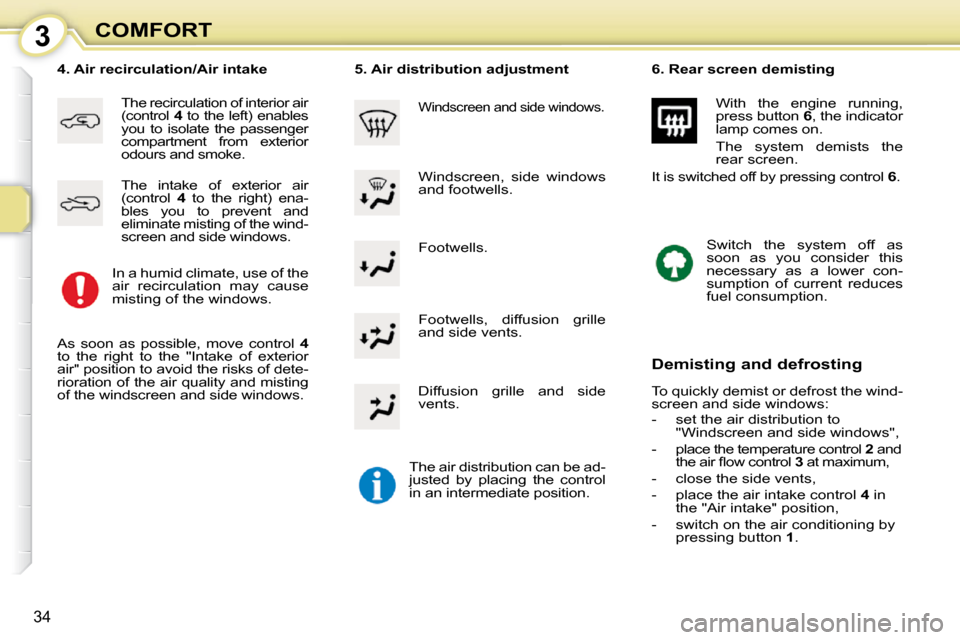

Page 34 of 99
3
34
COMFORT Footwells.
4 . A i r r e c i r c u l a t i o n / A i r i n t a k e
The recirculation of interior air
(control 4 to the left) enables
you to isolate the passenger
compartment from exterior
odours and smoke. 5. Air distribution adjustment
Windscreen and side windows.
T h e a i r d i s t r i b u t i o n c a n b e a d -
justed by placing the control
in an intermediate position. Windscreen, side windows
and footwells.
Footwells, diffusion grille
and side vents.
Diffusion grille and side
vents. 6. Rear screen demisting
As soon as possible, move control 4
to the right to the "Intake of exterior
a i r " p o s i t i o n t o a v o i d t h e r i s k s o f d e t e -
rioration of the air quality and misting
of the windscreen and side windows. The intake of exterior air
(control
4 t o t h e r i g h t ) e n a -
bles you to prevent and
e l i m i n a t e m i s t i n g o f t h e w i n d -
screen and side windows. With the engine running,
press button
6 , the indicator
lamp comes on.
The system demists the
rear screen.
It is switched off by pressing control 6 .
In a humid climate, use of the
air recirculation may cause
misting of the windows. Switch the system off as
soon as you consider this
n e c e s s a r y a s a l o w e r c o n -
sumption of current reduces
fuel consumption.
Demisting and defrosting
T o q u i c k l y d e m i s t o r d e f r o s t t h e w i n d -
screen and side windows:
- s e t t h e a i r d i s t r i b u t i o n t o "Windscreen and side windows",
- p l a c e t h e t e m p e r a t u r e c o n t r o l 2 and
t h e a i r fl o w c o n t r o l 3 at maximum,
- c l o s e t h e s i d e v e n t s ,
- p l a c e t h e a i r i n t a k e c o n t r o l 4 in
the "Air intake" position,
- s w i t c h o n t h e a i r c o n d i t i o n i n g b y pressing button 1 .
Page 35 of 99
3
35
COMFORT

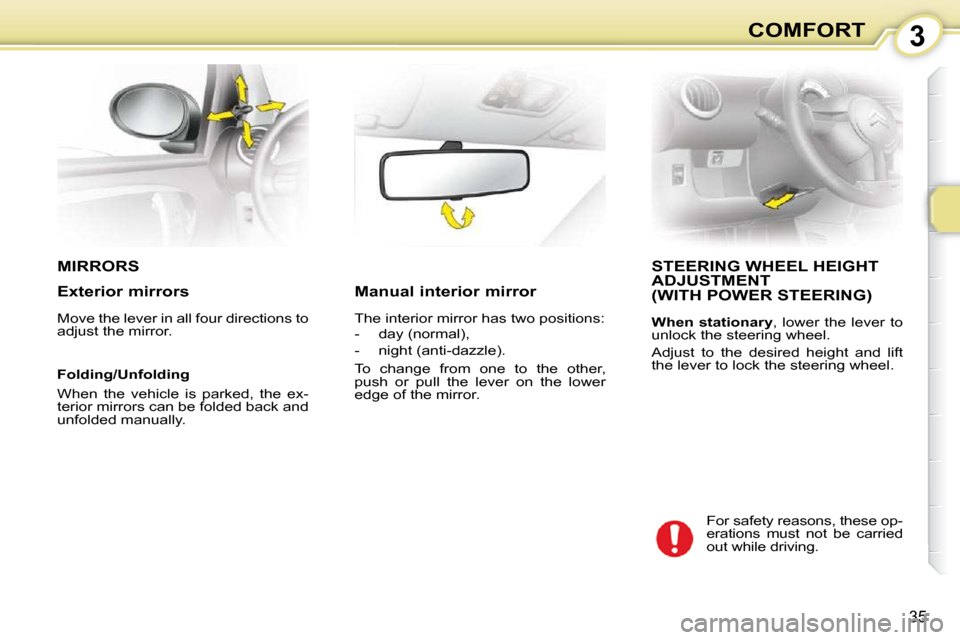

MIRRORS STEERING WHEEL HEIGHT ADJUSTMENT (WITH POWER STEERING)
When stationary , lower the lever to
unlock the steering wheel.
Adjust to the desired height and lift
the lever to lock the steering wheel.
F o l d i n g / U n f o l d i n g
W h e n t h e v e h i c l e i s p a r k e d , t h e e x -
terior mirrors can be folded back and
unfolded manually. M a n u a l i n t e r i o r m i r r o r
The interior mirror has two positions:
- d a y ( n o r m a l ) ,
- n i g h t ( a n t i - d a z z l e ) .
To change from one to the other,
push or pull the lever on the lower
edge of the mirror.
Exterior mirrors
Move the lever in all four directions to
adjust the mirror.
F o r s a f e t y r e a s o n s , t h e s e o p -
erations must not be carried
out while driving.

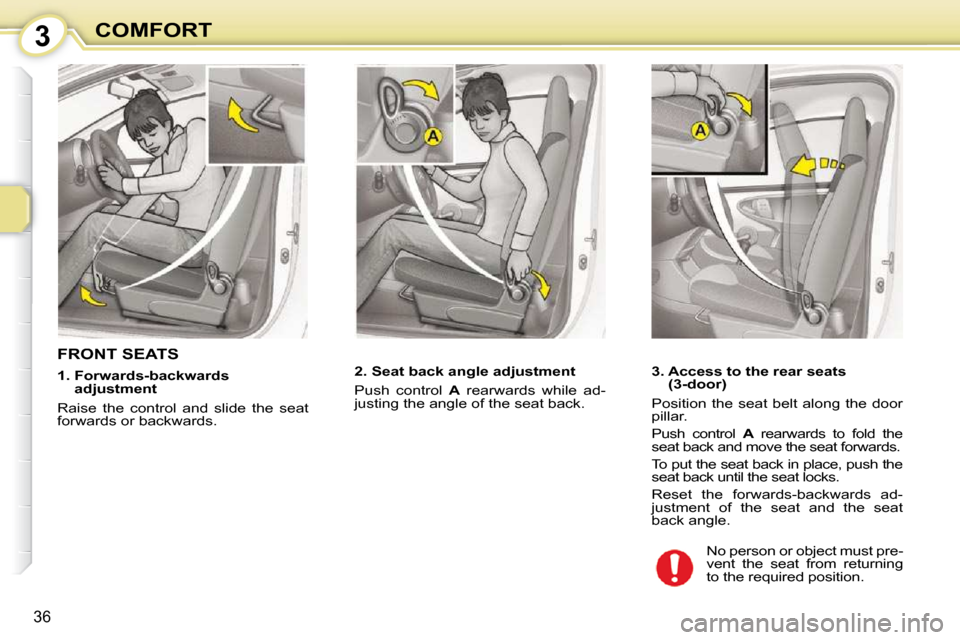

Page 36 of 99
3
36
COMFORT
FRONT SEATS
2 . S e a t b a c k a n g l e a d j u s t m e n t
Push control A r e a r w a r d s w h i l e a d -
justing the angle of the seat back.
3. Access to the rear seats
(3-door)
Position the seat belt along the door
pillar.
Push control A rearwards to fold the
seat back and move the seat forwards.
To put the seat back in place, push the
seat back until the seat locks.
R e s e t t h e f o r w a r d s - b a c k w a r d s a d -
justment of the seat and the seat
back angle.
1. F o r w a r d s - b a c k w a r d s
adjustment
Raise the control and slide the seat
forwards or backwards.
N o p e r s o n o r o b j e c t m u s t p r e -
vent the seat from returning
to the required position.

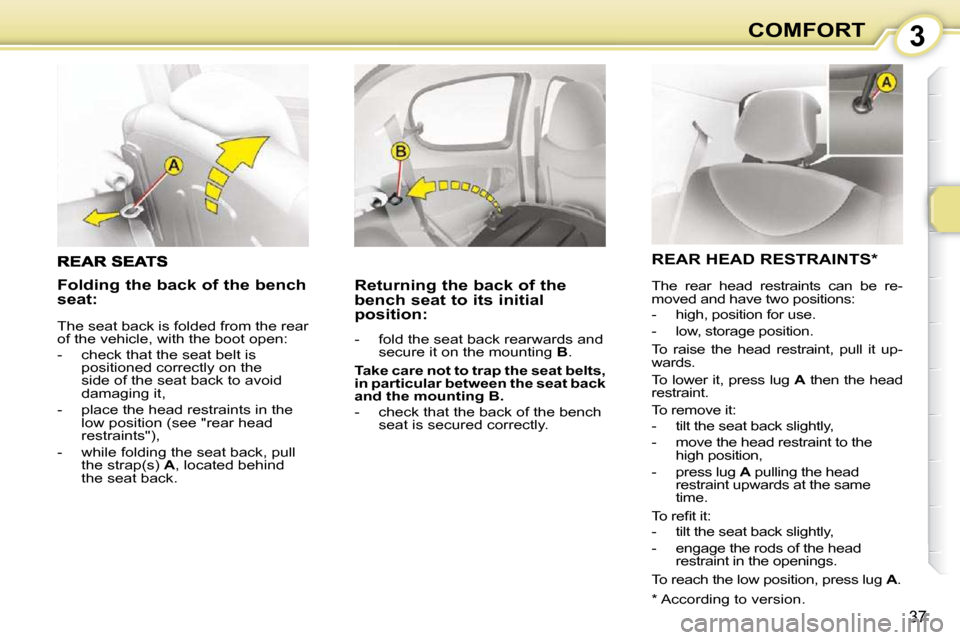

Page 37 of 99
3
37
COMFORT
R e t u r n i n g t h e b a c k o f t h e
b e n c h s e a t t o i t s i n i t i a l
position:
- f o l d t h e s e a t b a c k r e a r w a r d s a n d secure it on the mounting B .
T a k e c a r e n o t t o t r a p t h e s e a t b e l t s ,
i n p a r t i c u l a r b e t w e e n t h e s e a t b a c k
and the mounting B.
- c h e c k t h a t t h e b a c k o f t h e b e n c h seat is secured correctly.
REAR HEAD RESTRAINTS *
T h e r e a r h e a d r e s t r a i n t s c a n b e r e -
moved and have two positions:
- h i g h , p o s i t i o n f o r u s e .
- l o w , s t o r a g e p o s i t i o n .
T o r a i s e t h e h e a d r e s t r a i n t , p u l l i t u p -
wards.
To lower it, press lug A then the head
restraint.
To remove it:
- t i l t t h e s e a t b a c k s l i g h t l y ,
- m o v e t h e h e a d r e s t r a i n t t o t h e high position,
- p r e s s l u g A pulling the head
restraint upwards at the same
time.
T o r e fi t i t :
- t i l t t h e s e a t b a c k s l i g h t l y ,
- e n g a g e t h e r o d s o f t h e h e a d restraint in the openings.
To reach the low position, press lug A .
F o l d i n g t h e b a c k o f t h e b e n c h
seat:
The seat back is folded from the rear
of the vehicle, with the boot open:
- c h e c k t h a t t h e s e a t b e l t i s
positioned correctly on the
side of the seat back to avoid
damaging it,
- p l a c e t h e h e a d r e s t r a i n t s i n t h e low position (see "rear head
restraints"),
- w h i l e f o l d i n g t h e s e a t b a c k , p u l l the strap(s) A , located behind
the seat back.
* According to version.

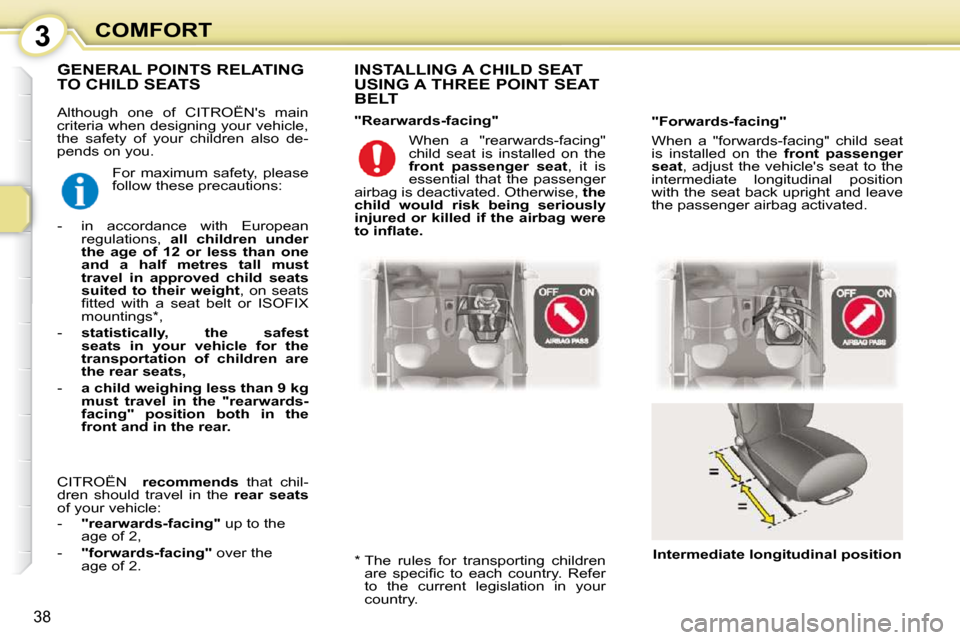

Page 38 of 99
3
38
COMFORT
Although one of CITROËN's main
criteria when designing your vehicle,
t h e s a f e t y o f y o u r c h i l d r e n a l s o d e -
pends on you. INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
I n t e r m e d i a t e l o n g i t u d i n a l p o s i t i o n
* The rules for transporting children
a r e s p e c i fi c t o e a c h c o u n t r y . R e f e r
to the current legislation in your
country.
GENERAL POINTS RELATING TO CHILD SEATS
" F o r w a r d s - f a c i n g "
W h e n a " f o r w a r d s - f a c i n g " c h i l d s e a t
is installed on the front passenger
seat , adjust the vehicle's seat to the
intermediate longitudinal position
with the seat back upright and leave
the passenger airbag activated.
" R e a r w a r d s - f a c i n g "
For maximum safety, please
follow these precautions:
- i n a c c o r d a n c e w i t h E u r o p e a n regulations, a l l c h i l d r e n u n d e r
t h e a g e o f 1 2 o r l e s s t h a n o n e
a n d a h a l f m e t r e s
t a l l m u s t
t r a v e l i n a p p r o v e d c h i l d s e a t s
s u i t e d t o t h e i r w e i g h t , on seats
fi t t e d w i t h a s e a t b e l t o r I S O F I X
mountings * ,
- s t a t i s t i c a l l y , t h e s a f e s t
s e a t s i n y o u r v e h i c l e f o r t h e
t r a n s p o r t a t i o n o f c h i l d r e n a r e
t h e r e a r s e a t s ,
- a c h i l d w e i g h i n g l e s s t h a n 9 k g
m u s t t r a v e l i n t h e " r e a r w a r d s -
facing" position both in the
front and in the rear. W h e n a " r e a r w a r d s - f a c i n g "
child seat is installed on the
front passenger seat , it is
essential that the passenger
airbag is deactivated. Otherwise, the
c h i l d w o u l d r i s k b e i n g s e r i o u s l y
i n j u r e d o r k i l l e d i f t h e
airbag
w e r e
t o i n fl a t e .
CITROËN recommends t h a t c h i l -
dren should travel in the rear seats
of your vehicle:
- " r e a r w a r d s - f a c i n g " up to the
age of 2,
- " f o r w a r d s - f a c i n g " over the
age of 2.
Page 39 of 99
3
39
COMFORT
CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are
s e c u r e d u s i n g a t h r e e p o i n t s e a t b e l t :
Passenger air bag OFF
G r o u p 0 : f r o m b i r t h t o 1 0 k g
G r o u p 0 + : f r o m b i r t h t o 1 3 k g
L1
" R O M E R B a b y - S a f e P l u s "
I n s t a l l e d i n t h e r e a r - f a c i n g p o s i t i o n .
G r o u p s 1 , 2 a n d 3 : f r o m 9 t o 3 6 k g
L2
"KIDDY Life"
Use of the restraining cushion is
compulsory for the transportation of young children (from 9 to 18 kg).
G r o u p s 2 a n d 3 : f r o m 1 5 t o 3 6 k g
L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the booster is used on its own.
Page 40 of 99
3
41
COMFORT

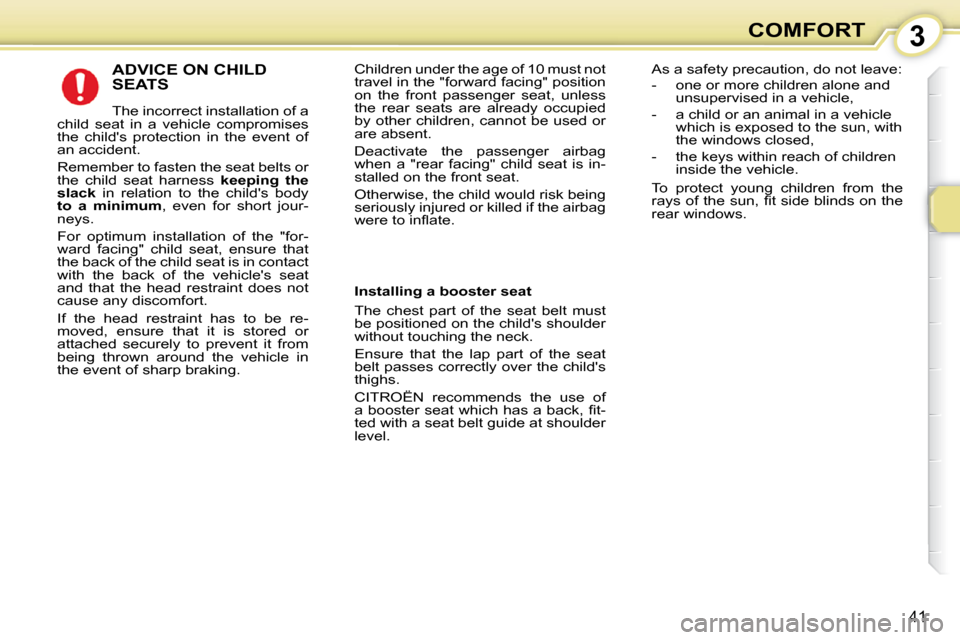

ADVICE ON CHILD SEATS
The incorrect installation of a
child seat in a vehicle compromises
the child's protection in the event of
an accident.
Remember to fasten the seat belts or
the child seat harness k e e p i n g t h e
s l a c k in relation to the child's body
to a minimum , e v e n f o r s h o r t j o u r -
neys.
F o r o p t i m u m i n s t a l l a t i o n o f t h e " f o r -
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
I f t h e h e a d r e s t r a i n t h a s t o b e r e -
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking. Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Deactivate the passenger airbag
w h e n a " r e a r f a c i n g " c h i l d s e a t i s i n -
stalled on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
w e r e t o i n fl a t e .
As a safety precaution, do not leave:
- o n e o r m o r e c h i l d r e n a l o n e a n d
unsupervised in a vehicle,
- a c h i l d o r a n a n i m a l i n a v e h i c l e which is exposed to the sun, with
the windows closed,
- t h e k e y s w i t h i n r e a c h o f c h i l d r e n inside the vehicle.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
I n s t a l l i n g a b o o s t e r s e a t
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
CITROËN recommends the use of
a b o o s t e r s e a t w h i c h h a s a b a c k , fi t -
ted with a seat belt guide at shoulder
level.
