10
FAMILIARISATION
A. Opening and closing control.
Push or pull control A .
48
B. Exterior mirrors adjustment
control.
W h e n t h e v e h i c l e i s p a r k e d , t h e
mirrors can be folded and unfolded
manually.
35
C. Steering wheel height
adjustment locking and
unlocking control.
1. Control unlocked.
2. Control locked.
35
SIT COMFORTABLY
Front electric windows Mirrors Steering wheel adjus tment
(with power steering)
Page 15 of 99
1
18
INSTRUMENTS and CONTROLS
WARNING LAMPS AND INDICATORS
Central STOP
warning lamp
T h i s fl a s h e s f o r a f e w
seconds each time the ignition is
switched on. It is linked with the
warnings for:
- "engine oil pressure",
- "coolant temperature".
Stop immediately if this
lamp
comes
on with the engine running.
Consult a CITROËN dealer.
Engine oil pressure
warning lamp
This comes on each time the
ignition is switched on until
the engine is started.
If it comes on linked with the STOP
warning lamp, with the engine running,
this indicates that the oil pressure is too
low.
Stop immediately.
Consult a CITROËN dealer.
Coolant temperature
warning lamp
This comes on for a few
seconds each time the ignition is
switched on. Anti-lock braking
system (ABS) warning
lamp
This comes on for a few seconds
each time the ignition is switched on.
Fixed lighting indicates a malfunction
of the ABS.
However, the vehicle retains conven-
tional braking with servo-assistance.
Consult a CITROËN dealer.
Parking brake, low
brake fluid level
and braking system
warning lamp
This comes on each time the ignition
is switched on until the parking brake
is released. Electric power steering
warning lamp
This comes on for a few sec-
onds each time the ignition is
switched on.
Fixed lighting, when the vehicle is
moving, indicates a malfunction of
the electric steering system.
Consult a CITROËN dealer.
If this warning lampcomes on, with
the engine running, this indicates
an abnormal increase in the coolant
temperature.
Stop immediately .
Check the coolant level.
To do this, wait until the engine has
cooled before topping up the level.
The cooling system is pressurised.
When checking the level, and
to avoid any risk of scald-
ing, unscrew the cap 1/4 of
a turn to allow the pressure
to drop.
When the pressure has dropped, re-
move the cap.
Then:
1. top up, if necessary
(see "Levels").
2. or, if the level is satisfactory,
contact a CITROËN dealer. Fixed lighting, with the engine run-
ning, indicates one of the following:
- that the parking brake is applied
or has not been released fully,
when the vehicle is moving,
- an excessive drop in the brake fl u i d l e v e l ( i f t h e w a r n i n g l a m p
remains on even with the parking
brake released),
- a braking system fault.
Stop immediately.
Consult a CITROËN dealer.
Page 35 of 99
3
35
COMFORT
MIRRORS STEERING WHEEL HEIGHT ADJUSTMENT (WITH POWER STEERING)
When stationary , lower the lever to
unlock the steering wheel.
Adjust to the desired height and lift
the lever to lock the steering wheel.
F o l d i n g / U n f o l d i n g
W h e n t h e v e h i c l e i s p a r k e d , t h e e x -
terior mirrors can be folded back and
unfolded manually. M a n u a l i n t e r i o r m i r r o r
The interior mirror has two positions:
- d a y ( n o r m a l ) ,
- n i g h t ( a n t i - d a z z l e ) .
To change from one to the other,
push or pull the lever on the lower
edge of the mirror.
Exterior mirrors
Move the lever in all four directions to
adjust the mirror.
F o r s a f e t y r e a s o n s , t h e s e o p -
erations must not be carried
out while driving.
Page 87 of 99
9
76
PRACTICAL INFORMATION
* Fuses located behind the instrument panel. To change them, contact a CITROËN dealer.

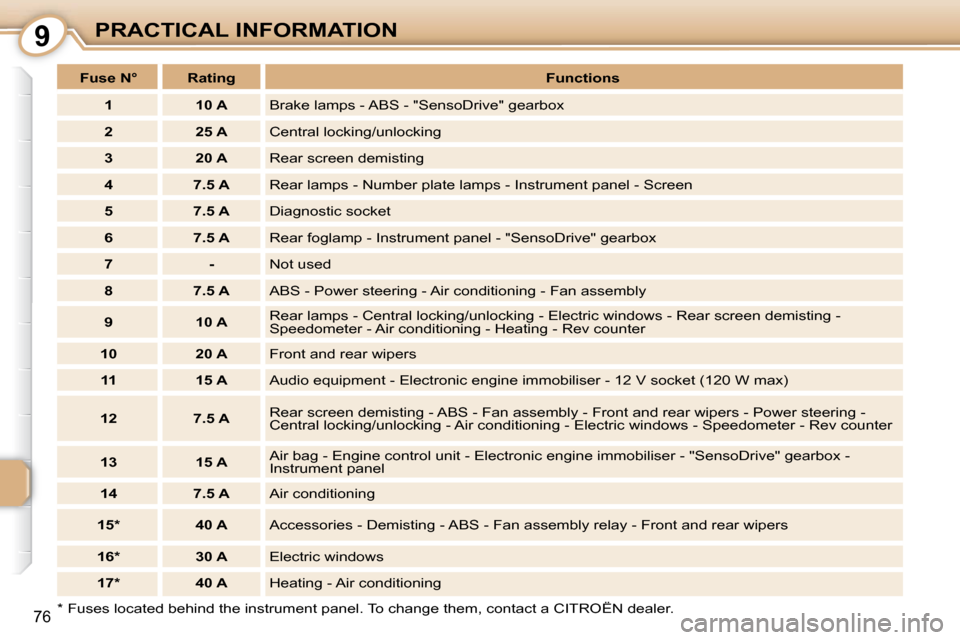

Fuse N° Rating
Functions
1 10 A Brake lamps - ABS - "SensoDrive" gearbox
2 25 A Central locking/unlocking
3 20 A Rear screen demisting
4 7.5 A Rear lamps - Number plate lamps - Instrument panel - Screen
5 7.5 A Diagnostic socket
6 7.5 A Rear foglamp - Instrument panel - "SensoDrive" gearbox
7 - Not used
8 7.5 A ABS - Power steering - Air conditioning - Fan assembly
9 10 A Rear lamps - Central locking/unlocking - Electric windows - Rear scree
n demisting -
Speedometer - Air conditioning - Heating - Rev counter
10 20 A Front and rear wipers
11 15 A Audio equipment - Electronic engine immobiliser - 12 V socket (1 20 W max)
12 7.5 A Rear screen demisting - ABS - Fan assembly - Front and rear wipers - Powe
r steering -
Central locking/unlocking - Air conditioning - Electric windows - Speedometer - Rev counter
13 15 A Air bag - Engine control unit - Electronic engine immobiliser - "Se
nsoDrive" gearbox -
Instrument panel
14 7.5 A Air conditioning
15 * 40 A Accessories - Demisting - ABS - Fan assembly relay - Front and rear wipers
16 * 30 A Electric windows
17 * 40 A Heating - Air conditioning
Page 89 of 99
9
78
PRACTICAL INFORMATION

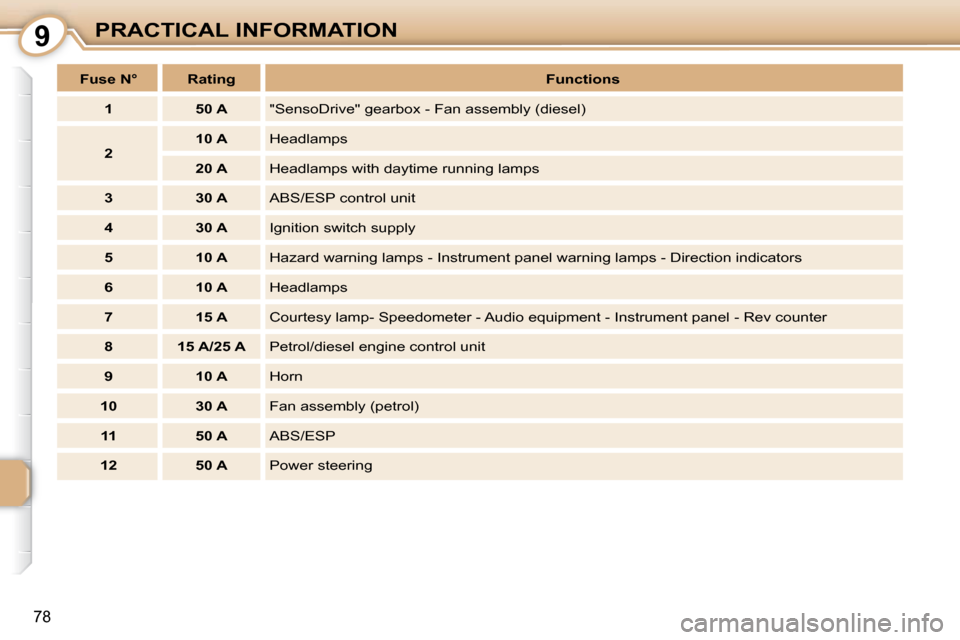

Fuse N° Rating
Functions
1 50 A "SensoDrive" gearbox - Fan assembly (diesel)
2
10 A Headlamps
20 A Headlamps with daytime running lamps
3 30 A ABS/ESP control unit
4 30 A Ignition switch supply
5 10 A Hazard warning lamps - Instrument panel warning lamps - Directi on indicators
6 10 A Headlamps
7 15 A Courtesy lamp- Speedometer - Audio equipment - Instrument panel - Rev counter
8 15 A/25 A Petrol/diesel engine control unit
9 10 A Horn
10 30 A Fan assembly (petrol)
11 50 A ABS/ESP
12 50 A Power steering
