Citroen C1 RHD 2014 1.G Owner's Manual

139
F Place the switch in the "O" position.
F R emove the kit.
F

D
rive immediately for approximately
three miles (five kilometres), at reduced
speed (between 15 and 35 mph (20 and
60
km/h)), to plug the puncture.
F

S
top to check the repair and the tyre
pressure using the kit.
Checking / adjusting tyre pressures
F Check that the compressor switch is at the " O" position.
F

U
ncoil fully the electric cable, stowed under
the compressor.
F

C
onnect the compressor's plug to the
vehicle's 12 V socket.
F

S
witch on the ignition.
You can also use the compressor, without
injecting sealant, to check and if necessary
adjust the tyre pressures.
F

R

emove the valve cap from the tyre and
place it in a clean area.
F

U

ncoil the pipe stowed under the
compressor.
F

S

crew the pipe onto the valve and tighten
f i r m l y.
9
Practical information

140
Should the pressure of one or more
tyres be adjusted, it is necessary to
reinitialise the under-inflation detection
system.
Refer to the "Under-inflation detection"
section.
Tyre under-inflation
detection
After repair of the tyre, the warning
lamp will remain on until the system is
reinitialised.
For more information, refer to the
"Under-inflation detection" section.

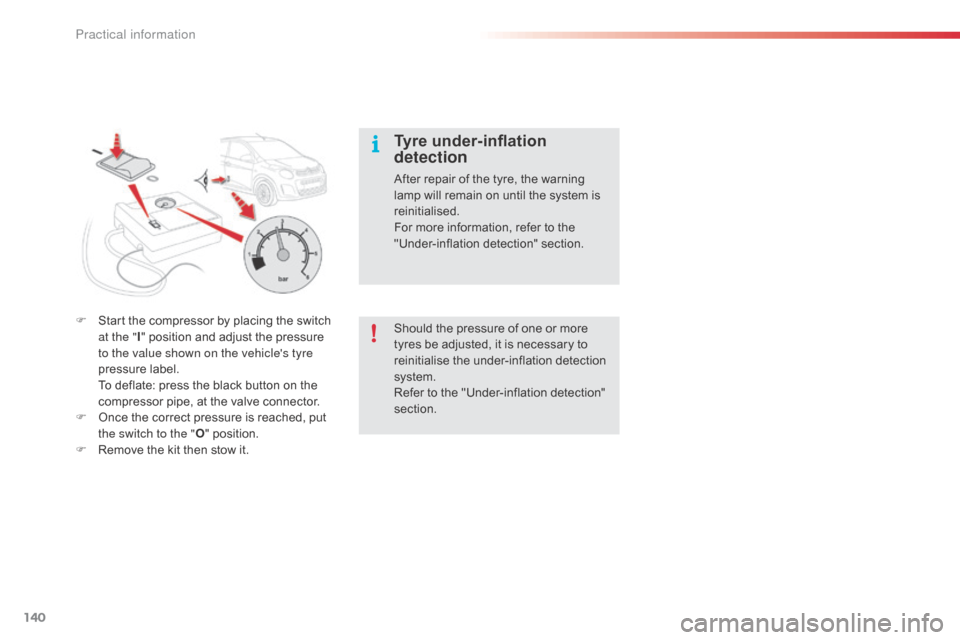

F

S

tart the compressor by placing the switch
at the " I" position and adjust the pressure
to the value shown on the vehicle's tyre
pressure label.
T

o deflate: press the black button on the
compressor pipe, at the valve connector.
F

O

nce the correct pressure is reached, put
the switch to the " O" position.
F

R

emove the kit then stow it.
Practical information

141

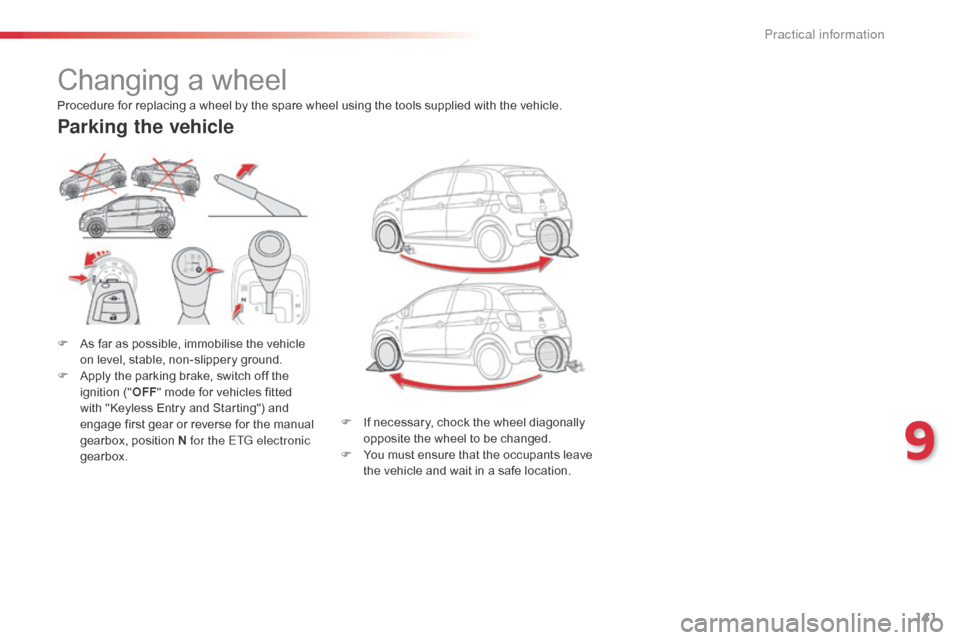

Changing a wheel
F As far as possible, immobilise the vehicle on level, stable, non-slippery ground.
F

A
pply the parking brake, switch off the
ignition (" OFF" mode for vehicles fitted
with "Keyless Entry and Starting") and
engage first gear or reverse for the manual
gearbox, position N for the ETG electronic
gearbox.
Parking the vehicle
Procedure for replacing a wheel by the spare wheel using the tools supplied with the vehicle.
F
I
f necessary, chock the wheel diagonally
opposite the wheel to be changed.
F

Y
ou must ensure that the occupants leave
the vehicle and wait in a safe location.
9
Practical information

142

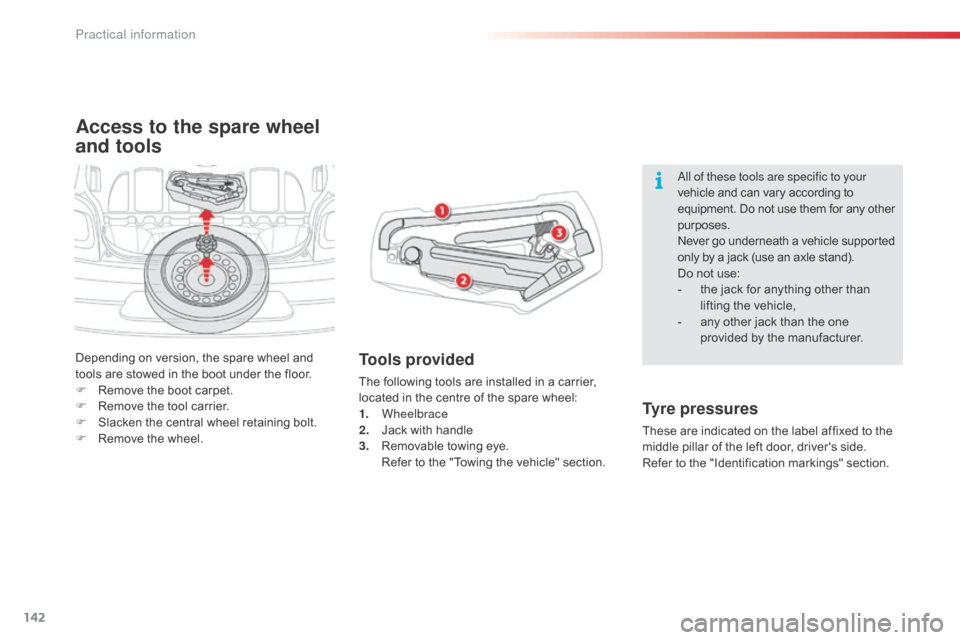

Access to the spare wheel
and tools
Tools provided
The following tools are installed in a carrier,
located in the centre of the spare wheel:
1.

Wheelbrace
2.
J

ack with handle
3.
R

emovable towing eye.
R

efer to the "Towing the vehicle" section.
Tyre pressures
These are indicated on the label affixed to the
middle pillar of the left door, driver's side.
Refer to the "Identification markings" section.
al
l of these tools are specific to your
vehicle and can vary according to
equipment. Do not use them for any other
purposes.
Never go underneath a vehicle supported
only by a jack (use an axle stand).
Do not use:
-
t
he jack for anything other than
lifting the vehicle,
-
a
ny other jack than the one
provided by the manufacturer.
Depending on version, the spare wheel and
tools are stowed in the boot under the floor.
F

R

emove the boot carpet.
F

R

emove the tool carrier.
F
S
lacken the central wheel retaining bolt.
F
R
emove the wheel.
Practical information

143
Removing a wheel
F Remove the label from the middle of the spare wheel (indicating that a wheel needs
repair), and fix it inside the vehicle, where
the driver can see it.
F

R
emove the wheel trim using the end of the
wheelbrace.
F

S
lacken the wheel bolts using the
wheelbrace 1 . F
P osition the foot of the jack 2 on the
ground and ensure that it is directly below
one the jacking points A or B located on
the underbody, closest to the wheel to be
changed.
F

E
xtend the jack 2 until its head is in contact
with the jacking point A or B used. The
contact sur face A or B on the vehicle used
must engage correctly with the middle of
the head of the jack. F
Ra ise the vehicle until there is sufficient
space between the wheel and the ground,
so that the (not punctured) spare wheel can
be easily fitted.
Ensure that the jack is stable. If the ground is slippery or loose, the jack may slip or drop -
Risk of injury!
Ensure that the jack is positioned only at one of the jacking points A or B
under the vehicle,
making sure that the vehicle's contact sur face is centred on the head of the jack. Other wise
there is a risk of damage to the vehicle and/or of the jack dropping - Risk of injury!
9
Practical information

144

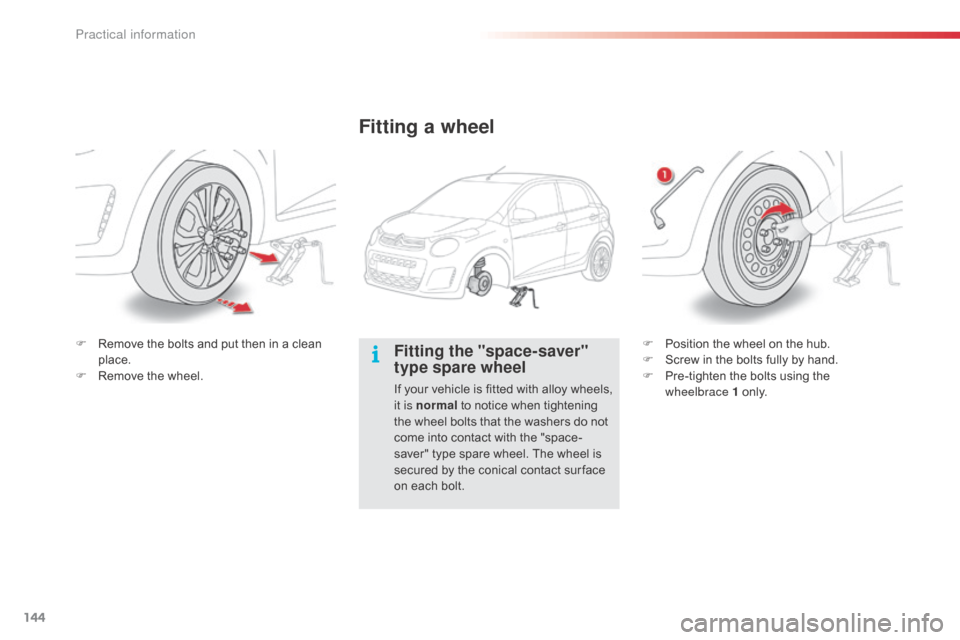

Fitting the "space-saver"
type spare wheel
If your vehicle is fitted with alloy wheels,
it is normal to notice when tightening
the wheel bolts that the washers do not
come into contact with the "space-
saver" type spare wheel. The wheel is
secured by the conical contact sur face
on each bolt. F

P
osition the wheel on the hub.
F
S
crew in the bolts fully by hand.
F P re-tighten the bolts using the
wheelbrace 1 o n l y.
Fitting a wheel
F Remove the bolts and put then in a clean
place.
F

R
emove the wheel.
Practical information

145

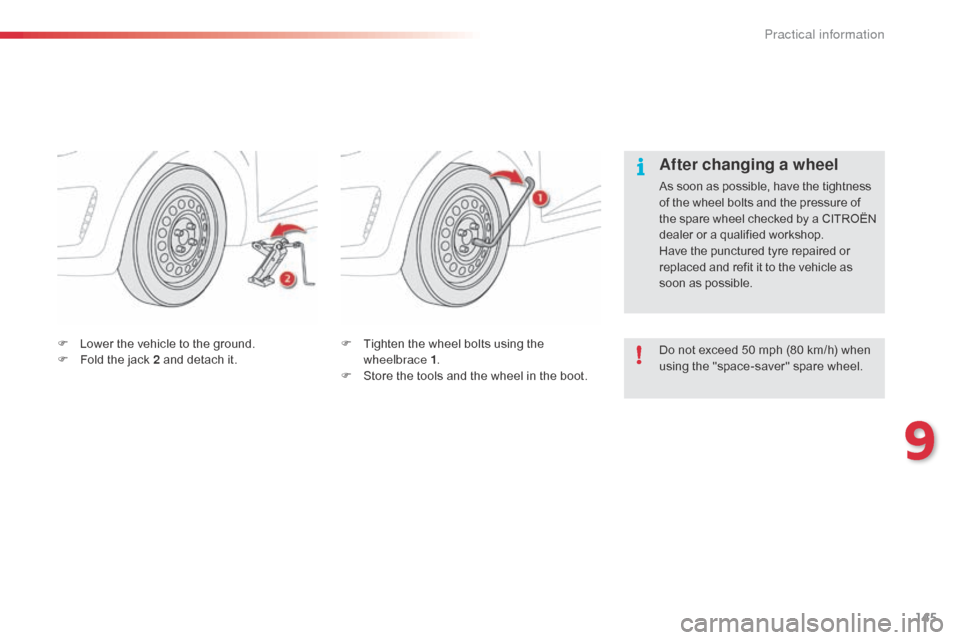

F Tighten the wheel bolts using the wheelbrace 1 .
F

S
tore the tools and the wheel in the boot.
F
L
ower the vehicle to the ground.
F
F
old the jack 2 and detach it.
After changing a wheel
As soon as possible, have the tightness
of the wheel bolts and the pressure of
the spare wheel checked by a CITROËN
dealer or a qualified workshop.
Have the punctured tyre repaired or
replaced and refit it to the vehicle as
soon as possible.
Do not exceed 50 mph (80 km/h) when
using the "space-saver" spare wheel.
9
Practical information

146
Snow chains
In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when
braking.
Advice on installation
F If you have to fit the chains during a journey, stop the vehicle on a flat sur face
on the side of the road.
F

A
pply the parking brake and position any
wheel chocks to prevent movement of your
vehicle.
F

F
it the chains following the instructions
provided by the manufacturer.
F

M
ove off gently and drive for a few
moments, without exceeding 30 mph
(50 km/h).
F

S
top your vehicle and check that the snow
chains are correctly tightened.
Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised. The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.
Avoid driving with snow chains on roads
that have been cleared of snow, to
avoid damaging your vehicle's tyres and
the road sur face. If your vehicle is fitted
with alloy wheels, check that no part of
the chain or its fixings is in contact with
the wheel rim.
Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
Original tyre size Maximum link size.165/65 R14 9 mm
165/60 R15
For more information on snow chains,
contact a CITROËN dealer or a
qualified workshop.
It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry sur face.
Practical information

147

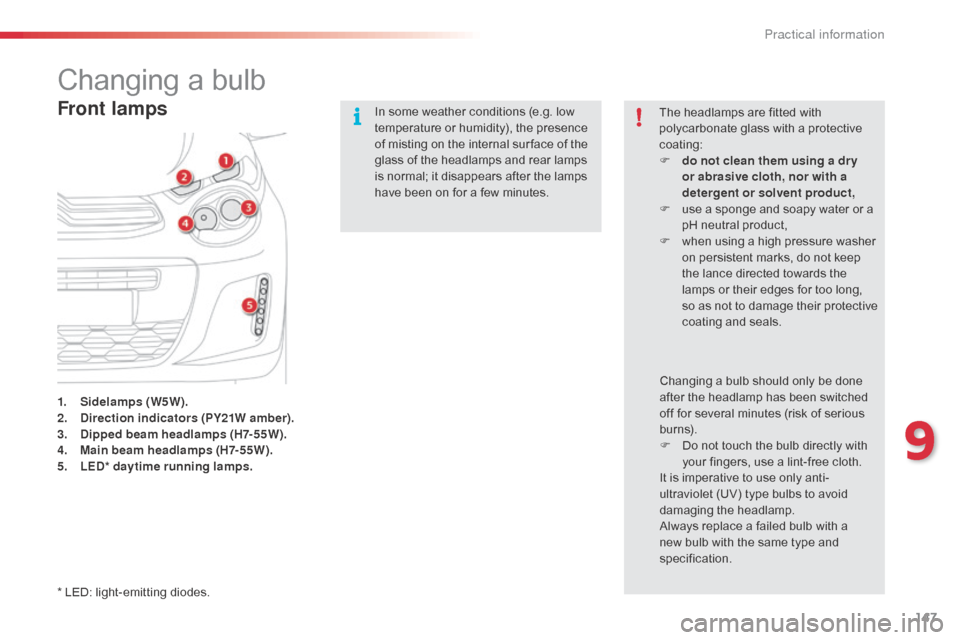

Changing a bulb
Front lamps
1. Sidelamps (W5W).
2. Direction indicators (PY21W amber).
3.
D

ipped beam headlamps (H7-55W).
4.
M

ain beam headlamps (H7-55W).
5.
L

ED* daytime running lamps. In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
The headlamps are fitted with
polycarbonate glass with a protective
coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
u
se a sponge and soapy water or a
pH neutral product,
F
w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F
D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
* LED: light-emitting diodes.
9
Practical information

148
Direction indicators
(PY 21W amber)
Sidelamps (W5W)
F Turn the bulb holder one quarter of a turn
and remove it.
F

R
emove the bulb and change it.
If you encounter any difficulties, contact a
CITROËN dealer or a qualified workshop.
F
T
urn the bulb holder one quarter of a turn
and remove it.
F

R

emove the bulb and change it.
Dipped beam headlamps
(H7 - 55W)
F Remove protective cover by pulling on the tag.
F

S
pread the spring to free the bulb holder.
F

R
emove the bulb holder /bulb assembly
and change it.
To reassemble, carry out these operations in
reverse order.
If you encounter any difficulties, contact a
CITROËN dealer or a qualified workshop.
