Citroen C1 RHD 2014 1.G Owner's Manual

149

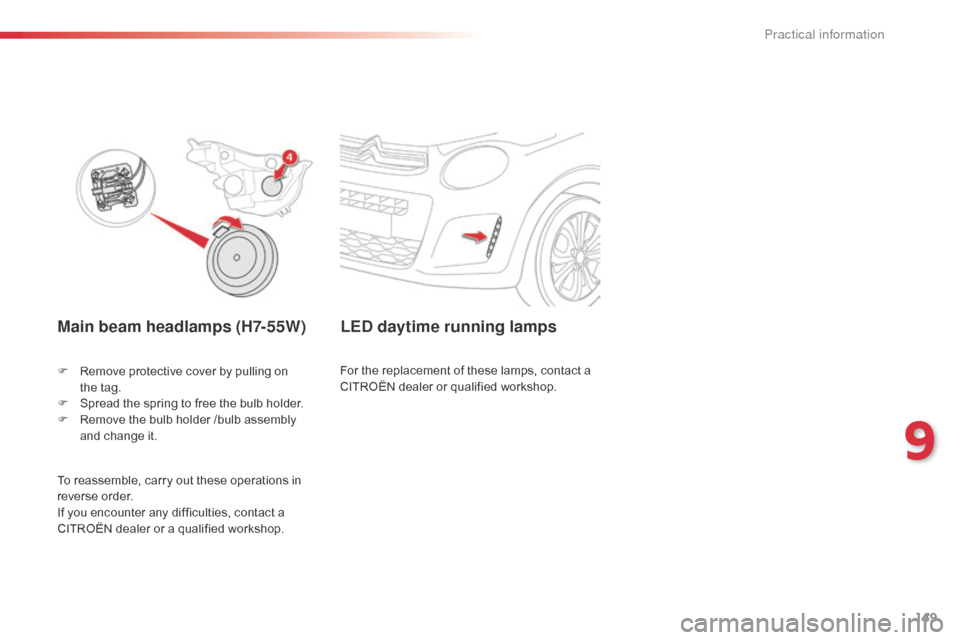

Main beam headlamps (H7-55W)
F Remove protective cover by pulling on the tag.
F

S
pread the spring to free the bulb holder.
F

R
emove the bulb holder /bulb assembly
and change it.
LED daytime running lamps
For the replacement of these lamps, contact a
CITROËN dealer or qualified workshop.
To reassemble, carry out these operations in
reverse order.
If you encounter any difficulties, contact a
CITROËN dealer or a qualified workshop.
9
Practical information

150
1. Brake lamps (P21/5W)
2. Sidelamps (P21/5W)
3.
D

irection indicators (PY21W)
4.
R

eversing lamp (P21W), near side
F

oglamp (P21W), offside
Rear lamps
These bulbs are changed by removing the lamp
unit:
F
O
pen the boot.
F

T
ip the plastic cover and remove the screw.
F

M
ove the boot trim firmly aside.
D

eformation of the trim is normal.
F

U
nscrew the nut and remove it (take care
not to drop it in the wing).
F

R
emove the lamp unit by pulling it firmly
outwards. F
A t the back of the lamp, remove the failed
bulb and change it.
When refitting, proceed in the reverse order,
taking care to position the lamp unit correctly.
Practical information

151

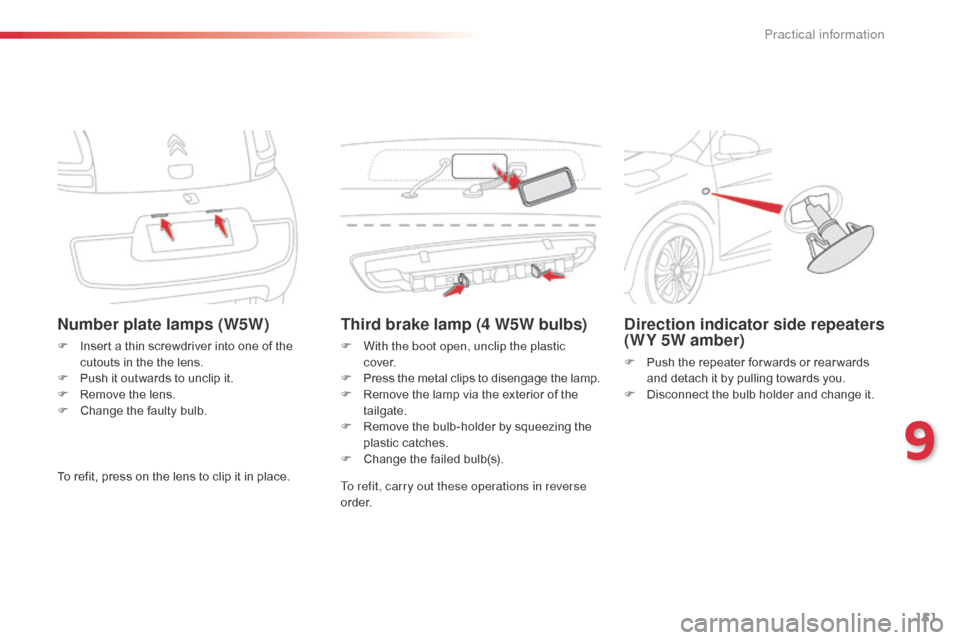

Number plate lamps (W5W)
F Insert a thin screwdriver into one of the cutouts in the the lens.
F

P
ush it outwards to unclip it.
F

R
emove the lens.
F

C
hange the faulty bulb.
Third brake lamp (4 W5W bulbs)
F With the boot open, unclip the plastic c ove r.
F

P
ress the metal clips to disengage the lamp.
F

R
emove the lamp via the exterior of the
tailgate.
F

R
emove the bulb-holder by squeezing the
plastic catches.
F

C
hange the failed bulb(s).
Direction indicator side repeaters
(WY 5W amber)
F Push the repeater for wards or rear wards and detach it by pulling towards you.
F

D
isconnect the bulb holder and change it.
To refit, press on the lens to clip it in place. To refit, carry out these operations in reverse
o r d e r.
9
Practical information

152
Changing a fuse
Access to toolsThe fuseboxes are located behind the
dashboard in the passenger compartment and
next to the battery under the bonnet.The extraction tweezer is fixed at the front of
the underbonnet fusebox.
F

U
nclip the fusebox cover by pressing on
the lug on the right.
F

R
emove the tweezer.
Practical information

153
Before changing a fuse, it is necessary to
F i mmobilise the vehicle and switch off the
ignition,
F

s
witch off all electrical consumers,
F

i
dentify the failed fuse using the fuse
allocation tables and diagrams in the
following pages,
F

i
dentify and correct the cause of the
problem.
Replacing a fuse
Good Failed
Tw e e z e r
When replacing a fuse, you must always:
F

u

se the special tweezer to extract the fuse
from its holder and check the condition of
its element,
F

r

eplace a failed fuse by on of the same
rating (same colour); the use of a different
rating fuse could cause a fault (risk of fire).
If the problem recurs after replacing the fuse,
have the vehicle's electrical system checked by
CITROËN dealer or a qualified workshop. CITR
oËn

will not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the
installation of auxiliary accessories which
were not supplied or recommended by
CITROËN
and which were not installed
in accordance with its instructions, in
particular where the current consumption
of all the the additional equipment
connected exceeds 10 milliamps.
Installation of electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer or a
qualified workshop.
9
Practical information

154
Dashboard fuses
The fusebox is located below the dashboard
(driver's side).
F
U
nclip the plastic cover for access to the
fuses.
When you have finished, carefully refit the
c ove r. Fuse

N° Rating

(A) Functions
1 5Fuel injection system - Audio system - VSC system
2 15Front and rear screenwash
3 5Main distribution unit - Instrument panel - Display screen -
Air conditioning - Heated rear screen and door mirror heating -
Electric fabric roof - Audio system
4 5Electric power steering - Stop & Start
5 15Rear wiper
6 5Cooling fan - ABS system ESP - VSC system
7 25Front wiper
8 10Heated door mirrors
9 1512 V socket (120 W max)
10 7. 5Door mirrors - Audio system - Stop & Start - Instrument panel -
di

splay screen
Practical information

155

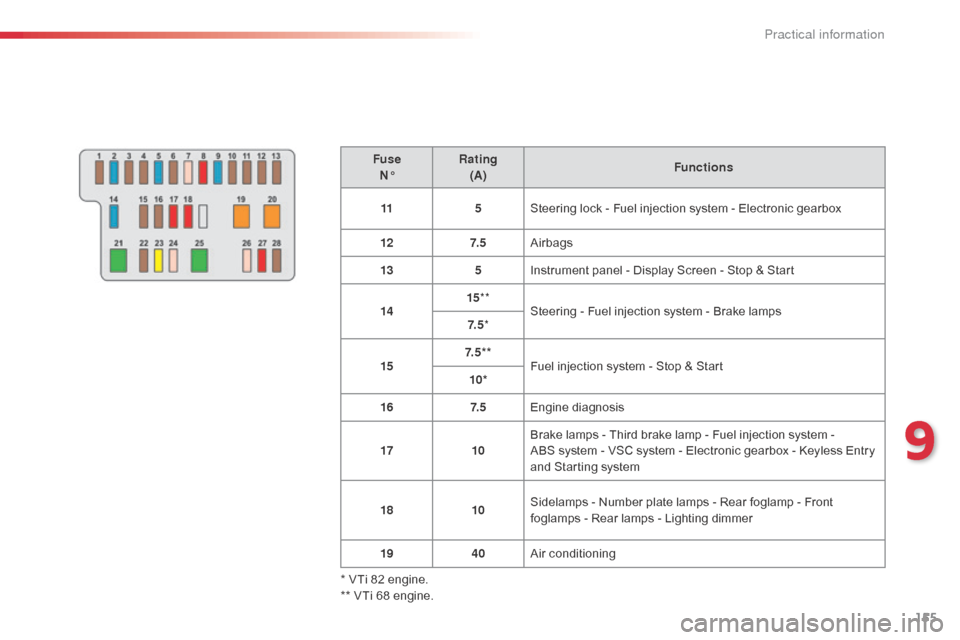

FuseN° Rating
(A) Functions
11 5Steering lock - Fuel injection system - Electronic gearbox
12 7. 5Airbags
13 5Instrument panel - Display Screen - Stop & Start
14 15
**
Steering - Fuel injection system - Brake lamps
7. 5 *
15 7. 5 * *
Fuel injection system - Stop & Start
10*
16 7. 5Engine diagnosis
17 10Brake lamps - Third brake lamp - Fuel injection system -
ABS
system - VSC system - Electronic gearbox - Keyless Entry
and Starting system
18 10Sidelamps - Number plate lamps - Rear foglamp - Front
foglamps - Rear lamps - Lighting dimmer
19 40Air conditioning
* VTi 82 engine.
** VTi 68 engine.
9
Practical information

156
FuseN° Rating
(A) Functions
20 40Air conditioning - Engine self-diagnosis - Sidelamps - Number
plate lamps - Rear foglamp - Front foglamps - Rear lamps
-
Lighting dimmer - Brake lamps - Third brake lamp - Fuel
injection system - ABS system - VSC system - Electronic
gearbox - "Keyless Entry and Starting" system - Electric
windows
21 30Fuel injection system - Stop & Start - Main distribution unit
22** 7, 5Fuel injection system
23** 20Fuel injection system - Stop & Start
24 25Main distribution unit
25 30Electric windows
26 25Electric windows
27 10Air conditioning
28 5Rear foglamp
** VTi 68 engine.
Practical information

157
Fuse
N° Rating

(A) Functions
1 10Right hand dipped beam
2 10Left hand dipped beam - Headlamp adjustment
3 7. 5Right hand main beam
4 7. 5Left hand main beam
5 * 15Fuel injection system
6 * 7. 5Fuel injection system
7 * 15Fuel injection system
8 * 7. 5Cooling fan
9 7. 5Air conditioning
10 ** 7. 5Fuel injection system - Brake lamps - Third brake lamp
11 5Courtesy lamp - Boot lamp
12 10
Direction indicators - Hazard warning lamps - Instrument panel - Display screen

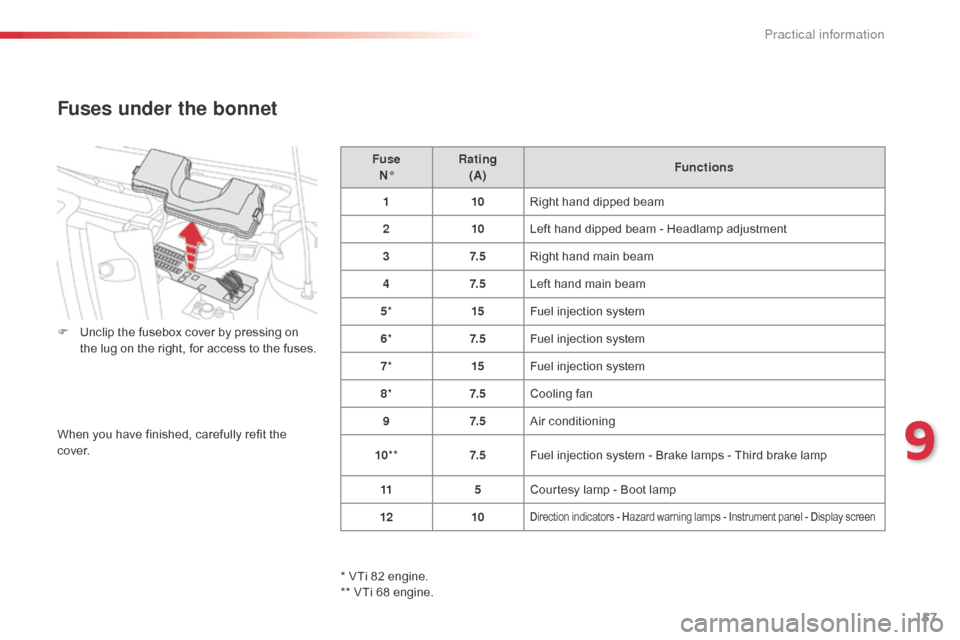

Fuses under the bonnet
F Unclip the fusebox cover by pressing on
the lug on the right, for access to the fuses.
When you have finished, carefully refit the
c ove r.
* VTi 82 engine.
** VTi 68 engine.
9
Practical information

158
** VTi 68 engine.Fuse
N° Rating
(A) Functions
13 10Horn
14 30
di
stribution units
15 ** 7. 5Electronic gearbox
16 7. 5Fuel injection system
17 7. 0Keyless Entry and Starting system
18 ** 7. 5
bat
tery
19 25Fuel injection system - Cooling fan
20 30Starter motor
21 7. 5Steering lock
22 25Front lamps
23 7. 5Fuel injection system
24 7. 5Fuel injection system - Starter motor - Electronic gearbox -
Stop

& Start
25 15Audio system - "Keyless Entry and Starting" system
26 7. 5Instrument panel - Display screen
Practical information
