Citroen C1 RHD 2015 1.G Owner's Manual

179
Petrol engineVTi 68VTi 68 S&SPureTech 82
Gearbox Manual

(5 - speed) ETG electronic

(5 - speed) Manual
(5 - speed) Manual
(5 - speed)
Model code:
P... SCFBB
SCFBC ...B1A
...H1A ...P1A
...W1A SCFBB
SCFBC ...B1C
...H1C ...P1C
...W1C SCFB2
SCFB3 ...B1B
...H1B ...P1B
...W1B AHMTB
AHMTC ...B1A
...H1A ...P1A
...W1A
Cubic capacity (cc) 9989989981 199
Bore x stroke (mm) 71 x 8471 x 8471 x 8475 x 90.5
EU standard maximum power (kW)* 51515160
Max power engine speed (rpm) 6 0006 0006 000 5 750
EU standard max torque (Nm) 959595118
Max torque engine speed (rpm) 4 3004 3004 300 2 750
Fuel Unleaded petrol
Catalytic converter Ye s
Engine oil capacity in litres
(with filter replacement) 3.2
3.23.23.25
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Engines
...B1 : 3 -door version.
...H1 : 5 -door version. ...P1
: 3 -door convertible version.
...W1 : 5 -door convertible version.
11
Technical data

180
EngineVTi 68VTi 68 S&SPureTech 82
Gearbox Manual

(5 - speed) ETG electronic
(5 - speed) Manual

(5 - speed) Manual
(5 - speed)
Model code:
P... SCFBB
SCFBC ...B1A
...H1A ...P1A
...W1A SCFBB
SCFBC ...B1C
...H1C ...P1C
...W1C SCFB2
SCFB3 ...B1B
...H1B ...P1B
...W1B AHMTB
AHMTC ...B1A
...H1A ...P1A
...W1A
Kerb weight 840860 855865
Unladen weiight* 915935 930940
Gross vehicle weight (GV W) 1 2401 2401 2401 240
Gross train weight (GTW) 1 2401 2401 2401 240
Weights (in kg)
The design of your vehicle does not permit the fitting of a towbar.
* The unladen weight is equal to the kerb weight + driver (75 kg). ...B1 : 3 -door version.
...H1 : 5 -door version. ...P1
: 3 -door convertible version.
...W1 : 5 -door convertible version.
Technical data

181

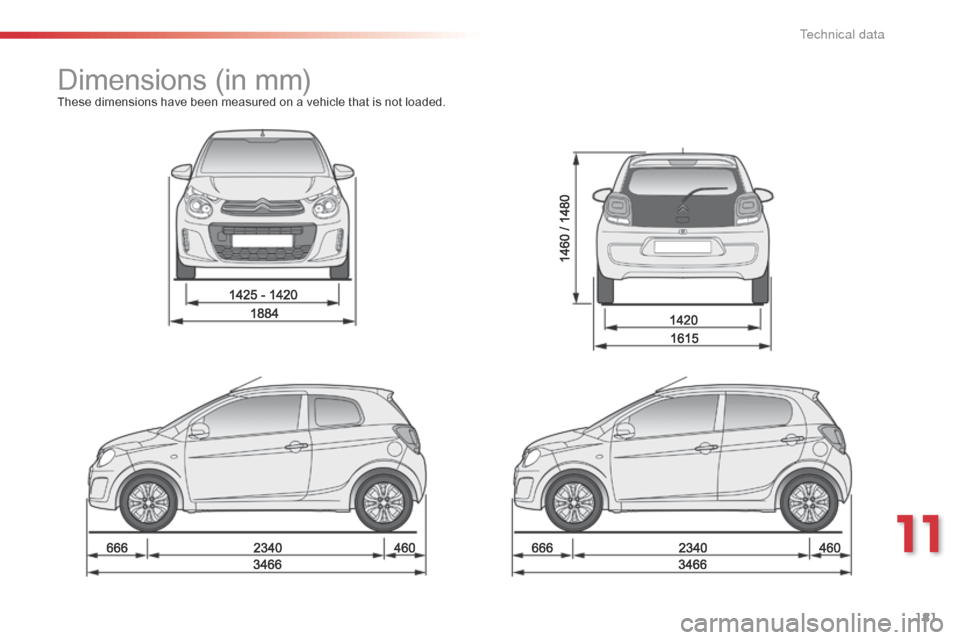

Dimensions (in mm)These dimensions have been measured on a vehicle that is not loaded.
11
T

182
Identification markings
A. Vehicle Identification Number (VIN) on the body.
This number is engraved on the middle door
pillar, or the rear door pillar, right hand side.
The tyre pressures must be checked
when cold, at least once a month.Low tyre pressures increase fuel
consumption.
B. Vehicle Identification Number
(VIN) in the passenger
compartment.
This is engraved on the crossmember, under
the front right seat.
C. Tyre label.
This label on the middle door pillar, driver's
side, carries the following information:
-

t
he tyre sizes,
-

t
he tyre pressures.
3-door 5-door
Technical data

183

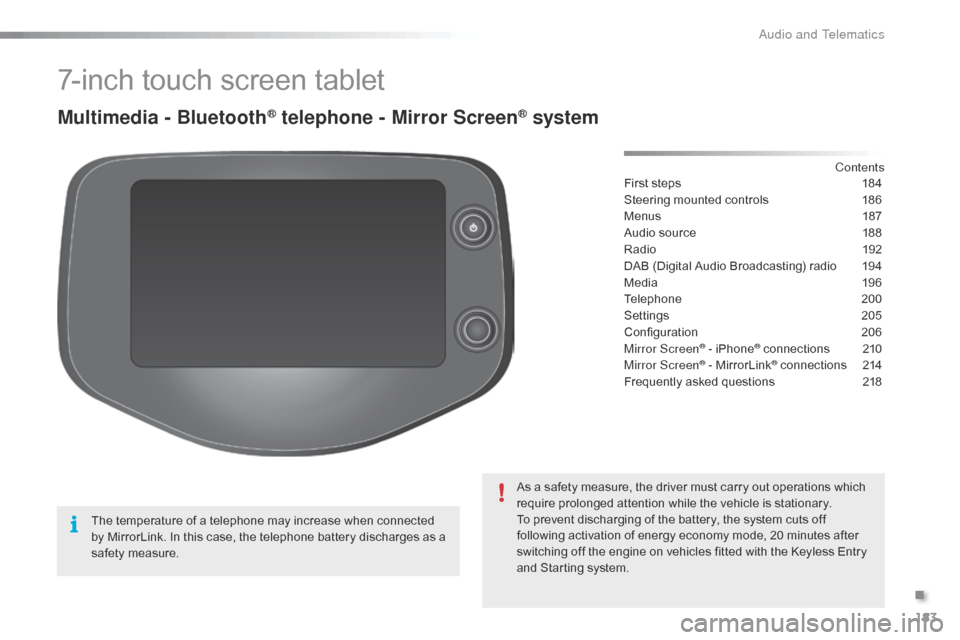

7-inch touch screen tablet
Multimedia - Bluetooth® telephone - Mirror Screen® system
First steps 184
Steering mounted controls
1
86
Menus

1
87
Audio source

1
88
Radio
19

2
DAB (Digital Audio Broadcasting) radio

1
94
Media
19

6
Telephone
2

00
Settings
2

05
Configuration
20

6
Mirror Screen
® - iPhone® connections 2 10
Mirror Screen® - MirrorLink® connections 2 14
Frequently asked questions

2
18
As a safety measure, the driver must carry out operations which
require prolonged attention while the vehicle is stationary.
To prevent discharging of the battery, the system cuts off
following activation of energy economy mode, 20 minutes after
switching off the engine on vehicles fitted with the Keyless Entry
and Starting system. Contents
The temperature of a telephone may increase when connected
by MirrorLink. In this case, the telephone battery discharges as a
safety measure.
.
Audio and Telematics

184
In the event of prolonged exposure to
sunlight and very hot conditions, the
system may go into stand-by (screen
and sound completely off) for at least
5 minutes.
Return to normal operation takes
place when the temperature in the
passenger compartment drops.

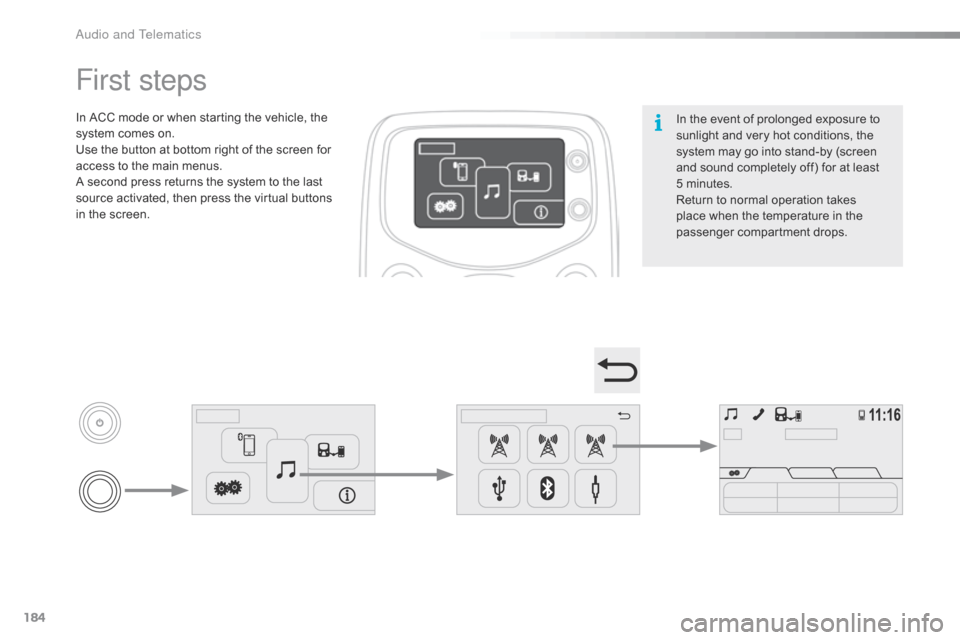

First steps
In ACC mode or when starting the vehicle, the
system comes on.
Use the button at bottom right of the screen for
access to the main menus.
A second press returns the system to the last
source activated, then press the virtual buttons
in the screen.
Audio and Telematics

185

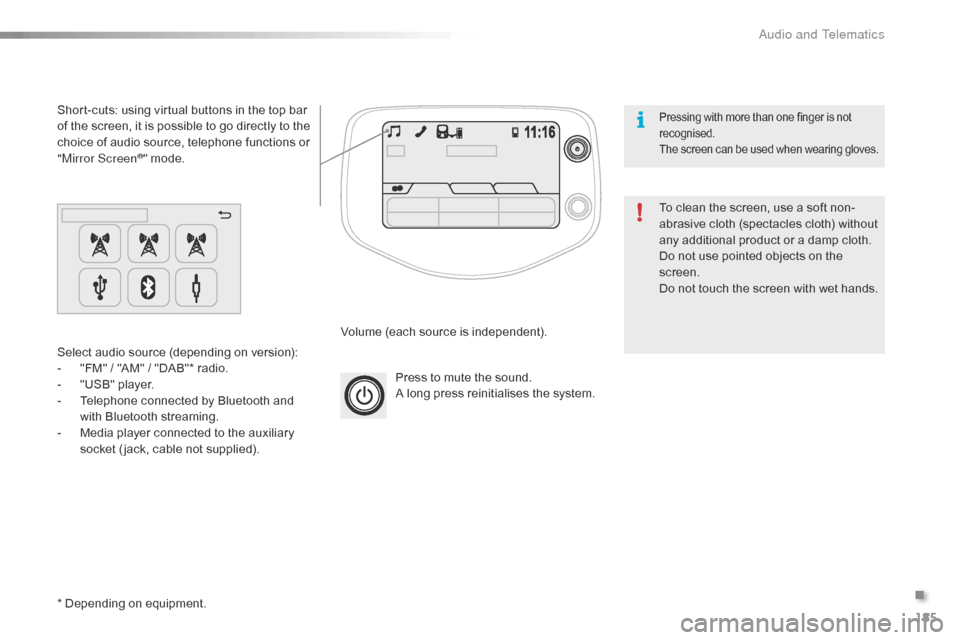

Press to mute the sound.
A long press reinitialises the system.
Volume (each source is independent).
Select audio source (depending on version):
-
"
FM" / "AM" / "DAB"* radio.
-
"
USB" player.
-

T

elephone connected by Bluetooth and
with Bluetooth streaming.
-

M

edia player connected to the auxiliary
socket ( jack, cable not supplied).
Short-cuts: using virtual buttons in the top bar
of the screen, it is possible to go directly to the
choice of audio source, telephone functions or
"Mirror Screen
®" mode.
* Depending on equipment. To clean the screen, use a soft non-
abrasive cloth (spectacles cloth) without
any additional product or a damp cloth.
Do not use pointed objects on the
screen.
Do not touch the screen with wet hands.
Pressing with more than one finger is not
recognised.
The screen can be used when wearing gloves.
.
Audio and Telematics

186
Steering mounted controls
Change multimedia source.
Press and hold: mute / restore
sound from the radio or pause media
sources.Increase volume.
Decrease volume.
Reject the incoming call.
End the call in progress.
Other than on a call: press to return
to the radio screen or the clock if the
radio is not active.
Radio: change to preset radio
stations in ascending order.
Media: next track.
Radio: change to preset radio
stations in descending order.
Media: previous track.
Accept an incoming call.
Other than on a call: press to open
the list of contacts; a second press
opens the calls history.
A

187

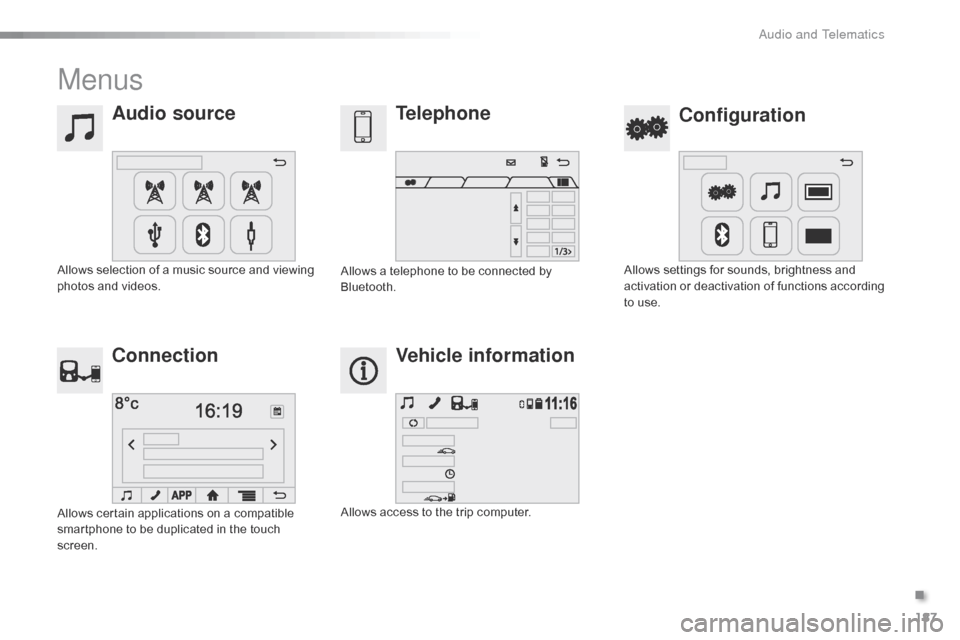

Menus
Audio sourceConfiguration
Telephone
Connection Vehicle information
Allows selection of a music source and viewing
photos and videos. Allows settings for sounds, brightness and
activation or deactivation of functions according
to use.
Allows a telephone to be connected by
Bluetooth.
Allows certain applications on a compatible
smartphone to be duplicated in the touch
screen. Allows access to the trip computer.
.
Audio and Telematics

188

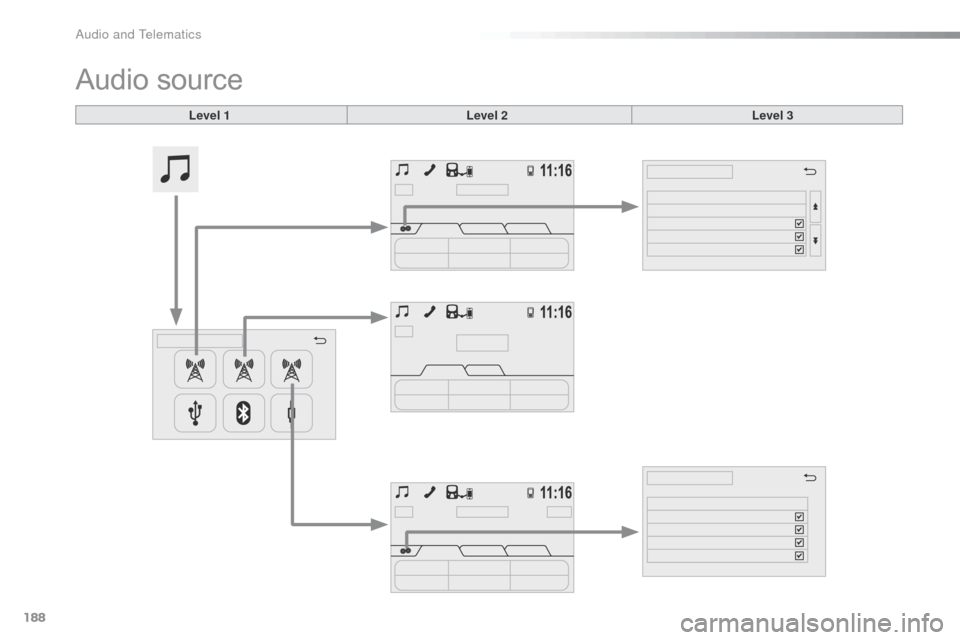

Audio source
Level 1Level 2 Level 3
Audio and Telematics
