Citroen C1 RHD 2016 1.G Owner's Manual

219

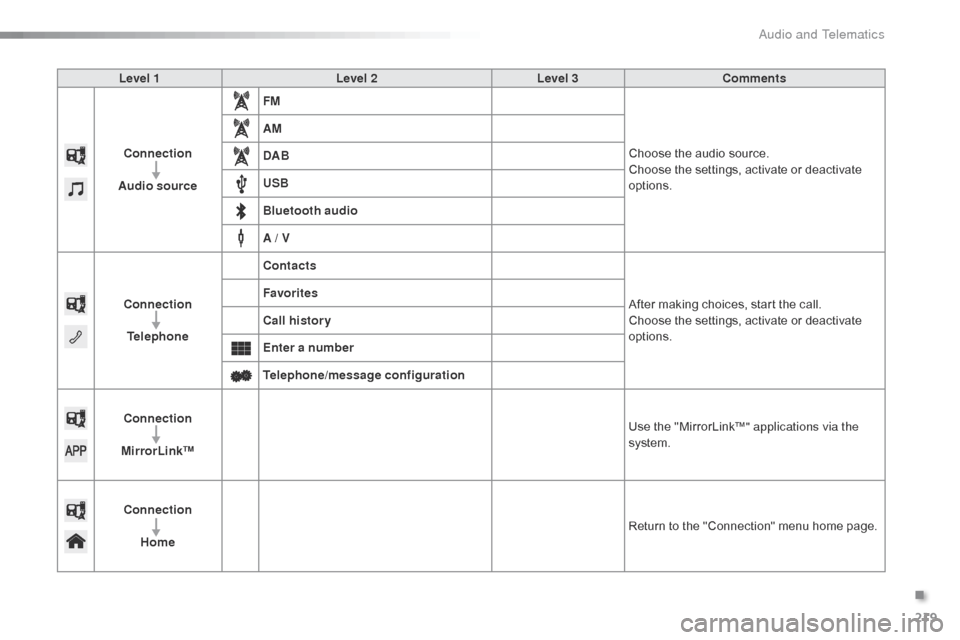

Level 1Level 2Level 3Comments
Connection
Audio source FM
Choose
  the   audio   source.
Choose
  the   settings,   activate   or   deactivate
op

tions.
AM
DAB
USB
Bluetooth audio
A / V
Connection Telephone Contacts
After
  making   choices,   start   the   call.
Choose
  the   settings,   activate   or   deactivate
op

tions.
Favorites
Call history
Enter a number
Telephone/message configuration
Connection
MirrorLink™ Use
  the   "MirrorLink™" applications via the
system.
Connection Home Return
  to   the   "Connection"   menu   home   page.
.
Audio and Telematics

17/08/15
14:48
68
km/h
25m
220

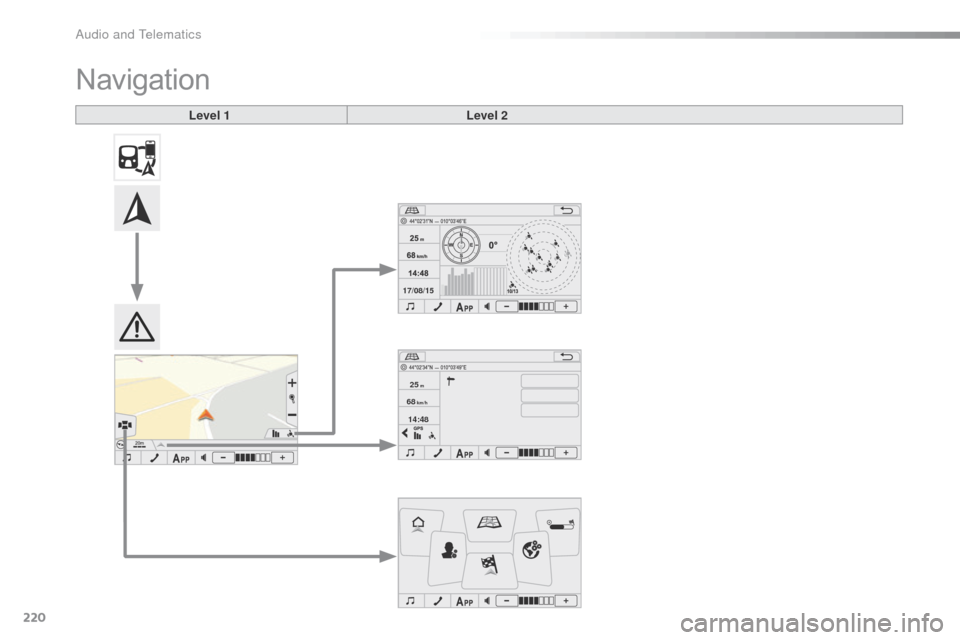

Navigation
Level 1
Level 2
Audio and Telematics

221

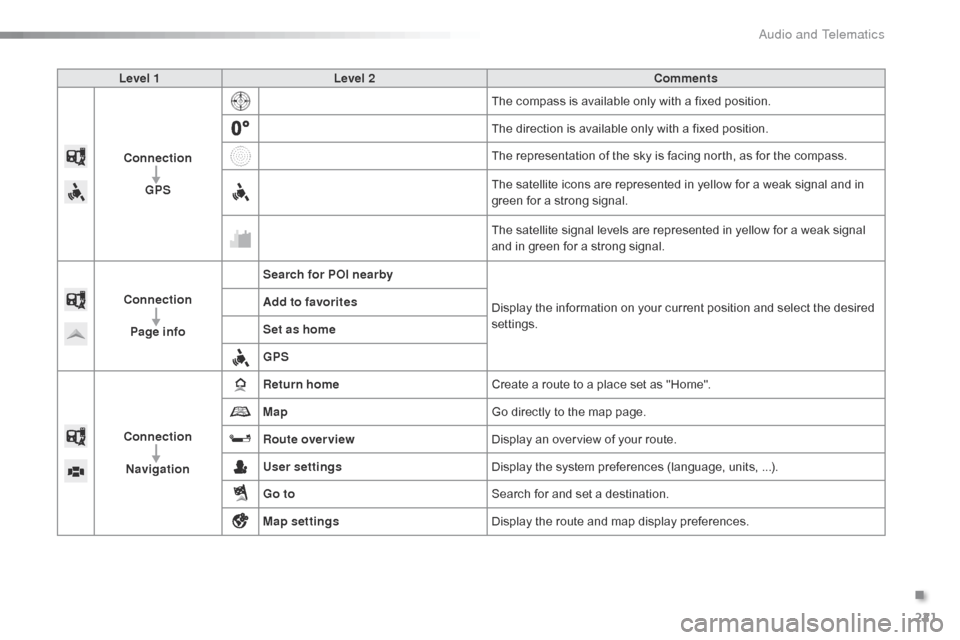

Level 1Level 2 Comments
Connection GPS The
  compass   is   available   only   with   a   fixed   position.
The
  direction   is   available   only   with   a   fixed   position.
The
  representation   of   the   sky   is   facing   north,   as   for   the   compass.
The
  satellite   icons   are   represented   in   yellow   for   a   weak   signal   and   in
g

reen   for   a   strong   signal.
The
  satellite   signal   levels   are   represented   in   yellow   for   a   weak   signal
a

nd   in   green   for   a   strong   signal.
Connection Page info Search for POI nearby
Display
  the   information   on   your   current   position   and   select   the   desired
se

ttings.
Add to favorites
Set as home
GPS
Connection Navigation Return home
Create
  a   route   to   a   place   set   as   "Home".
Map Go
  directly   to   the   map   page.
Route overview Display
  an   overview   of   your   route.
User settings Display
  the   system   preferences   (language,   units,   ...).
Go to Search
  for   and   set   a   destination.
Map settings Display
  the   route   and   map   display   preferences.
.
Audio and Telematics

17/08/15
14:48
68
km/h
25m

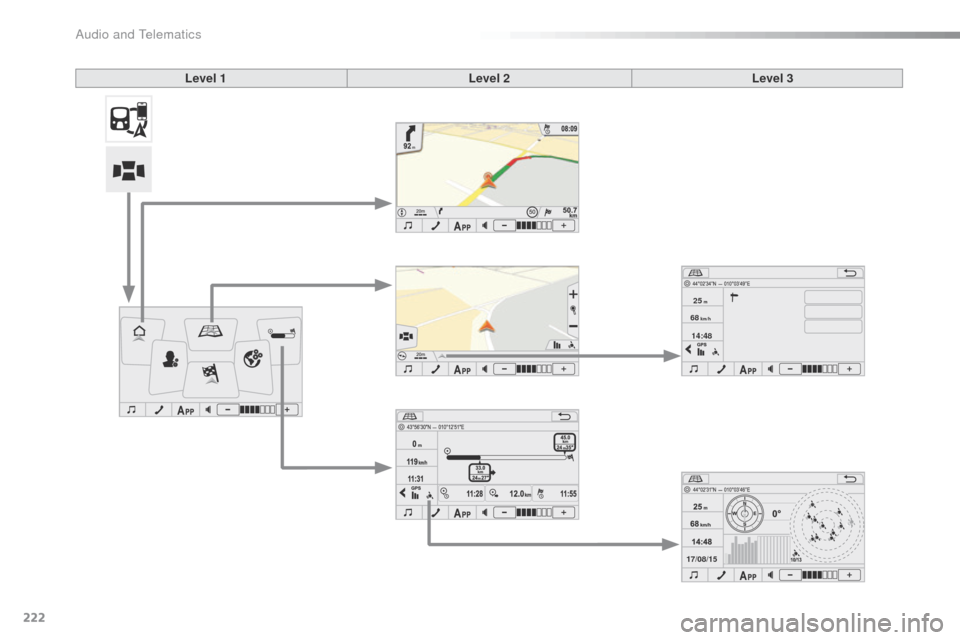

222
Level 1
Level 2Level 3
Audio and Telematics

223
Level 1Level 2 Level 3 Comments

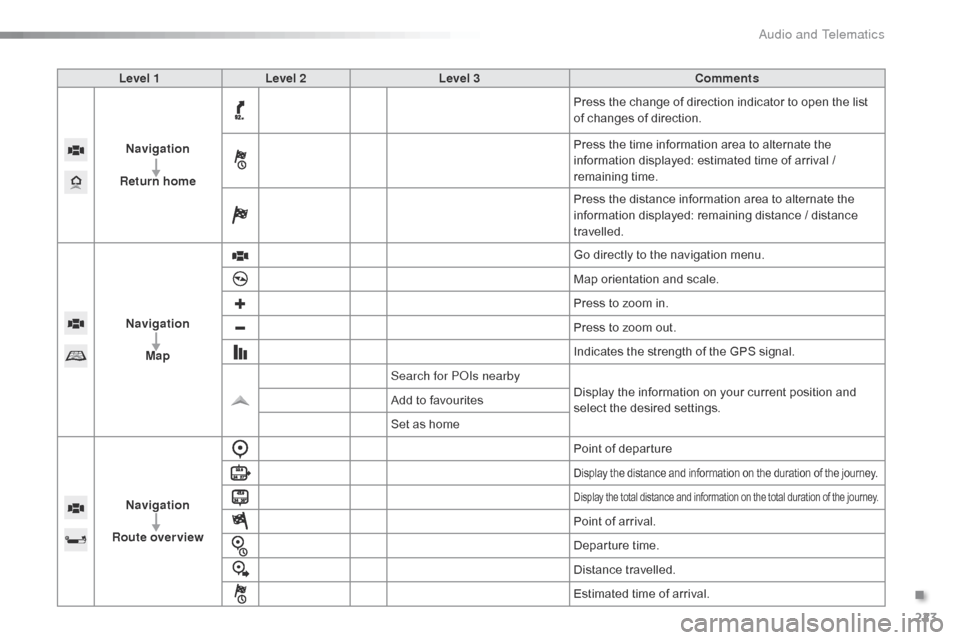

Navigation
Return home Press
  the   change   of   direction   indicator   to   open   the   list
o

f   changes   of   direction.
Press
  the   time   information   area   to   alternate   the
i

nformation   displayed:   estimated   time   of   arrival   /
r

emaining
 t
ime.
Press
  the   distance   information   area   to   alternate   the
i

nformation   displayed:   remaining   distance   /   distance
t

ravelled.
Navigation Map Go
  directly   to   the   navigation   menu.
Map
  orientation   and   scale.
Press
  to   zoom   in.
Press
  to   zoom   out.
Indicates
  the   strength   of   the   GPS   signal.
Search for POIs nearby Display
  the   information   on   your   current   position   and
s

elect   the   desired   settings.
Add
  to   favourites
Set
  as   home
Navigation
Route overview Point
  of   departure
Display the distance and information on the duration of the journey.
Display the total distance and information on the total duration of the journey.
Point of arrival.
D eparture
 t
ime.
Distance
 t

ravelled.
Estimated
  time   of   arrival.
.
Audio and Telematics

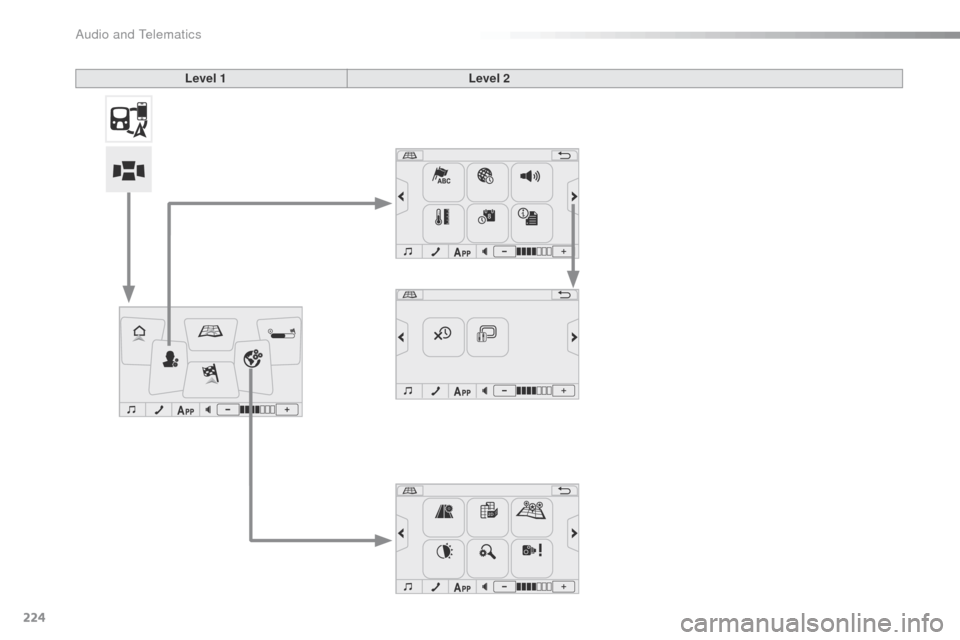

224
Level 1Level 2
Audio and Telematics

225
Level 1Level 2 Comments
Navigation

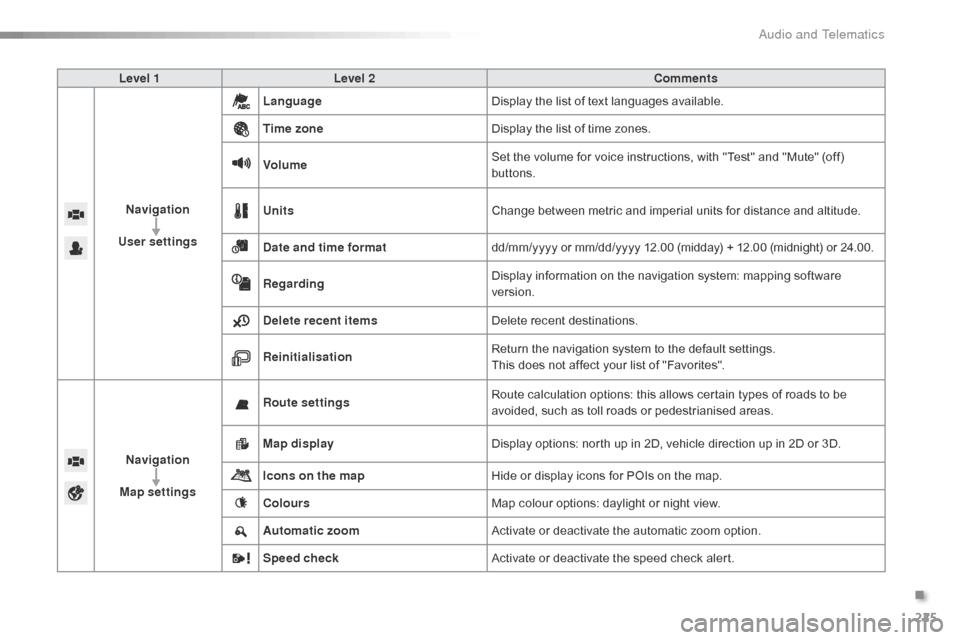

User settings Language
Display
  the   list   of   text   languages   available.
Time zone Display
  the   list   of   time   zones.
Volume Set
  the   volume   for   voice   instructions,   with   "Test"   and   "Mute"   (off)
b

uttons.
Units Change
  between   metric   and   imperial   units   for   distance   and   altitude.
Date and time format dd/mm/yyyy
  or   mm/dd/yyyy   12.00   (midday)   +   12.00   (midnight)   or   24.00.
Regarding Display
  information   on   the   navigation   system:   mapping   software
ve

rsion.
Delete recent items Delete
  recent   destinations.
Reinitialisation Return
  the   navigation   system   to   the   default   settings.
This
  does   not   affect   your   list   of   "Favorites".
Navigation
Map settings Route settings
Route
  calculation   options:   this   allows   certain   types   of   roads   to   be
a

voided,   such   as   toll   roads   or   pedestrianised   areas.
Map display Display
  options:   north   up   in   2D,   vehicle   direction   up   in   2D   or   3D.
Icons on the map Hide
  or   display   icons   for   POIs   on   the   map.
Colours Map
  colour   options:   daylight   or   night   view.
Automatic zoom Activate
  or   deactivate   the   automatic   zoom   option.
Speed check Activate
  or   deactivate   the   speed   check   alert.
.
Audio and Telematics

98765
43210
S
N
NE4400923212132
EW

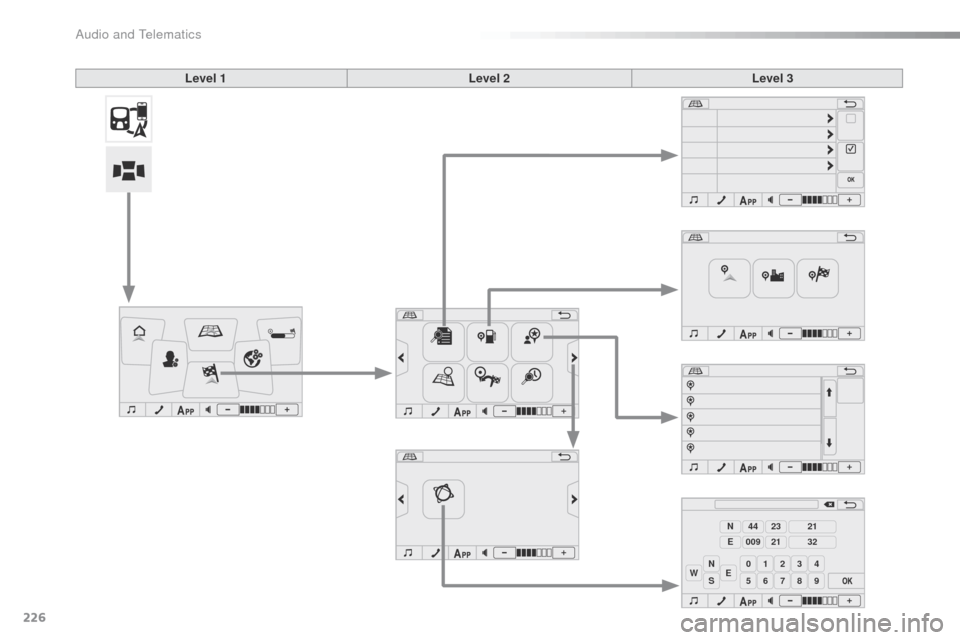

226
Level 1Level 2Level 3
Audio and Telematics

227
Level 1Level 2 Level 3 Comments

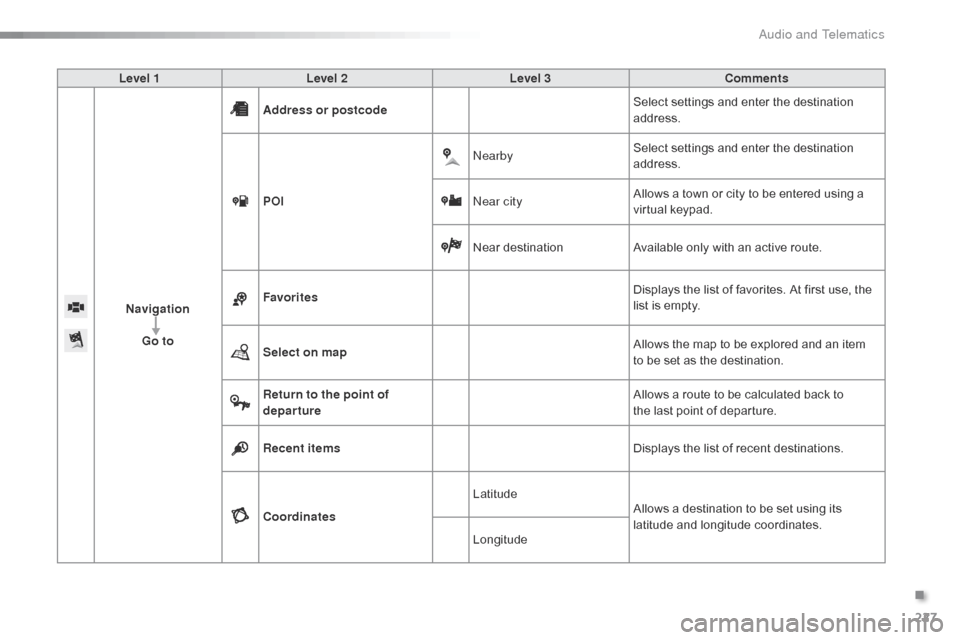

Navigation Go to Address or postcode
Select
  settings   and   enter   the   destination
a

ddress.
POI Nearby
Select
  settings   and   enter   the   destination
a

ddress.
Near city Allows
  a   town   or   city   to   be   entered   using   a
v

irtual
 k
eypad.
Near
 d

estinationAvailable
  only   with   an   active   route.
Favorites Displays
  the   list   of   favorites.   At   first   use,   the
l

ist   is   empty.
Select on map Allows
  the   map   to   be   explored   and   an   item
t

o be   set   as   the   destination.
Return to the point of
departure Allows
  a   route   to   be   calculated   back   to
t

he last   point   of   departure.
Recent items Displays
  the   list   of   recent   destinations.
Coordinates Latitude
Allows
  a   destination   to   be   set   using   its
la

titude
 an
d
 l
ongitude
 c
oordinates.
Longitude
.
Audio and Telematics

228
Choosing a new destination
Select "Go to".
Select "Go to".
In
  the   contextual   menu,   press   the
"
G
o to
"   button.
Select " Address or postcode ".
Select "Recent items ".
Select the " Country"
  from
t

he   list   offered,   then   in   the
s

ame   way,   the   "City " or its
" Postcode ". Scroll
  through   the   list   using
t

he   arrows   and   select   the
de

sired
 a
ddress.
Once
  the   address   has   been   entered,
p

ress "
OK"   to   confirm.
Press " OK"
  to   start   navigation.
Enter the "
Street"   and   the
"
H
ouse number
".
Press " OK"   to   confirm.
Select   your   route   from   the
l

ist   offered.
Press on "
Connection " in the
system.
Select " N AV I". Select "N AV I".
Press on "
Connection "   from   the
s

ystem.
Select " Navigation ".
Select "Navigation ".
Towards a new destination Towards a recent destination
Audio and Telematics
