P A R K I N G A S S I S T A N C E
Proximity sensors are located in the rear bumper of your vehicle.
When you are manœuvring in reverse gear at a speed of less t h a n a r o u n d 1 0 k m / h , t h e y i n f o r m you of the presence of any obsta-cle located within their detection zone, by means of:An audible signal emitted by the rear loudspeakers on the LH and/or RH side.Display of the outline of your vehicle with shading corre-sponding to the area where an obstacle is detected.
As the vehicle approaches the obstacle, the sound signal becomes more and more urgent and the shaded areas are displayed closer and closer to the vehicle.
When the obstacle is less than a r o u n d 2 5 c e n t i m e t r e s f r o m t h e vehicle, the sound signal becomes continuous with display of a “WARNING” panel on the screen.
Operation
When you engage reverse gear, a s o u n d s i g n a l c o n fi r m s t o y o u t h a t the system is active. The outline of your vehicle appears on the screen. Any obstacles situated to the rear of your vehicle can be detected.
Remarks:The proximity sensors cannot detect objects that are immedi-ately under or over the bump-ers.
A thin object such as a spike, a bollard or similar, can only be detected at the start of the manœuvre but not when the vehicle arrives close up to it.In poor weather or in winter, you need to ensure that the sensors are not covered with mud or with ice or snow.
Activation/Deactivation
You can activate/deactivate the parking assistance by pressing button 1. When the parking assist-ance is inactive, the warning lamp on button 1 is lit up.
Activation/deactivation of the park-ing assistance is memorised when you stop the vehicle.
Remark: The system is deacti-vated automatically if a trailer is attached to the vehicle.
T h e fi t t i n g o f t h e t o w b a r s h o u l d b e carried out by the CITROËN net- T h e fi t t i n g o f t h e t o w b a r s h o u l d b e T h e fi t t i n g o f t h e t o w b a r s h o u l d b e
work.
Page 72 of 191
A
B
7 3
III
Locking from the inside
A press on the control A operates the electric central locking and unlocking, provided all the doors are closed.
It is still possible to open the doors from the inside.
If one of the doors or the tailgate is open or not properly closed, the central locking does not operate.
The warning lamp associated with the control A s i g n a l s 3 s t a t u s e s : l t fl a s h e s w h e n t h e i g n i t i o n k e y i s i n t h e s t o p p o s i t i o n o r w h e n t h e k e y i s not detected and the doors are locked.It lights up when the ignition key is in the “accessories” posit ion or “igni- t i o n + e n g i n e r u n n i n g ” o r s t a r t e r p o s i t i o n a n d i f t h e d o o r s a r e l o c k e d .
It goes out when the doors are not locked.Note: Control A is inactive if the vehicle has been locked using the remote control or the key.
Anti-theft
I n a l l c a s e s , a s s o o n a s t h e v e h i c l e i s m o v i n g ( a b o v e a s p e e d o f 1 0 k m / h ) , the tailgate locks automatically. The tailgate unlocks when a door is opened or when the interior locking/unlocking control is actioned.
Anti-theft protection
On starting the vehicle, the system automatically locks the doors a s soon as y o u r e a c h a p p r o x i m a t e l y 1 0 k m / h ( a p p r o x . 6 m p h ) .Note: If a door has been opened, this will lock again automatically when the vehicle reaches approx. 10 (approx. 6 mph).
Activation / Deactivation of the function
After switching on the ignition, give a long press on the ce ntral unlocking button until a message is displayed.
Manual operation (Emergency mode)
It is possible to lock the vehicle’s doors, in the event of an electrical malfunction, by actioning control Bon each door.
With the door open, insert for example the end of a key into the cavity and turn.
Then close the door.
After a repair, normal functioning resumes by means of the unlock-ing control A, the remote control or the key used in the driver’s door.
If you decide to drive with the doors locked, remember that in the event of an accident t h i s r e n d e r s a c c e s s more difficult for the emergency services.
A C C E S S
A N T I - T H E F T A N D A N T I - I N T R U S I O N P R O T E C T I O N
Page 73 of 191
2
1
2
1
B
CA
7 4
IIIThe boot can be accessed in two ways:
Open the upper tailgate 1 by pressing control A (The luggage- cover folds automatically against the upper tailgate to permit rapid access to the boot contents).
Open the upper tailgate 1 by press-ing control A, then the lower tail-gate 2 by moving control B.
Closing the upper and lower rear tailgates
Close tailgate 2, then tailgate 1.Note: As soon as the vehicle is moving at around 10 km/h, the tail-gates lock automatically.
Unlocking in emergency
In the event of a malfunction in unlocking of the upper tailgate, it can be unlocked from the boot interior:Insert a screwdriver into the aperture C in the lock.Move it until the upper tailgate unlocks.
It is necessary to open the upper tailgate in order to access the opening control for the lower tailgate.
Always close the lower tailgate before reclosing the upper tailgate.
The lower tailgate can support spread loads of up to 100 kg.
A C C E S S
Page 74 of 191
A
7 5
III
Warning: The automatic air conditioning system uses a temperature sensor located on the dashboard (see reference A), this sensor should not be obstructed.
V E N T I L A T I O N - H E A T I N G
Page 75 of 191
1
2
3
4
56
1
1
1
2
2
2
3
3
3
4
4
4
56
6
6
7 7
III
V E N T I L A T I O N - H E A T I N G -
M A N U A L A I R C O N D I T I O N I N G
A i r fl o w t o t h e f a c e l e v e l v e n t s
(Air vents open)
1. Air distribution
A i r fl o w t o t h e f r o n t a n d r e a r f o o t w e l l s
(Air vents closed)
A i r fl o w t o t h e f o o t w e l l s a n d w i n d s c r e e n a n d s i d e windows
A i r fl o w t o t h e w i n d s c r e e n a n d s i d e w i n d o w s
Demisting - Defrosting
Distribution from the air blower can be altered at will by plac-ing the distributor 1 in an intermediate position.
Air recirculation
This position is useful for excluding undesirable odours or fumes coming from outside. It should be cancelled as soon as possible in order to permit renewal of air in the cabin and to prevent misting.
2. Cabin air
3. Heater blower control
The air blower operates only when the engine is running. F or optimum comfort in the passenger compartment, the control should not remain in position 0 (position 1 minimum).
4. Temperature control
5. Air conditioning
6. Demisting - deicing of the rear screen.
MANUAL AIR CONDITIONING
VENTILATION - HEATING
Page 76 of 191
7 6
III
V E N T I L A T I O N - A I R C O N D I T I O N I N G
Air inlet
Check that the exterior grille for the air inlet, at the bot-tom of the windscreen, is clean and free of dead leaves, snow, etc.
If washing the vehicle with a high pressure jet, avoid targeting the air inlet zone.
Air vents
The air vents to the face (except the central air vent) h a v e g r i l l e s f o r o r i e n t i n g t h e fl o w o f a i r ( u p - d o w n , r i g h t -left).
Air circulation
For your comfort we advise you to maintain a proper distribution of air within the cabin, both at the front and at the rear.
Air outlets are also located on the central console close to the gear lever, to enhance comfort for the rear pas-sengers.
P o l l e n fi l t e r – O d o u r fi l t e r
Y o u r i n s t a l l a t i o n h a s a fi l t e r f o r k e e p i n g o u t d u s t .
T h i s fi l t e r h a s t o b e c h a n g e d a c c o r d i n g t o t h e v e h i c l e maintenance schedule. See “Maintenance Guide”.
Air conditioning
Whatever the time of year, even in cool weather the air conditioning is useful in removing humidity and misting.
To keep the air conditioning compressor well sealed, it is essential to operate the air conditioning at least once in every month.
To be effective, the air conditioning should only be used with the windows closed.
If you are towing a heavy trailer and outside tempera-tures are high, the air conditioning may be temporarily paused if the engine cooling requires this.
Water arising from condensation in the air conditioning system is evacuated through a hole provided for this purpose ; a pool of water may thus form underneath the vehicle when stationary.
You are advised to have the air conditioning system checked on a regular basis. See “Maintenance Guide”.
The air conditioning operates by using power from the engine. This results in a slight increase in fuel con-sumption.
Demisting - deicing of the wind-screen and front side windowsPlace the controls for temperature and a i r fl o w o n m a x i m u m .
Close the central air vents.
Operate the air conditioning.Note: You should not be in air recirculation.
Page 77 of 191
1
2
3
4
56
1
1
1
2
2
2
3
3
3
4
4
4
56
6
6
7 7
III

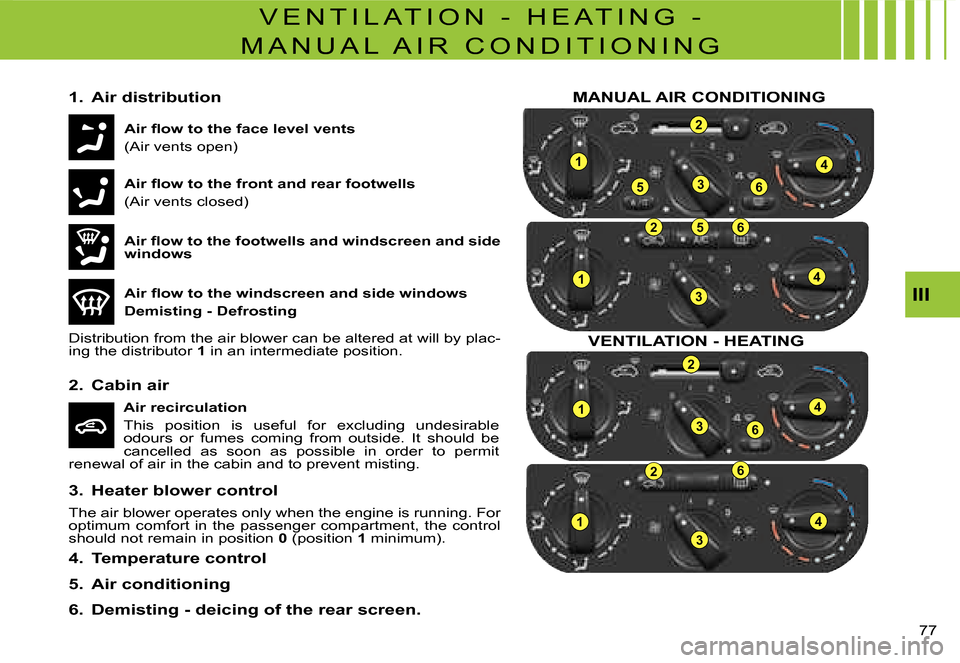

V E N T I L A T I O N - H E A T I N G -
