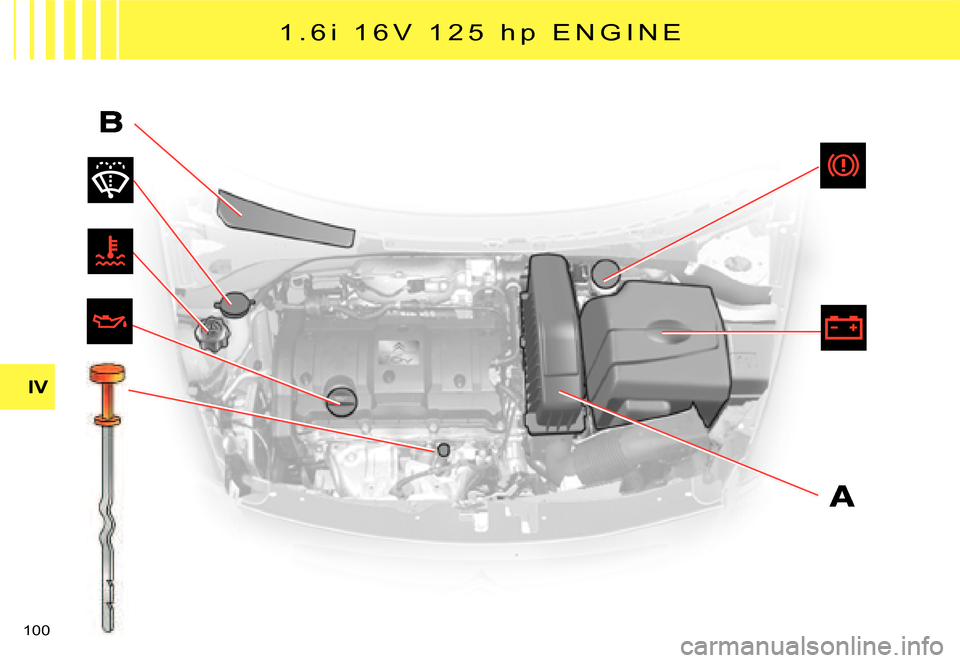

1 . 6i 1 6 V 1 2 5 h p E N G I N E

101
IV

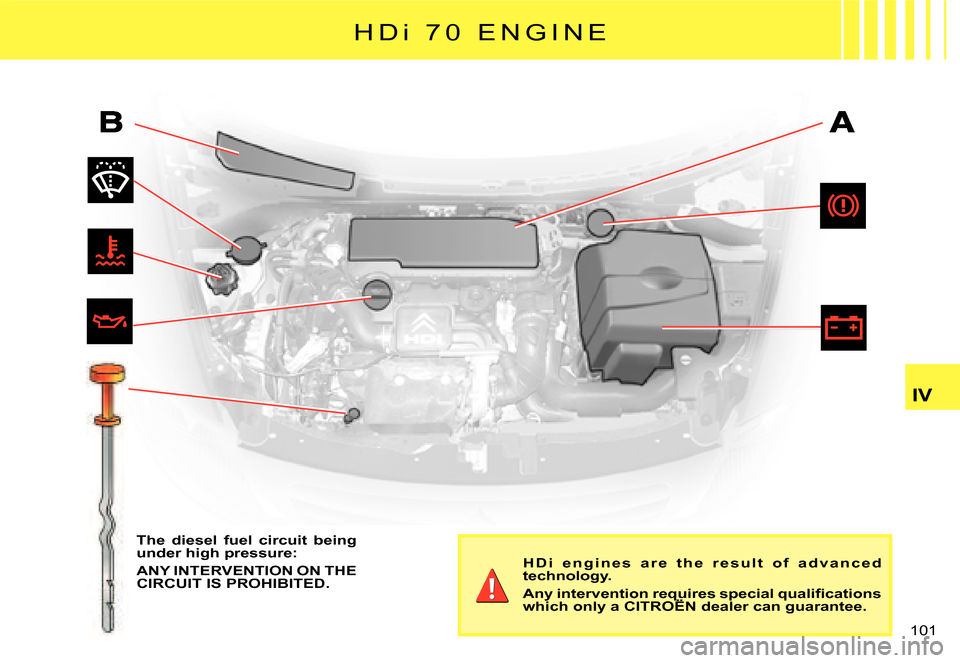

H Di 7 0 E N G I N E
The diesel fuel circuit being under high pressure:
ANY INTERVENTION ON THE CIRCUIT IS PROHIBITED.
H D i e n g i n e s a r e t h e r e s u l t o f a d v a n c e d technology.
Any intervention requires special qualifi cations which only a CITROËN dealer can guarantee.Any intervention requires special qualifi cations Any intervention requires special qualifi cations

102
IV

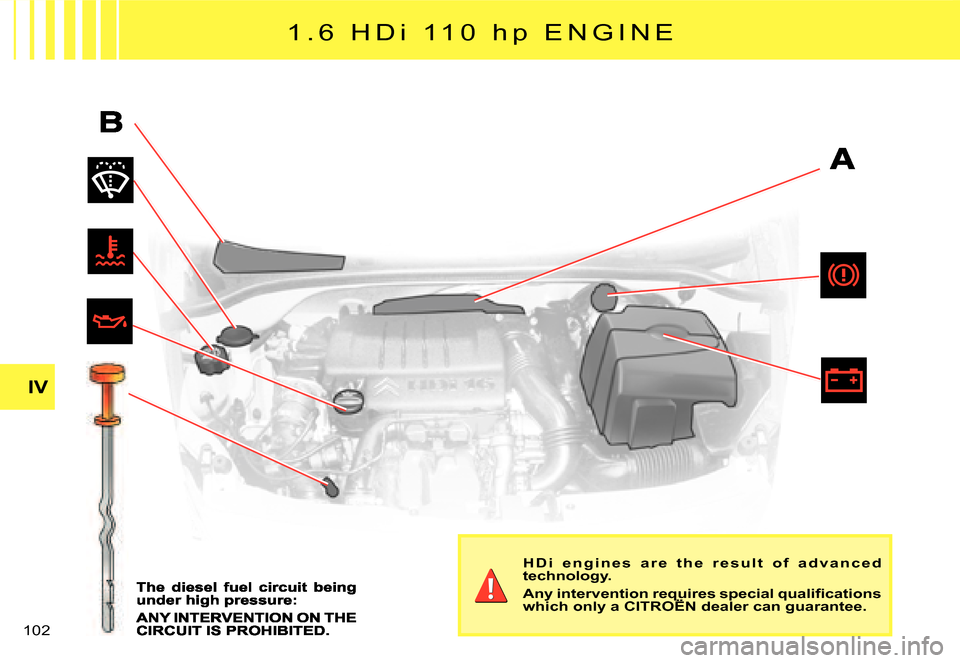

1 . 6 H Di 1 1 0 h p E N G I N E
H D i e n g i n e s a r e t h e r e s u l t o f a d v a n c e d technology.
Any intervention requires special qualifi cations which only a CITROËN dealer can guarantee.Any intervention requires special qualifi cations Any intervention requires special qualifi cations

104
IV
HDi 70 engine1.6 HDi engine
HDi engines are the result of advanced technology.
Any intervention requires special qualifi cations which only a CITROËN dealer can guarantee.Any intervention requires special qualifi cations which only a Any intervention requires special qualifi cations which only a
D I E S E L I N J E C T I O N E Q U I P M E N T

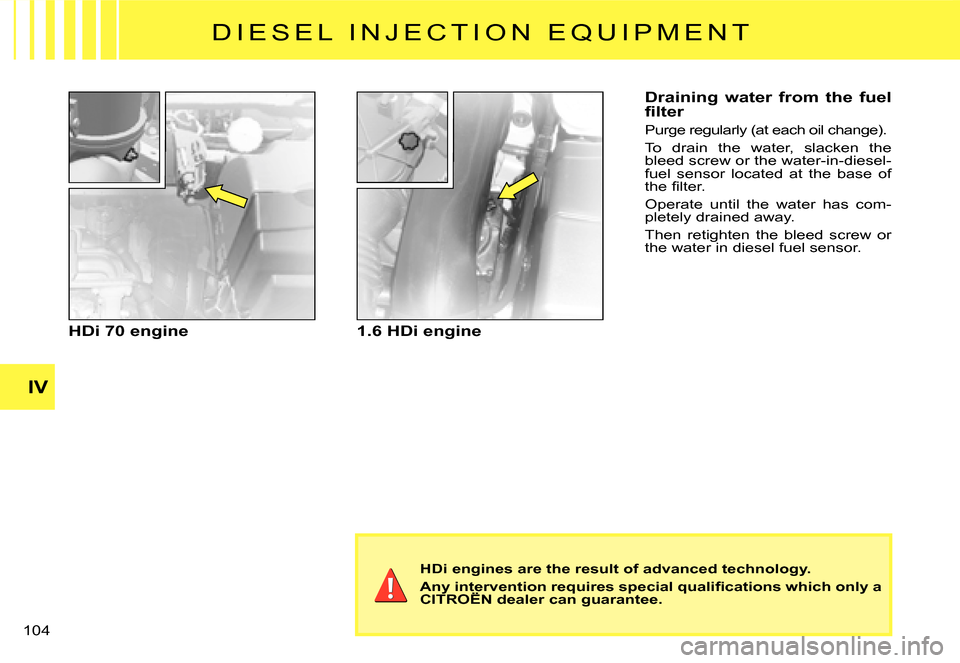

Draining water from the fuel fi lter
Purge regularly (at each oil change).
To drain the water, slacken the bleed screw or the water-in-diesel-fuel sensor located at the base of the fi lter.
Operate until the water has com-pletely drained away.
Then retighten the bleed screw or the water in diesel fuel sensor.

105
IV
HDi 70 engine1.6 HDi engine

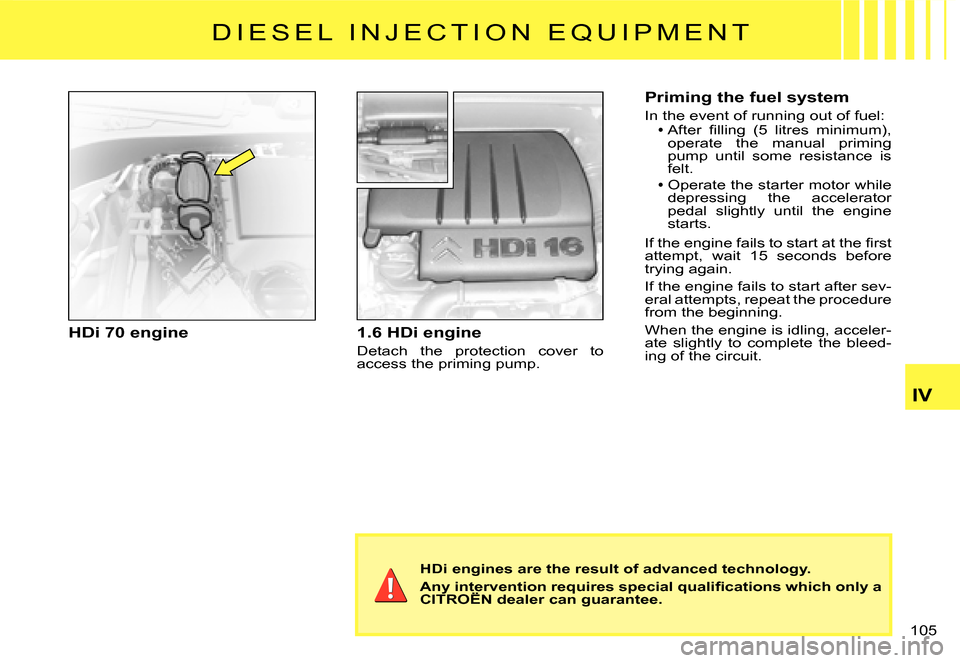

Detach the protection cover to access the priming pump.
HDi engines are the result of advanced technology.
Any intervention requires special qualifi cations which only a CITROËN dealer can guarantee.Any intervention requires special qualifi cations which only a Any intervention requires special qualifi cations which only a
D I E S E L I N J E C T I O N E Q U I P M E N T
Priming the fuel system
In the event of running out of fuel:After fi lling (5 litres minimum), operate the manual priming pump until some resistance is felt.
Operate the starter motor while depressing the accelerator pedal slightly until the engine starts.
If the engine fails to start at the fi rst attempt, wait 15 seconds before trying again.
If the engine fails to start after sev-eral attempts, repeat the procedure from the beginning.
When the engine is idling, acceler-ate slightly to complete the bleed-ing of the circuit.



106
IV

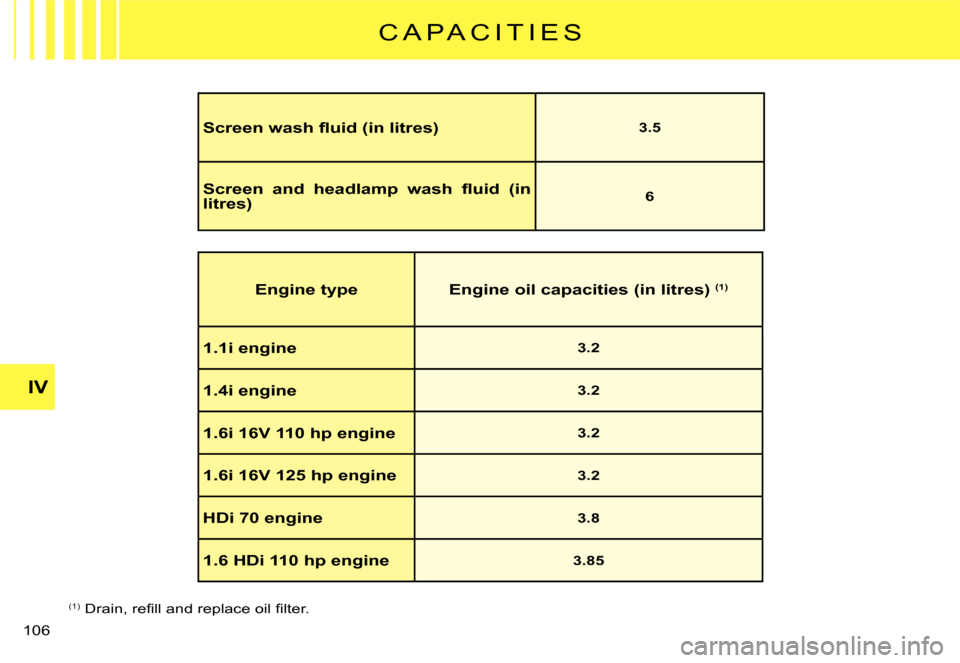

C A P A C I T I E S
Engine typeEngine oil capacities (in litres) (1)
1.1i engine3.2
1.4i engine3.2
1.6i 16V 110 hp engine3.2
1.6i 16V 125 hp engine3.2
HDi 70 engine3.8
1.6 HDi 110 hp engine3.85
(1) Drain, refi ll and replace oil fi lter.
Screen wash fl uid (in litres)3.5
Screen and headlamp wash fl uid (in litres)6

107
IV

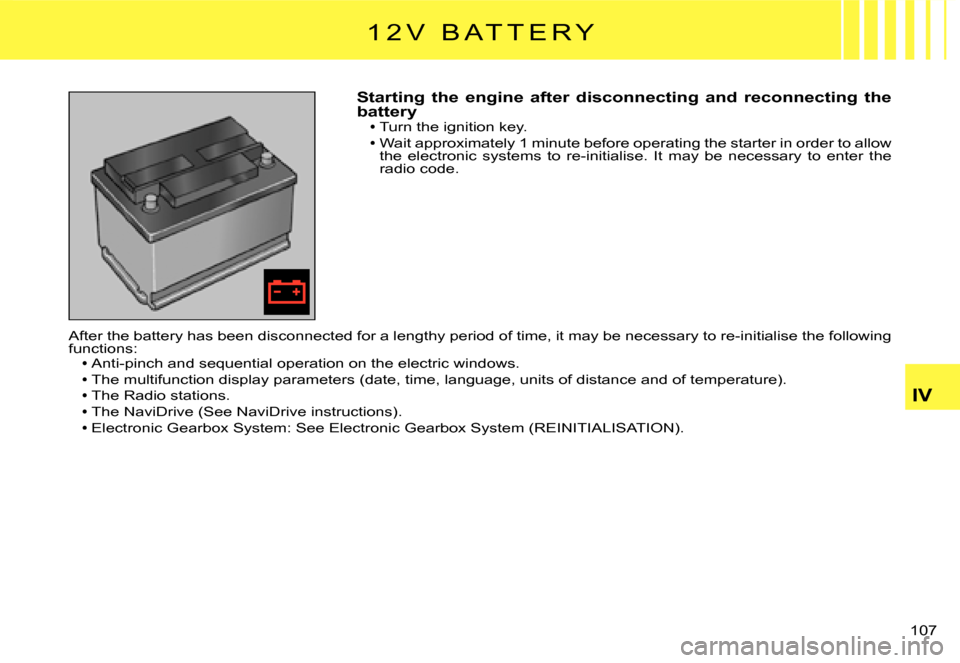

Starting the engine after disconnecting and reconnecting the batteryTurn the ignition key.
Wait approximately 1 minute before operating the starter in order to allow the electronic systems to re-initialise. It may be necessary to enter the radio code.


After the battery has been disconnected for a lengthy period of time, it may be necessary to re-initialise the following functions:Anti-pinch and sequential operation on the electric windows.
The multifunction display parameters (date, time, language, units of distance and of temperature).
The Radio stations.The NaviDrive (See NaviDrive instructions).
Electronic Gearbox System: See Electronic Gearbox System (REINITIALISATION).




1 2 V B A T T E R Y

A
CB
108
IV
Starting the engine with an assisting battery
If the battery is discharged, it is possible to use either a separate emergency battery or a battery on another vehicle.A. Dischargedbattery (Under the bonnet).B. Assisting battery.C. Earth point on broken down vehicle.
Check that the assisting battery has suffi cient voltage (12 V).
If you use the battery on another vehicle, stop the engine on the latter. The two vehicles must not come into direct contact wit h each other.
Connect the cables according to the order indicated in the dia-ordergram. Check that the leads are well secured (risk of sparks).
Start the engine of the assisting vehicle. Let the engine run for around 1 minute at a slightly accelerated idle.
Operate the starter on the vehicle being assisted.
It is essential to follow the indicated sequence correctly .
Never approach with a fl ame or create sparks in the vicinity of the battery (explosive gas).
The battery contains dilute sulphuric acid which is highly corrosive.
When handling batteries, always protect your face a nd especially your eyes.
In the event of any contact with the skin, rinse immediatel y with copious amounts of fresh water.
Advice
Do not touch the leads during the operation.
Do not lean over the batteries.
Disconnect the cables in reverse order, making sure they do not touch together.
1 2 V B A T T E R Y

109
IV
F U S E S
Fuseboxes

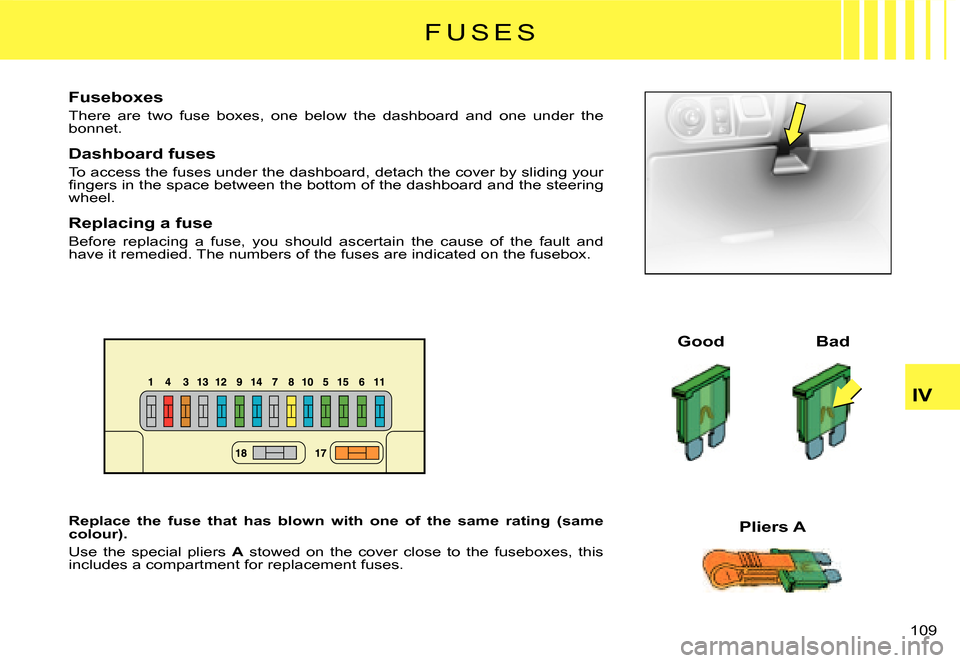

There are two fuse boxes, one below the dashboard and one under the bonnet.
Dashboard fuses
To access the fuses under the dashboard, detach the cover by slidi ng your fi ngers in the space between the bottom of the dashboard and the steering wheel.
Replacing a fuse
Before replacing a fuse, you should ascertain the cause of the fault and have it remedied. The numbers of the fuses are indicated on the fusebox.
GoodBad
Pliers AReplace the fuse that has blown with one of the same rating (same colour).
Use the special pliers A stowed on the cover close to the fuseboxes, this includes a compartment for replacement fuses.

110
IV
T A B L E O F F U S E S

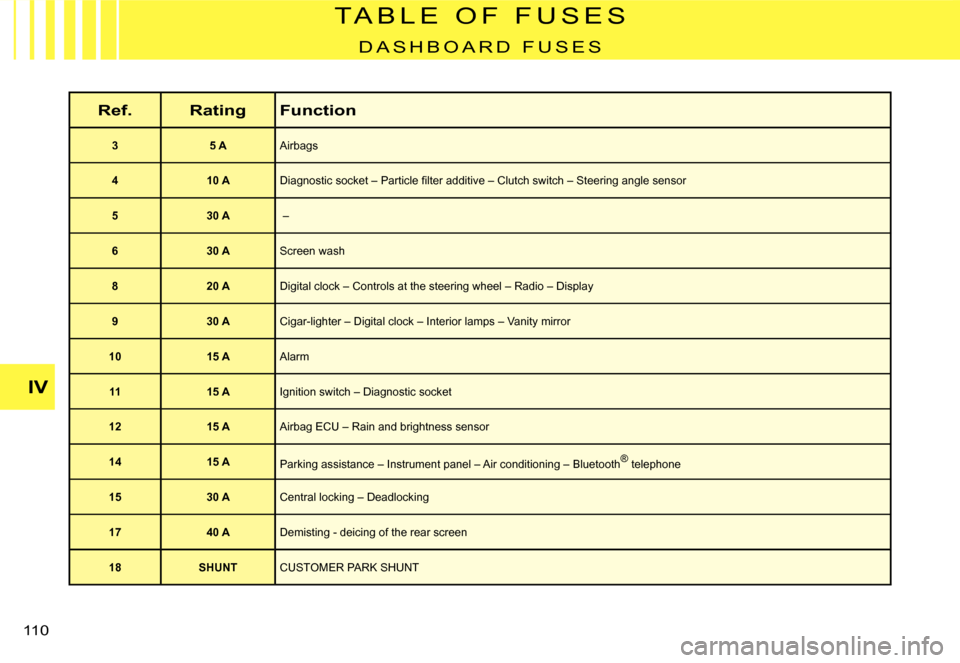

D A S H B O A R D F U S E S
Ref.RatingFunction
35 AAirbags
410 ADiagnostic socket – Particle fi lter additive – Clutch switch – Steering angle sensor
530 A –
630 AScreen wash
820 ADigital clock – Controls at the steering wheel – Radio – Display
930 ACigar-lighter – Digital clock – Interior lamps – Vanity mirror
1015 AAlarm
1115 AIgnition switch – Diagnostic socket
1215 AAirbag ECU – Rain and brightness sensor
1415 AParking assistance – Instrument panel – Air conditioning – Blueto oth® telephone®
1530 A Central locking – Deadlocking
1740 ADemisting - deicing of the rear screen
18SHUNTCUSTOMER PARK SHUNT
