Citroen C2 DAG 2007.5 1.G Owner's Manual

111
IV
F U S E S
Any action on the MAXI fuses (that give extra protection) (in grey in the diagrams), located in the fuseboxes, should be left to a CITROËN dealer.grey in the diagrams), lthe dia
Fusebox
To access the fusebox located in the engine compartment, remove the battery cover and detach the lid.
After a repair, take care to reclose the cover.
Fuses under the bonnet

112

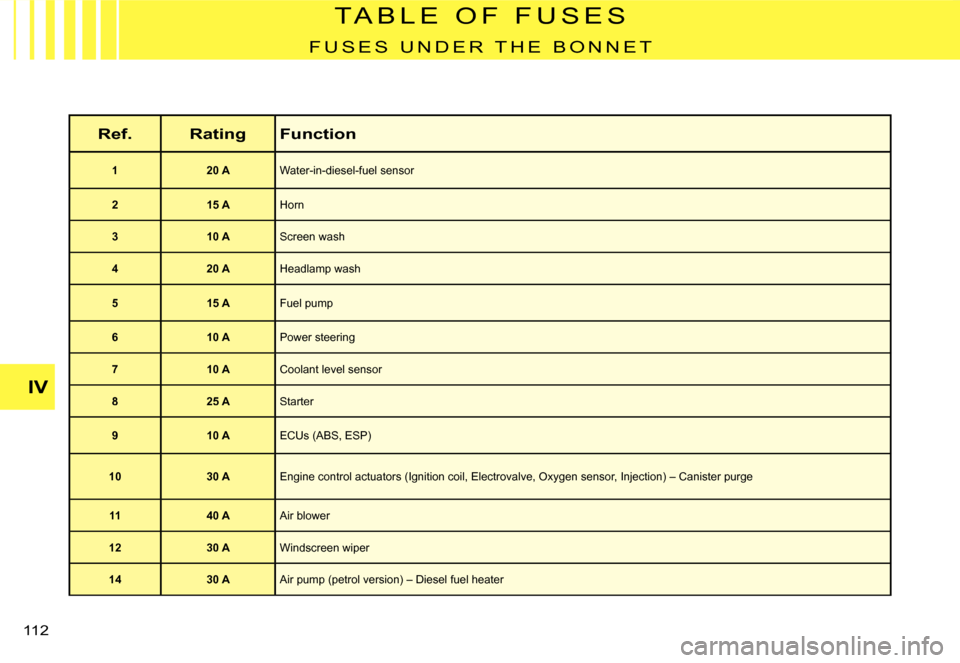

T A B L E O F F U S E S
F U S E S U N D E R T H E B O N N E T
Ref.RatingFunction
120 AWater-in-diesel-fuel sensor
215 AHorn
310 AScreen wash
420 AHeadlamp wash
515 AFuel pump
610 APower steering
710 ACoolant level sensor
825 AStarter
910 AECUs (ABS, ESP)
1030 AEngine control actuators (Ignition coil, Electrovalve, Oxygen sensor, Injection) – Canister purge
1140 AAir blower
1230 AWindscreen wiper
1430 AAir pump (petrol version) – Diesel fuel heater
IV

113
V

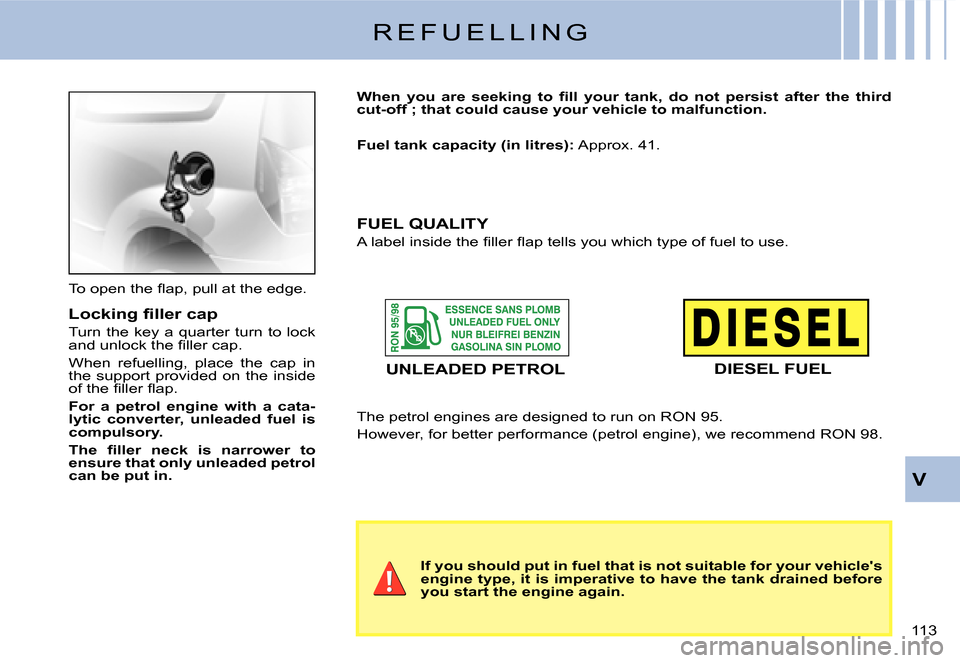

R E F U E L L I N G
To open the fl ap, pull at the edge.
Locking fi ller cap
Turn the key a quarter turn to lock and unlock the fi ller cap.
When refuelling, place the cap in the support provided on the inside of the fi ller fl ap.
For a petrol engine with a cata-lytic converter, unleaded fuel is compulsory.
The fi ller neck is narrower to ensure that only unleaded petrol can be put in.
When you are seeking to fi ll your tank, do not persist after the third cut-off ; that could cause your vehicle to malfunction.
Fuel tank capacity (in litres): Approx. 41.
If you should put in fuel that is not suitable for your vehicle's engine type, it is imperative to have the tank drained be fore you start the engine again.
FUEL QUALITY
A label inside the fi ller fl ap tells you which type of fuel to use.
UNLEADED PETROLDIESEL FUEL
The petrol engines are designed to run on RON 95.
However, for better performance (petrol engine), we recommend RON 98.

1
23
A
4
114
V
C H A N G I N G B U L B S

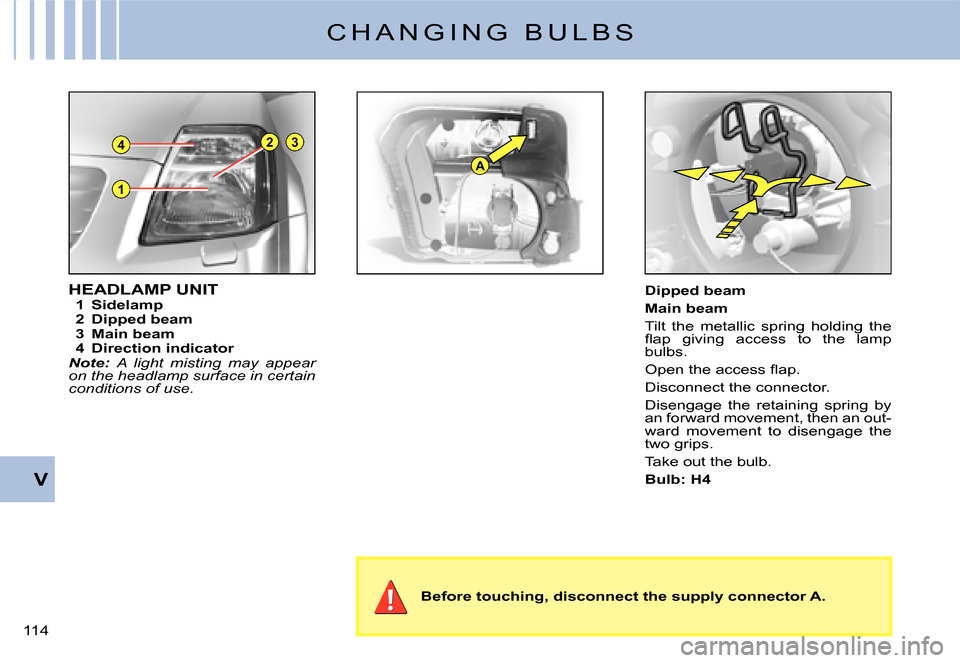

HEADLAMP UNIT1 Sidelamp2 Dipped beam3 Main beam4 Direction indicatorNote: A light misting may appear on the headlamp surface in certain conditions of use.
Dipped beam
Main beam
Tilt the metallic spring holding the fl ap giving access to the lamp bulbs.
Open the access fl ap.
Disconnect the connector.
Disengage the retaining spring by an forward movement, then an out-ward movement to disengage the two grips.
Take out the bulb.
Bulb: H4
Before touching, disconnect the supply connector A.

A
115
V
C H A N G I N G B U L B S

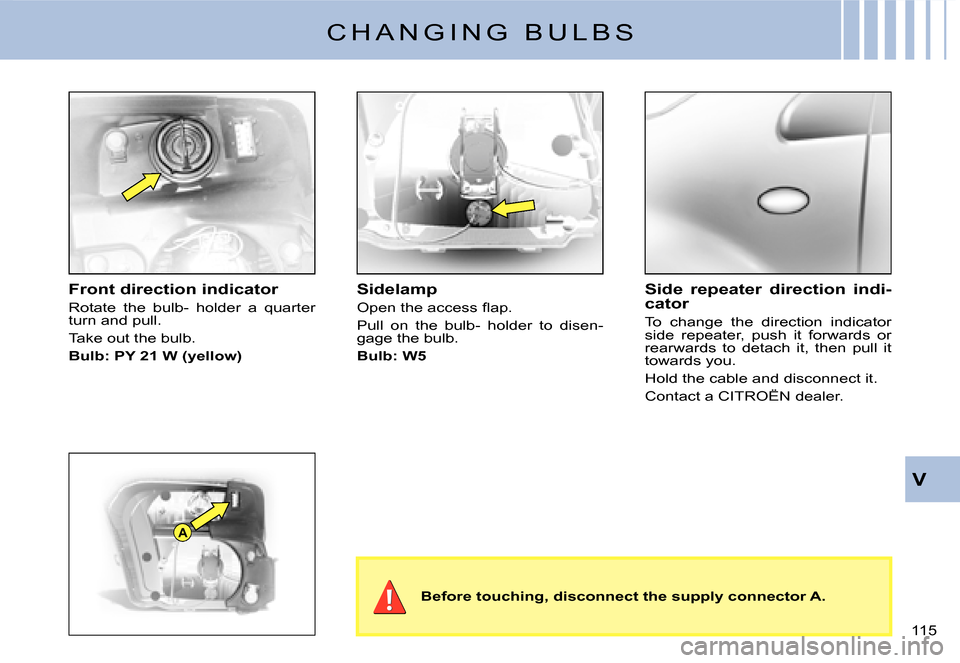

Front direction indicator
Rotate the bulb- holder a quarter turn and pull.
Take out the bulb.
Bulb: PY 21 W (yellow)
Sidelamp
Open the access fl ap.
Pull on the bulb- holder to disen-gage the bulb.
Bulb: W5
Side repeater direction indi-cator
To change the direction indicator side repeater, push it forwards or rearwards to detach it, then pull it towards you.
Hold the cable and disconnect it.
Contact a CITROËN dealer.
Before touching, disconnect the supply connector A.

116
V
C H A N G I N G B U L B S

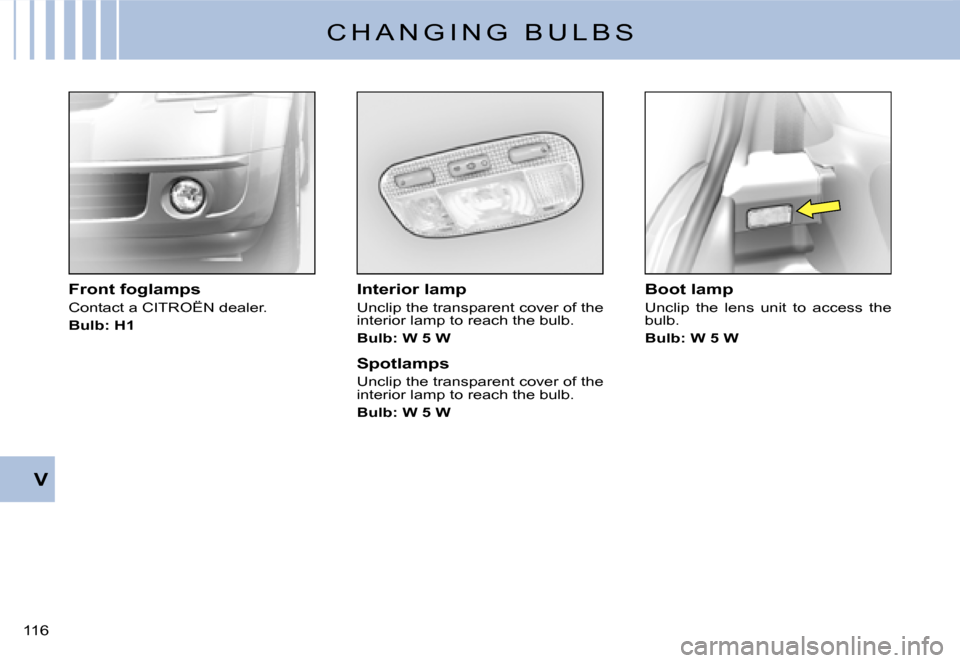

Interior lamp
Unclip the transparent cover of the interior lamp to reach the bulb.
Bulb: W 5 W
Spotlamps
Unclip the transparent cover of the interior lamp to reach the bulb.
Bulb: W 5 W
Boot lamp
Unclip the lens unit to access the bulb.
Bulb: W 5 W
Front foglamps
Contact a CITROËN dealer.
Bulb: H1

116
V
C H A N G I N G B U L B S
Interior lamp
Unclip the transparent cover of the interior lamp to reach the bulb.
Bulb: W 5 W
Spotlamps
Unclip the transparent cover of the interior lamp to reach the bulb.
Bulb: W 5 W
Boot lamp
Unclip the lens unit to access the bulb.
Bulb: W 5 W
Front foglamps
Contact a CITROËN dealer.
Bulb: H1

A
1
2
3
4
117
V

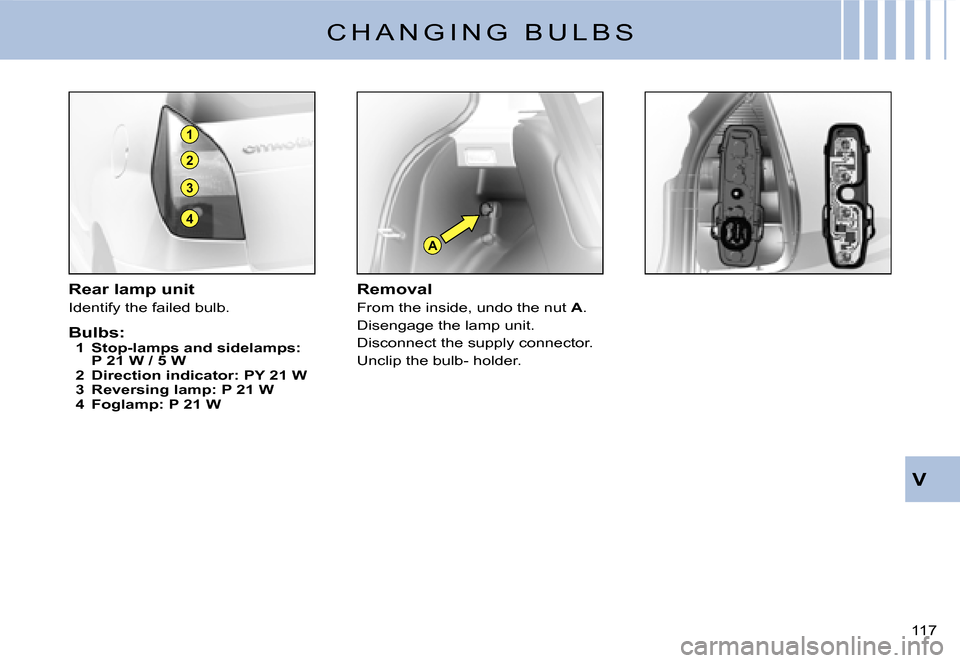

Rear lamp unit
Identify the failed bulb.
Bulbs:1 Stop-lamps and sidelamps: P 21 W / 5 W2 Direction indicator: PY 21 W3 Reversing lamp: P 21 W4 Foglamp: P 21 W
Removal
From the inside, undo the nut A.
Disengage the lamp unit.
Disconnect the supply connector.
Unclip the bulb- holder.
C H A N G I N G B U L B S

118
V
C H A N G I N G B U L B S

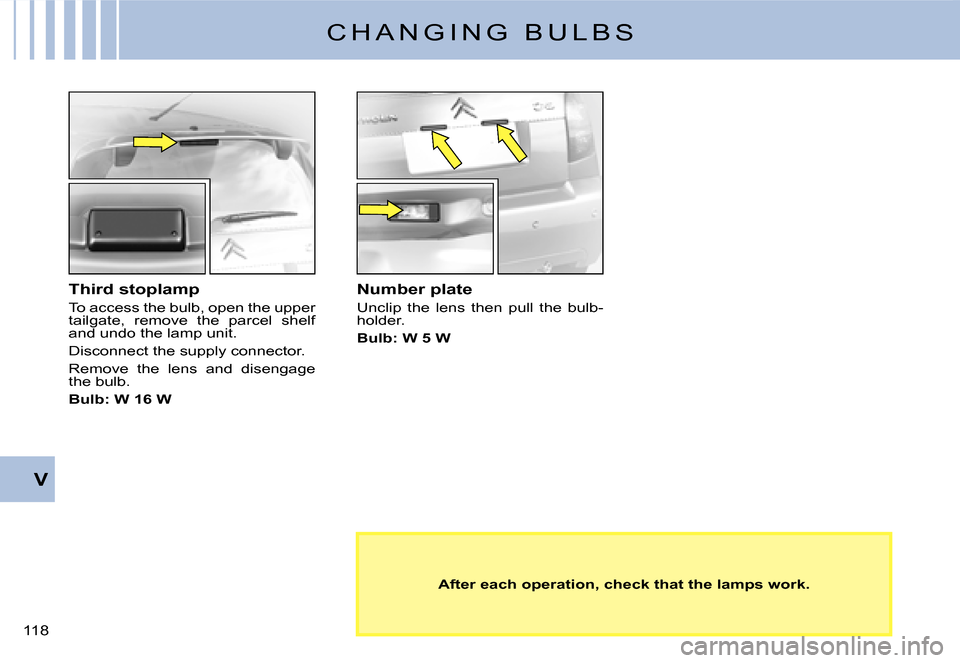

Third stoplamp
To access the bulb, open the upper tailgate, remove the parcel shelf and undo the lamp unit.
Disconnect the supply connector.
Remove the lens and disengage the bulb.
Bulb: W 16 W
Number plate
Unclip the lens then pull the bulb- holder.
Bulb: W 5 W
After each operation, check that the lamps work.

A
119
V

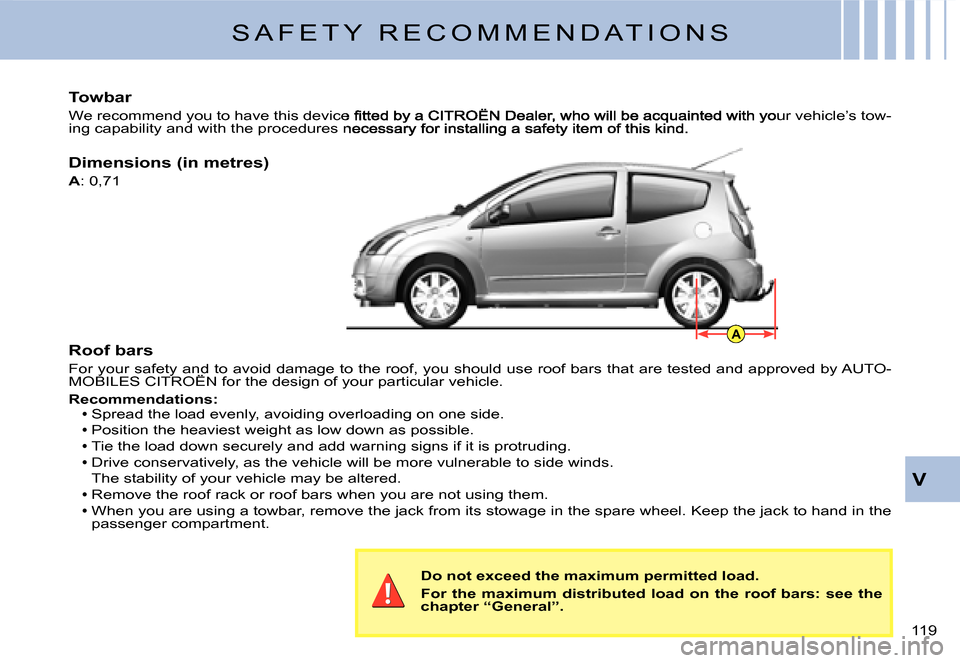

Roof bars
For your safety and to avoid damage to the roof, you should use roof bars that are tested and approved by AUTO-MOBILES CITROËN for the design of your particular vehicle.For your safety and to avoid damage to the roof, you should use safety and
Recommendations:Spread the load evenly, avoiding overloading on one side.Position the heaviest weight as low down as possible.
Tie the load down securely and add warning signs if it is protruding.
Drive conservatively, as the vehicle will be more vulnerable to si de winds.The stability of your vehicle may be altered.
Remove the roof rack or roof bars when you are not using them.
When you are using a towbar, remove the jack from its stowage i n the spare wheel. Keep the jack to hand in the passenger compartment.





S A F E T Y R E C O M M E N D A T I O N S
Towbar
We recommend you to have this device fi tted by a CITROËN Deale r, who will be acquainted with your vehicle’s tow-ing capability and with the procedures necessary for installing a safety item of this kind.
Dimensions (in metres)
A: 0,71
Do not exceed the maximum permitted load.
For the maximum distributed load on the roof bars: see the chapter “General”.
