CITROEN C2 DAG 2007 Owners Manual

IN BRIEF
4
I
E X T E R I O R
Rear parking assistance signal
This function warns you if an obstacle is detected behind the vehicle whilst reversing.
Tailgate
The split tailgate enables the loading of items depending on their size and the available space in the rear of the vehicle.
Lower tailgate covered storage
This storage area enables you to keep emergency equipment within easy reach...
74
7294
Rear seats
The modular seats allow you to make space from the boot to transport items.
85

A
C
BA
A
B
IN BRIEF
5
I

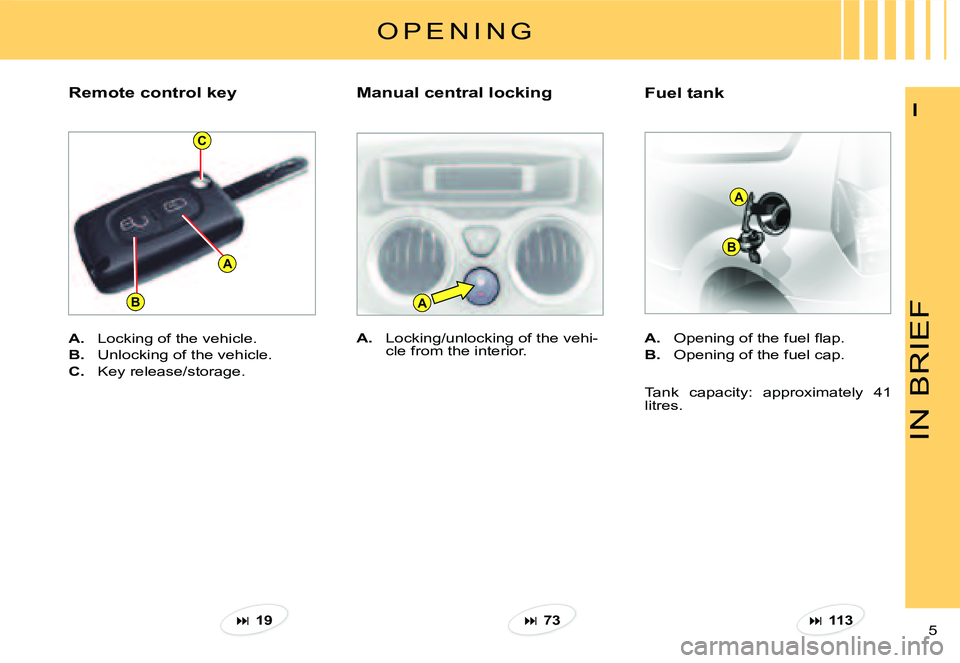

Fuel tank
A. Opening of the fuel fl ap.
B. Opening of the fuel cap.
Tank capacity: approximately 41 litres.
A. Locking/unlocking of the vehi-cle from the interior.
Remote control key
A. Locking of the vehicle.
B. Unlocking of the vehicle.
C. Key release/storage.
Manual central locking
1973113
O P E N I N G

B
2
1
A
C
IN BRIEF
6
I

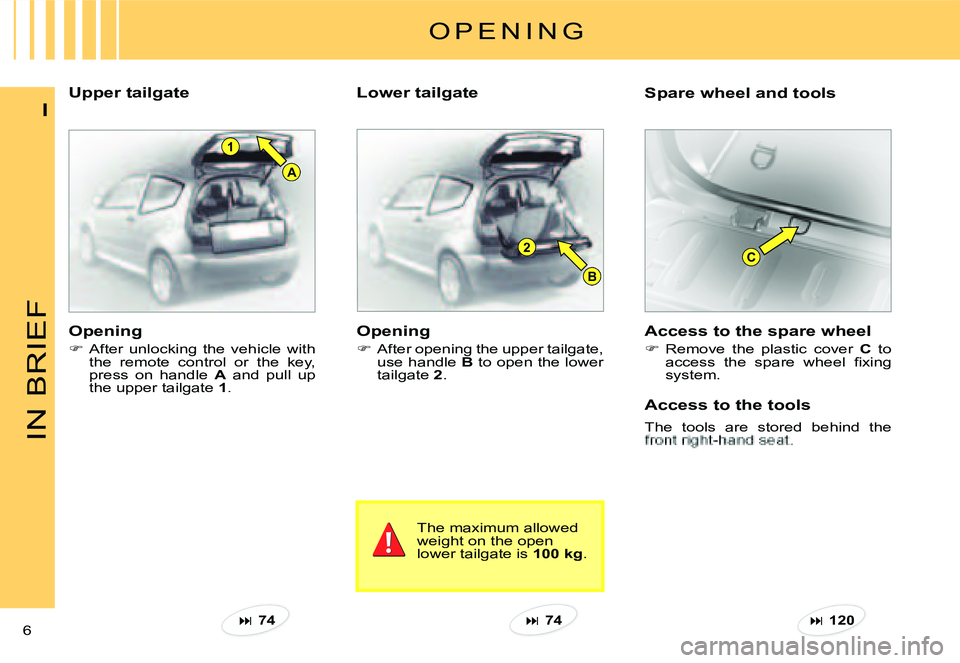

Upper tailgateLower tailgateSpare wheel and tools
O P E N I N G
Opening
 After opening the upper tailgate, use handle B to open the lower tailgate 2.
The maximum allowed weight on the open lower tailgate is 100 kg.
Access to the spare wheel
 Remove the plastic cover C to access the spare wheel fi xing system.
Access to the tools
The tools are stored behind the The tools are stored behind the
Opening
 After unlocking the vehicle with the remote control or the key, press on handle A and pull up the upper tailgate 1.
 7474120

IN BRIEF
7
I

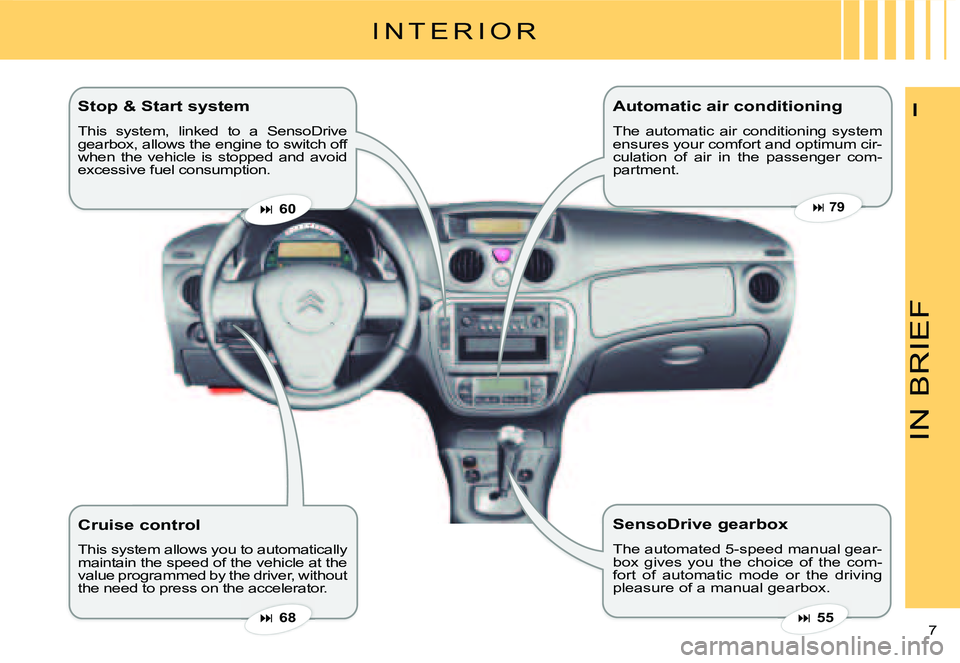

I N T E R I O R
Stop & Start system
This system, linked to a SensoDrive gearbox, allows the engine to switch off when the vehicle is stopped and avoid excessive fuel consumption.
Cruise control
This system allows you to automatically maintain the speed of the vehicle at the value programmed by the driver, without the need to press on the accelerator.
Automatic air conditioning
The automatic air conditioning system ensures your comfort and optimum cir-culation of air in the passenger com-partment.
SensoDrive gearbox
The automated 5-speed manual gear-box gives you the choice of the com-fort of automatic mode or the driving pleasure of a manual gearbox.
7960
6855

123456789101112131415
IN BRIEF
8
I

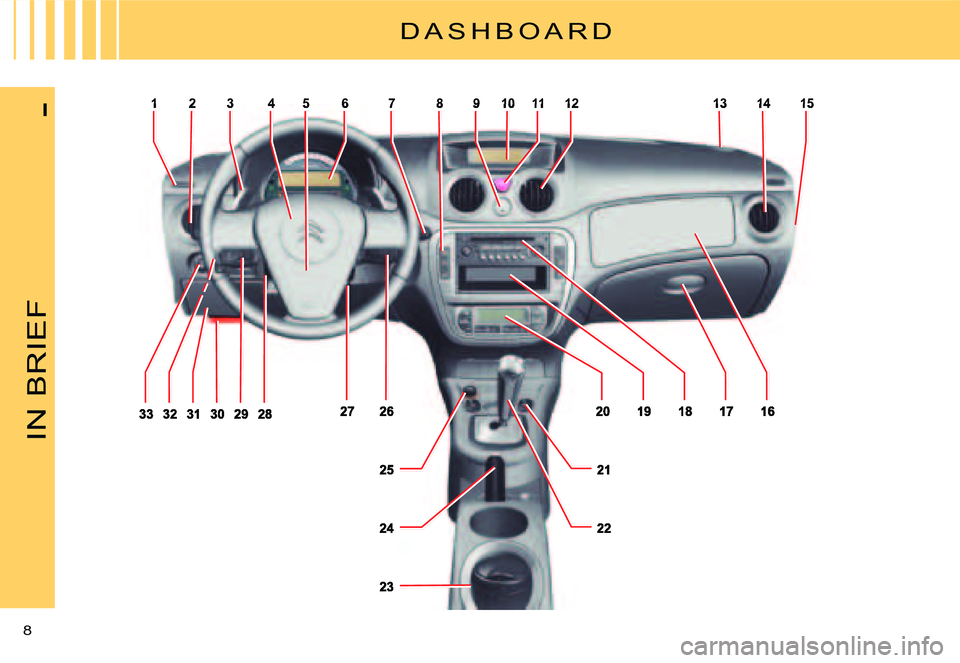

D A S H B O A R D

9
I

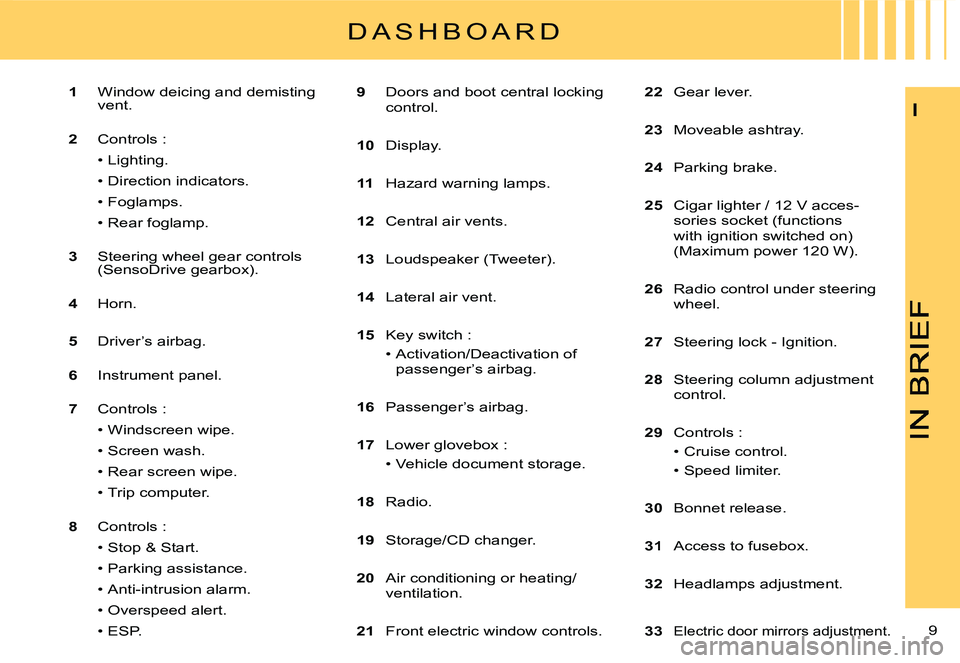

D A S H B O A R D
22 Gear lever.
23 Moveable ashtray.
24 Parking brake.
25 Cigar lighter / 12 V acces-sories socket (functions with ignition switched on) (Maximum power 120 W).
26 Radio control under steering wheel.
27 Steering lock - Ignition.
28 Steering column adjustment control.
29 Controls :

14
3
2
5
6
IN BRIEF
10
I
G E T T I N G S T A R T E D

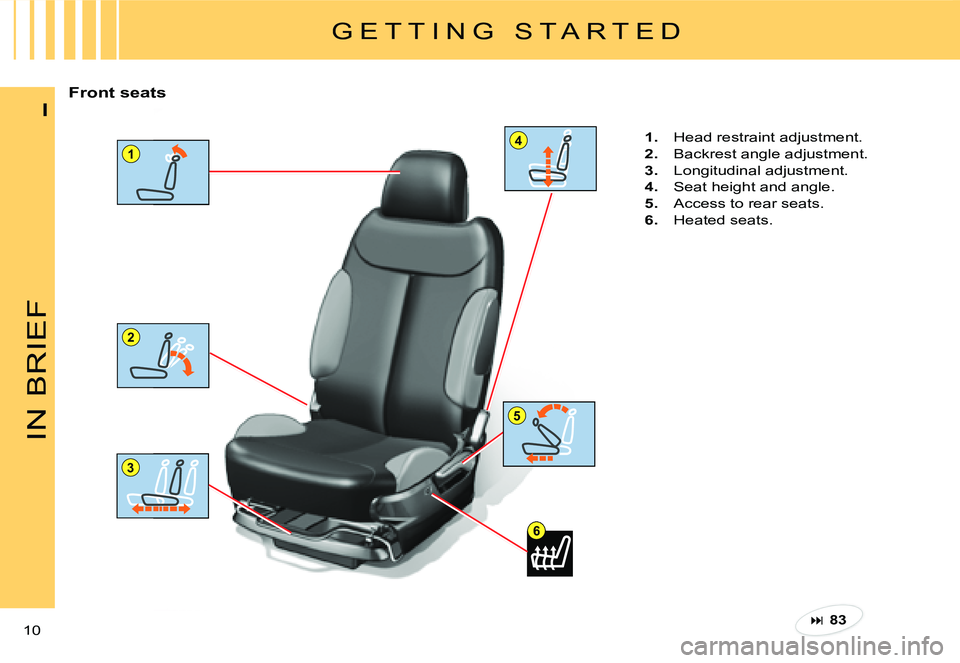

Front seats
83
1. Head restraint adjustment.
2. Backrest angle adjustment.
3. Longitudinal adjustment.
4. Seat height and angle.
5. Access to rear seats.
6. Heated seats.

1
3
2
1
21
IN BRIEF
11
I

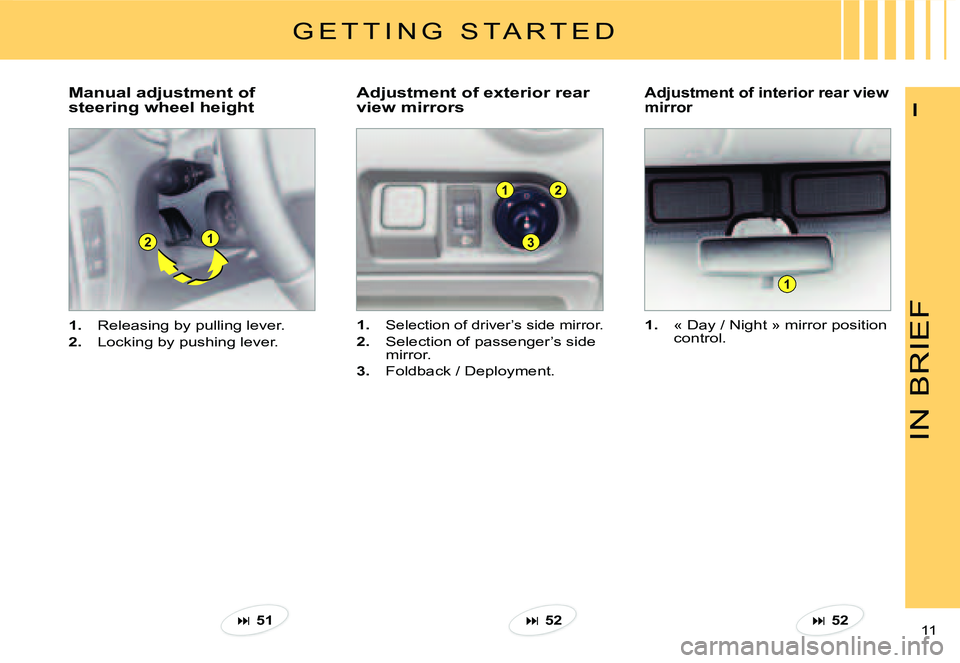

1. Releasing by pulling lever.
2. Locking by pushing lever.
Manual adjustment of steering wheel heightAdjustment of exterior rear view mirrors
1.Selection of driver’s side mirror.
2. Selection of passenger’s side mirror.
3. Foldback / Deployment.
Adjustment of interior rear view mirror
1. « Day / Night » mirror position control.
G E T T I N G S T A R T E D
525152

11
2
IN BRIEF
12
I
G E T T I N G S T A R T E D

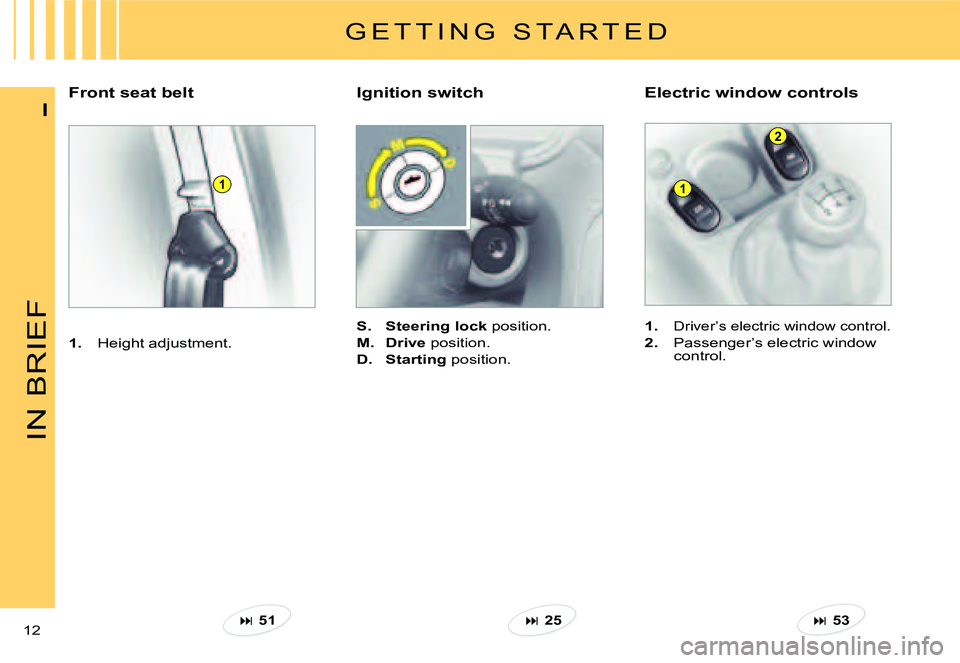

Ignition switch
S.Steering lock position.
M.Drive position.
D.Starting position.
Front seat belt
1. Height adjustment.
Electric window controls
1.Driver’s electric window control.
2. Passenger’s electric window control.
512553

AB
IN BRIEF
13
I
Lighting
Ring A
Ring B
Front and rear foglamps.
Headlamps off.
Automatic lighting of head-lamps.
Sidelamps.
Dipped or main beams.
Front screen wipe
Screen wipe
Rear screen wipe
2 : Fast wipe.
1 : Normal wipe.
I : Intermittent wipe.
0 : Off.
Pressing downwards :
- AUTO : Automatic wipe.
- Single wipe.
Off.
V I S I B I L I T Y
474950
Intermittent rear screen wipe.
Timed rear screen wash and wipe.
To deactivate automatic wipe, put the control to position I, then return it to position 0.
