3
96
III
For long and bulky loads with the Moduboard shelf fully deployed.
With a few simple actions in the rear of the vehicle it is possible to c r e a t e a fl a t l o a d a r e a s t r e t c h i n g from the boot aperture to the front seat backrests, rear benchseat backrests folded.

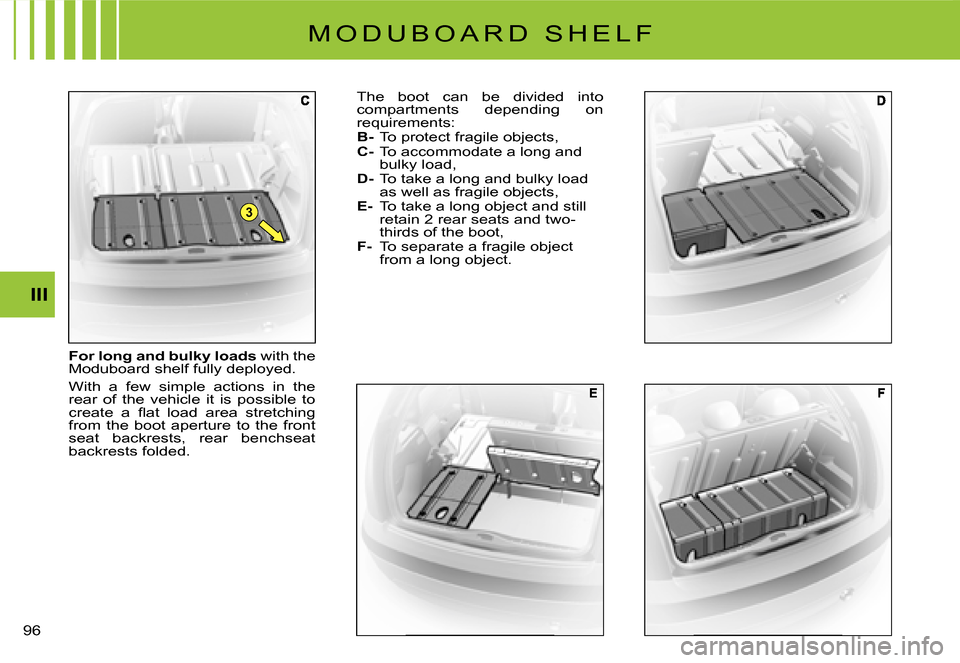

The boot can be divided into compartments depending on requirements:B- To protect fragile objects,C- To accommodate a long and bulky load,D- To take a long and bulky load as well as fragile objects,E- To take a long object and still retain 2 rear seats and two- thirds of the boot,F- To separate a fragile object from a long object.
M O D U B O A R D S H E L F
Page 82 of 184
97
III
S U N R O O F
Electric sun roof
The sun roof can be slid back over the rear panel so that all the space vertically above the front occupants is open to the elements.
A d e fl e c t o r m o v e s i n t o p o s i t i o n automatically when the sun roof is opened.
Turn the control to the left to slide the sun roof (9 opening positions).
It is controlled electrically and sequentially, by a rotary switch with nine opening positions located on the roof lining between the two front sun visors.
An anti- pinch device stops the sun roof from sliding shut if it meets an obstacle, in which case it reopens.
Interior blinds
These can be positioned manually whether the sun roof is open or closed.
When the sun roof is opened, the front blind deploys automatically.
It is not possible to close the front blind with the roof open.
Warning
T h e fi t t i n g o f a n " A c c e s s o r y " s u n r o o f i s p r o h i b i t e d i f y o u r v e h i c l e has curtain airbags.
Page 83 of 184
98
III
S U N R O O F

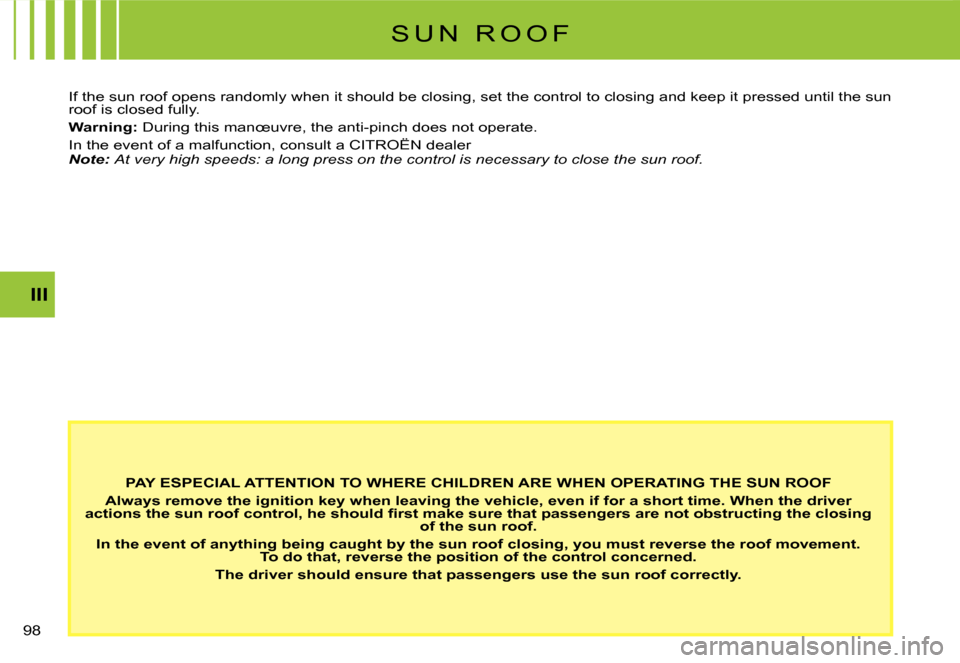

PAY ESPECIAL ATTENTION TO WHERE CHILDREN ARE WHEN OPERATING THE SUN ROOF
Always remove the ignition key when leaving the vehicle, even if for a short time. When the driver a c t i o n s t h e s u n r o o f c o n t r o l , h e s h o u l d fi r s t m a k e s u r e t h a t p a s s e n g e r s a r e n o t o b s t r u c t i n g t h e c l o s i n g of the sun roof.
In the event of anything being caught by the sun roof clos ing, you must reverse the roof movement. To do that, reverse the position of the control concerned.
The driver should ensure that passengers use the sun roof correctly.
If the sun roof opens randomly when it should be closing, set the control to closing and keep it pressed until the sun roof is closed fully.
Warning: During this manœuvre, the anti-pinch does not operate.
In the event of a malfunction, consult a CITROËN dealerNote: At very high speeds: a long press on the control is necessary to close the sun roof.
Page 84 of 184
B
99
III
R E A R P A R C E L S H E L F

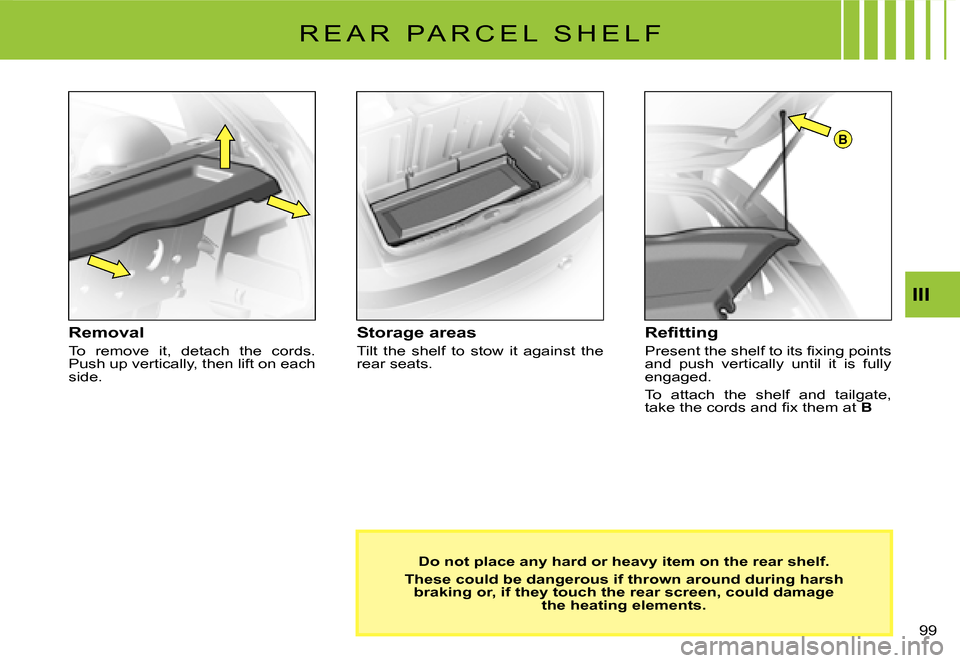

Removal
To remove it, detach the cords. Push up vertically, then lift on each side.
Storage areas
Tilt the shelf to stow it against the rear seats.
R e fi t t i n g
P r e s e n t t h e s h e l f t o i t s fi x i n g p o i n t s and push vertically until it is fully engaged.
To attach the shelf and tailgate, t a k e t h e c o r d s a n d fi x t h e m a t B
Do not place any hard or heavy item on the rear shelf.
These could be dangerous if thrown around during harsh braking or, if they touch the rear screen, could damage the heating elements.
Page 85 of 184
A
1
2
IV
100
B O N N E T R E L E A S E
Check that the bonnet is properly secured.
Avoid opening the bonnet in high winds.
Bonnet
This operation should only be performed while the vehicle is stationary.
To release the bonnet, pull the control located under the dash-board towards you.
Operate the lever A, located above the grille, to the right of the chevrons, then lift.Note: The panel may be hot after the vehicle has been in use.
Bonnet stay: Unclip and swivel the strut, to insert it in notch 1, then in notch 2.
Warning: Do not pull the strut towards the front.
To close
Lower the bonnet carefully, then let it drop shut.
Page 86 of 184
A
B
IV
101
L E V E L SREFER TO THE CHAPTER: USER PRECAUTIONS
A i r fi l t e r
Follow the requirements set out in the Maintenance Guide.
Windscreen/rear screen wash and h e a d l a m p w a s h fl u i d
Use CITROËN-approved products wherever possible.
Capacity: See "Capacities".
C h a r a c t e r i s t i c s o f fl u i d
In order to ensure optimum clea-ning and to avoid freezing, you must never top up or replace this fl u i d w i t h w a t e r .
Engine coolant
T h e fl u i d l e v e l s h o u l d b e between the marks MIN. and MAX. on the header tank.
Engine hot, wait at least 15 minutes.
Quality: See "Maintenance Guide".
Never do anything relating to the cooling system of an engine that is hot.
12 V battery
See "Starting with a slave battery".
Engine oil
Check the engine oil level on horizontal ground with the engine having been switched off for at least 10 minutes.
Quality: See "Maintenance Guide".
Pull out the manual dipstick.
The level should be between the marks MIN.and MAX. on the gauge.
It must never exceed the maximum.
MAX.
MIN.
B r a k e fl u i d
T h e l e v e l o f fl u i d s h o u l d b e between the marks MIN.and MAX. on the reservoir.
Quality: See "Maintenance Guide".
If the warning lamp comes on while you are driving, stop immediately and contact a CITROËN dealer.immediately and immediately
C a b i n p a r t i c l e fi l t e r / O d o u r fi l t e r
See "Maintenance Guide".
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.
Consult "User Precautions" at the end of this handbook.
Page 87 of 184
IV
107
Engine oil
Check the engine oil level on hori-zontal ground with the engine having been switched off for at least 10 minutes.
Pull out the manual dipstick.
The level should be between the marks MIN. and MAX. on the gauge.
Topping up engine oil
B e f o r e fi l l i n g , p u l l o u t t h e d i p s t i c k .
C h e c k t h e d i p s t i c k a f t e r fi l l i n g .
It must never exceed the maximum.
Screw the cap back on and close the bonnet.
Quality: See "Maintenance Guide".
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.
L E V E L S
Page 88 of 184
IV
108
L E V E L S
R a d i a t o r – c o o l a n t fl u i d
Checking the level and topping up w i t h fl u i d m u s t a l w a y s b e d o n e w i t h the engine cold.
Engine hot
Release the protection cover.
Wait 15 minutes or for the tempe-rature to be lower than 100 °C and then carefully unscrew the cap so as to allow the pressure to drop, protecting yourself with, say, a cloth.
Topping up the coolant
T h e fl u i d l e v e l s h o u l d b e b e t w e e n t h e m a r k s MIN. and MAX. on the header tank.
Top up the level. If you have to put in more than 1 litre, have the cooling system checked by a CITROËN dealer.Top up the level. If you have to put in more than 1 litre, more than
Make sure that the cap is back on properly.Note: I f y o u n e e d t o t o p u p t h e fl u i d f r e q u e n t l y , t h i s i n d i c a t e s a malfunction which you should get checked at the earliest opportunity.
Quality: See "Maintenance Guide".
Remark: The cooling fan may operate for around 10 minutes after the engine has stopped.
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.
Page 89 of 184
IV
103

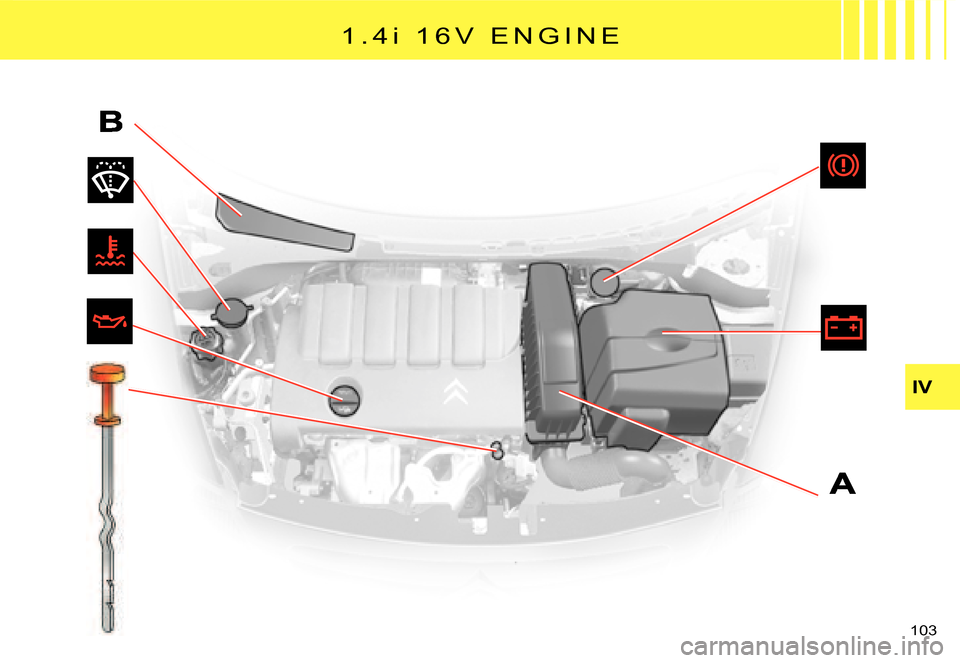

1 . 4i 1 6 V E N G I N E
Page 90 of 184
IV
104

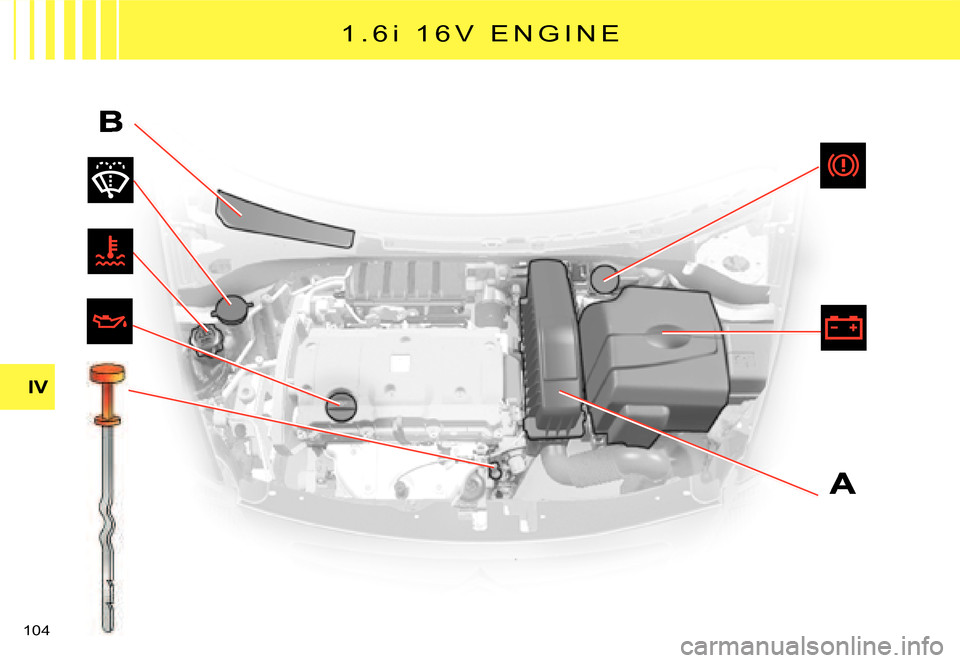

1 . 6i 1 6 V E N G I N E
