Page 111 of 184
2
4
5
16
3
127
V
C H A N G I N G A W H E E L
Removal1. P a r k t h e v e h i c l e o n s t a b l e , fi r m g r o u n d t h a t i s n o t s l i p p e r y . A p p l y t h e parking brake. S w i t c h o f f t h e i g n i t i o n a n d e n g a g e fi r s t g e a r o r r e v e r s e g e a r , d e p e n d i n g on any slope.Ensure that all vehicle occupants have left the vehicle an d are positioned in a safe place.
2. Position the jack at one of the four jacking-points provided on the subframe close to the wheels. Using the handle, unwind the jack until it reaches the ground.3. To unclip the wheel embellisher, pull using the end of the wheelbrace as a lever in one of the apertures.For vehicles with aluminium wheel rims:
With a central embellisher, remove the embellisher, using the tool, to access the bolts.With wheel bolts visible, simply undo them.4. Continue to extend the jack until the wheel is a few centimetres off the ground.5. Undo the other bolts, remove the wheel.
-
-
Tools1. Jack2. Wheelbrace3. Central embellisher removing tool for accessing the wheel bolts (For vehicles with aluminium wheel rims).4. Socket for anti- theft bolts (For vehicles with aluminium wheel rims).5. Tool for removing wheel bolt protectors (For vehicles with alumin ium wheel rims).6. Movable towing eye.
Page 112 of 184
128
V
C H A N G I N G A W H E E L
R e fi t t i n g1. Engage the wheel on the hub.2. Screw in the bolts but do not fully tighten them.3. Lower the jack and remove it.4. Tighten the wheel bolts, using the wheelbrace.5. R e fi t t h e e m b e l l i s h e r , t a k i n g care to accommodate the tyre valve. Then pressing all round its circumference. For vehicles equipped with aluminium rims, r e fi t t h e w h e e l b o l t p r o t e c t o r s .6. Have the original wheel r e p a i r e d a n d r e fi t t e d a s s o o n as possible.7. Make sure that the tyre is at the correct pressure (see " V e h i c l e I d e n t i fi c a t i o n " a n d "User Precautions") and have the wheel balancing checked.
Dimension of the spare wheel
If your spare wheel has dimen-sions different from those of the n o r m a l v e h i c l e w h e e l s ( i d e n t i fi e d by a label), it is imperative to use the spare wheel only temporarily, to drive with caution, not to exceed 80 km/h (50 mph) and to have the tyre repaired and the normal wheel r e fi t t e d a s s o o n a s p o s s i b l e .
Tyre pressures
This is indicated on the label on the front door pillar. See "Vehicle iden- t i fi c a t i o n " a n d " U s e r P r e c a u t i o n s " .
Light alloy wheels
If your vehicle has light alloy wheel rims but a steel spare wheel, if you fi t t h e l a t t e r i t i s n o r m a l t o n o t i c e that the wheel bolts do not appear to contact on the rim.
The spare wheel is secured by the conical tapering of the wheel bolt’s shaft (See illustration).
w h e n r e fi t t i n g t h e l i g h t a l l o y w h e e l , make sure that the tapering contact faces of the wheel bolts are clean and in good condition.
Never get underneath the vehicle if it is supported only by the jack.
When changing a wheel, it is essential to park the vehicle safely on level and stable ground.
Page 113 of 184
129
V
T O W I N G – L I F T I N G
Towing with wheels on the ground
T o w i n g e y e fi x i n g s a r e l o c a t e d a t t h e f r o n t a n d a t t h e r e a r o f t h e v e h i c l e .
To access them:Carefully lift the access cover.
Release it by pressing on the lower part.
A lug keeps the cover attached to the bumper, so that it do es not become lost.
The ignition key must be in position M to retain steering.
Use a bar with attachments to the towing eyes as above.
Vehicles with manual gearbox (diesel models)
For vehicles with a manual gearbox, the gear lever must be in "neutral", otherwise some components in the braking system could b ecome damaged and impair braking assistance the next time the engine is started.
Page 114 of 184
130
VI
F U E L C O N S U M P T I O N
( I N L I T R E S / 1 0 0 K M ( M I L E S P E R G A L L O N ) )
T h e s e c o n s u m p t i o n fi g u r e s a r e e s t a b l i s h e d a c c o r d i n g t o D i r e c t i v e 8 0 / 1 2 6 8 / C E E . F u e l c o n s u m p t i o n c a n v a r y d e p e n d i n g o n s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , v e h i c l e l o a d , h o w t h e v e h i c l e h a s b e e n m a i n t a i n e d a n d o n use of accessories.
Engine type1.1i1.4i1.4i 16V1.6i 16VHDi 701.6 HDi 92
1.6 HDi 110 FAP
Saloon - EntrepriseBVMBVMBVMBVMPBVMPStop & StartBVMBVMPBVABVMBVMPBVMBVM
UrbanCO2 emissions (g/km)
7.6(37.2)180
8.2(34.4)195(34.4)(34.4)8.1(34.9)193
7.6(37.2)183
6.9(40.9)165
8.6(32.8)205
8.0(35.3)191
10.1(28.0)240
5.3(53.3)141
4.9(57.6)130
5.7(49.6)151
5.7(49.6)151
Extra urbanCO2 emissions (g/km)
5.0(56.5)120
4.9(57.6)117
5.0(56.5)122
5.0(56.5)122
4.9(57.6)119
5.2(54.3)124
5.1(55.4)123
5.5(51.4)131
3.8(74.399
3.9(72.4)102
3.7(76.3)98
3.8(74.3)101
CombinedCO2 emissions (g/km)
6.0(47.1)140
6.1(46.3)145
6.2(45.6)148
6.0(47.1)143
5.7(49.6)135
6.5(43.5)155
6.2(45.6)148
7.2(39.2)172
4.4(64.2)115
4.3(65.7)113
4.4(64.2)118
4.5(62.8)120
T h e f u e l c o n s u m p t i o n fi g u r e s q u o t e d a r e c o r r e c t at time of going to press.
BVM: Manual gearbox.
BVMP: Electronic Gearbox System.
BVA: Automatic gearbox.
FAP: D i e s e l p a r t i c u l a t e fi l t e r s y s t e m .
Page 115 of 184
131
VI
G E N E R A L
Saloon
Engine type1.1iBVM1.4iBVM1.4i 16VBVM1.4i 16VBVMP1.6i 16VBVM1.6i 16VBVA1.6i 16VBVMP
Fuel tank capacityApproximately 47 litres
Fuels to be usedUnleaded petrol RON 95 - RON 98
Turning circle between walls (in metres)10.4510.4510.4511.5511.5511.5511.55
F r e n c h fi s c a l r a t i n g4555676
Calculated maximum speed in km/h (mph)
(In the highest gear)157(98)168(104)177(110)180(112)192(119)185(115)192(119)
Weights (kg)
Unladen weight (MAV)1 0101 0141 0511 0441 0841 1331 088
Gross vehicle weight (MTAC)1 4831 5101 5271 5351 5611 5971 568
Maximum weight on rear axle (CMAE AR)820820820820820820820
Gross train weight (MTRA)2 1332 4102 4272 4352 4612 4972 468
Gross trailer weight (with brakes) (Within the Gross Train Weight limit)9201 1601 1601 1601 1701 1601 160
Gross trailer weight (without brakes)540540560560570600580
Trailer nose weight37474747474747
Maximum roof rack load60
Dimensions of chainable tyres175/65 R14 - 185/60 R15 - 195/50 R16
Page 116 of 184
132
VI

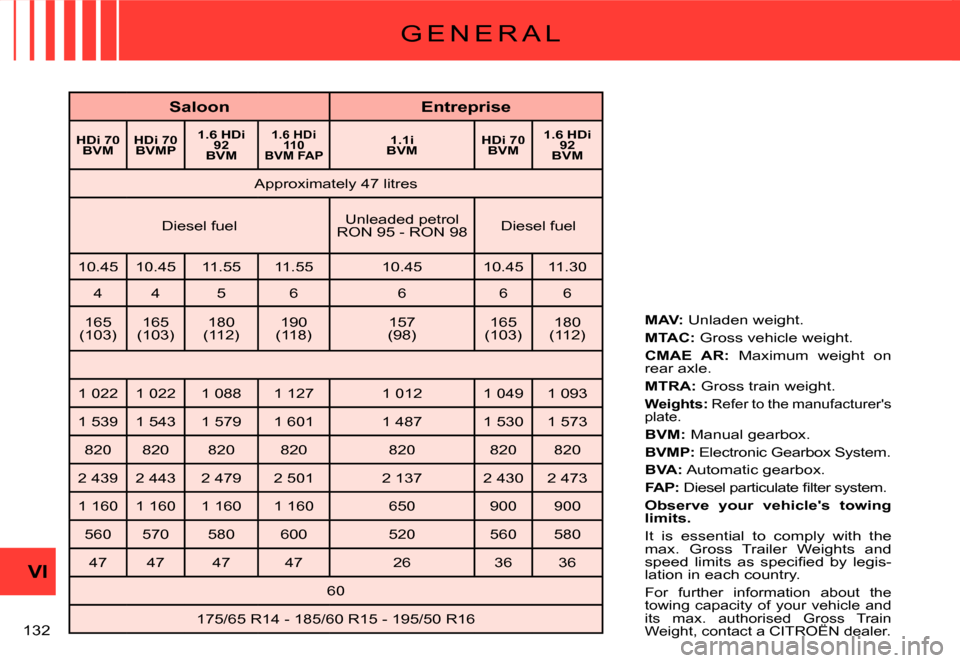

G E N E R A L
SaloonEntreprise
HDi 70BVMHDi 70BVMP1.6 HDi 92BVM
1.6 HDi 110BVM FAP1.1iBVMHDi 70BVM1.6 HDi 92BVM
Approximately 47 litres
Diesel fuelUnleaded petrol RON 95 - RON 98Diesel fuel
10.4510.4511.5511.5510.4510.4511.30
4456666
165(103)165(103)180(112)190(118)157(98)165(103)180(112)
1 0221 0221 0881 1271 0121 0491 093
1 5391 5431 5791 6011 4871 5301 573
820820820820820820820
2 4392 4432 4792 5012 1372 4302 473
1 1601 1601 1601 160650900900
560570580600520560580
47474747263636
60
175/65 R14 - 185/60 R15 - 195/50 R16
MAV: Unladen weight.
MTAC: Gross vehicle weight.
CMAE AR: Maximum weight on rear axle.
MTRA: Gross train weight.
Weights: Refer to the manufacturer's plate.
BVM: Manual gearbox.
BVMP: Electronic Gearbox System.
BVA: Automatic gearbox.
FAP: D i e s e l p a r t i c u l a t e fi l t e r s y s t e m .
Observe your vehicle's towing limits.
It is essential to comply with the max. Gross Trailer Weights and s p e e d l i m i t s a s s p e c i fi e d b y l e g i s -lation in each country.
For further information about the towing capacity of your vehicle and its max. authorised Gross Train Weight, contact a CITROËN dealer.
Page 117 of 184
B
IG
H
133
VI

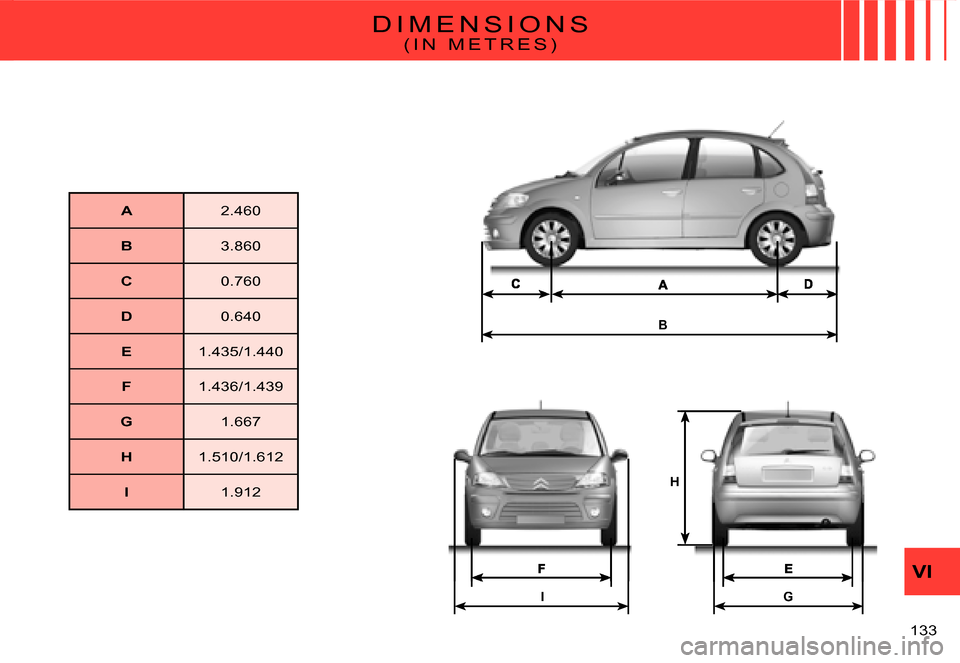

D I M E N S I O N S
( I N M E T R E S )
A2.460
B3.860
C0.760
D0.640
E1.435/1.440
F1.436/1.439
G1.667
H1.510/1.612
I1.912
Page 118 of 184
A
BC
D
E
F
G
H
134
VI
D I M E N S I O N S
( I N M E T R E S )
A1.070
B0.585
C0.600
D1.040
E0.700
F1.160
G0.660
H0.624
Page 119 of 184
A
A’
A’
AC
B
A’
456
135
VI
V E H I C L E I D E N T I F I C A T I O N
A. Chassis number plateOn the left hand door centre pillar
Or,A’. In the boot close to the catch.1. EU type approval number.2. V e h i c l e i d e n t i fi c a t i o n N o . ( V I N ) .3. Gross vehicle weight.4. Gross train weight.5. Maximum weight on front axle.6. Maximum weight on rear axle.B. Body serial numberC. Paint colour codeTyre reference
Tyre pressures
All CITROËN original replacement parts are available exclusively within the dealer network.
For your safety and in order to remain within the terms of the guarantee, you are advised to use only CITROËN replacement parts.For your safety and in order to remain within the terms of order to remain
Fitting parts or units not supplied by CITROËN may even result in violation of the law, if it involves non-compliance with regulations concerning safety, pollution control, interference suppression and the noise leve l of the vehicle. Fitting such parts or units could also deprive the user of any re course against the maker.
This applies in particular to: parts of the braking equipmen t, lighting and signalling equipment, engine equipment, the exhaust system, steering system, structural and suspension parts.
Page 120 of 184
ABCDEFGHIJK
NPMROQL
1
4
6
2
3
5S

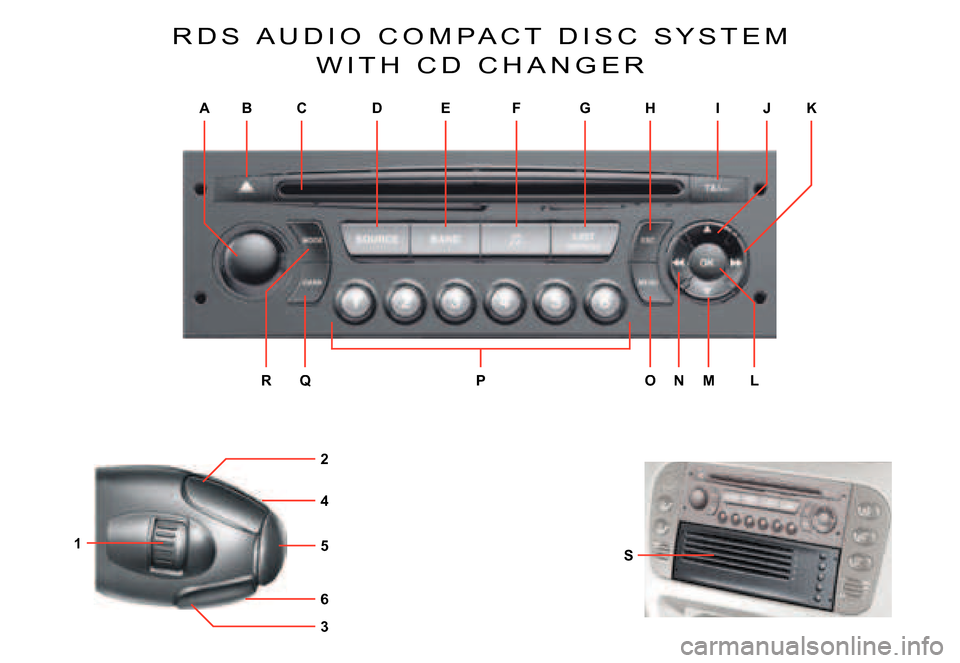

R D S A U D I O C O M P A C T D I S C S Y S T E M
W I T H C D C H A N G E R
