MONITORING
Foot on the
brake pedal fi x e d .
The brake pedal must be
pressed. With the SensoDrive gearbox, press the brake
pedal to start the engine (lever in position
N ).
With an automatic gearbox, with the engine
running, press the brake pedal before releasing
the parking brake, to unlock the lever and come
out of position P .
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
fl a s h i n g . With a SensoDrive gearbox,
if you hold the vehicle on an
incline using the accelerator
for too long, the clutch
overheats. Use the brake pedal and/or the parking brake.
Automatic
wiping fi x e d . The wiper control is pushed
downwards. Automatic front wiping is activated.
Warning lamp is on Cause Action/Observations
Page 22 of 240
1
MONITORING

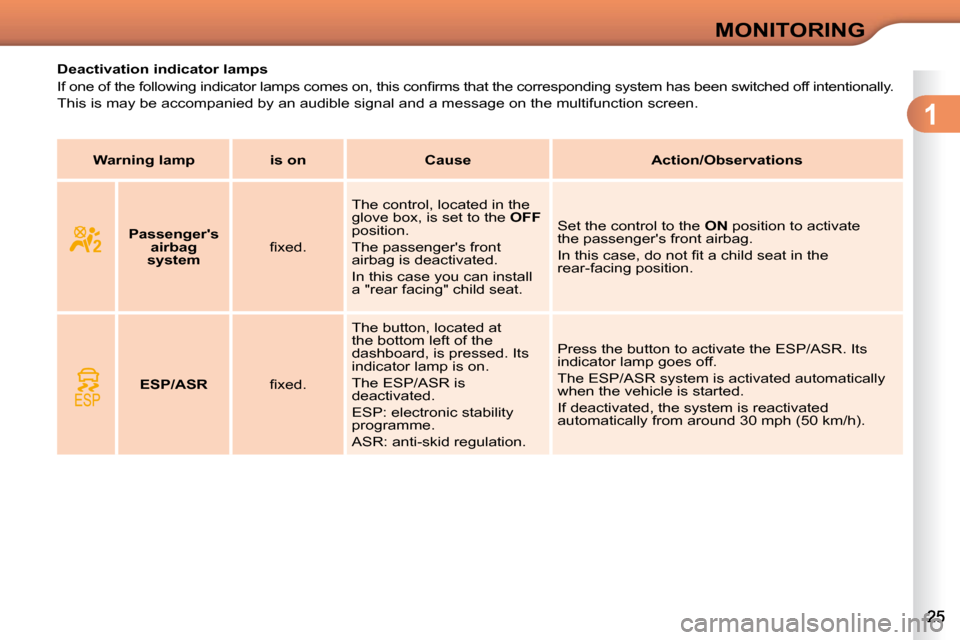

Deactivation indicator lamps
I f o n e o f t h e f o l l o w i n g i n d i c a t o r l a m p s c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e s p o n d i n g s y s t e m h a s b e e n s w i t c h e d o f f i n t e n t i o n a l l y .
This is may be accompanied by an audible signal and a message on the multifunction screen.
Passenger's
airbag
system fi x e d . The control, located in the
glove box, is set to the
OFF
position.
The passenger's front
airbag is deactivated.
In this case you can install
a "rear facing" child seat. Set the control to the
ON position to activate
the passenger's front airbag.
I n t h i s c a s e , d o n o t fi t a c h i l d s e a t i n t h e
rear-facing position.
ESP/ASR fi x e d . The button, located at
the bottom left of the
dashboard, is pressed. Its
indicator lamp is on.
The ESP/ASR is
deactivated.
ESP: electronic stability
programme.
ASR: anti-skid regulation. Press the button to activate the ESP/ASR. Its
indicator lamp goes off.
The ESP/ASR system is activated automatically
when the vehicle is started.
If deactivated, the system is reactivated
automatically from around 30 mph (50 km/h).
Warning lamp is on Cause Action/Observations
Page 23 of 240
1
MONITORING
Warning lamps
When the engine is running or the ve-
hicle is being driven, the switching on
of one of the following warning lamps
indicates a fault which requires action
on the part of the driver. Any fault resulting in the illumination of a warni
ng lamp must be investigated
further by reading the associated message in the mu ltifunction screen.
If you encounter any problems, do not hesitate to contact a CITROËN
d e a l e r o r a q u a l i fi e d w o r k s h o p .
STOP fi x e d , a l o n e
or associated with another
warning lamp, accompanied
by an audible signal and a
message on the screen. Illumination of the warning
lamp is associated with a
serious braking system or
engine coolant temperature
problem.
Stop as soon as it is safe to do so as the engine
may cut out when driving.
Park, switch off the ignition and call a CITROËN
d e a l e r o r a q u a l i fi e d w o r k s h o p .
Service temporarily.
Minor problems have
occurred for which there is
n o s p e c i fi c w a r n i n g l a m p . Identify the problem by reading the message
shown in the screen, such as, for example:
- the engine oil level,
- the screenwash level,
- the remote control battery,
- s a t u r a t i o n o f t h e p a r t i c l e e m i s s i o n fi l t e r o n
Diesel vehicles (see "Checks - § particle
e m i s s i o n s fi l t e r " ) .
For any other faults, contact a CITROËN dealer or
a q u a l i fi e d w o r k s h o p .
fi x e d . Major problems have
occurred for which there is
n o s p e c i fi c w a r n i n g l a m p . Identify the problem by reading the message
shown in the screen and contact a CITROËN
d e a l e r o r a q u a l i fi e d w o r k s h o p .
Warning lamp is on Cause Action/Observations
Page 24 of 240
1
MONITORING
Anti-lock
Braking System (ABS) fi x e d .
The anti-lock braking
system has a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact
a C I T R O Ë N d e a l e r o r a q u a l i fi e d w o r k s h o p
without delay.
Dynamic
stability control
(ESP/ASR) fl a s h i n g .
The ESP/ASR regulation is
active. The system optimises traction and improves
the directional stability of the vehicle.
fi x e d . Unless it has been
deactivated with the indicator
lamp in the button on, the
ESP/ASR system has a fault. H a v e i t c h e c k e d b y a C I T R O Ë N o r a q u a l i fi e d
workshop.
Engine
autodiagnosis system fi x e d .
The emission control
system has a fault.
The warning lamp should go off when the engine is
started.
I f i t d o e s n o t g o o f f , c o n t a c t a C I T R O Ë N d e a l e r o r q u a l i fi e d
workshop without delay.
fl a s h i n g . The engine management
system has a fault. Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or a
q u a l i fi e d w o r k s h o p .
Braking fi x e d ,
associated
with the STOP warning lamp. T h e b r a k i n g s y s t e m fl u i d
level is too low. You must stop as soon as it is safe to do so.
T o p u p w i t h b r a k e fl u i d r e c o m m e n d e d b y
CITROËN.
If the problem persists, have the system checked
b y a C I T R O Ë N d e a l e r o r a q u a l i fi e d w o r k s h o p .
+
fi x e d , a s s o c i a t e d with the STOP and ABS
warning lamp. The electronic brake force
distribution (EBFD) system
has a fault. You must stop as soon as it is safe to do so.
H a v e i t c h e c k e d b y a C I T R O Ë N o r a q u a l i fi e d
workshop.
Warning lamp is on Cause Action/Observations
Page 25 of 240
1
MONITORING
Maximum
coolant
temperature fi x e d r e d .
The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
topping up the level, if necessary.
If the problem persists, contact a CITROËN
d e a l e r o r q u a l i fi e d w o r k s h o p .
Engine oil
pressure fi x e d . There is a fault with the
engine lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a
C I T R O Ë N d e a l e r o r a q u a l i fi e d w o r k s h o p .
Battery
charge fi x e d . The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when the engine
is started.
If it does not go off, contact a CITROËN dealer or
a q u a l i fi e d w o r k s h o p .
Low fuel
level fi x e d . W h e n i t fi r s t c o m e s o n t h e r e
remains
approximately
5 litres of
fuel in the tank. You must refuel as soon as possible to avoid
running out of fuel.
This warning lamp will come on every time the
i g n i t i o n i s s w i t c h e d o n , u n t i l a s u f fi c i e n t a d d i t i o n
of fuel is made.
Fuel tank capacity: approximately 50 litres
(petrol) or 48 litres (Diesel).
Never continue to drive until you run out of fuel
as this could damage the emission control and
injection systems.
Warning lamp is on Cause Action/Observations
Page 26 of 240
1
MONITORING
Airbags temporarily.
This lamp comes on for
a few seconds when you
turn on the ignition, then
goes off. This lamp should go off when the engine is
started.
If it does not go off, contact a CITROËN dealer or
a q u a l i fi e d w o r k s h o p .
fi x e d . One of the airbag or seat
belt pretensioner systems
has a fault. Have it checked by a CITROËN dealer or a
q u a l i fi e d w o r k s h o p .
Seat belt not
fastened/
unfastened fi x e d t h e n
fl a s h i n g
accompanied by
an increasing
audible signal. The driver and/or the front
passenger has not fastened
or has unfastened their seat
belt.
Pull the strap then insert the tongue in the
buckle.
Door(s)
open fi x e d i f t h e
speed is
below 6 mph (10 km/h).
A door or the boot is still
open. Close the door or boot.
fi x e d a n d
accompanied by an audible signal if the speed is
above 6 mph (10 km/h).
Warning lamp is on Cause Action/Observations
Page 27 of 240
1
MONITORING
Water in
Diesel fi x e d . T h e D i e s e l f u e l fi l t e r
contains water. Risk of damage to the injection system on Diesel
engines.
C o n t a c t a C I T R O Ë N d e a l e r o r a q u a l i fi e d
workshop without delay.
Power
steering fi x e d . The power steering has a
fault. Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or a
q u a l i fi e d w o r k s h o p .
Particle
emissions
fi l t e r ( D i e s e l ) fi x e d ,
accompanied by an audible signal
message on the risk of
blockage of the particle
e m i s s i o n s fi l t e r . This indicates that the
p a r t i c l e e m i s s i o n s fi l t e r
is starting to become
saturated.
As soon as driving conditions allow, regenerate
t h e fi l t e r b y d r i v i n g a t a s p e e d o f a t l e a s t 3 5 m p h
(60 km/h) until the warning lamp goes off.
fi x e d ,
accompanied by an audible signal
and and a
message that the particle
e m i s s i o n s fi l t e r additive level is too low. This indicates the low level
of the additive reservoir.
Have the reservoir topped up as soon as
p o s s i b l e b y a C I T R O Ë N d e a l e r o r a q u a l i fi e d
workshop.
Warning lamp is on Cause Action/Observations
Page 28 of 240
1
MONITORING
Service indicator
System which informs the driver when
the next service is due, in accordance
with the manufacturer's servicing
schedule.
The point at which the service is due is
calculated from the last indicator zero re-
set. It is determined by two parameters:
- the distance travelled,
- the time elapsed since the last service. Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For a few seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line indicates
the distance remaining before the next
service is due.
Example: 1 700 miles (2 800 km) re-
main before the next service is due.
For a few seconds after the ignition is
switched on, the screen indicates:
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 560 miles (900 km) remain
before the next service is due.
For a few seconds after the ignition is
switched on, the display indicates:
A few seconds after the ignition is
switched on, the spanner goes off ; the
distance recorder resumes its normal
operation. The screen then indicates
the total and trip distances.
A few seconds after the ignition is switched on, the distance recorder resumes its nor-
mal operation. The spanner remains on
to indicate that a service must be carried
out soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no ser-
vice information appears in the screen.
Page 29 of 240
1
MONITORING
Service overdue
For a few seconds after the ignition is
switched on, t h e s p a n n e r fl a s h e s to
indicate that the service must be carried
out as soon as possible.
Example: the service is overdue by
180 miles (300 km).
For a few seconds after the ignition is
switched on, the display indicates:
A few seconds after the ignition is switched
on, the distance recorder resumes its nor-
mal operation. The spanner remains on .
The distance remaining may be
weighted by the time factor, de-
pending on the driver's driving
habits.
Therefore, the spanner may also
come on if you have exceeded
the two year service interval. Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:
switch off the ignition,
press and hold the trip distance re-
corder zero reset button,
switch on the ignition; the distance re-
corder display begins a countdown,
when the display indicates "=0" ,
release the button; the spanner dis-
appears. Retrieving the service information
You can access the service information
at any time.
Press the trip distance recorder zero
reset button.
The service information is displayed for a few seconds, then disappears. Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at least
fi v e m i n u t e s f o r t h e z e r o r e s e t t o
be taken into account.
Page 30 of 240
1
MONITORING
Service overdue
For a few seconds after the ignition is
switched on, t h e s p a n n e r fl a s h e s to
indicate that the service must be carried
out as soon as possible.
Example: the service is overdue by
180 miles (300 km).
For a few seconds after the ignition is
switched on, the display indicates:
A few seconds after the ignition is switched
on, the distance recorder resumes its nor-
mal operation. The spanner remains on .
The distance remaining may be
weighted by the time factor, de-
pending on the driver's driving
habits.
Therefore, the spanner may also
come on if you have exceeded
the two year service interval. Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:
switch off the ignition,
press and hold the trip distance re-
corder zero reset button,
switch on the ignition; the distance re-
corder display begins a countdown,
when the display indicates "=0" ,
release the button; the spanner dis-
appears. Retrieving the service information
You can access the service information
at any time.
Press the trip distance recorder zero
reset button.
The service information is displayed for a few seconds, then disappears. Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at least
fi v e m i n u t e s f o r t h e z e r o r e s e t t o
be taken into account.
