Citroen C3 2010.5 2.G Owners Manual
Manufacturer: CITROEN, Model Year: 2010.5, Model line: C3, Model: Citroen C3 2010.5 2.GPages: 240, PDF Size: 8.72 MB
Page 91 of 240
5
VISIBILITY
INTERIOR MOOD LIGHTING
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
Switching on
At night, the illumination of footwell and
the central dashboard stoarge compart-
ment comes on automatically when the
sidelamps are switched on. Switching off
The interior mood lighting switches off
automatically when the sidelamps are
switched off.
It can be switched off manually using
the instrument panel lighting rheostat
button.
With the lighting on, press several
times on the left hand button of the
instrument panel to progressively
reduce the dashboard lighting level.
Press again to reduce the lighting
level to the minimum and switch off
the interior mood lighting. This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
BOOT LAMP
The lighting time varies according
to the circumstances:
- when the ignition is off, ap-
proximately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- when the engine is running, no limit.
On certain versions, three lamps locat-
ed in the support between the roof and
the automatic day/night interior mirror
come on as well.
Page 92 of 240
6
FITTINGS

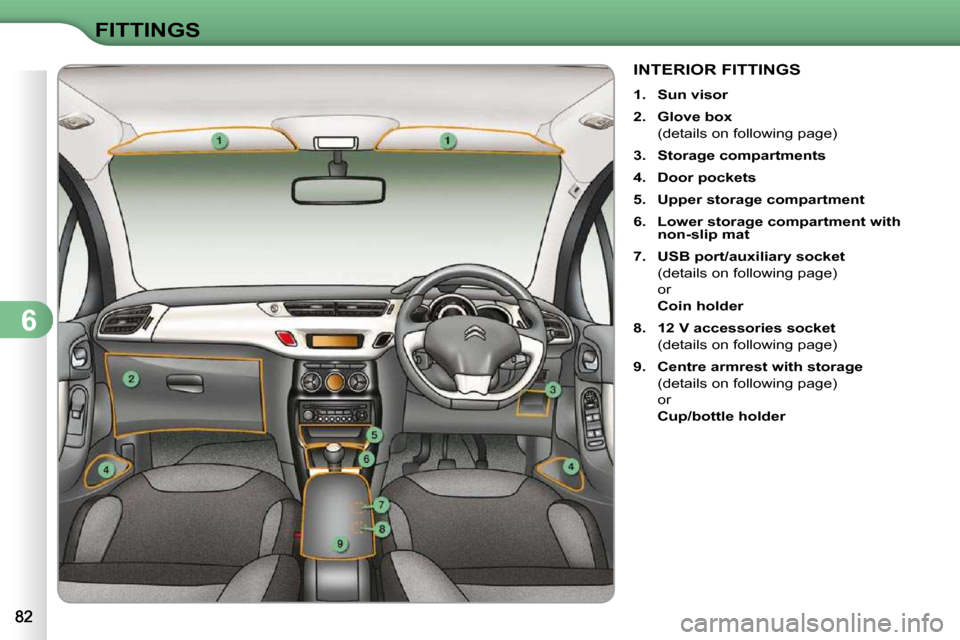

INTERIOR FITTINGS
1. Sun visor
2. Glove box
(details on following page)
3. Storage compartments
4. Door
pockets
5. Upper storage compartment
6. Lower storage compartment with
non-slip mat
7. USB port
/
auxiliary socket
(details on following page)
or
Coin holder
8. 12 V accessories socket
(details on following page)
9. Centre armrest with storage
(details on following page)
or
Cup/bottle holder
Page 93 of 240
6
FITTINGS
SUN VISOR
Component which protects against sun-
light from the front or the side.
Version without Zenith windscreen
GLOVE BOX
To open the glove box, raise the
handle.
It houses the front passenger airbag de-
activation switch A .
It gives access to the dashboard fuse-
box (see the "Practical information - §
Changing a fuse" section).
CENTRE ARMREST
Comfort and storage system for the
driver and front passenger.
Storage
For access to the closed storage
box, lift the lever to open the lid.
For access to the open storage box
below the armrest, lift the complete
armrest towards the rear.
These can be used for portable devices
(mobile phone, MP3 player...) which can
be connected to the USB port/auxiliary
socket or charged from the 12 V socket
in the centre console.
Version with Zenith windscreen
Refer to the "Familiarisation - § Zenith
windscreen" section.
T h e s u n v i s o r s a r e fi t t e d w i t h a c o u r t e s y
m i r r o r , w i t h c o n c e a l i n g fl a p f o r t h e d r i v e r
and a ticket/card holder.
Page 94 of 240
6
FITTINGS
USB PLAYER
The USB port is located in the "AUX"
box on the centre console.
It permits the connection of a portable
device, such as a digital audio player of
the iPod ®
generation 5 and later type or
USB memory stick type.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 ,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering mounted controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable
device charges automatically.
For more information on the use of this
equipment, refer to the Audio system part
of the "Audio and Telematics" section.
12 V ACCESSORY SOCKET
To connect a 12 V accessory (max
power: 120 W), lift the cover and
connect a suitable adaptor.
AUXILIARY SOCKET
The auxiliary socket is located in the
"AUX" box on the centre console.
It permits the connection of a portable
device, such as a digital audio player of
the iPod ®
type, to listen to your music
fi l e s u s i n g t h e v e h i c l e ' s s p e a k e r s .
For more information on the use of
this equipment, refer to the MyWay or
Audio system part of the "Audio and
Telematics" section. T h e m a n a g e m e n t o f t h e fi l e s i s
done using your portable device.
Page 95 of 240
6
FITTINGS

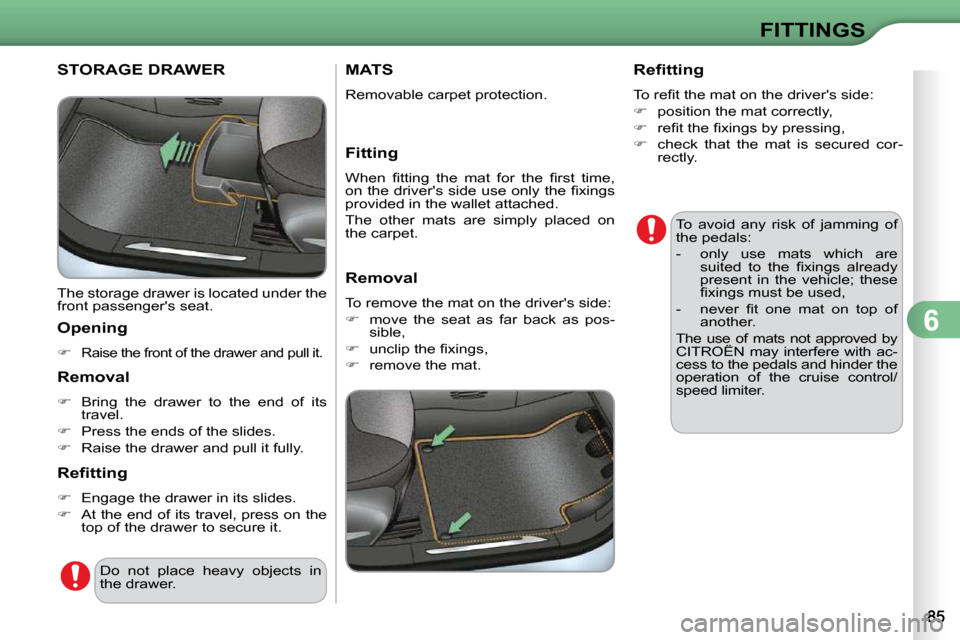

STORAGE DRAWER
The storage drawer is located under the
front passenger's seat.
Opening
Raise the front of the drawer and pull it.
Removal
Bring the drawer to the end of its
travel.
Press the ends of the slides.
Raise the drawer and pull it fully.
Refitting
Engage the drawer in its slides.
At the end of its travel, press on the
top of the drawer to secure it.
Do not place heavy objects in
the drawer.
MATS
Removable carpet protection.
Fitting
W h e n fi t t i n g t h e m a t f o r t h e fi r s t t i m e ,
o n t h e d r i v e r ' s s i d e u s e o n l y t h e fi x i n g s
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
move the seat as far back as pos-
sible,
u n c l i p t h e fi x i n g s ,
remove the mat. Refitting
T o r e fi t t h e m a t o n t h e d r i v e r ' s s i d e :
position the mat correctly,
r e fi t t h e fi x i n g s b y p r e s s i n g ,
check that the mat is secured cor-
rectly.
To avoid any risk of jamming of
the pedals:
- only use mats which are s u i t e d t o t h e fi x i n g s a l r e a d y
present in the vehicle; these
fi x i n g s m u s t b e u s e d ,
- n e v e r fi t o n e m a t o n t o p o f another.
The use of mats not approved by
CITROËN may interfere with ac-
cess to the pedals and hinder the
operation of the cruise control/
speed limiter.
Page 96 of 240
6
FITTINGS
SUN VISOR
Component which protects against sun-
light from the front or the side.
Version without Zenith windscreen
GLOVE BOX
To open the glove box, raise the
handle.
It houses the front passenger airbag de-
activation switch A .
It gives access to the dashboard fuse-
box (see the "Practical information - §
Changing a fuse" section).
CENTRE ARMREST
Comfort and storage system for the
driver and front passenger.
Storage
For access to the closed storage
box, lift the lever to open the lid.
For access to the open storage box
below the armrest, lift the complete
armrest towards the rear.
These can be used for portable devices
(mobile phone, MP3 player...) which can
be connected to the USB port/auxiliary
socket or charged from the 12 V socket
in the centre console.
Version with Zenith windscreen
Refer to the "Familiarisation - § Zenith
windscreen" section.
T h e s u n v i s o r s a r e fi t t e d w i t h a c o u r t e s y
m i r r o r , w i t h c o n c e a l i n g fl a p f o r t h e d r i v e r
and a ticket/card holder.
Page 97 of 240
6
FITTINGS
USB PLAYER
The USB port is located in the "AUX"
box on the centre console.
It permits the connection of a portable
device, such as a digital audio player of
the iPod ®
generation 5 and later type or
USB memory stick type.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 ,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering mounted controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable
device charges automatically.
For more information on the use of this
equipment, refer to the Audio system part
of the "Audio and Telematics" section.
12 V ACCESSORY SOCKET
To connect a 12 V accessory (max
power: 120 W), lift the cover and
connect a suitable adaptor.
AUXILIARY SOCKET
The auxiliary socket is located in the
"AUX" box on the centre console.
It permits the connection of a portable
device, such as a digital audio player of
the iPod ®
type, to listen to your music
fi l e s u s i n g t h e v e h i c l e ' s s p e a k e r s .
For more information on the use of
this equipment, refer to the MyWay or
Audio system part of the "Audio and
Telematics" section. T h e m a n a g e m e n t o f t h e fi l e s i s
done using your portable device.
Page 98 of 240
6
FITTINGS
STORAGE DRAWER
The storage drawer is located under the
front passenger's seat.
Opening
Raise the front of the drawer and pull it.
Removal
Bring the drawer to the end of its
travel.
Press the ends of the slides.
Raise the drawer and pull it fully.
Refitting
Engage the drawer in its slides.
At the end of its travel, press on the
top of the drawer to secure it.
Do not place heavy objects in
the drawer.
MATS
Removable carpet protection.
Fitting
W h e n fi t t i n g t h e m a t f o r t h e fi r s t t i m e ,
o n t h e d r i v e r ' s s i d e u s e o n l y t h e fi x i n g s
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
move the seat as far back as pos-
sible,
u n c l i p t h e fi x i n g s ,
remove the mat. Refitting
T o r e fi t t h e m a t o n t h e d r i v e r ' s s i d e :
position the mat correctly,
r e fi t t h e fi x i n g s b y p r e s s i n g ,
check that the mat is secured cor-
rectly.
To avoid any risk of jamming of
the pedals:
- only use mats which are s u i t e d t o t h e fi x i n g s a l r e a d y
present in the vehicle; these
fi x i n g s m u s t b e u s e d ,
- n e v e r fi t o n e m a t o n t o p o f another.
The use of mats not approved by
CITROËN may interfere with ac-
cess to the pedals and hinder the
operation of the cruise control/
speed limiter.
Page 99 of 240
6
FITTINGS
BOOT FITTINGS
1. Rear parcel shelf
(see following page for details)
2. Hooks
(see following page for details)
3. L o c a t i o n f o r H i - F i a m p l i fi e r
4. Stowing rings
5. Storage box (version equipped
with a temporary puncture repair
kit)
(see following page for details)
or
Tool box (version equipped with a
spare wheel)
(refer to section "Practical Information - § Changing a wheel")
Page 100 of 240
6
FITTINGS
REAR PARCEL SHELF
To remove the shelf:
unhook the two cords,
raise the shelf slightly, then unclip it
on each side.
HOOKS
The hooks can be used to hold shop-
ping bags.
STORAGE BOX
Raise the boot carpet by pulling the
strap upwards to gain access to the
storage box.
This has areas for storing a temporary
puncture repair kit, a box of spare bulbs,
a fi r s t a i d k i t , t w o w a r n i n g t r i a n g l e s , . . .
r e fi t t h e b o o t fl o o r c a r p e t b y f o l d i n g i t
slightly in the middle.
